Sliding Roof: Notes

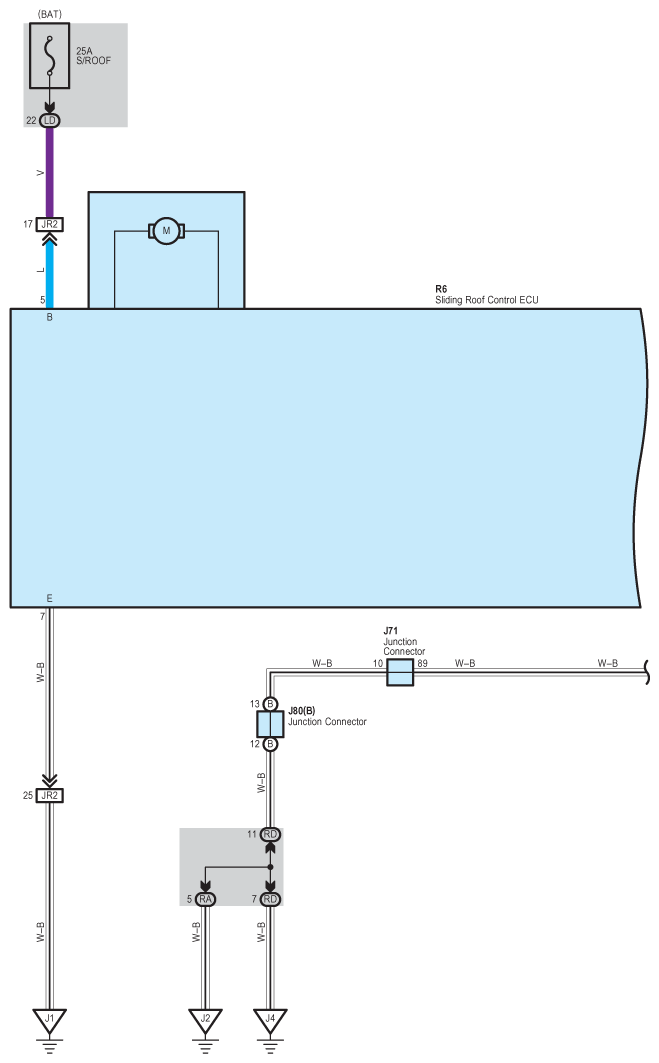

Fig 1: Sliding Roof - Circuit Diagram (1 Of 6)
G07617712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

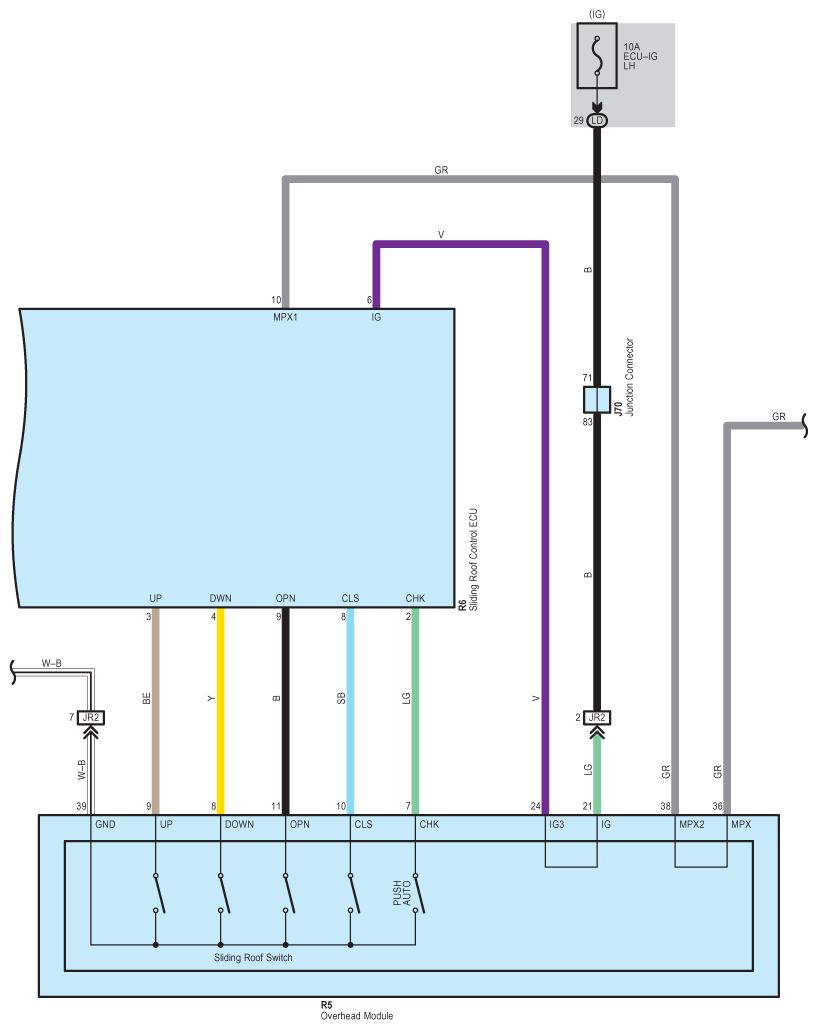

Fig 2: Sliding Roof - Circuit Diagram (2 Of 6)
G07617713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

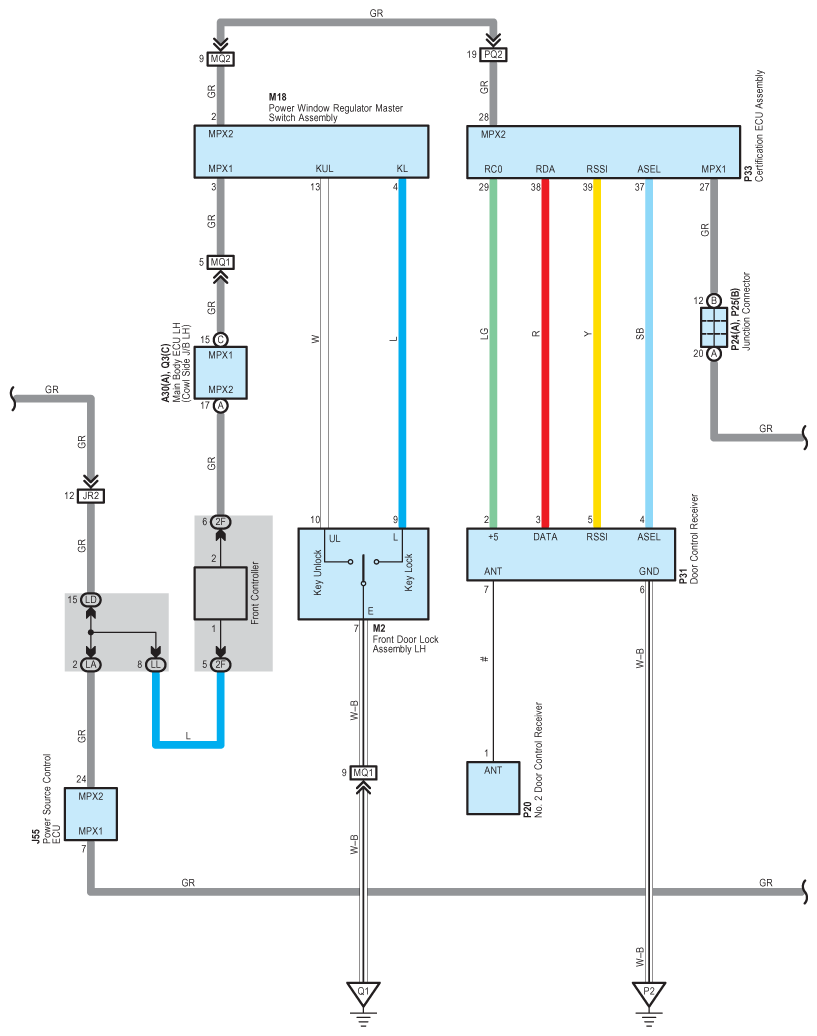

Fig 3: Sliding Roof - Circuit Diagram (3 Of 6)
G07617714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Sliding Roof - Circuit Diagram (4 Of 6)
G07617715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

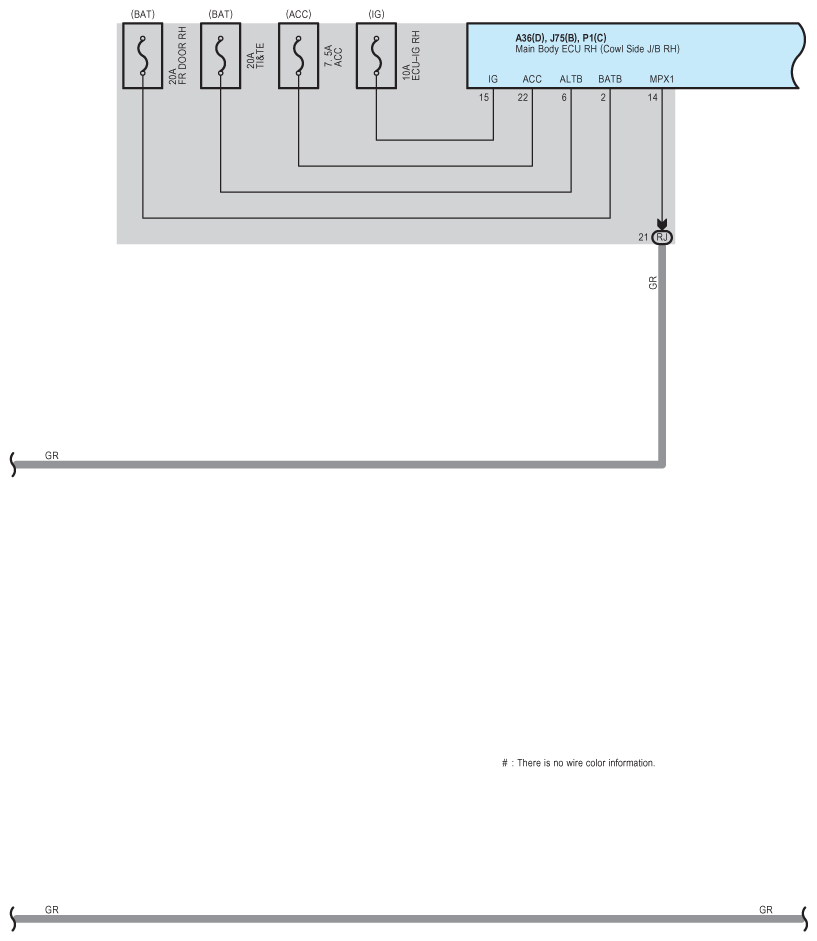

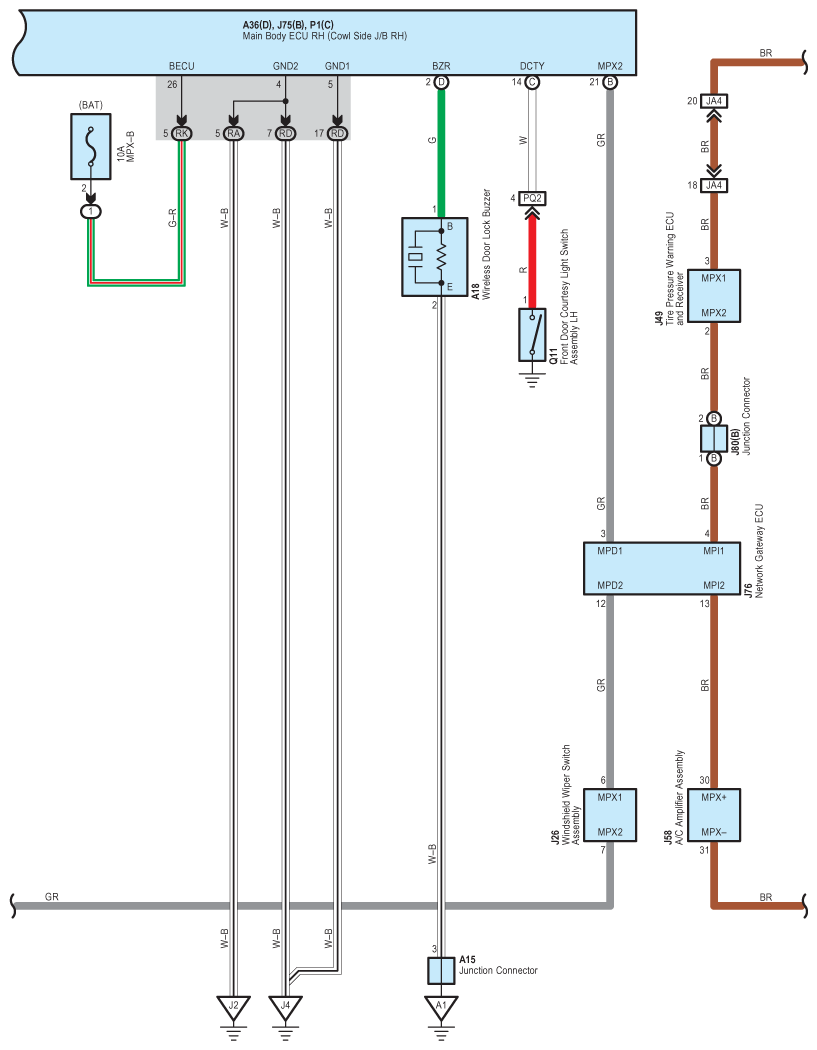

Fig 5: Sliding Roof - Circuit Diagram (5 Of 6)
G07617716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

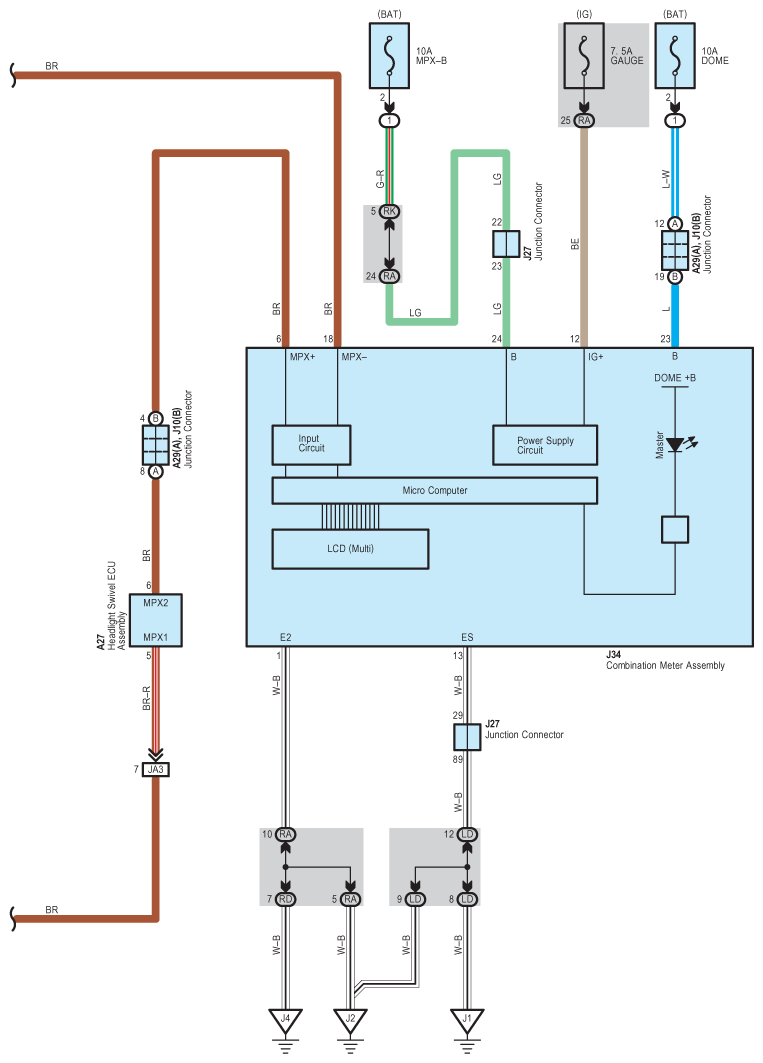

Fig 6: Sliding Roof - Circuit Diagram (6 Of 6)
G07617717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
