Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

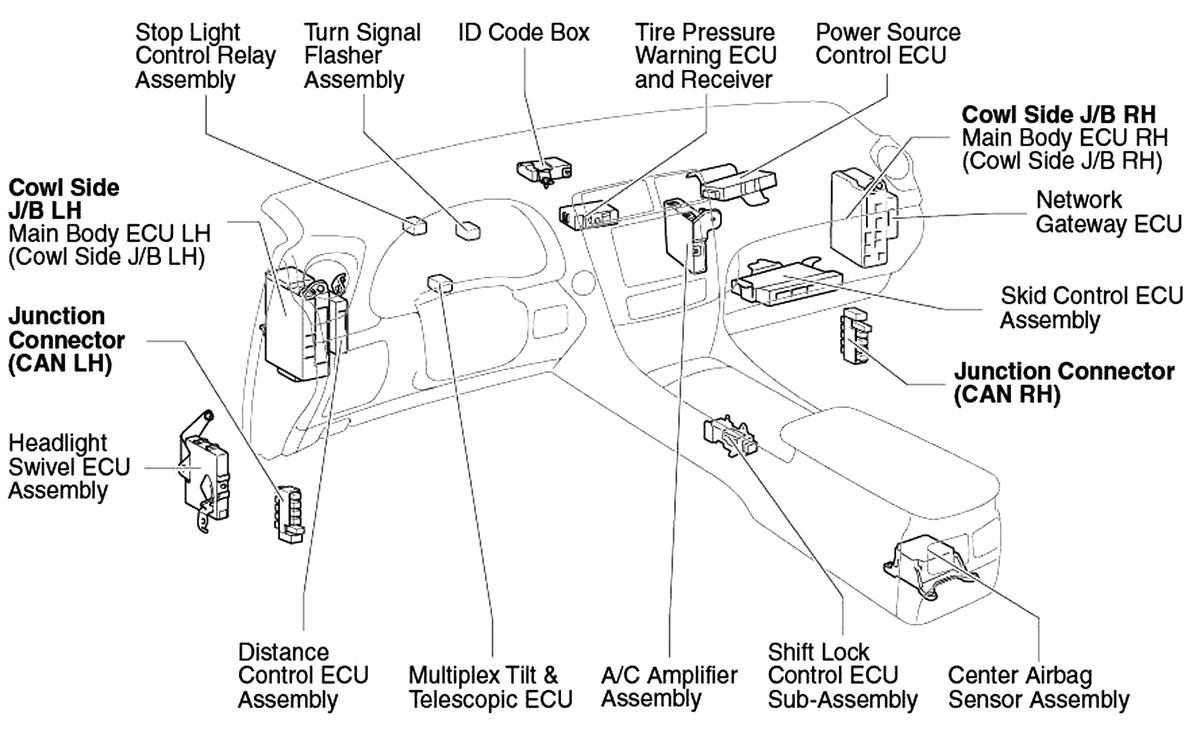

| Cowl Side J/B (LH) | Left end of dash. See Figure. |
| Cowl Side J/B (RH) | Right end of dash. See Figure. |

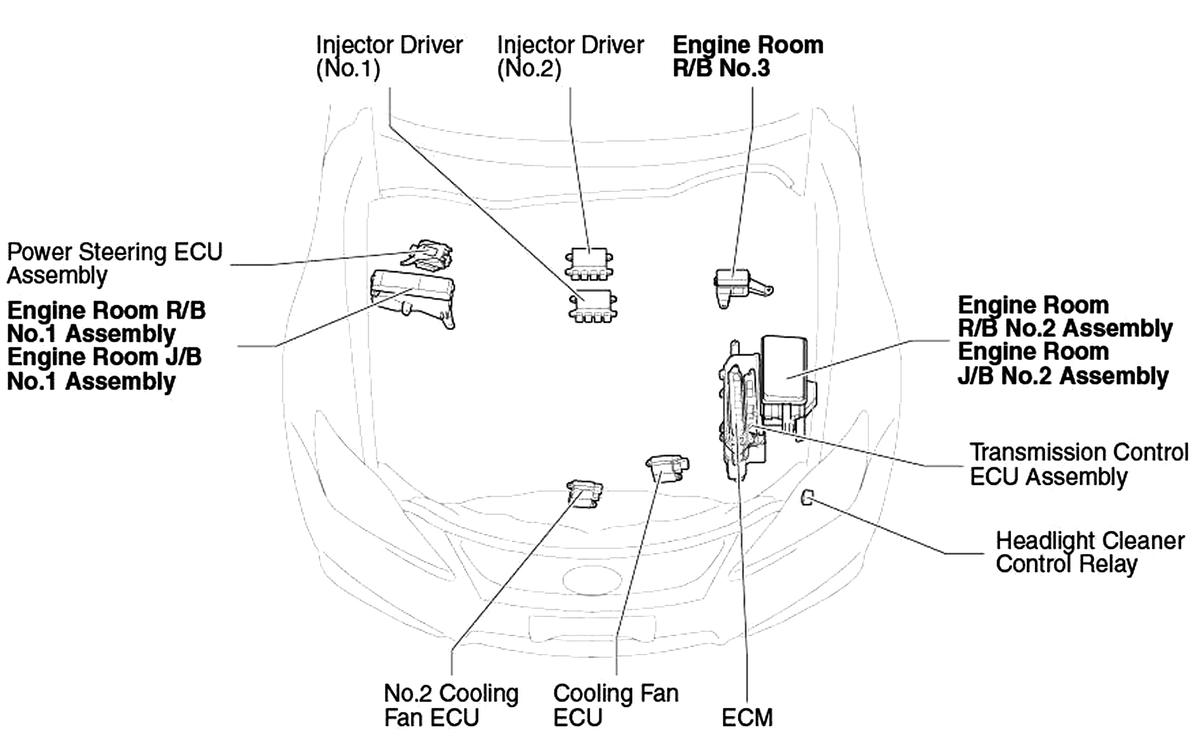

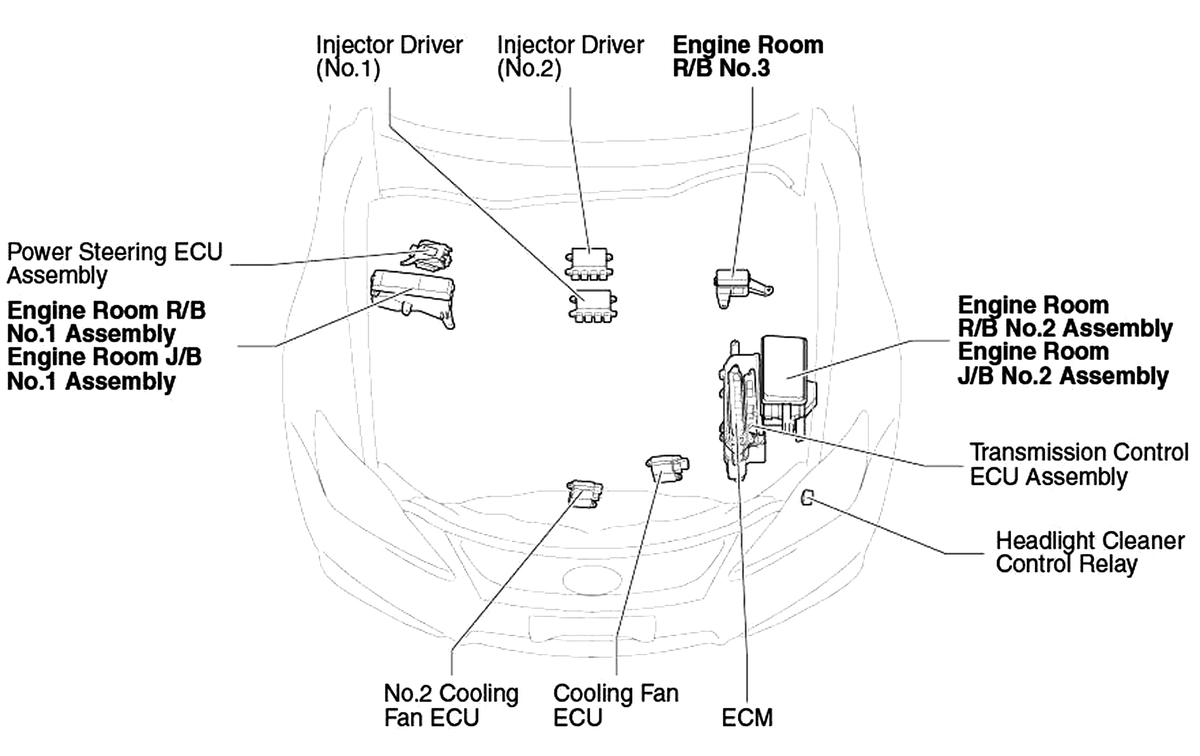

| Engine Room J/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room J/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room R/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 | Left rear of engine compartment. See Figure. |
