Air Fuel Ratio Sensor: Components: Illustration

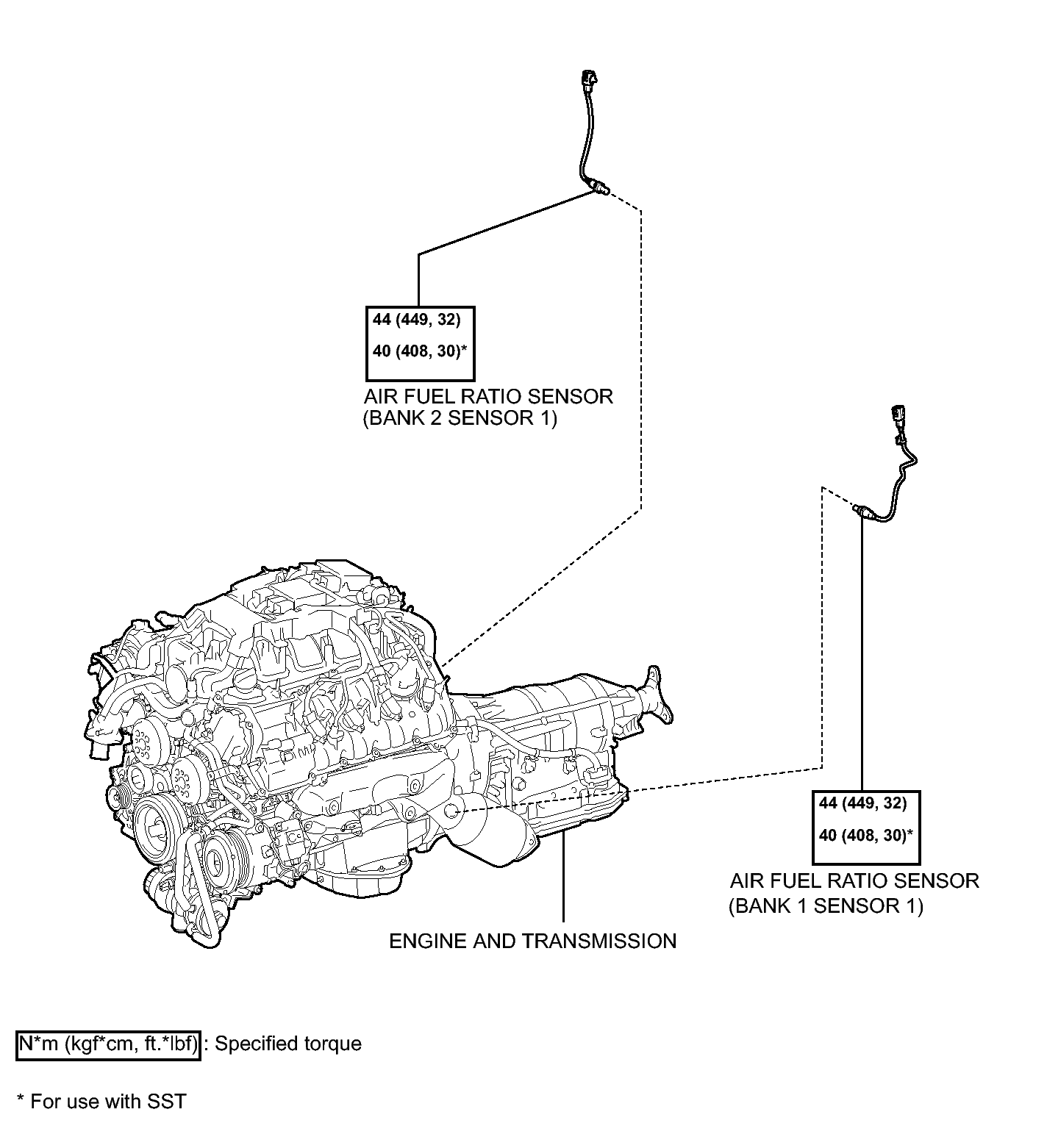

Fig 1: Air Fuel Ratio Sensors With Torque Specifications
GTY121016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
