Engine Oil Temperature Sensor: Components: Illustration

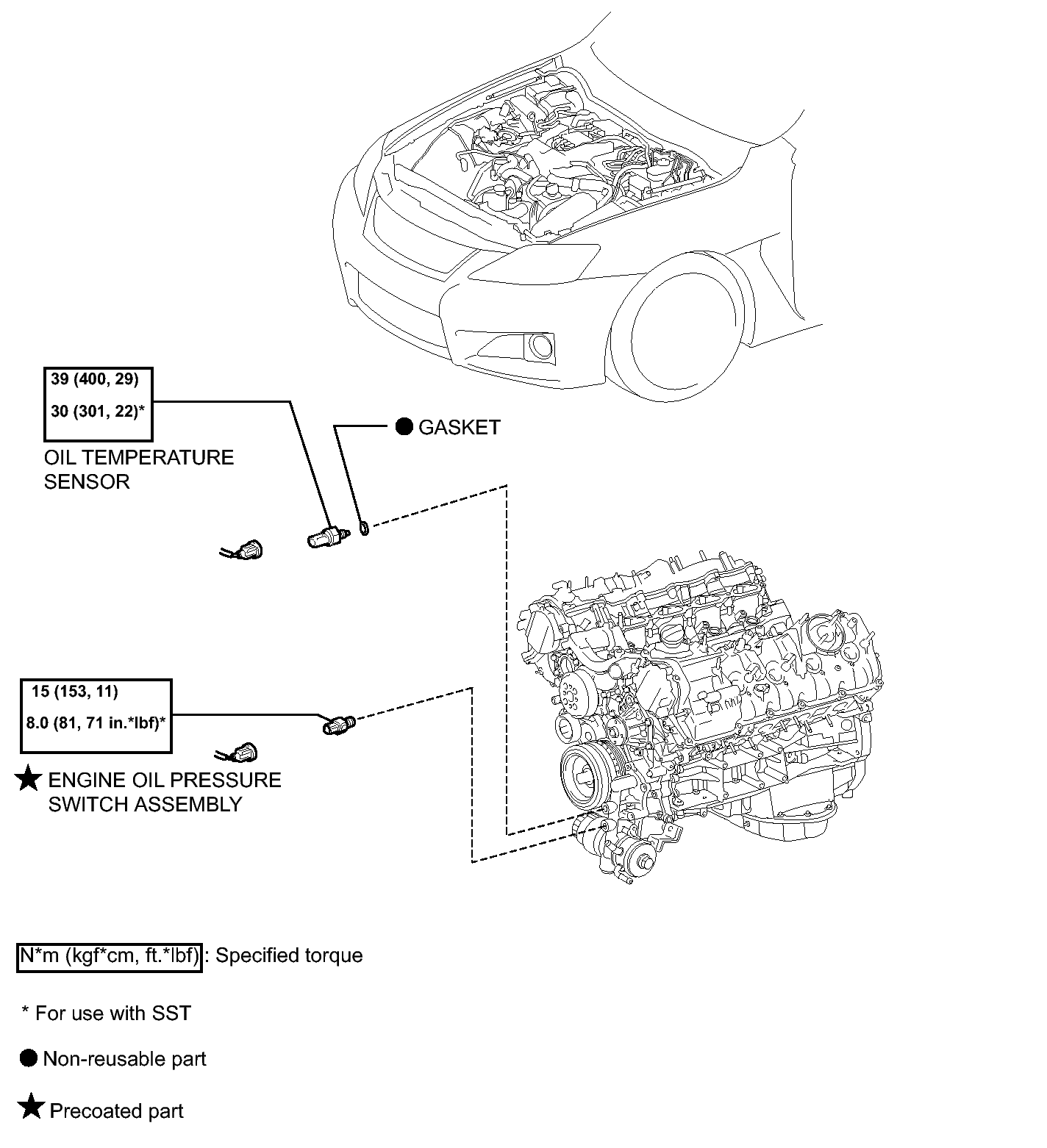

Fig 1: Identifying Engine Oil Temperature Sensor Replacement Components With Torque Specifications
GTY121015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
