Integration Relay: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE NO. 2 RELAY BLOCK COVER
REMOVE INTEGRATION NO. 1 RELAY

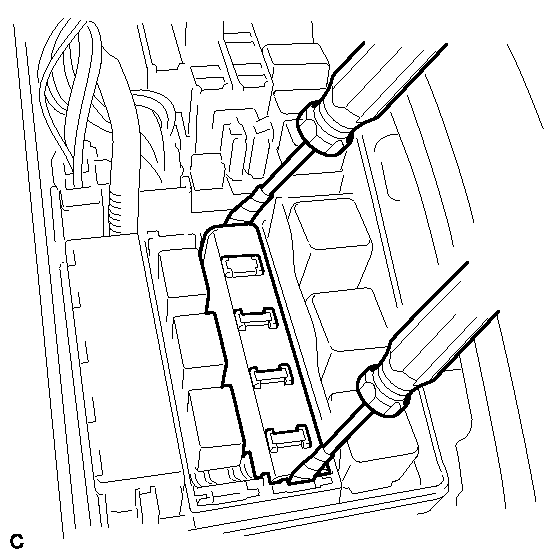

1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and pull up the integration relay.

  Fig 1: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 3 connectors.
