Knock Sensor: Inspection: Inspection

  1. INSPECT KNOCK CONTROL SENSOR

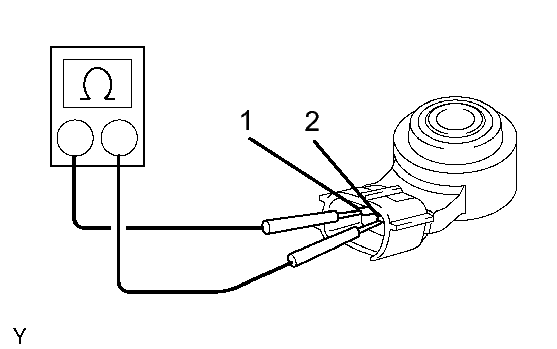

    Fig 1: Inspecting Knock Control Sensor
    GTY100979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 120 to 280 kΩ

      If the result is not as specified, replace the sensor.
