Seat Belt Control Ecu: Components: Illustration

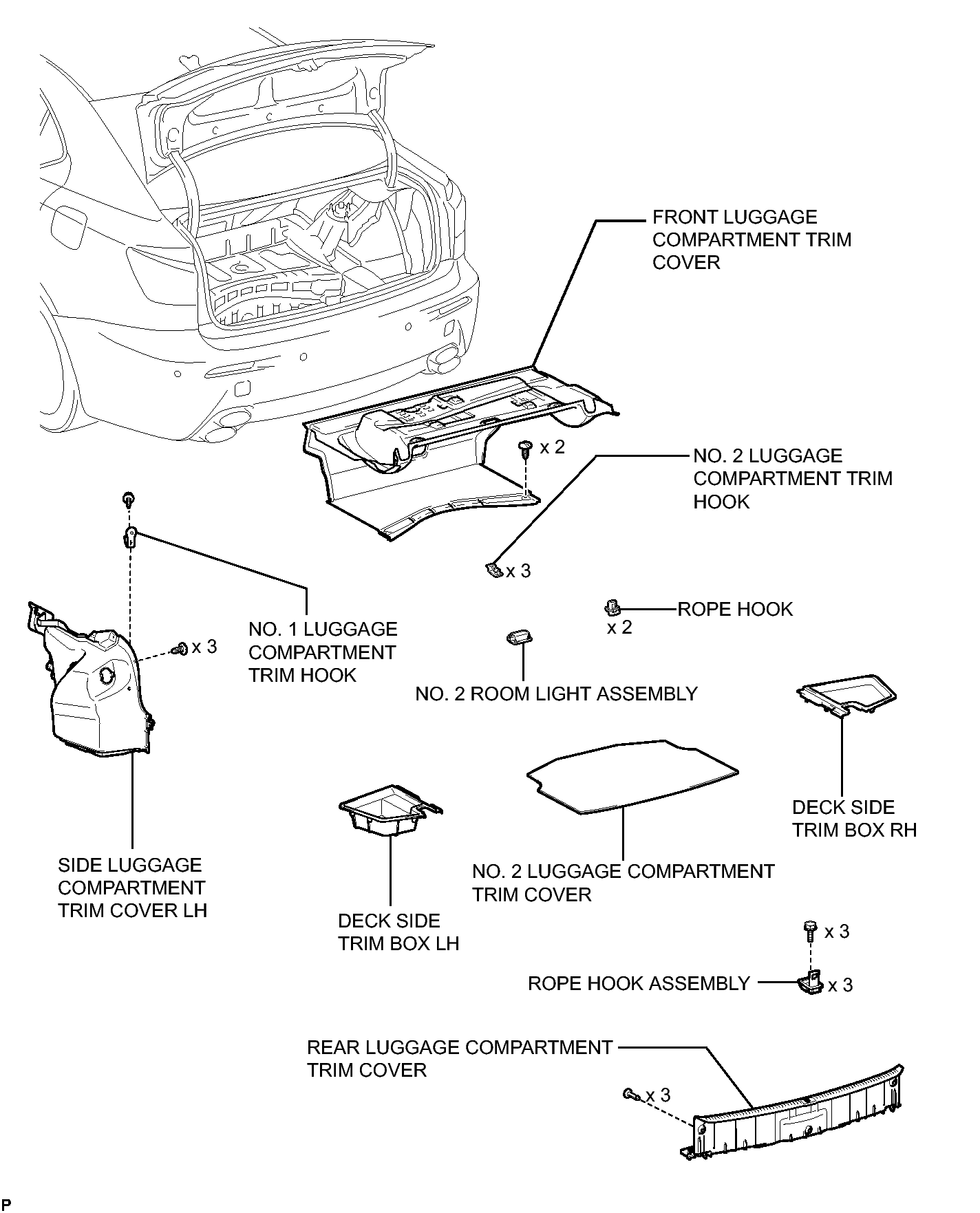

Fig 1: Identifying Seat Belt Control ECU Replacement Components (1 Of 2)
GTY114817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

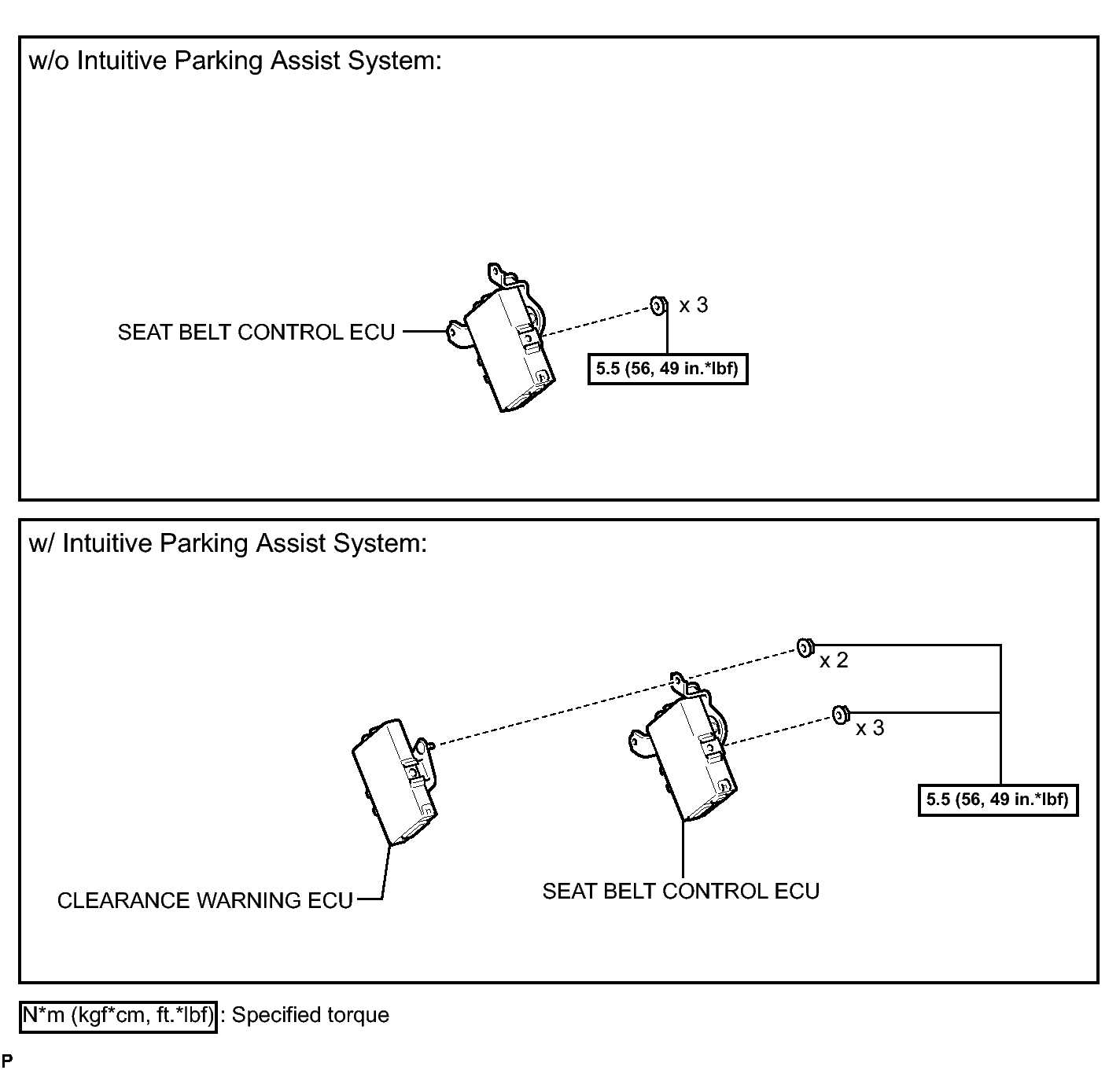

Fig 1: Identifying Seat Belt Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY129720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
