Yaw Rate And Acceleration Sensor: Components

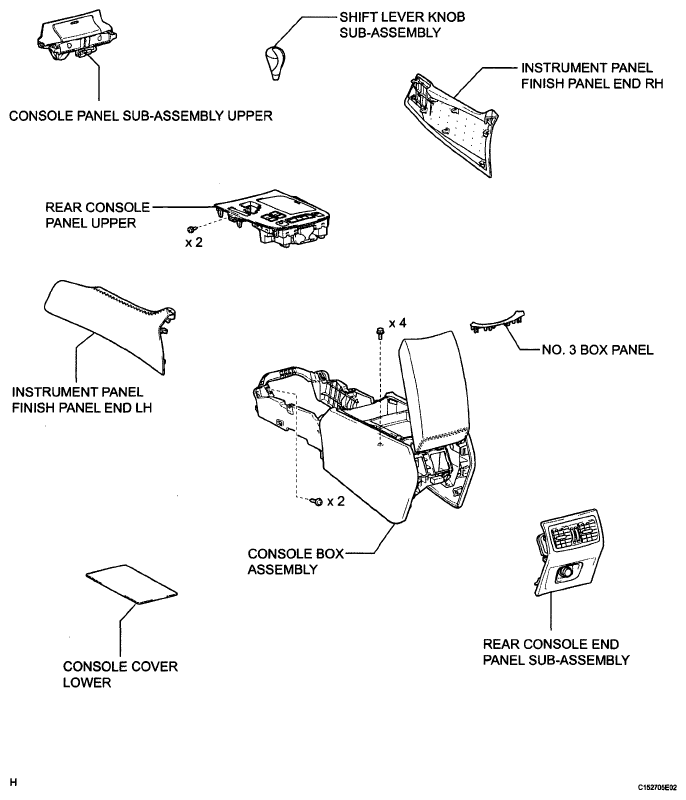

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)
G05848388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

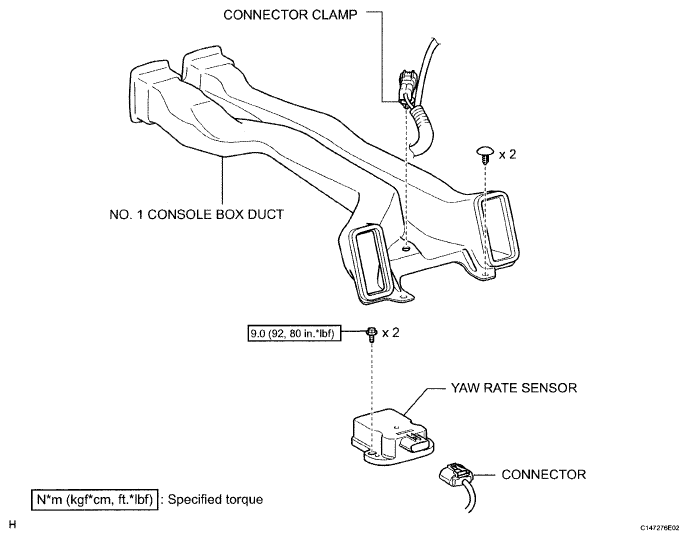

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components (2 Of 2) With Torque Specifications
G04949775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
