Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AFS ECU | Right kick panel. See Figure. |
| Air Suspension Control ECU | Right end of dash. See Figure. |
| Bus Buffer ECU | Right end of dash. See Figure. |
| Canister Pump Module | Under left rear of vehicle. See Figure. |
| Center Airbag ECU | Under center floor console. See Figure. |
| Certification ECU | Left end of dash. See Figure. |
| Clearance Sonar ECU | Right end of dash. See Figure. |
| Door Control Receiver | Right rear of luggage compartment. See Figure. |
| Driving Support ECU | Left kick panel. See Figure. |
| Electric Power Control ECU | Right end of dash. See Figure. |
| Engine Control Module | Left front of engine compartment. See Figure. |
| Fan Control ECU | Center front of engine compartment. See Figure. |
| Front Controller | Right front of engine compartment. See Figure. |
| Front Door Control ECU LH | Driver's door. See Figure. |
| Front Door Control ECU RH | Front passenger's door. See Figure. |
| Front Power Seat Control ECU & Switch LH | Under driver's seat. See Figure. |

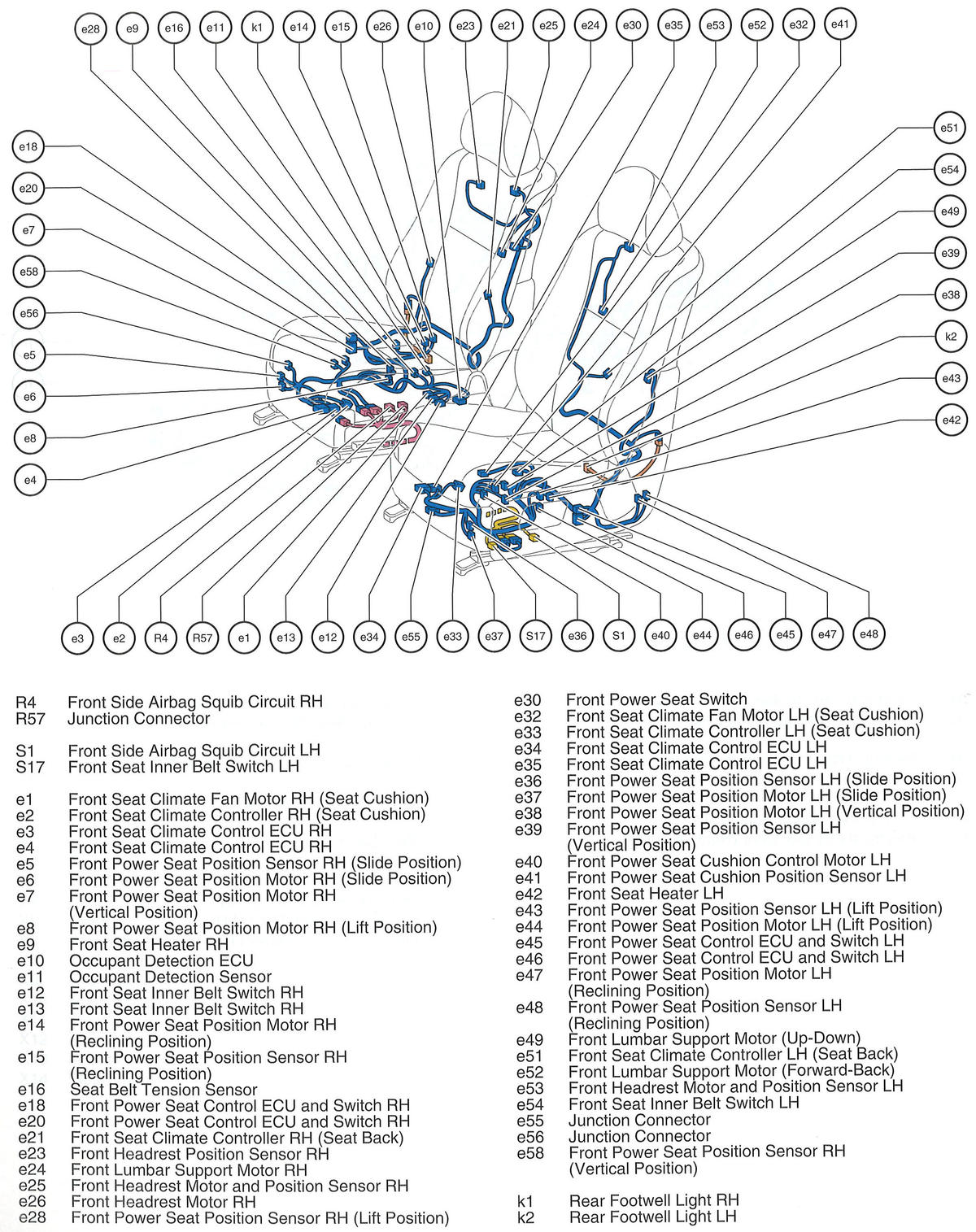

| Front Power Seat Control ECU & Switch RH | Under front passenger's seat. See Figure. |
| Front Seat Climate Control ECU LH | Under driver's seat. See Figure. |
| Front Seat Climate Control ECU RH | Under front passenger's seat. See Figure. |
| Front Seat Climate Controller LH (Seat Back) | Driver's seat back. See Figure. |
| Front Seat Climate Controller RH (Seat Back) | Front passenger's seat back. See Figure. |
| Injector Driver (Bank 1) | Center rear of engine compartment. See Figure. |
| Injector Driver (Bank 2) | Center rear of engine compartment. See Figure. |
| Main Body ECU | Left end of dash. See Figure. |
| Mayday ECU | Right front of luggage compartment. See Figure. |
| Multiplex Tilt & Telescopic ECU | On steering column. See Figure. |
| Navigation ECU | Right end of dash. See Figure. |
| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Overhead Module | Roof console. See Figure. |
| Parking Assist ECU | Right end of dash. See Figure. |
| Parking Brake ECU | Left side of luggage compartment. See Figure. |
| Power Steering ECU | Right side of engine compartment. See Figure. |
| Power Trunk Lid Control ECU | Left side of luggage compartment. See Figure. |
| Rear Door Control ECU LH | Left rear door. See Figure. |
| Rear Door Control ECU RH | Inside right rear door. See Figure. |
| Rear Junction Block ECU | Left side of luggage compartment. See Figure. |
| Rear Power Seat Control ECU LH | Left rear seat back. See Figure. |
| Rear Power Seat Control ECU RH | Right rear seat back. See Figure. |
| Rear Seat Climate Control ECU LH | Left rear seat back. See Figure. |
| Rear Seat Climate Control ECU RH | Right rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Back) | Left rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Cushion) | Left rear seat cushion. See Figure. |
| Rear Seat Climate Controller RH (Seat Back) | Right rear seat back. See Figure. |
| Rear Seat Climate Controller RH (Seat Cushion) | Right rear seat cushion. See Figure. |
| Rear Seat Entertainment ECU | Right rear of luggage compartment. See Figure. |
| Seat Belt Control ECU | Left side of luggage compartment. See Figure. |
| Seat Vibration ECU | Left side of luggage compartment. See Figure. |
| Shift Lock Control ECU | Below shift lever, in center console. See Figure. |
| Skid Control ECU | Left rear of engine compartment. See Figure. |
| Sliding Roof ECU | Roof console. See Figure. |
| Steering Control ECU | Right side of dash. See Figure. |
| Steering Lock ECU | On steering column. See Figure. |
| Tire Pressure Warning ECU | Right end of dash. See Figure. |
| Transmission Control Module | Left side of engine compartment. See Figure. |
| Wireless Door Lock Buzzer Controller | Left side of dash. See Figure. |
