Fuel Tank: Installation

  1. INSTALL FUEL TANK CUSHION
    1. Install the 5 tank cushions and fuel tank protector.
      Fig 1: Identifying Tank Cushions
      G04948105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 tank cushions.
      Fig 2: Identifying Tank Cushions
      G04948104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. Install the vent hose to the fuel tank.
      1. Align the fuel tank vent hose connector with the pipe, then push in the fuel tank vent hose connector until the retainer makes a "click" sound to install the fuel tank vent hose to the fuel tank.
        NOTE:
        • Check that there are no scratches or foreign objects around the connected part of the fuel tank vent hose connector and pipe before this procedure.
        • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the fuel tank vent hose connector.

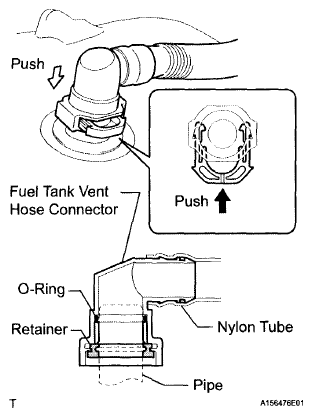

          Fig 3: Installing Vent Hose To Fuel Tank
          G06186778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 FUEL TANK PROTECTOR
    1. Install the clamp to the fuel tank.
    2. Install the bolt and clip and fuel tank protector to the fuel tank.

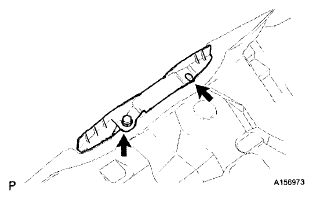

      Fig 4: Locating Fuel Tank Protector Bolt And Clip
      G06186779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Install the fuel hose clamp.
      Fig 5: Locating Fuel Hose Clamp
      G04948101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel tank main tube to the fuel tank with the 6 clamps.
      Fig 6: Locating Fuel Tank Main Tube Clamps
      G04948100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Install a new gasket and sender gauge to the fuel tank with the 5 screws.

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  6. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
    1. Apply a light coat of gasoline to a new gasket, and install it to the fuel tank.
      Fig 7: Locating Sender Gauge Screws
      G04948099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel hose, and install the fuel suction with pump and gauge tube.
      NOTE:
      • Be careful not to bend the arm of the fuel sender gauge.
      • When connecting the fuel hose, do not forcibly pull the hose.
        Fig 8: Locating Fuel Hose
        G04947945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the lower fuel tank protector and fuel tank vent tube set plate with the 8 bolts.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      HINT:

      Align the protrusion of the set plate with the cutout of the fuel suction pump and gauge.

  7. INSTALL FUEL TANK ASSEMBLY
    1. Set the fuel tank on a transmission jack.
    2. Raise the transmission jack so that the fuel tank breather tube can be connected.

      HINT:

      Raise the transmission jack slowly.

      Fig 9: Locating Lower Fuel Tank Protector And Fuel Tank Vent Tube Set Plate Bolts
      G05773079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the fuel tank breather tube.

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
        Fig 10: Connecting Fuel Tank Breather Tube
        G04948115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the fuel vent hose.

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
        Fig 11: Connecting Fuel Vent Hose
        G04948116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slowly raise the transmission jack, and install the 2 fuel tank bands with the 4 bolts.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE:
      • Do not allow the fuel tank to contact the vehicle, especially the differential.
      • Make sure that the fuel tank is free from the fuel tank vent hose.
        Fig 12: Locating Fuel Tank Bands Bolts
        G04948094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the filler pipe hose to the fuel tank.
    7. Tighten the clamp.
      Fig 13: Locating Filler Pipe Hose Clamp
      G04948093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the fuel tank main tube.

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
        Fig 14: Connecting Fuel Tank Main Tube
        G04948119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the fuel tank return vent tube.

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
        Fig 15: Connecting Fuel Tank Return Vent Tube
        G04948119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FUEL TANK PROTECTOR BRACKET SIDE
    1. Install the protector bracket with the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

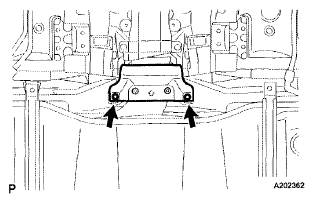

      Fig 16: Locating Protector Bracket Bolts
      G06186760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FUEL TANK FILLER PIPE PROTECTOR
    1. Attach the 2 clips and protector.
    2. Install the 2 nuts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

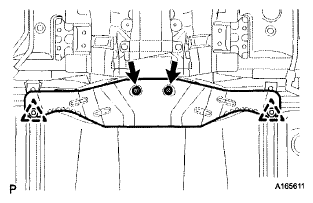

      Fig 17: Locating Fuel Tank Filler Pipe Protector Nuts
      G06186759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
    1. Install the propeller with center bearing shaft (see INSTALLATION ).
  11. INSTALL FRONT EXHAUST PIPE ASSEMBLY
    1. Install the exhaust pipe (see INSTALLATION ).
  12. INSTALL REAR FLOOR SERVICE HOLE COVER
    1. Connect the fuel sender gauge connector.
    2. Install the service hole cover with new butyl tape.
      Fig 18: Locating Fuel Sender Gauge Connector
      G04948090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

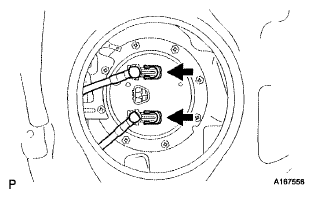

  13. INSTALL FUEL TANK MAIN AND RETURN TUBE
    Fig 19: Locating Fuel Tank Main And Return Tube Clamp
    G06186794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the fuel tank main tube and fuel tank return vent tube with the 2 tube joint clips.
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting parts.
      • Check that the fuel tube joint is inserted securely.
      • Check that the tube joint clips are on the collars of the fuel tube joints.
      • After installing the tube joint clips, check that the fuel tube joints have not been pulled off.
        Fig 20: Identifying Tube Joint Clips
        G04947967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 21: Locating Fuel Pump Connector
      G04947835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR FLOOR NO. 2 SERVICE HOLE COVER
    1. Connect the connector.
    2. Install the service hole cover with new butyl tape.
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  16. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  17. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  18. INSPECT FOR FUEL LEAK (See  ON-VEHICLE INSPECTION   )
  19. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
    1. Install rear seat assembly (see INSTALLATION ).
  20. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
    1. Install rear seat assembly (see INSTALLATION ).
  21. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Type)
    1. Install rear seat cushion assembly (see INSTALLATION ).
