Camshaft Position Sensor: Installation

  1. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the camshaft position sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the camshaft position sensor connector.

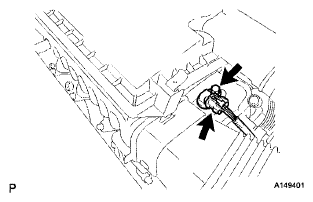

      3. Fig 1: Locating Camshaft Position Sensor With Bolt
      G06190185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION )
