Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install the crankshaft position sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the crankshaft position sensor connector.

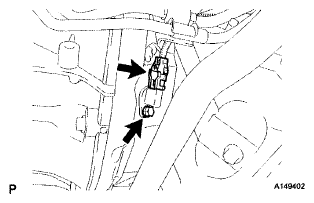

      3. Fig 1: Locating Crankshaft Position Sensor With Bolt
      G06190202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)  (See INSTALLATION )
  3. INSTALL NO. 2 ENGINE UNDER COVER (for AWD)  (See INSTALLATION )
