On-Vehicle Inspection

REMOVE COWL TOP VENTILATOR LOUVER RH (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
REMOVE VVT RELAY (VVT RH, VVT LH)
1. Remove the VVT relay from the engine room No. 2 relay block.

INSPECT VVT RELAY

Measure the resistance according to the value (s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
3-5	when no battery voltage is applied to terminals 1 and 2	10 kΩ or higher
3-5	when battery voltage is applied to terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the relay.

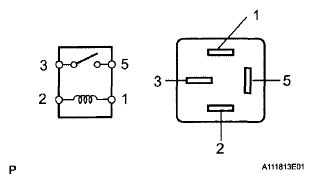

Fig 1: Inspecting VVT Relay

INSTALL VVT RELAY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
