Camshaft Oil Control Valve: Components

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 2)
G06190120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

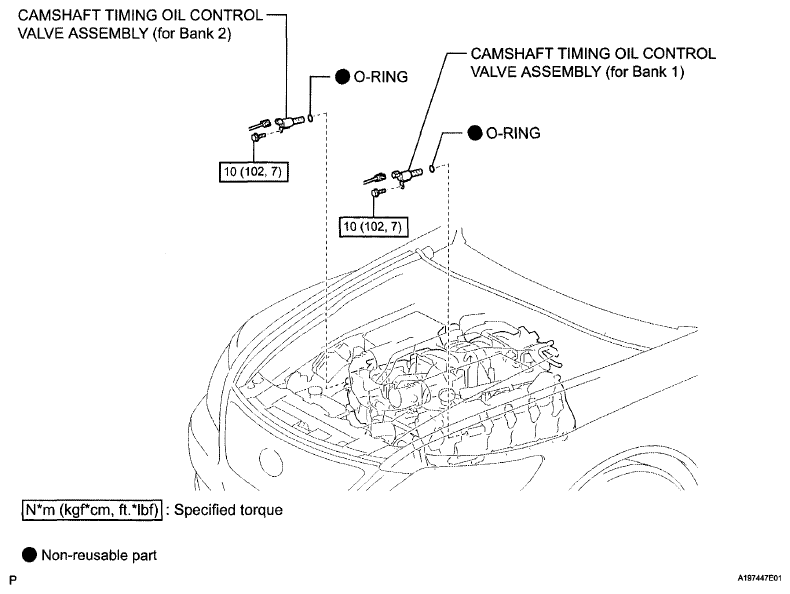

Fig 2: Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 Of 2)
G06190121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
