Camshaft Timing Control Motor: Components

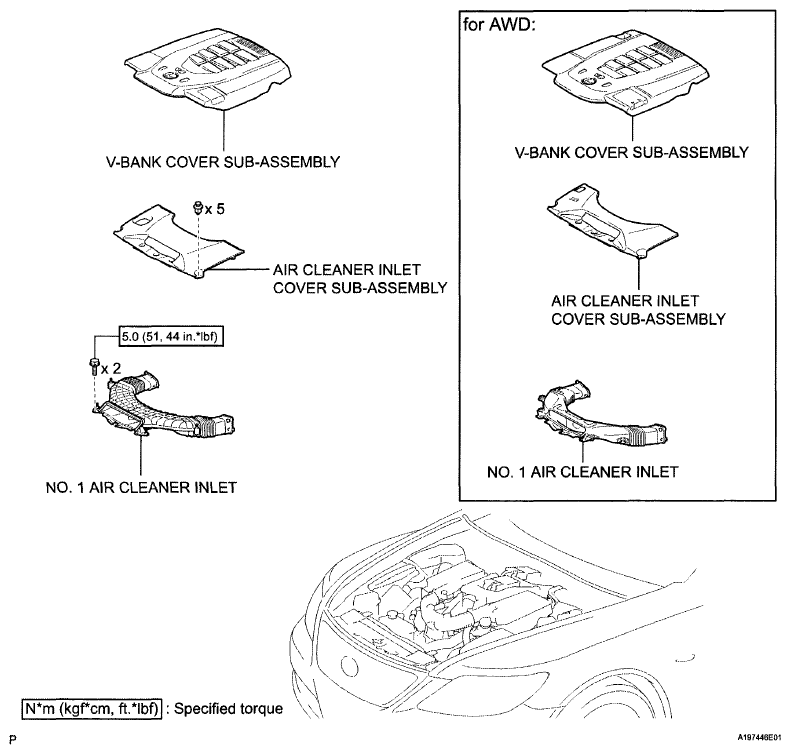

Fig 1: Identifying Camshaft Timing Control Motor Replacement Components With Torque Specifications (1 Of 2)
G06190127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

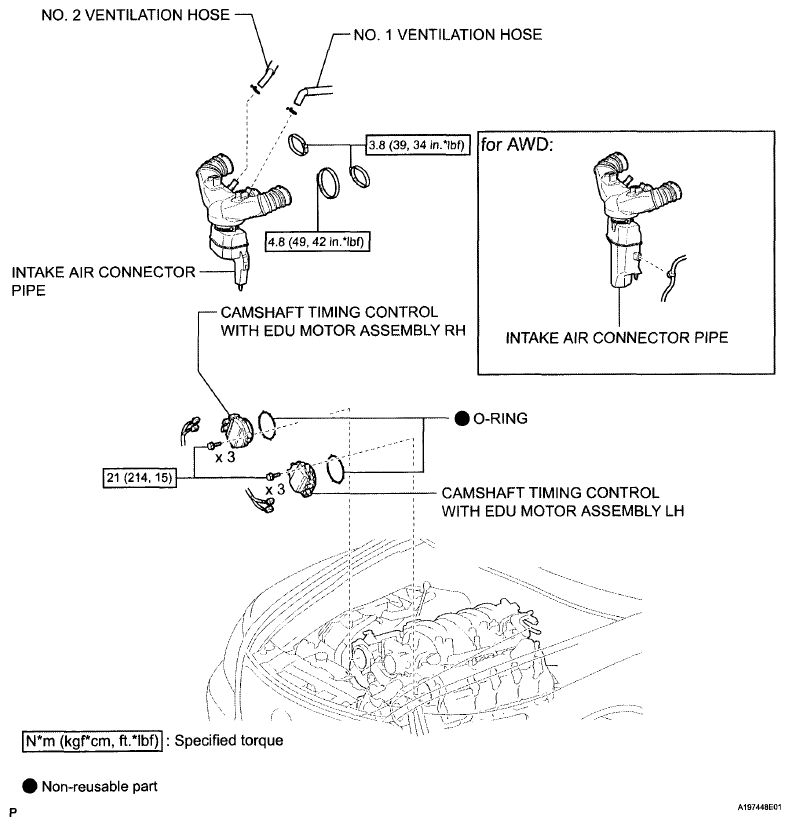

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 2)
G06190128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
