Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the engine coolant temperature sensor.

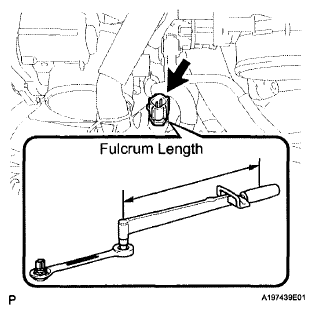

2. Using a 19 mm ball joint lock nut wrench, install the sensor.
  Torque: with ball joint lock nut wrench 13 N*m (133 kgf*cm, 10 ft.*lbf)

  without ball joint lock nut wrench 20 N*m (200 kgf*cm, 14 ft.*lbf)

  NOTE: Do not use a tool such as an impact wrench or equivalent.

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
  - Make sure the ball joint lock nut wrench and torque wrench are connected in a straight line.
3. Connect the engine coolant temperature sensor connector.
ADD ENGINE COOLANT (See REPLACEMENT )
INSPECT FOR COOLANT LEAK (See ON-VEHICLE INSPECTION )
INSTALL INTAKE AIR CONNECTOR PIPE (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ENGINE UNDER COVER (See REPLACEMENT )
