Mass Air Flow Meter: Installation

INSTALL MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 1)
1. Install the MAF meter with the 2 screws.
  Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)
  NOTE:
  - If the screw is tightened excessively, the screw hole may be damaged.
  - Make sure the O-ring is not pinched.

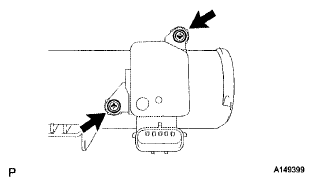

  Fig 1: Identifying Mass Air Flow Meter With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 2)
1. Install the MAF meter with the 2 screws.
  Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)
  NOTE:
  - If the screw is tightened excessively, the screw hole may be damaged.
  - Make sure the O-ring is not pinched.

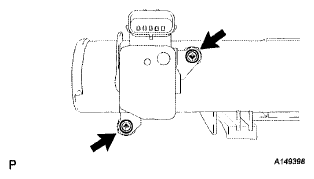

  Fig 2: Locating MAF Meter Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY LH
1. Install the air cleaner cap to the air cleaner case with the 2 clips.
  Torque: for hose clamp

  3.8 N*m (39 kgf*cm, 34 in.*lbf)

  HINT:

  Insert the protrusion of the air cleaner hose into the hole of the hose clamp.

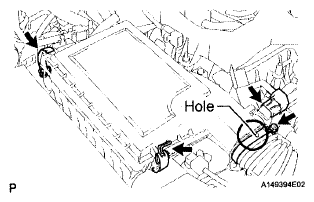

  Fig 3: Identifying Air Cleaner Cap With Clips (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY RH
1. Install the air cleaner cap to the air cleaner case with the 2 clips.
  Torque: for hose clamp

  3.8 N*m (39 kgf*cm, 34 in.*lbf)

  HINT:

  Insert the protrusion of the air cleaner hose into the hole of the hose clamp.

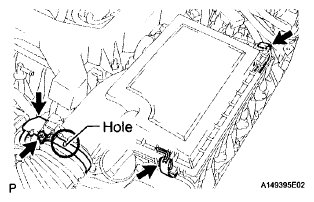

  Fig 4: Identifying Air Cleaner Cap With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
