Ignition Coil And Spark Plug: Components

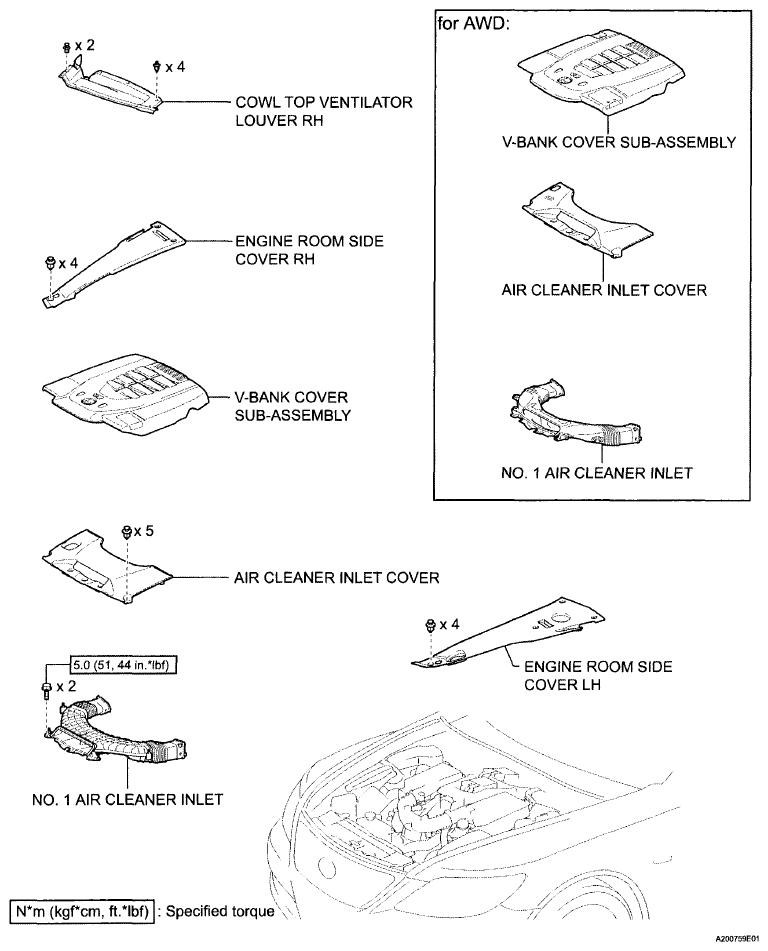

Fig 1: Ignition Coil And Spark Plug Replacement Components (1 Of 4) With Torque Specifications
G06196539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition Coil And Spark Plug Replacement Components (2 Of 4) With Torque Specifications
G06196540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

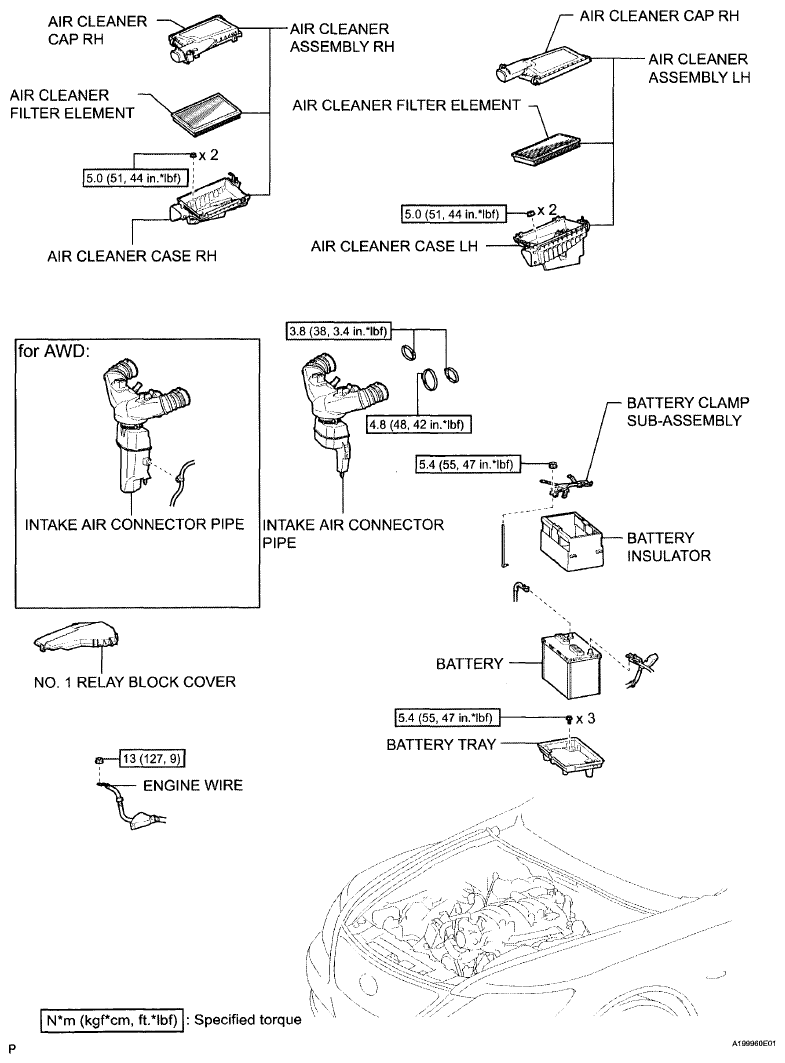

Fig 3: Ignition Coil And Spark Plug Replacement Components (3 Of 4) With Torque Specifications
G06196541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

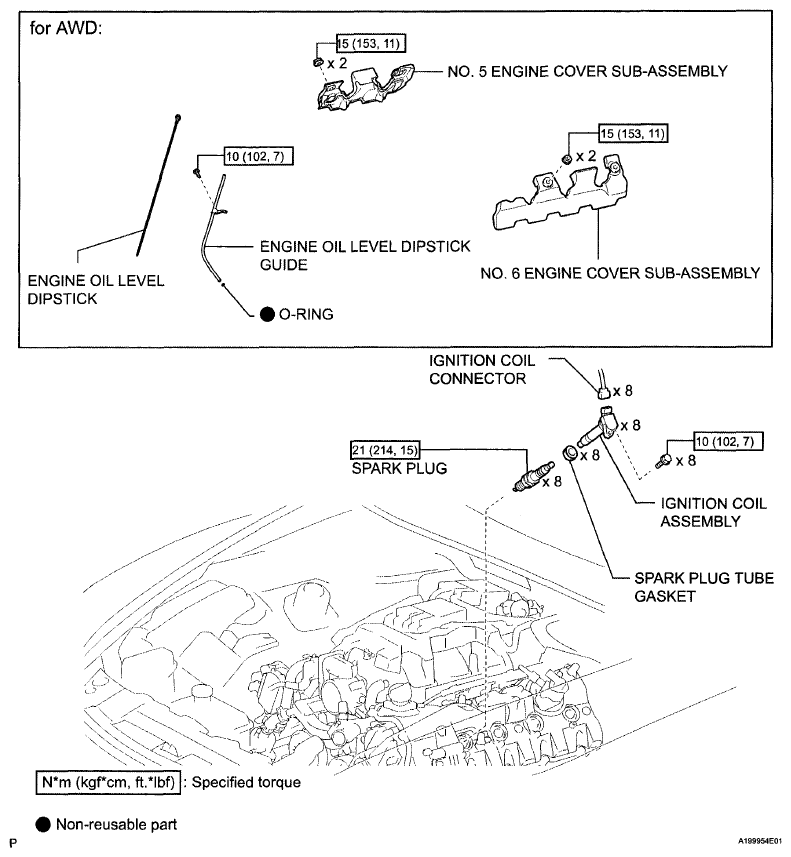

Fig 4: Ignition Coil And Spark Plug Replacement Components (4 Of 4) With Torque Specifications
G06196542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
