VVT Sensor: Components

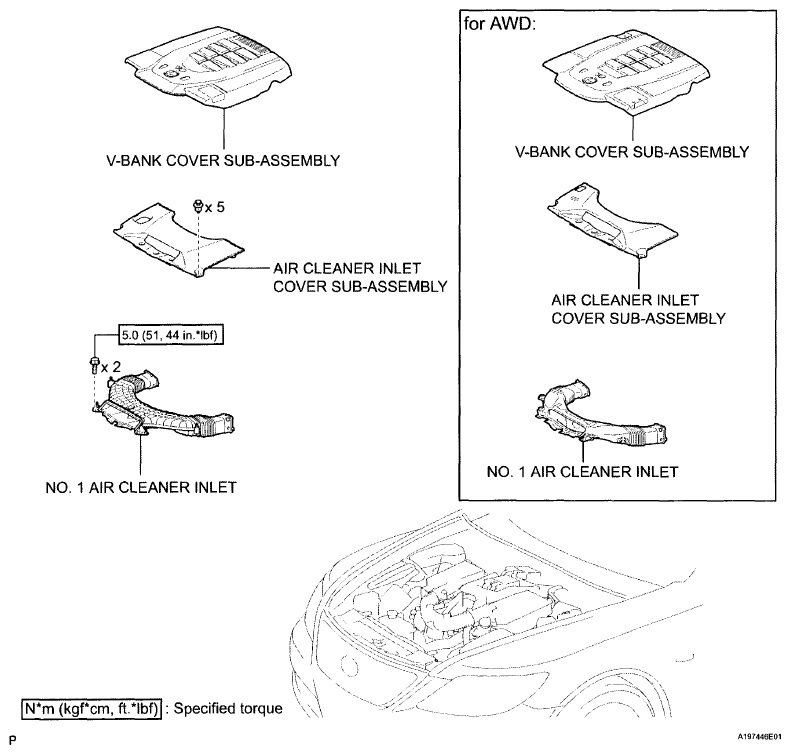

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
G06190186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

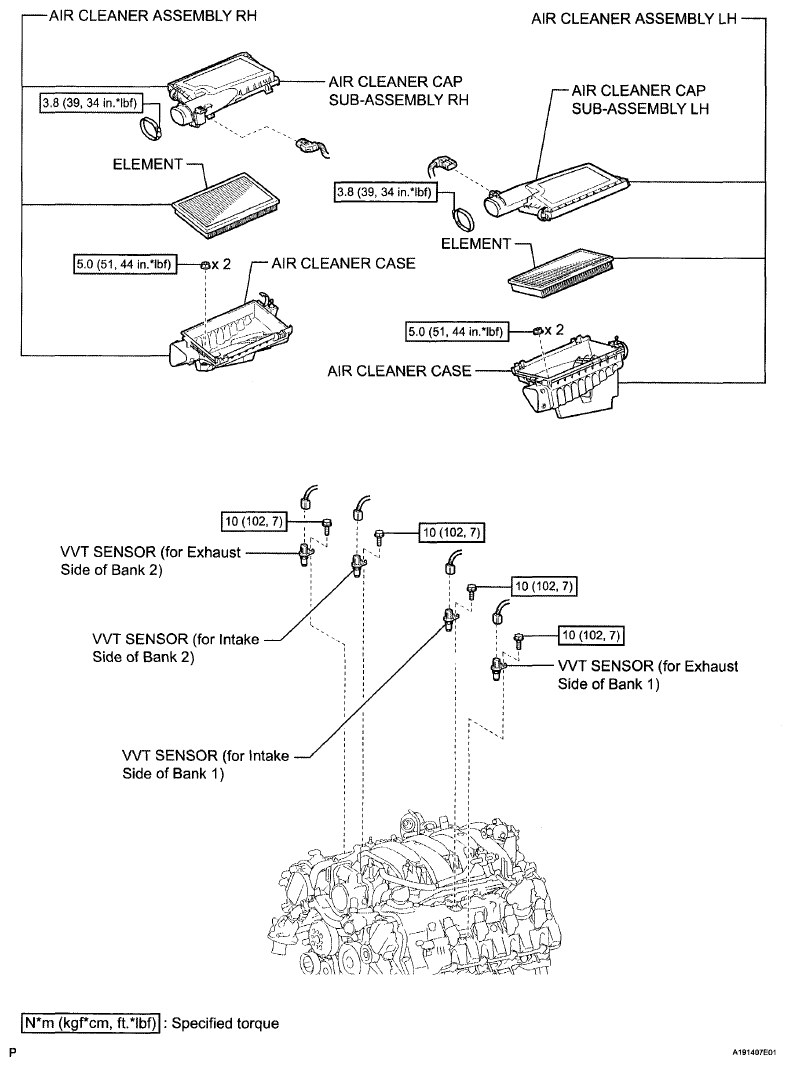

Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
G06190187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
