VVT Sensor: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE NO. 1 AIR CLEANER INLET (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY LH
1. Disconnect the MAF meter connector.

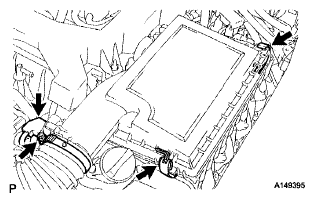

2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap LH.
3. Remove the element from the air cleaner case.

  Fig 1: Locating Air Cleaner Cap With Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

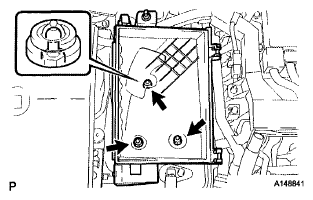

4. Remove the 2 nuts, clip and air cleaner case.
Fig 2: Locating Air Cleaner Case, Clip With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER ASSEMBLY RH
1. Disconnect the MAF meter connector.

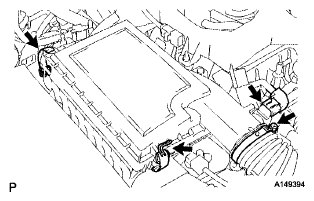

2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap RH.
3. Remove the element from the air cleaner case.

  Fig 3: Identifying Air Cleaner Cap With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

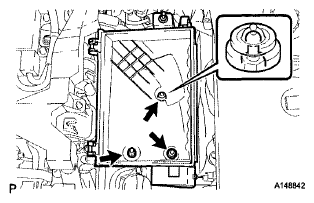

4. Remove the 2 nuts, clip and air cleaner case.
Fig 4: Locating Air Cleaner Case With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR

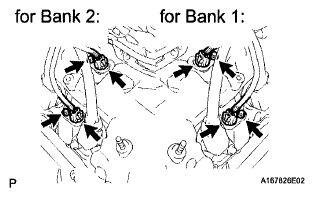

1. Disconnect the 4 VVT sensor connectors.
2. Remove the 4 bolts and 4 VVT sensors.
Fig 5: Locating VVT Sensor Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
