Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

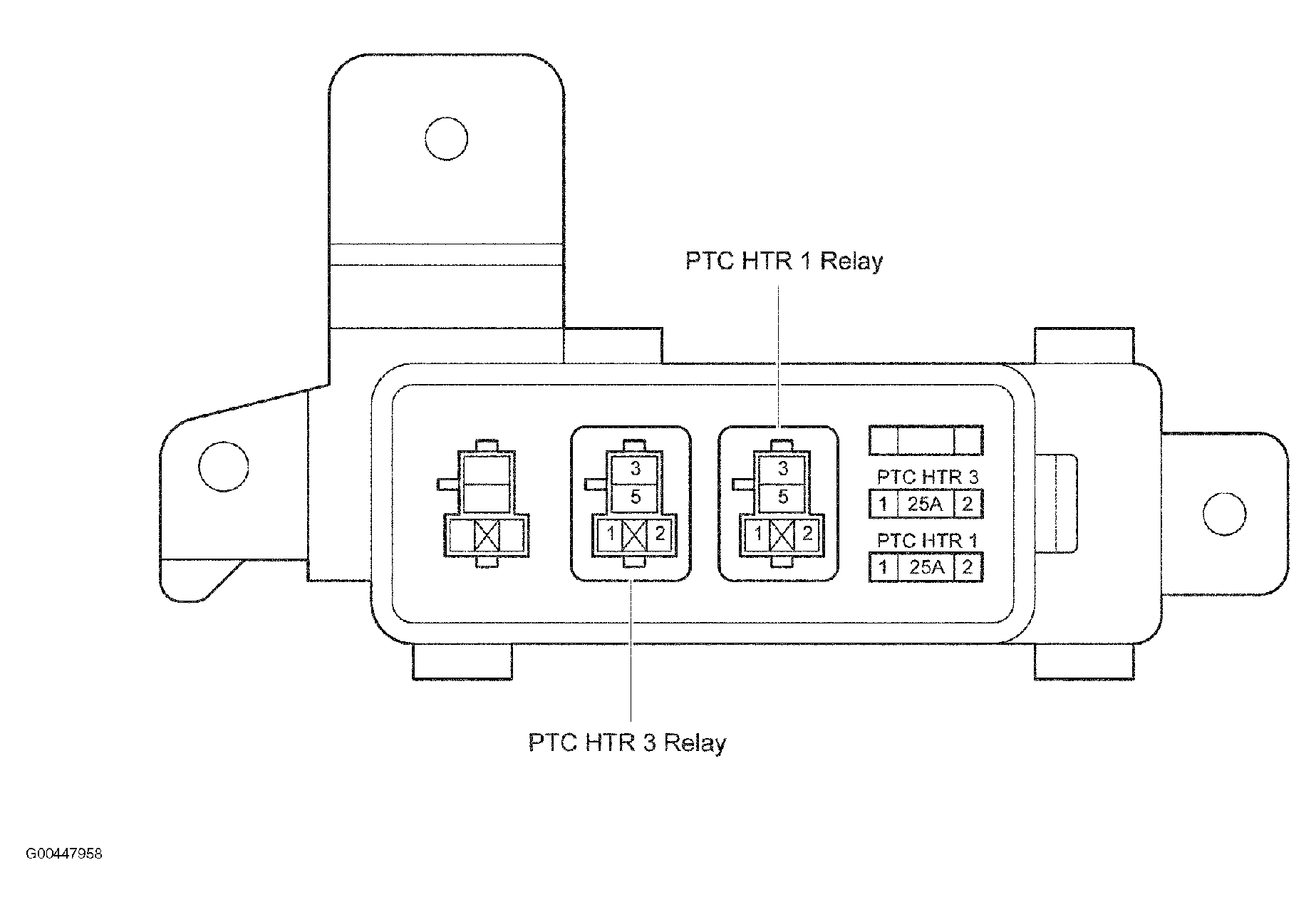

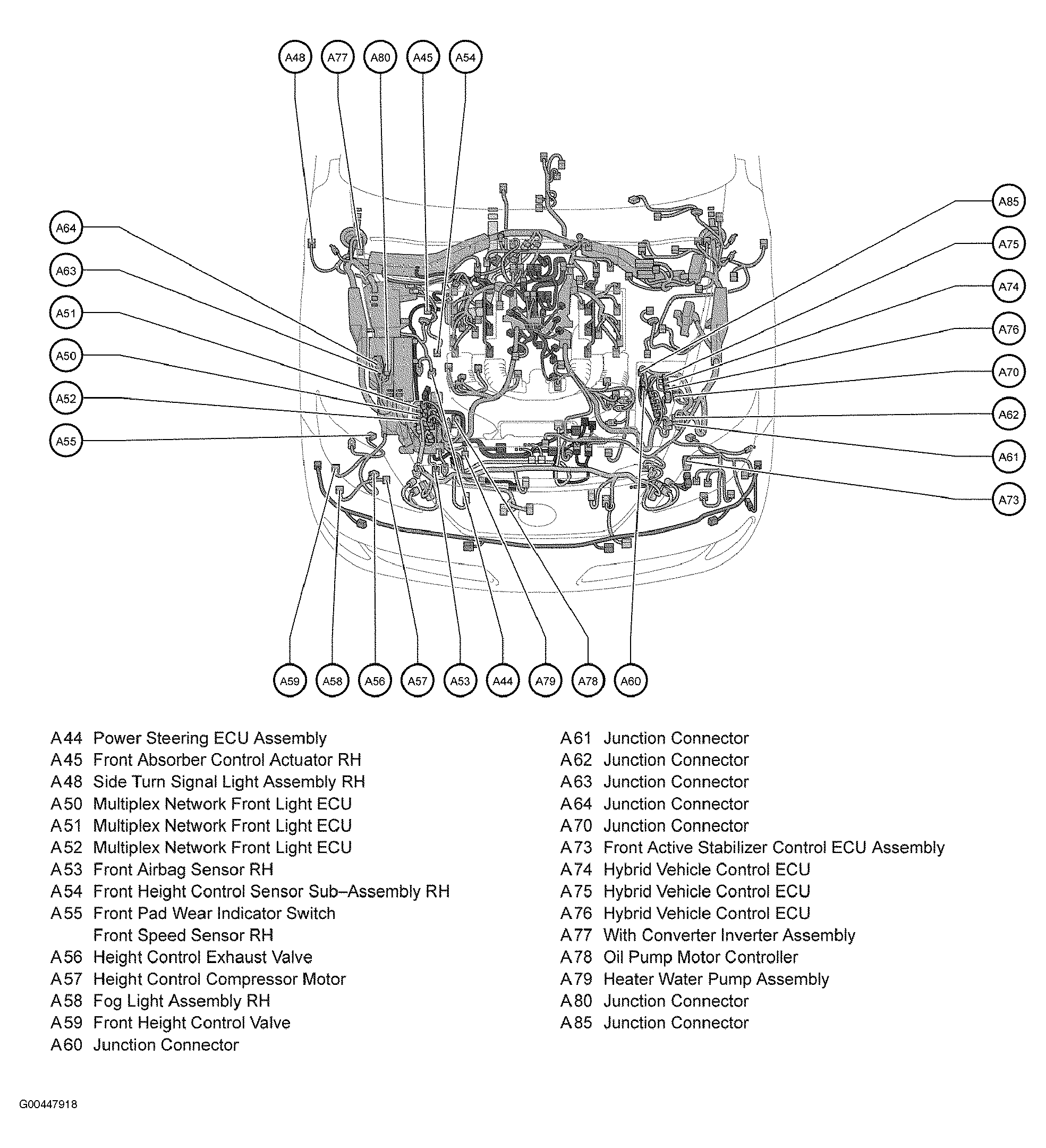

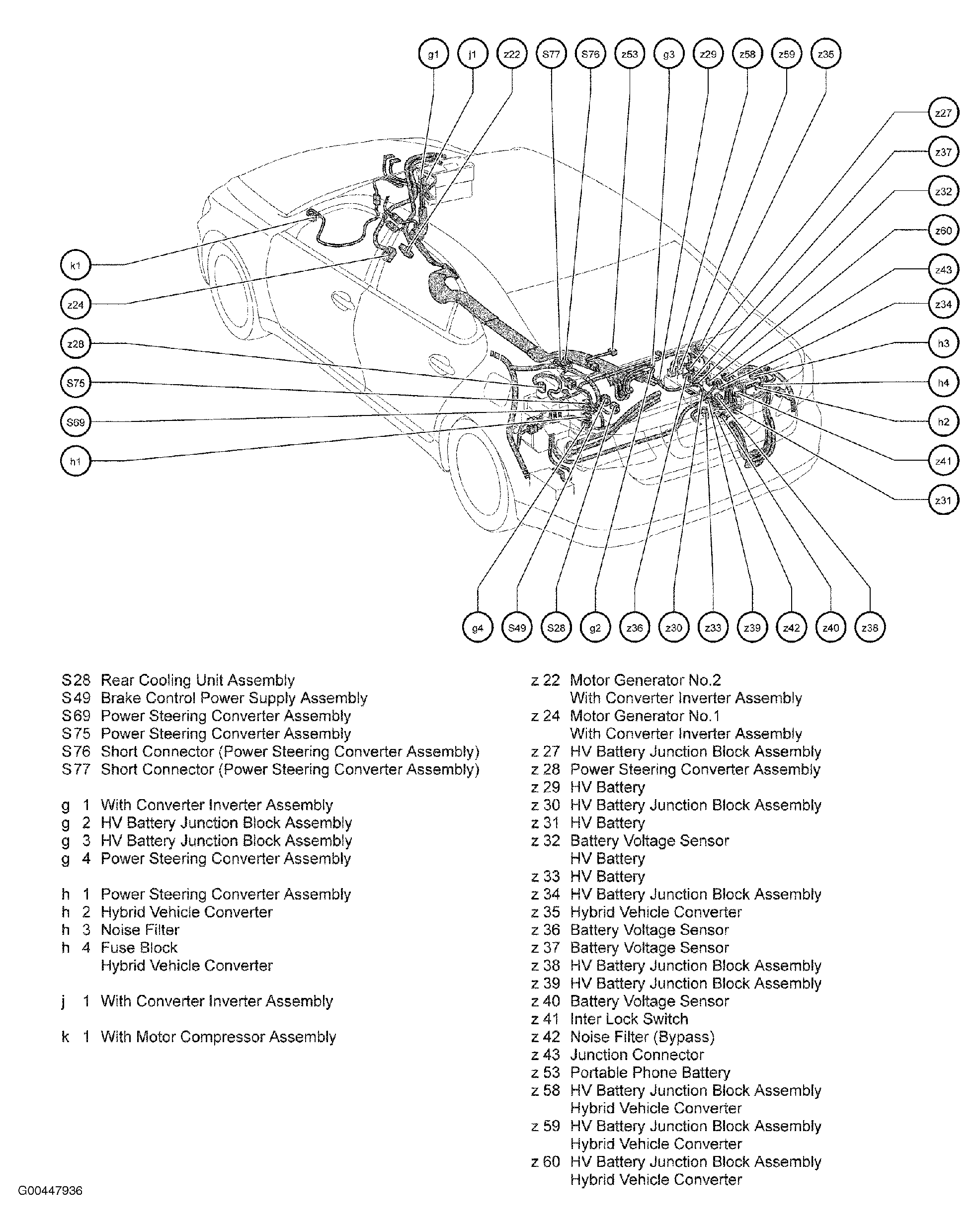

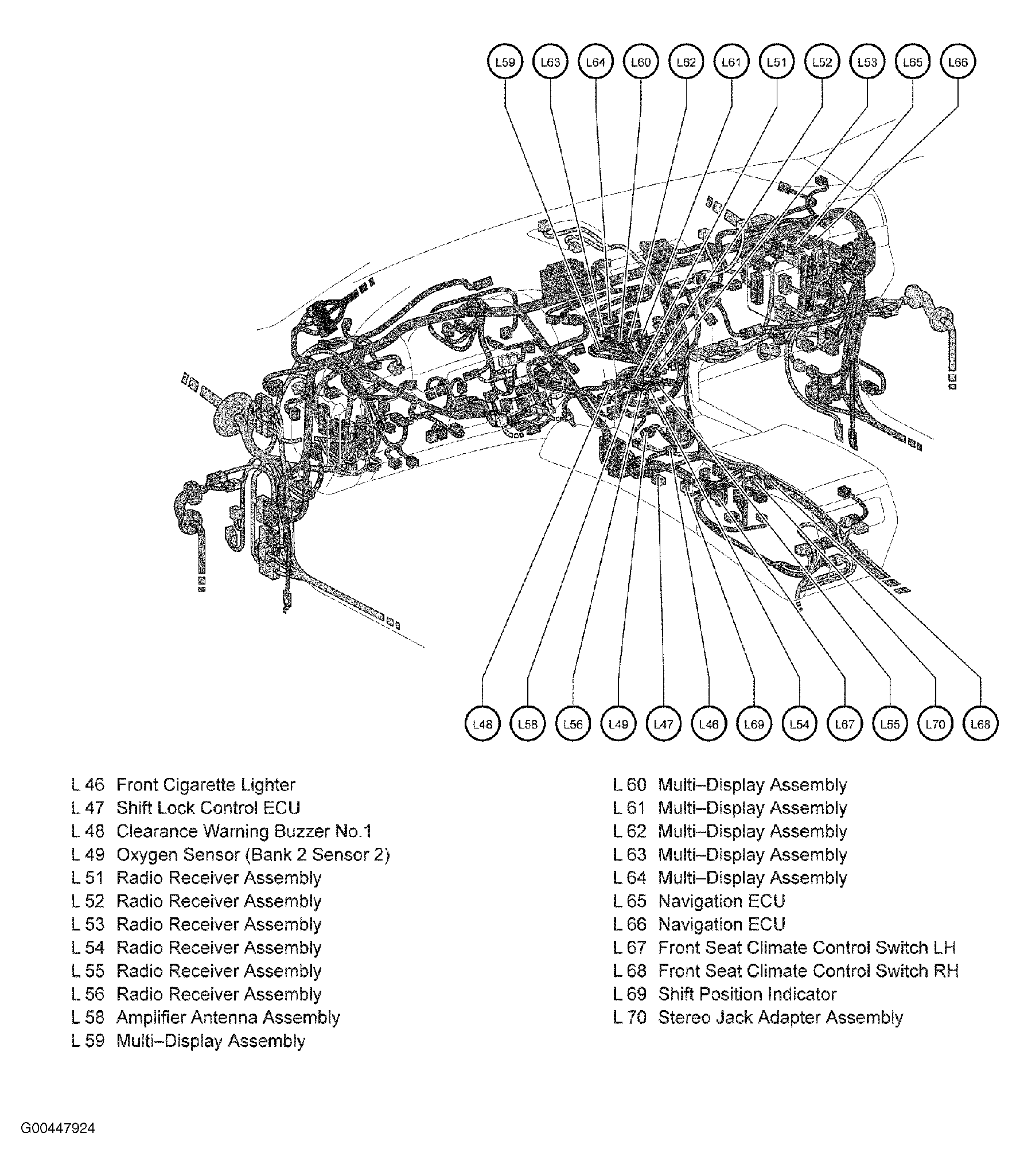

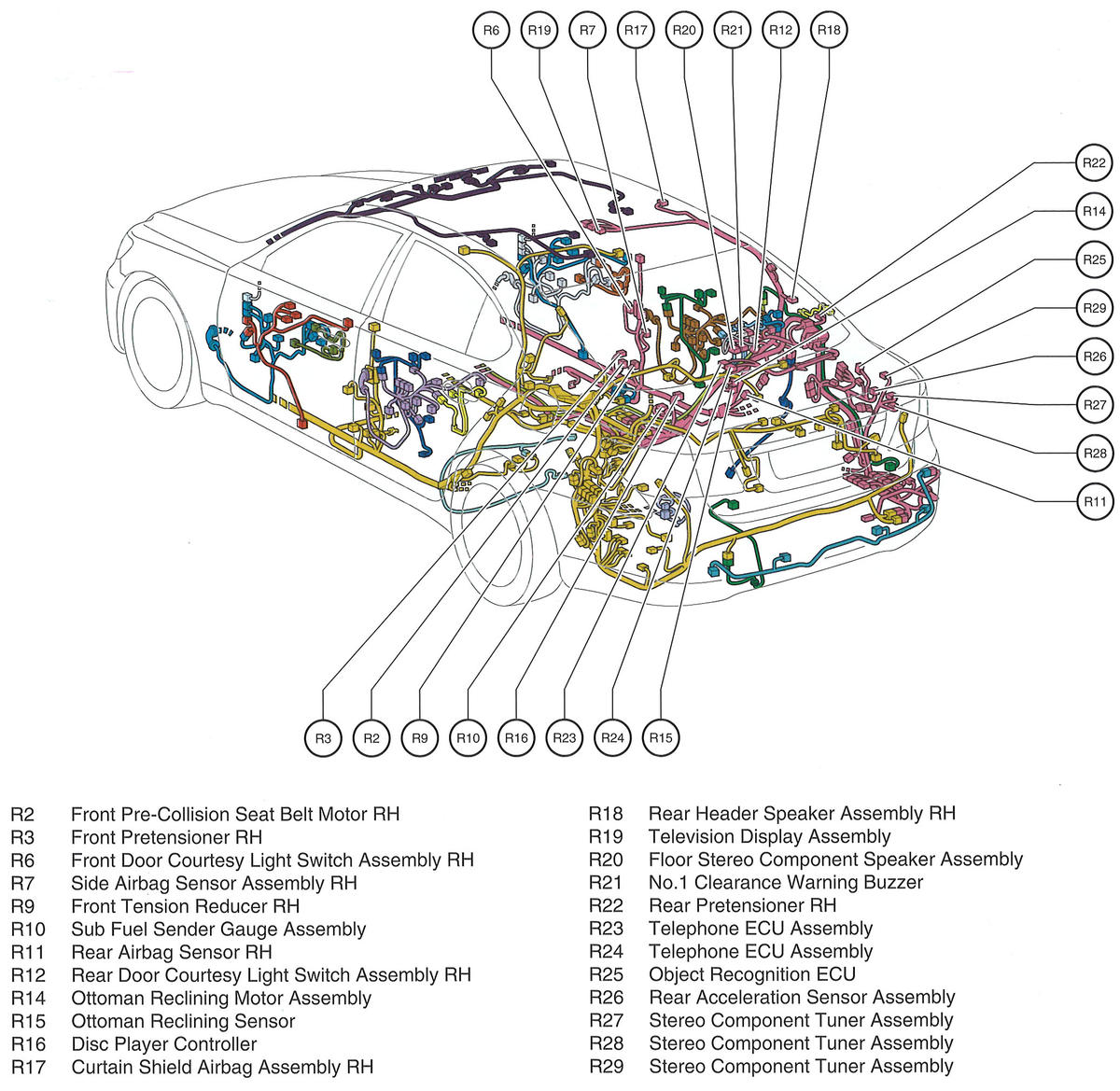

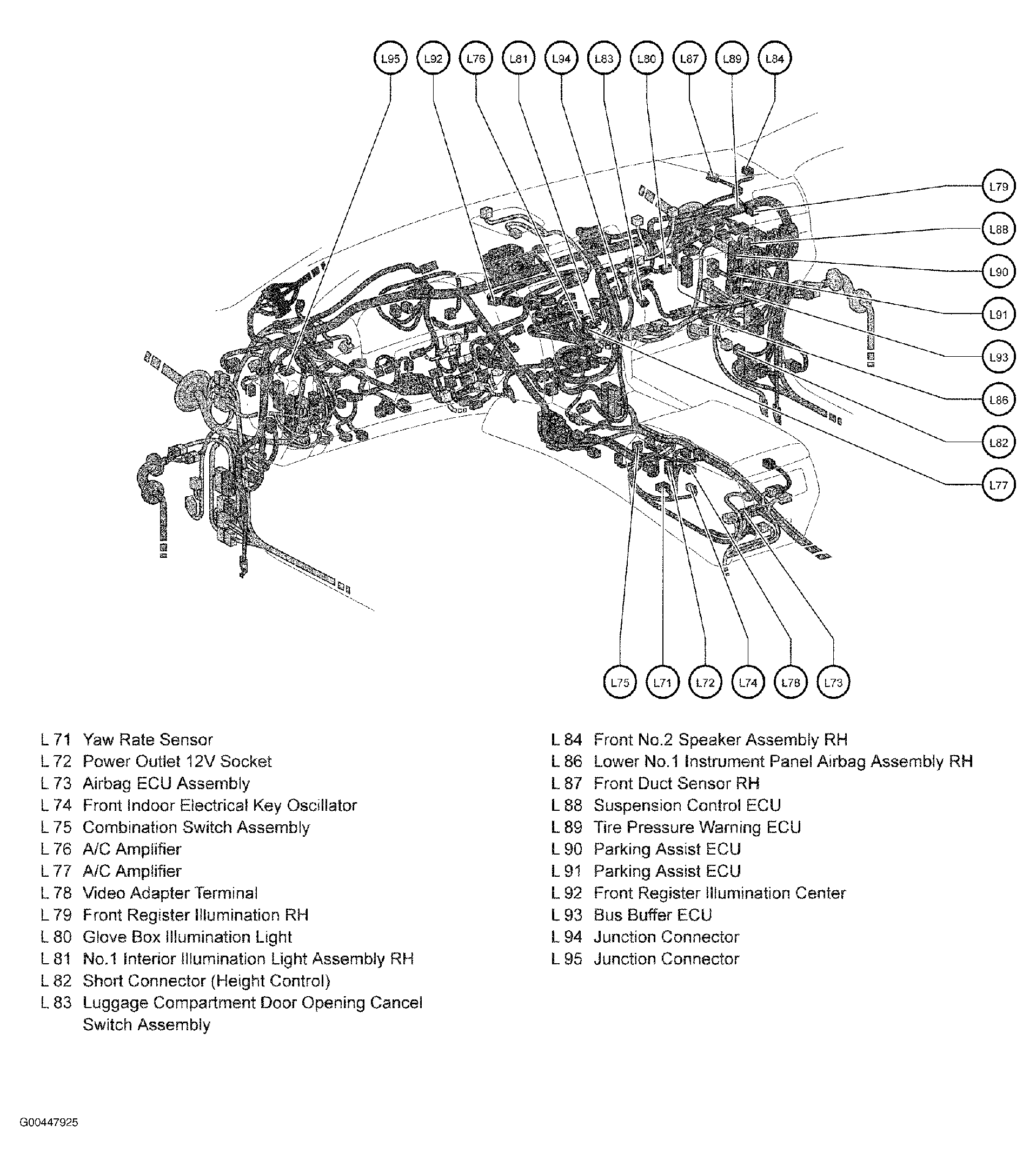

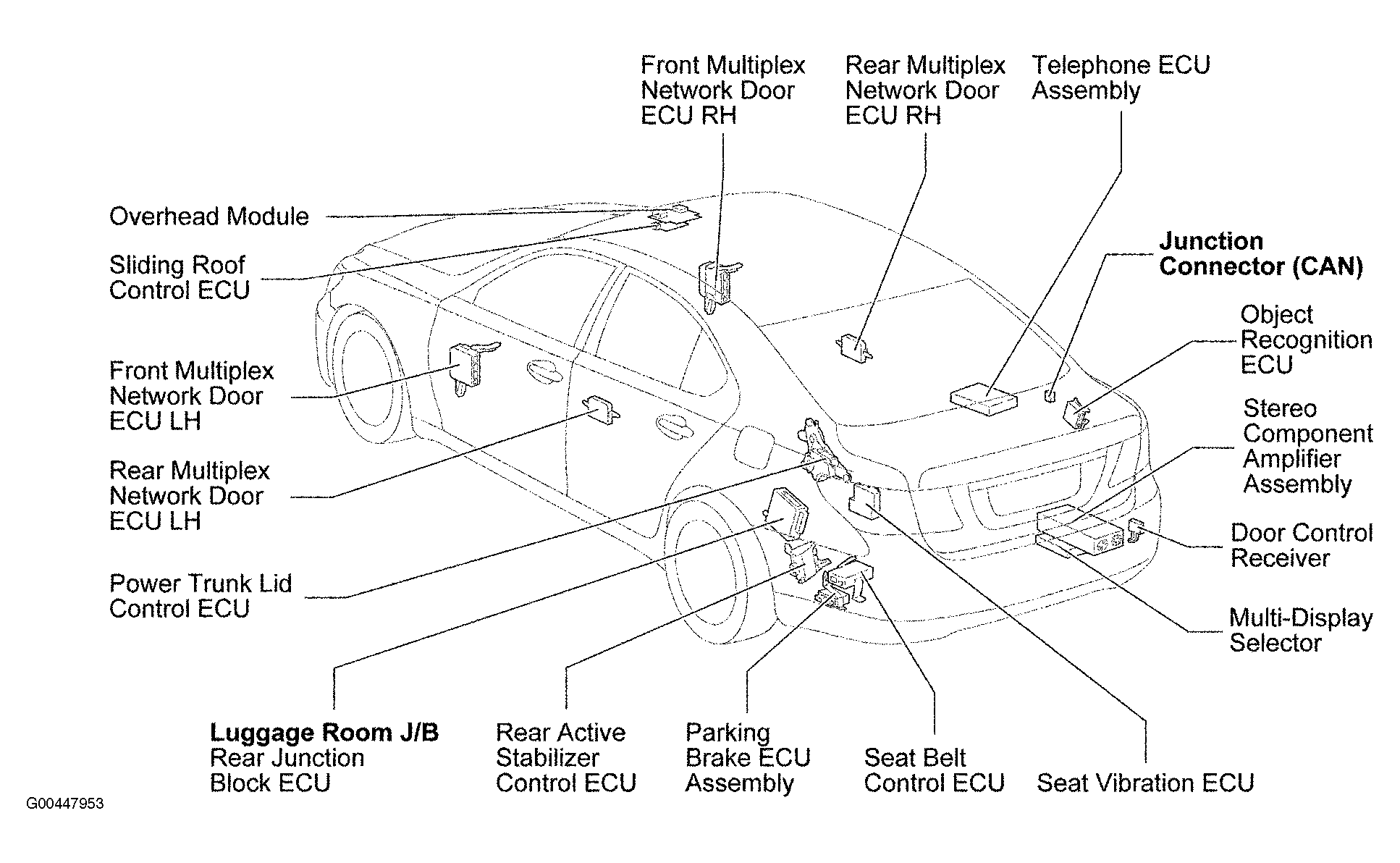

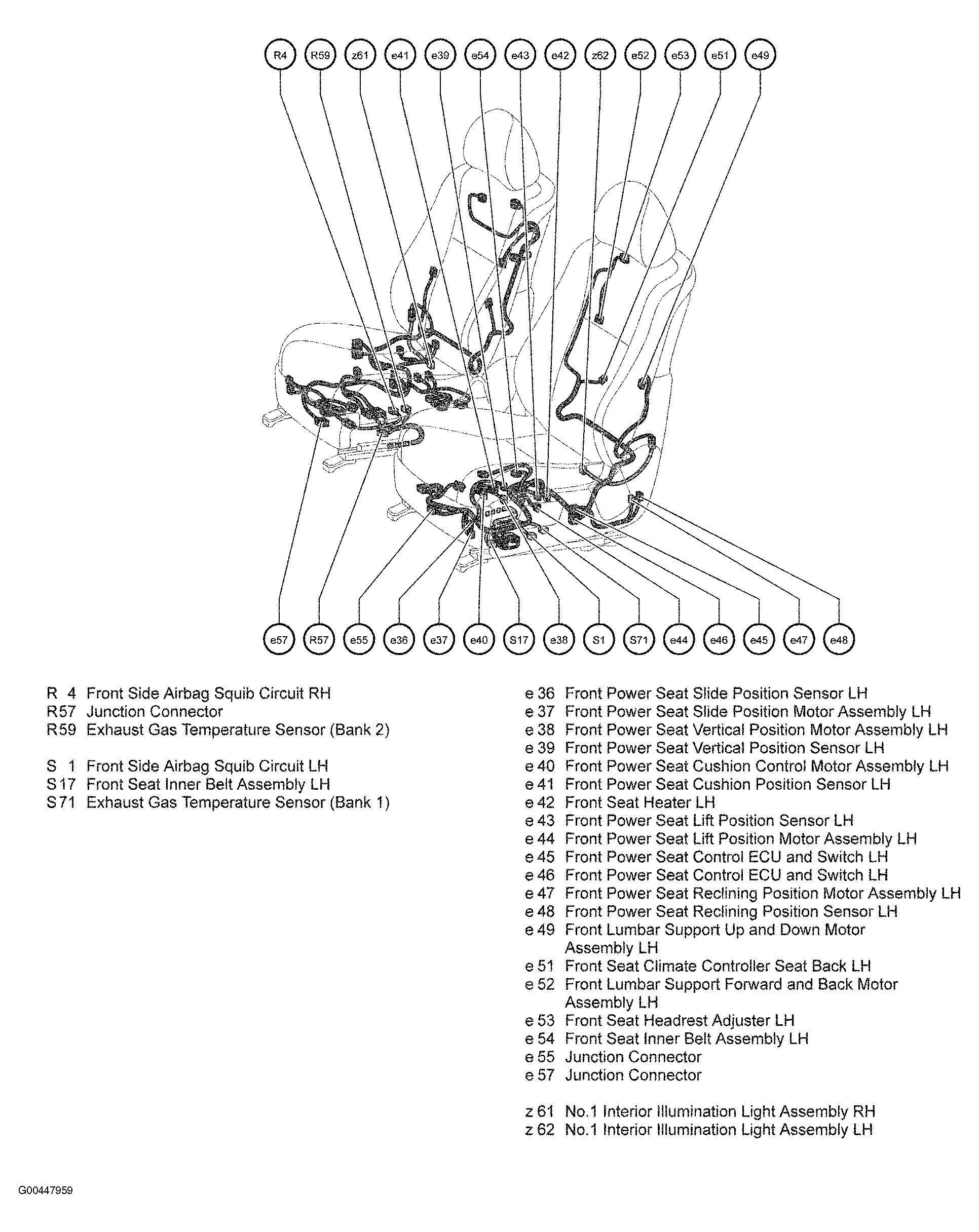

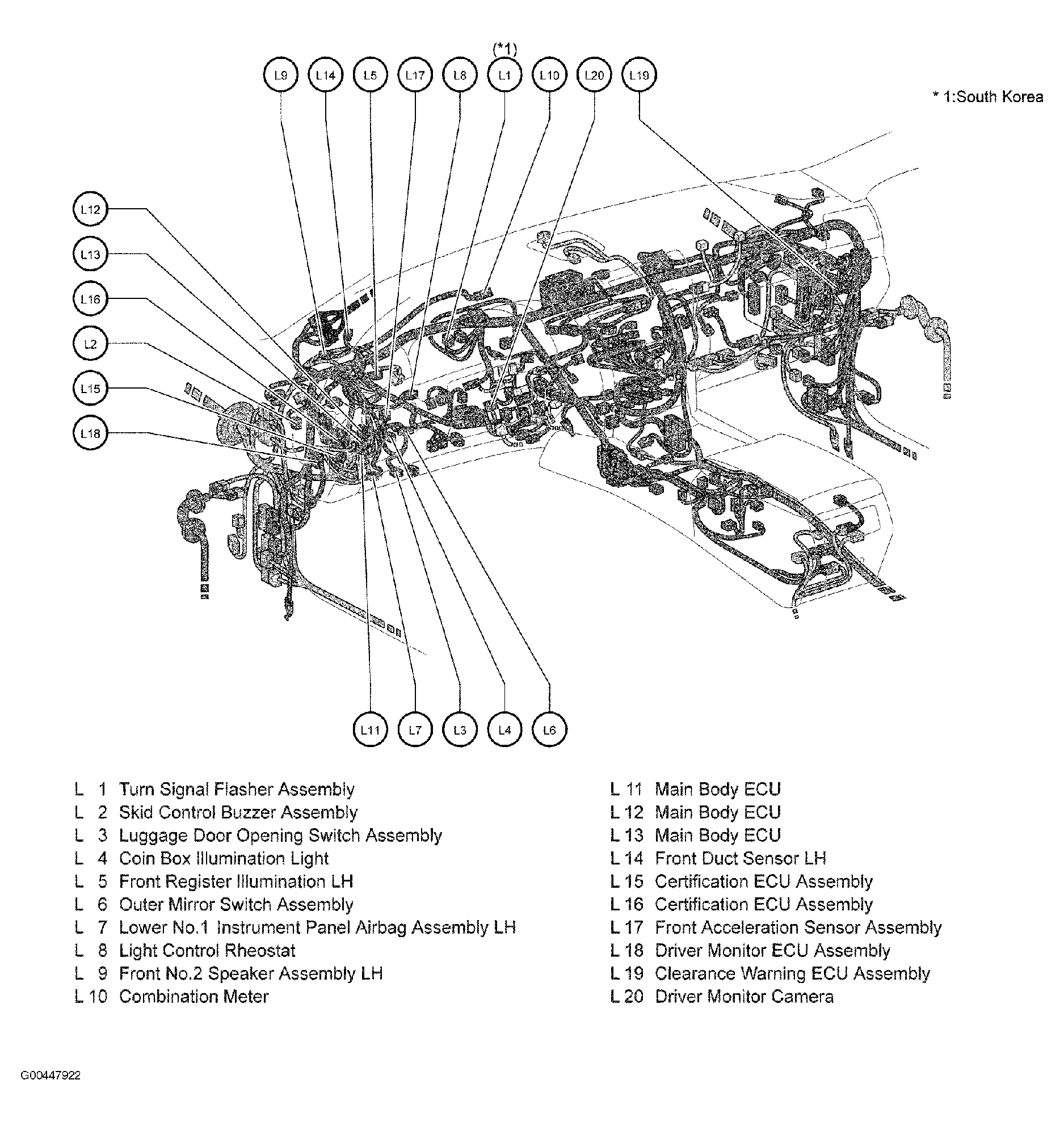

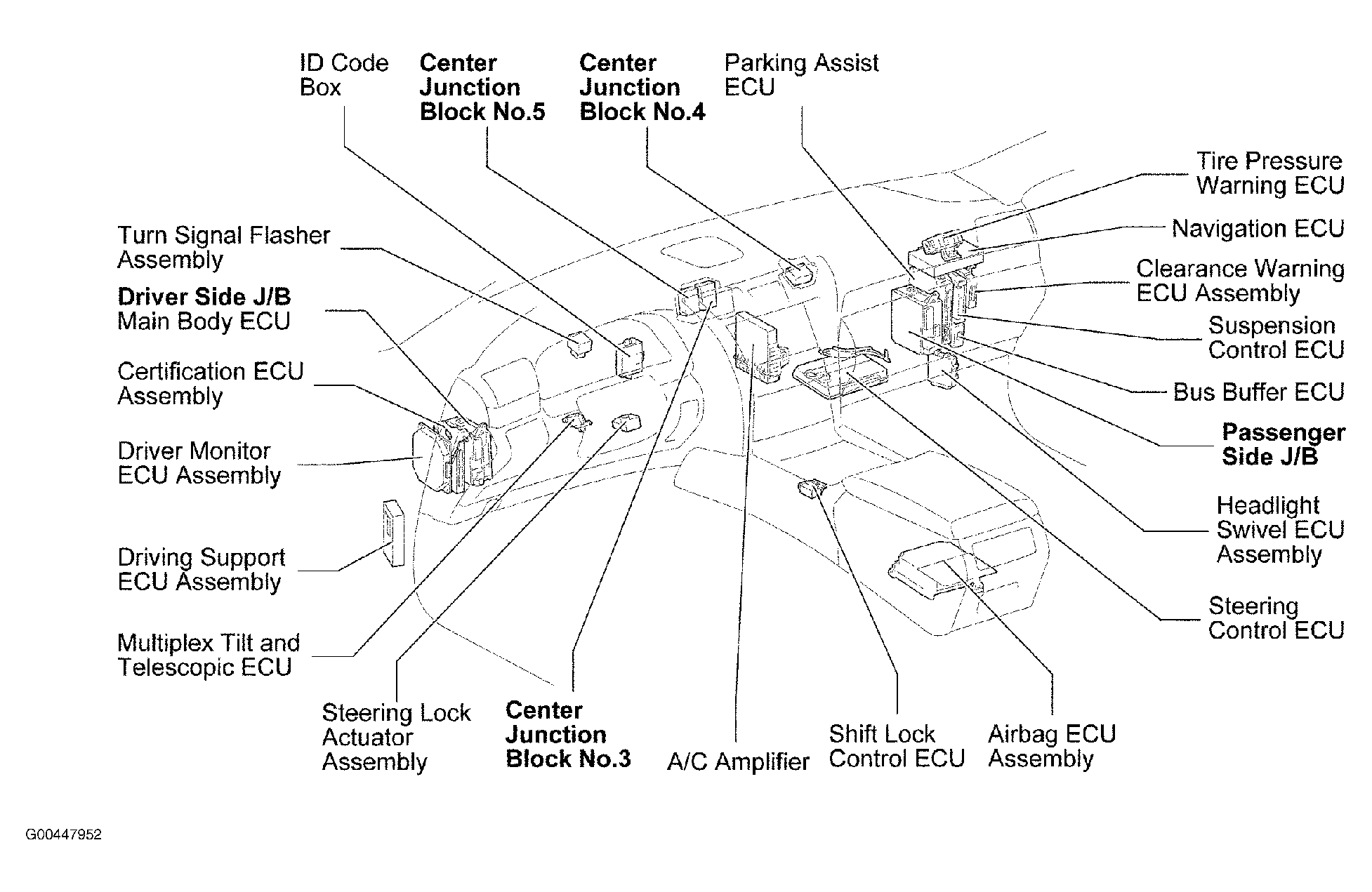

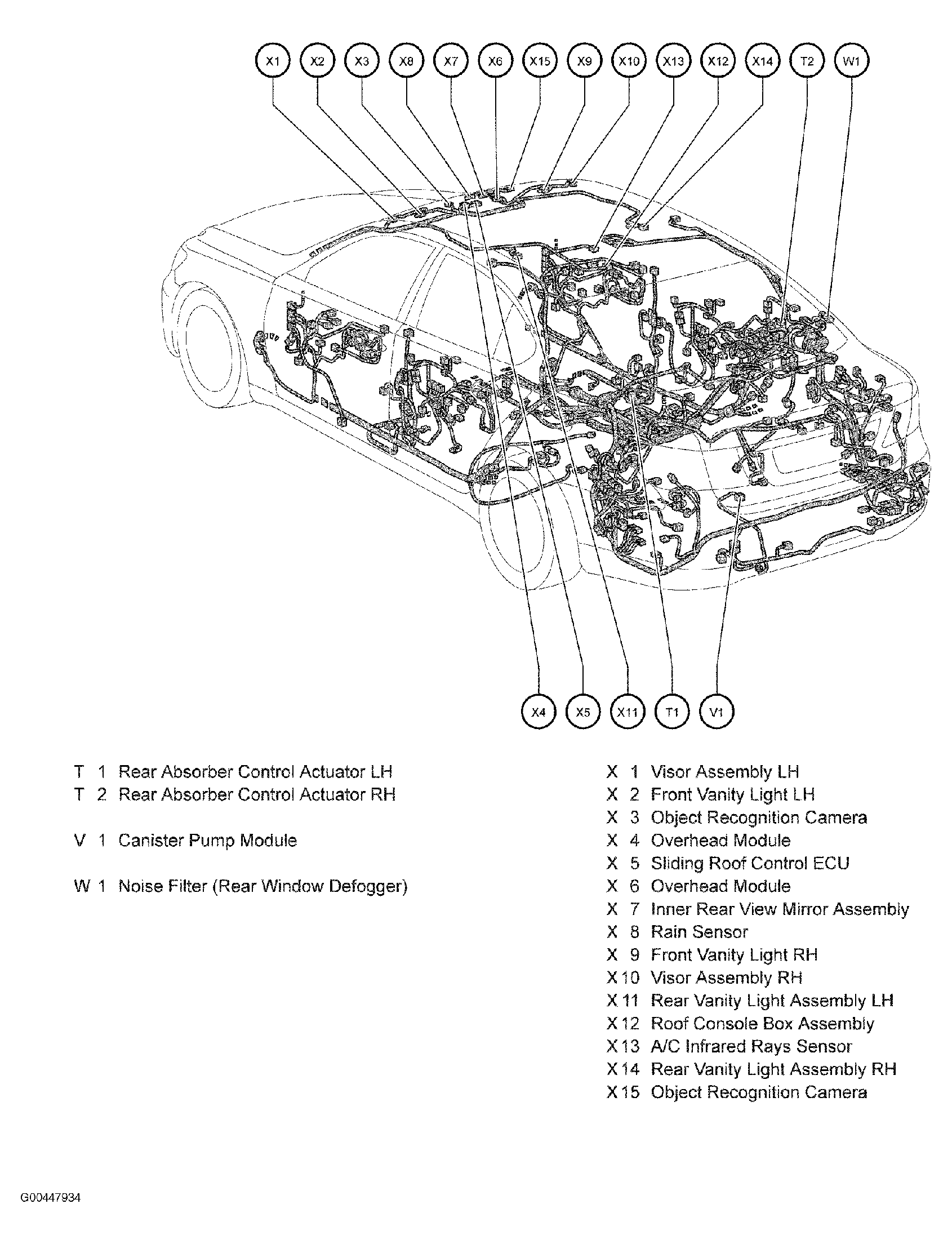

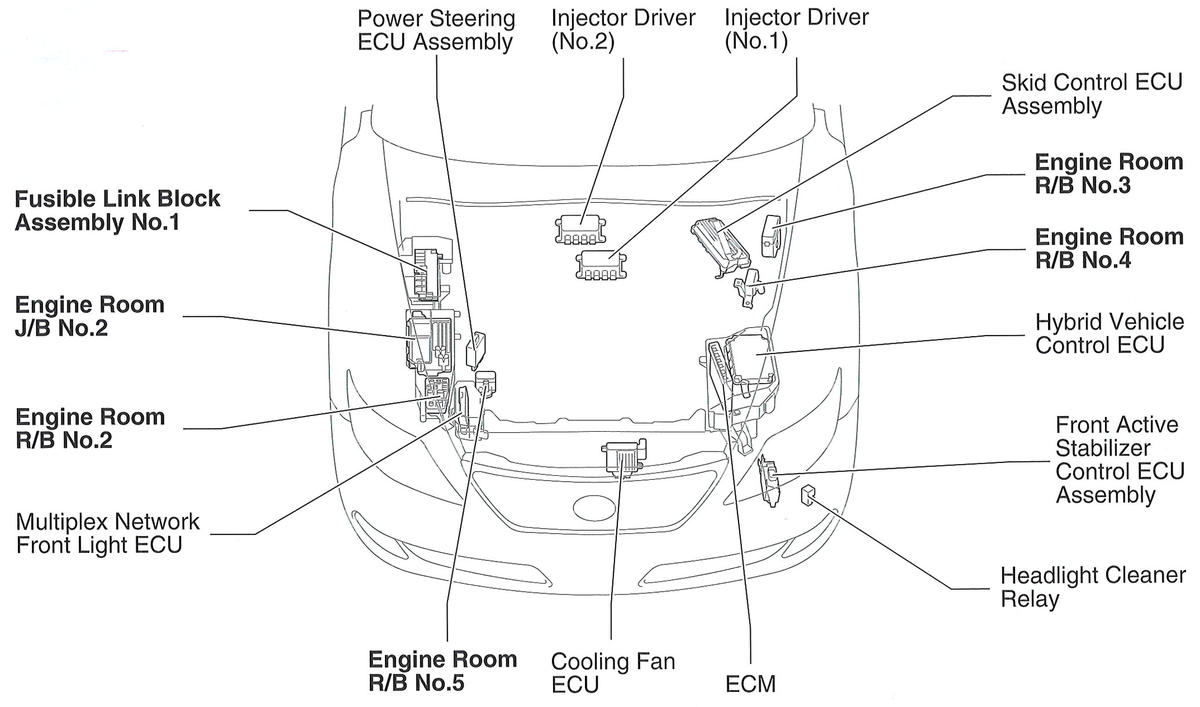

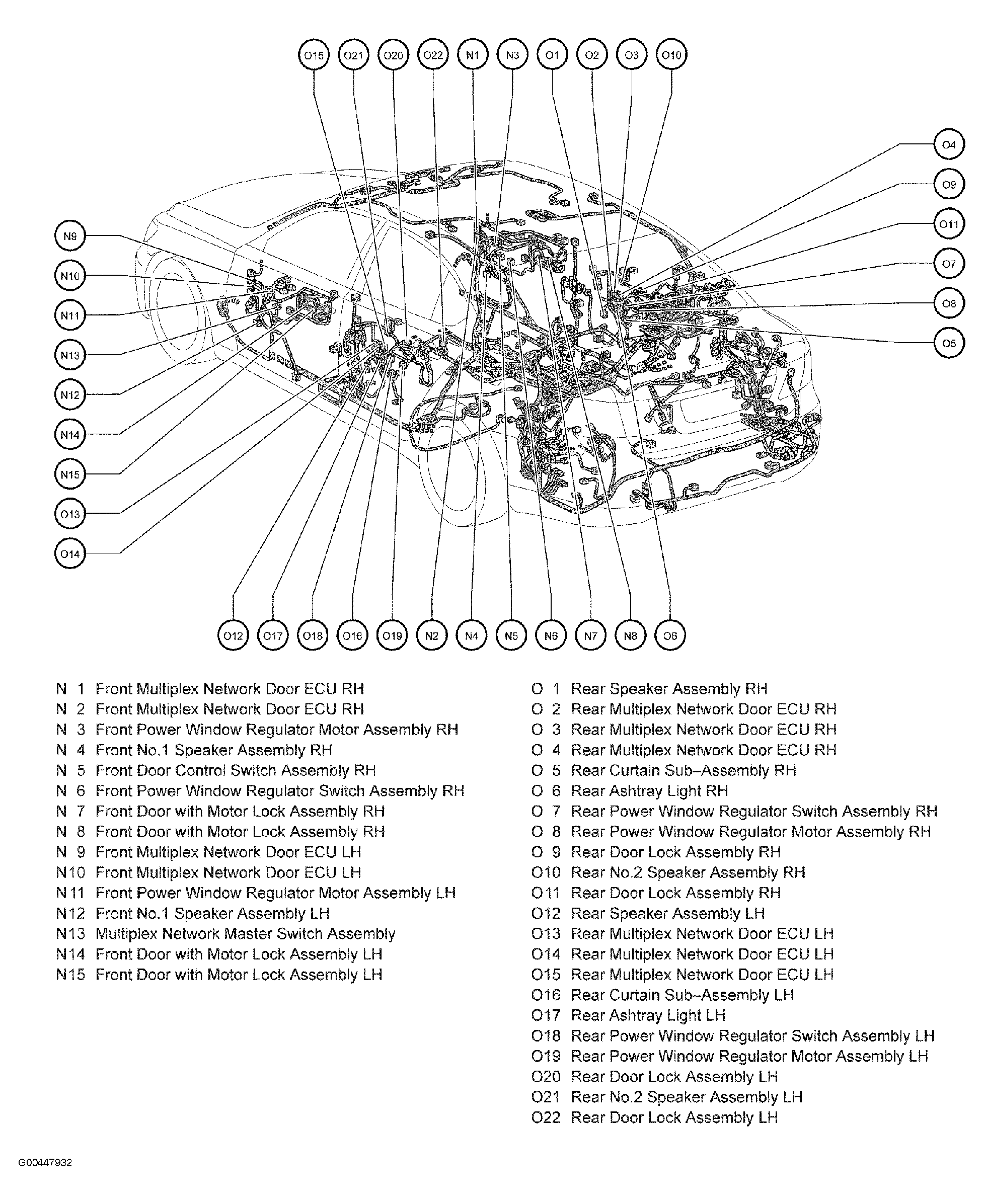

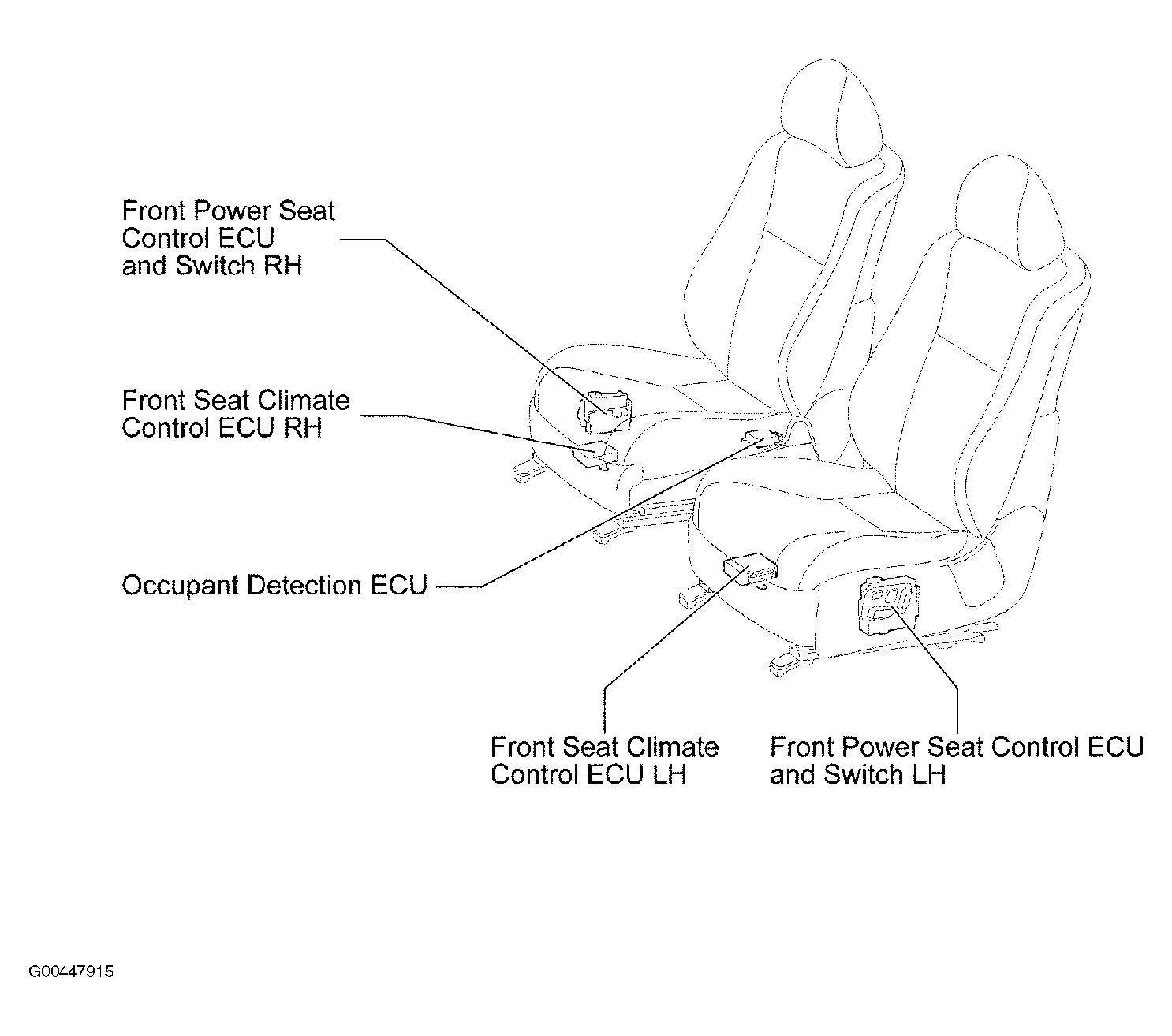

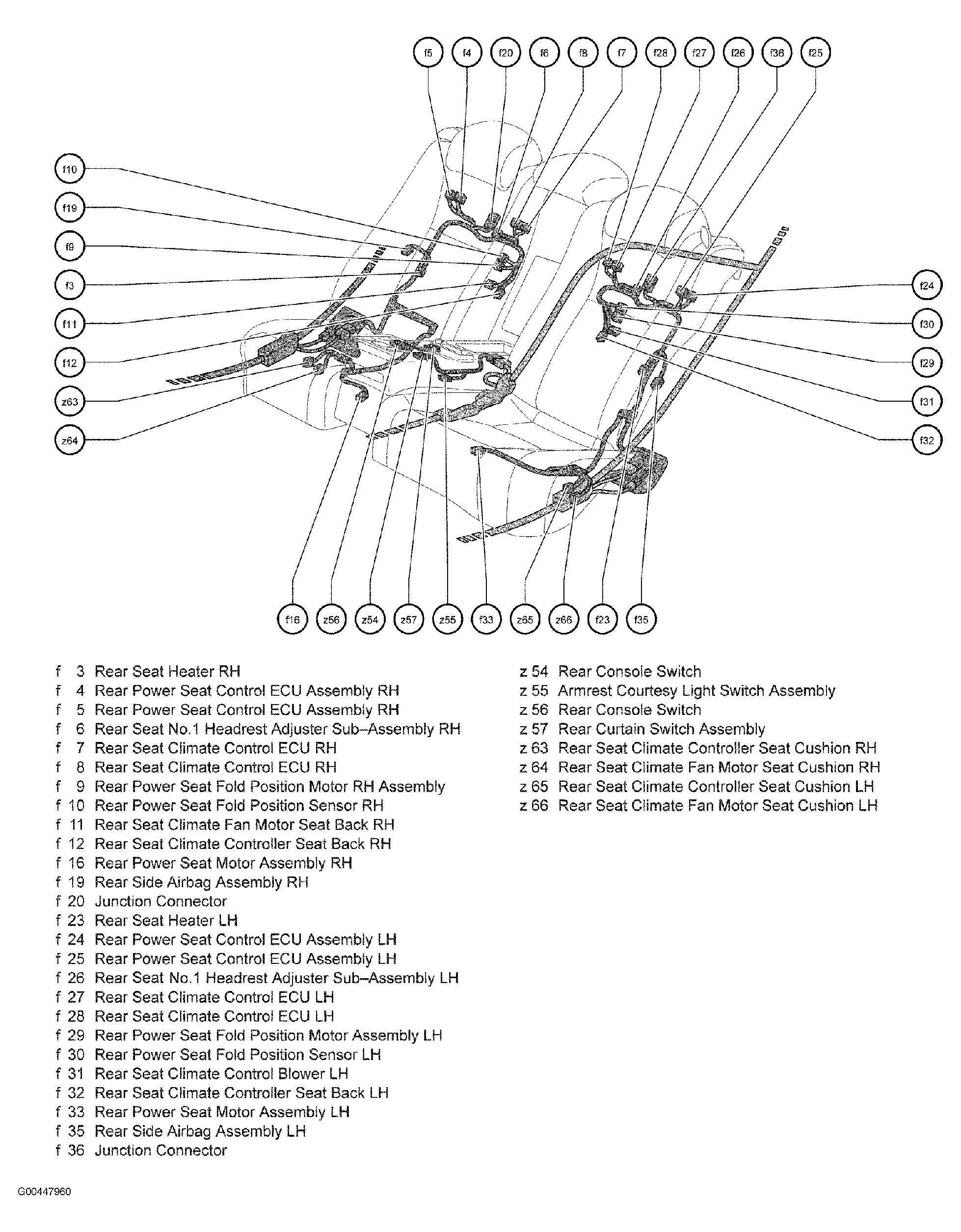

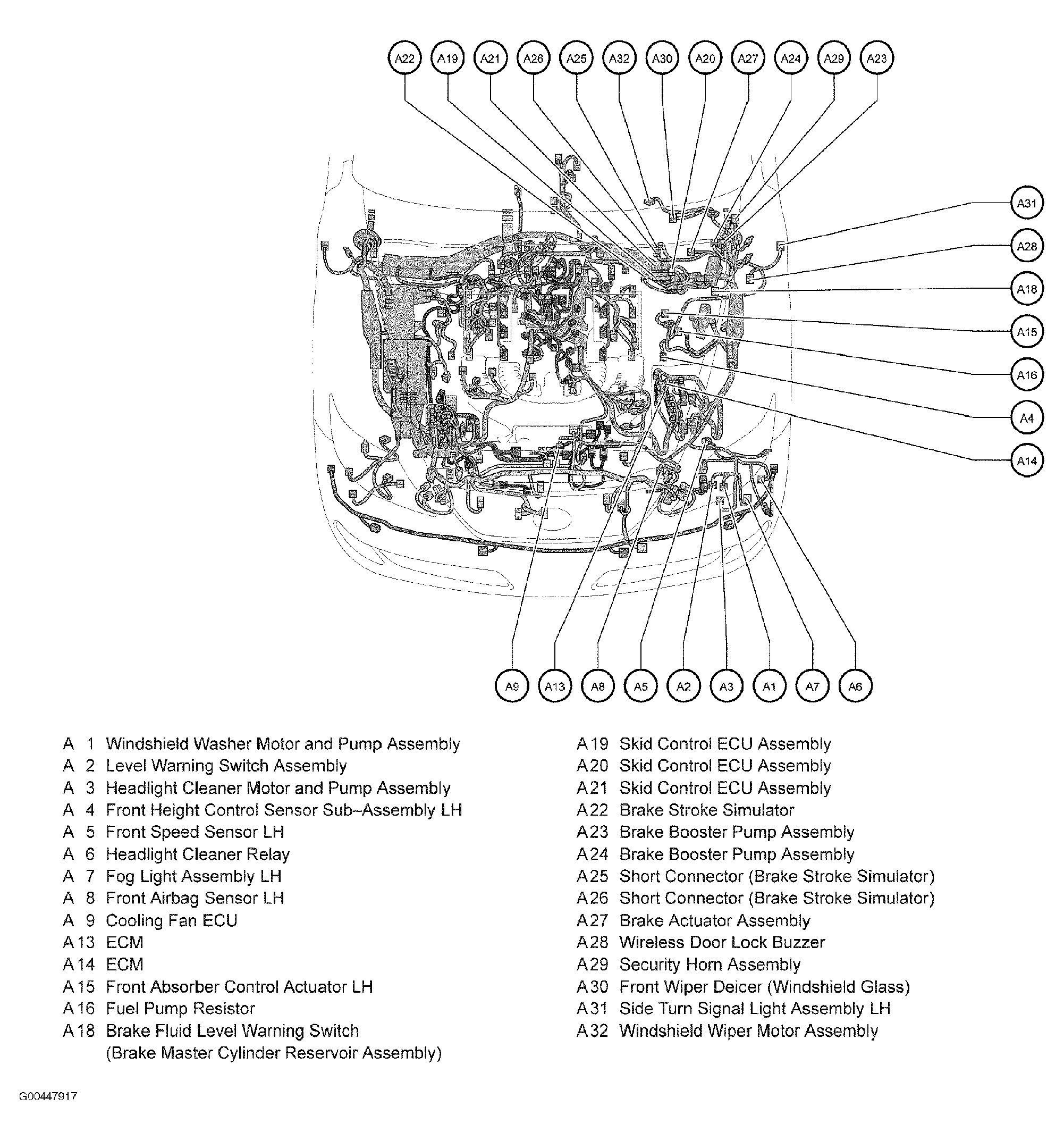

| Airbag ECU Assembly | Under center floor console. See Figure. |
| Air Suspension Control ECU | Right end of dash. See Figure. |
| Bus Buffer ECU | Right end of dash. See Figure. |
| Canister Pump Module | Under left rear of vehicle. See Figure. |
| Certification ECU Assembly | Left end of dash. See Figure. |
| Clearance Warning ECU Assembly | Right end of dash. See Figure. |
| Door Control Receiver | Right rear of luggage compartment. See Figure. |
| Driver Monitor ECU Assembly | Left end of dash. See Figure. |
| Driving Support ECU Assembly | Left kick panel. See Figure. |
| Engine Control Module (ECM) | Left front of engine compartment. See Figure. |
| Fan Control ECU | Center front of engine compartment. See Figure. |
| Front Active Stabilizer Control ECU Assembly | Left front of engine compartment. See Figure. |
| Front Multiplex Network Door ECU LH | Driver's door. See Figure. |
| Front Multiplex Network Door ECU RH | Front passenger's door. See Figure. |
| Front Power Seat Control ECU & Switch LH | Under driver's seat. See Figure. |
| Front Power Seat Control ECU & Switch RH | Under front passenger's seat. See Figure. |
| Front Seat Climate Control ECU LH | Under driver's seat. See Figure. |
| Front Seat Climate Control ECU RH | Under front passenger's seat. See Figure. |
| Front Seat Climate Controller Seat Cushion LH | Driver's seat back. See Figure. |
| Front Seat Climate Controller Seat Cushion RH | Front passenger's seat back. See Figure. |
| Headlight Swivel ECU Assembly | Right kick panel. See Figure. |
| Hybrid Vehicle Control ECU | Left front of engine compartment. See Figure. |
| Hybrid Vehicle Control ECU | Left front of engine compartment. See Figure. |
| Injector Driver (No. 1) | Center rear of engine compartment. See Figure. |
| Injector Driver (No. 2) | Center rear of engine compartment. See Figure. |
| Main Body ECU | Left end of dash. See Figure. |
| Mayday ECU Assembly | Right rear "C" pillar. See Figure. |
| Multi-Display Selector | Right rear of luggage compartment. See Figure. |
| Multiplex Network Front Light ECU | Right front of engine compartment. See Figure. |
| Multiplex Tilt & Telescopic ECU | On steering column. See Figure. |
| Navigation ECU | Right end of dash. See Figure. |
| Object Recognition ECU | Right rear of luggage compartment. See Figure. |
| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Oil Pump Motor Controller | Right front of engine compartment. See Figure. |
| Overhead Module | Roof console. See Figure. |
| Parking Assist ECU | Right end of dash. See Figure. |
| Parking Brake ECU Assembly | Left side of luggage compartment. See Figure. |
| Power Steering ECU Assembly | Right side of engine compartment. See Figure. |
| Power Steering Power Supply Assembly | Left rear of vehicle chassis. See Figure. |
| Power Trunk Lid Control ECU | Left side of luggage compartment. See Figure. |
| Rear Active Stabilizer Control ECU Assembly | Left rear quarter panel. See Figure. |
| Rear Cooling Unit Assembly | Left "C" pillar. See Figure. |
| Rear Multiplex Network Door ECU LH | Left rear door. See Figure. |
| Rear Multiplex Network Door ECU RH | Right rear door. See Figure. |
| Rear Power Seat Control ECU LH | Left rear seat back. See Figure. |
| Rear Power Seat Control ECU RH | Right rear seat back. See Figure. |
| Rear Seat Climate Control ECU LH | Left rear seat back. See Figure. |
| Rear Seat Climate Control ECU RH | Right rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Back) | Left rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Cushion) | Left rear seat cushion. See Figure. |
| Rear Seat Climate Controller RH (Seat Back) | Right rear seat back. See Figure. |
| Rear Seat Climate Controller RH (Seat Cushion) | Right rear seat cushion. See Figure. |
| Seat Belt Control ECU | Left side of luggage compartment. See Figure. |
| Seat Vibration ECU | Left rear of luggage compartment. See Figure. |
| Shift Lock Control ECU | In center console. See Figure. |
| Skid Control ECU Assembly | Left rear of engine compartment. See Figure. |
| Sliding Roof ECU | Roof console. See Figure. |
| Steering Control ECU | Right side of dash. See Figure. |
| Steering Lock Actuator ECU | On steering column. See Figure. |
| Telephone ECU Assembly | Behind right side of rear seats. See Figure. |
| Tire Pressure Warning ECU | Right end of dash. See Figure. |
| Wireless Door Lock Buzzer Controller | Left side of dash. See Figure. |
