Rear Power Seat Control System (Initialization)

NOTE:

The position sensor initialization must be performed if one of the following occurs.

Position control ECU is replaced.
Rear seat adjuster is replaced.
Initialization cancel operation is performed.
Power seat motor for the rear right side seat is operated when D/C CUT1 fuse or D MPX-B 1 fuse has an open circuit.
Power seat motor for the rear left side seat is operated when D/C CUT2 fuse or RR MPX-B 2 fuse has an open circuit.
Power seat motor inspection is performed.

HINT:

The initialization is only performed for the seat selected with the left / right selection switch.

Initialization cancel operation

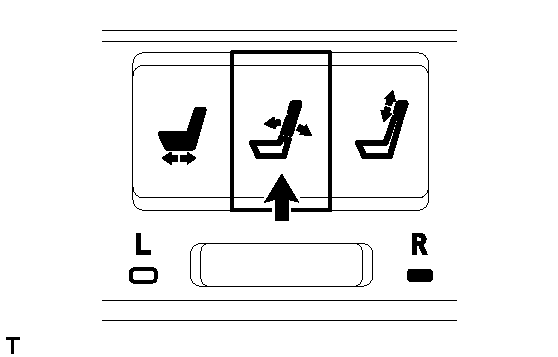

Fig 1: Identifying Rear Power Seat Switch Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the power switch ON (IG).
2. Press the rear power seat switch upper lumbar switch rearward 3 times.
3. Within 10 seconds of the above operation, begin the following operation: perform the downward headrest operation and forward slide operation simultaneously for 10 seconds or more. This will cancel the initialization (buzzer sounds for 0.5 seconds).

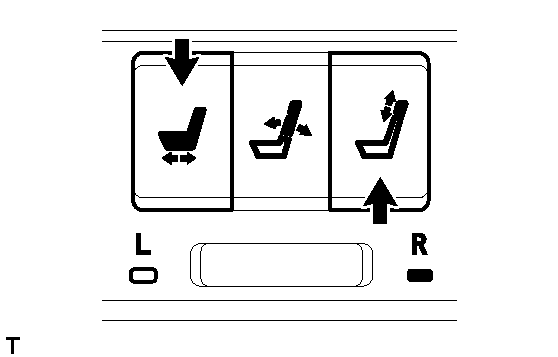

  Fig 2: Identifying Rear Power Seat Switch Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Initialization operation

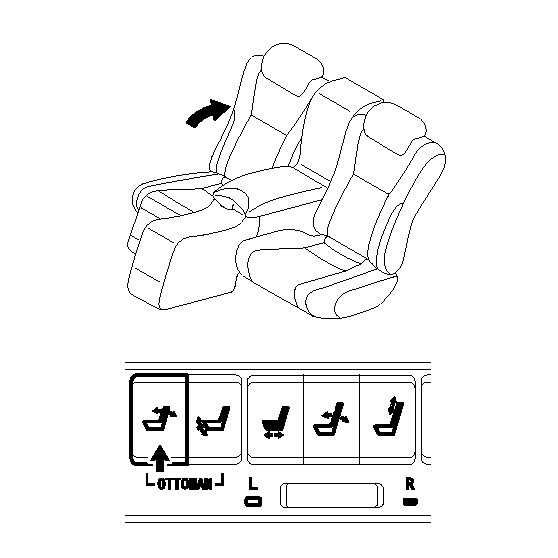

Fig 3: Identifying Rear Power Seat Rearmost Lock Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: for Ottoman
1. Perform the initialization cancel operation.
2. Use the slide operation to move the rear power seat to the rearmost lock position.
  HINT:

  While performing the slide operation, the buzzer sounds.
3. Use the reclining* operation to move the rear power seat to the rearmost lock position (buzzer sounds for 0.1 seconds).

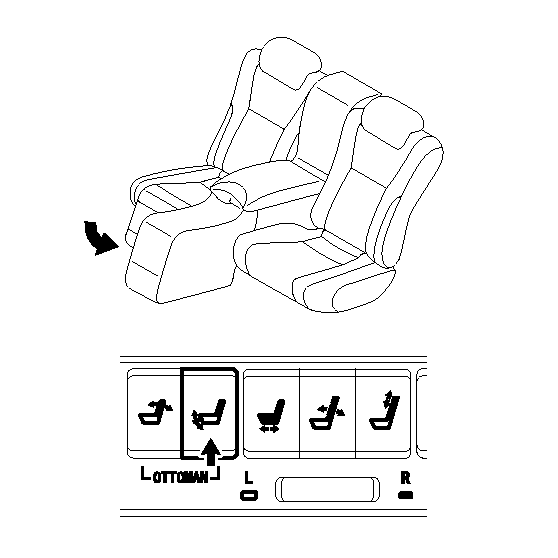

  Fig 4: Identifying Rear Power Seat Rearmost Lock Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Use the ottoman* operation to move the rear power seat to the lowermost lock position (buzzer sounds for 0.1 seconds).

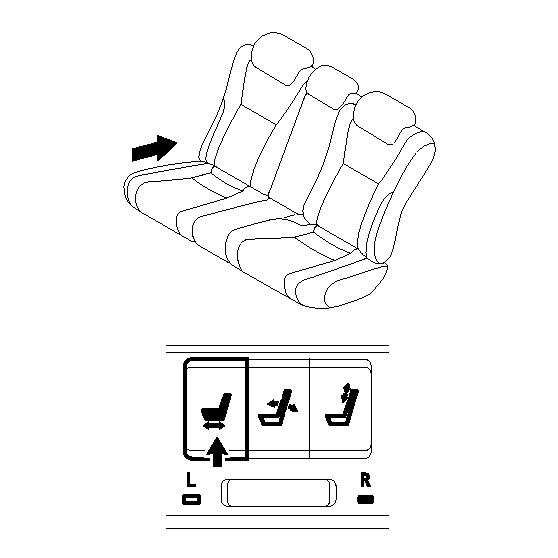

  Fig 5: Identifying Rear Power Seat Lowermost Lock Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Use the upper lumbar operation to move the upper seatback to the rearmost lock position (buzzer sounds for 0.5 seconds). The initialization is complete.

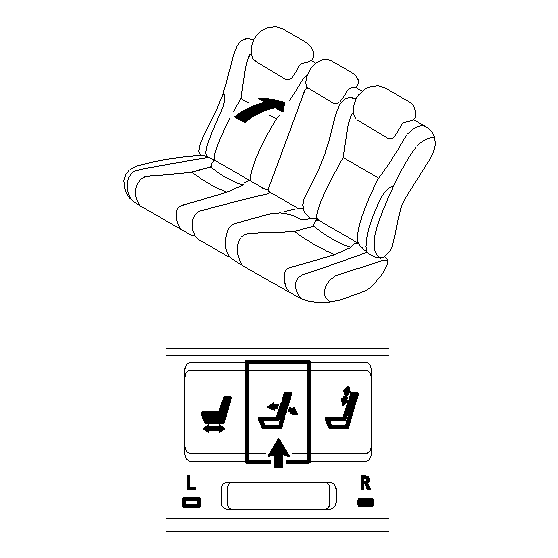

  Fig 6: Moving Upper Seatback To Rearmost Lock Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Operate the power seat switch and check that the seat slides forward and rearward and that the beeping sound is not emitted.
  HINT:
  - After performing all of the procedures above, if the buzzer sounds while performing a manual operation, perform the front power seat initialization for the front passenger seat*.
  - After performing all of the procedures above, if the buzzer sounds while performing a manual operation, the initialization was not completed properly. Repeat all of the above procedures.
