Engine Immobilizer System

  1. DESCRIPTION OF CODE REGISTRATION

    HINT:

    • The engine immobilizer function's ID code is the same as the recognition code for the smart access system with push-button start and wireless transmitter. Registering an ID code enables the smart access with push-button start, wireless door lock control function and engine immobilizer function to be operated.
    • Code registration is needed when the certification ECU, ID code box, steering lock ECU, hybrid vehicle control ECU or key is replaced with a new one.

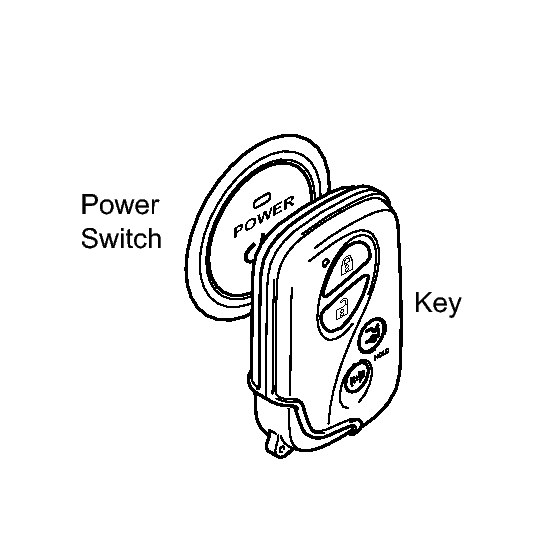

      • Fig 1: Identifying Power Switch And Key
      GTY141101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • This vehicle does not have a key slot. Therefore, touch the logo of the key to the power switch to register the key, as shown in the illustration.
  2. KEY REGISTRATION PROCEDURES WHEN ADDING OR REPLACING KEY OR WHEN KEY IS LOST

    HINT:

    • The following procedures require the use of the Techstream:
      • - New key ID registration
      • - Additional key ID registration
      • - Key ID erasure
    • A maximum of 7 keys can be registered.
        Registration Procedure Condition Procedure Refer to
      Registering an additional key Customer must bring at least 1 key 1. Register additional keys as necessary (additional key ID registration)  PROCEDURE "C"
      • Replacing a key
      • Making a lost key unable
      HINT: After key ID erasure, any remaining keys that are not registered at this time cannot be used. Therefore, after key ID erasure, register all remaining keys.      		 Customer must bring at least 1 key 1. Using remaining key, clear all registered keys except one (key ID erasure)  PROCEDURE "D"
      2. Register additional keys as necessary (additional key ID registration)  PROCEDURE "C"
      All keys are lost - 1. Reset all keys (all keys ID erasure (key code reset))  PROCEDURE "E"
      2. Register all keys (new key ID registration)  PROCEDURE "A"
  3. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES
    1. If a malfunctioning ECU is discovered through troubleshooting of the smart key system, use the ECU replacement and key registration procedures in the table below.

      HINT:

      • The following procedures require the use of the Techstream:
        • - New key ID registration
        • - Additional key ID registration
        • - Key ID erasure
        • - ECU code registration
      • A maximum of 7 keys can be registered.
      Malfunctioning ECU Condition Procedure Refer to
      Certification ECU Customer has brought all keys 1. Replace certification ECU -
      2. Reregister all keys (new key ID registration)  PROCEDURE "B"
      Some keys are lost Key ID codes can be registered and cleared 1. Clear key codes (key ID erasure)  PROCEDURE "D"
      2. Perform additional key registration procedure (additional key ID registration)
      HINT:
      If some keys are not registered during above steps, they will be disabled because they cannot be registered later.      		  PROCEDURE "C"
      3. Replace certification ECU -
      4. Reregister all keys (new key ID registration)  PROCEDURE "B"
      Key ID codes cannot be either registered or cleared 1. Replace certification ECU -
      2. Replace ID code box -
      3. Reregister all keys (new key ID registration)
      HINT:
      If key codes cannot be cleared or additional keys cannot be registered due to a malfunction in certification ECU, replace ID code box and certification ECU. If some keys are not registered during above steps, they will be disabled because they cannot be registered later.      		  PROCEDURE "A"
      4. ECU communication ID registration  PROCEDURE "G"
      All keys are lost 1. Replace certification ECU -
      2. Replace ID code box -
      3. Register all keys (new key ID registration) PROCEDURE "A"
      4. ECU communication ID registration  PROCEDURE "G"
      ID code box Customer has brought at least 1 key 1. Replace ID code box -
      2. Register recognition codes in ECUs (ECU code registration)  PROCEDURE "F"
      3. ECU communication ID registration  PROCEDURE "G"
      All keys are lost 1. Replace certification ECU -
      2. Replace ID code box -
      3. Register all keys (new key ID registration)  PROCEDURE "A"
      4. ECU communication ID registration  PROCEDURE "G"
      Steering lock ECU Customer has brought at least 1 key 1. Replace steering lock ECU -
      2. Register recognition codes in ECUs (ECU code registration)  PROCEDURE "F"
      All keys are lost 1. Replace certification ECU -
      2. Replace ID code box -
      3. Replace steering lock ECU -
      4. Register all keys (new key ID registration)  PROCEDURE "A"
      5. ECU communication ID registration  PROCEDURE "G"
      Main body ECU No condition required - -
      Hybrid vehicle control ECU No condition required 1. Replace hybrid vehicle control ECU -
      2. ECU communication ID registration
      HINT:
      Only perform procedure above when replacing with used hybrid vehicle control ECU.      		  PROCEDURE "H"
  4. KEY REGISTRATION PROCEDURES
    1. PROCEDURE "A"

      New key ID registration (when replacing certification ECU and ID code box, or certification ECU , ID code box and steering lock ECU), or when performing all keys ID erasure (key code reset)

      Process Procedure
      1. Start of registration
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Select "Smart Access/Utility/Key Code Registration" from tester menu
      HINT: Power switch cannot be turned ON (IG) more than 10 times. After connecting tester, turn tester on while turning driver side door courtesy light switch on and off repeatedly at 1.5 seconds intervals or less to continue key registration procedure.
      2. Confirmation of ECU code
      • Perform operation according to prompts on tester screen
      HINT: Mode is automatically selected by tester (new registration mode or add mode)
      3. Verification of unregistered key*
      1. Touch logo of unregistered key to power switch
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on front passenger side seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      4. Registration of ID code
      • Perform operation according to prompts on tester screen
      5. End of registration
      • Finish new key ID code registration

      HINT:

      *: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

    2. PROCEDURE "B"

      New key ID registration (when replacing certification ECU)

      Process Procedure
      1. Start of registration
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Select "Smart Access/Utility/Key Code Registration" from tester menu
      HINT: Power switch cannot be turned ON (IG) more than 10 times. After connecting tester, turn tester on while turning driver side door courtesy light switch on and off repeatedly at 1.5 seconds intervals or less to continue key registration procedure.
      2. Confirmation of ECU code
      • Perform operation according to prompts on tester screen
      HINT: Mode is automatically selected by tester (new registration mode or add mode)
      3. Confirmation of all registered keys*1
      1. Touch logo of registered key to power switch
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      4. Confirmation of ECU code
      • Perform operation according to prompts on tester screen
      5. Verification of unregistered key*2
      1. Touch logo of unregistered key to power switch
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on front passenger side seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      6. Registration of ID code
      • Perform operation according to prompts on tester screen
      7. End of registration
      • Finish new key ID code registration

      HINT:

      • *1: Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. If performing the key confirmation procedure for a key, the security indicator light comes on and remains on until all the keys are confirmed.
      • *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    3. PROCEDURE "C"

      Additional key ID registration

      Process Procedure
      1. Start of registration
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Select "Smart Access/Utility/Key Code Registration" from tester menu
      2. Confirmation of registered key*1
      1. Perform operation according to prompts on tester screen
      2. Touch logo of registered key to power switch
      3. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Confirmation of ECU code
      • Perform operation according to prompts on tester screen
      4. Verification of unregistered key*2
      1. Touch logo of unregistered key to power switch
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Place unregistered key on front passenger side seat
      4. Confirm that wireless door lock buzzer sounds once (short beep)
      5. Registration of ID code
      • Perform operation according to prompts on tester screen
      6. End of registration
      • Finish key ID code registration

      HINT:

      • *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.
      • *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    4. PROCEDURE "D"

      Key ID erasure (Erase all registered key codes except one)

      Process Procedure
      1. Start of erasure
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Select "Smart Access/Utility/Key Code Erasure" from tester menu
      2. Confirmation of registered key*
      1. Perform operation according to prompts on tester screen
      2. Touch logo of registered key to power switch
      3. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Erasure of ID code
      • Perform operation according to prompts on tester screen
      4. End of erasure
      • Finish key ID code erasure

      HINT:

      *: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.

    5. PROCEDURE "E"

      All keys ID erasure

      Process Procedure
      1. Start of erasure
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Turn tester on while turning driver side door courtesy light switch on and off repeatedly at 1.5 seconds intervals or less
      4. Select "Smart Access/Utility/Key Code Reset" from tester menu
      5. Read "SEED NUMBER" sent from TIS according to tester screen
      2. Erasure of ID code
      • Perform operation according to prompts on tester screen
      3. End of erasure
      • Finish key ID code erasure
    6. PROCEDURE "F"

      ECU code registration

      Process Procedure
      1. Start of registration
      1. Connect Techstream to DLC3
      2. Turn power switch ON (IG)
      3. Select "Smart Access/Utility/ECU Communication ID Registration/ID code box and Steering Lock" from tester menu
      4. Read "SEED NUMBER" sent from TIS according to tester screen
      2. Confirmation of registered key*
      1. Touch logo of registered key to power switch
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      3. Erasure of ECU code
      • Perform operation according to prompts on tester screen
      4. End of registration
      • Finish ECU code registration

      HINT:

      *: Perform this process for one of the keys registered to the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.

    7. PROCEDURE "G"

      ECU communication ID registration

      NOTE:
      • The ECU communication ID should be registered when the ID code box is replaced in order to match the ECU communication ID.
      • The hybrid control system cannot be started unless ECU communication ID is registered.
      • After the registration, pressing the power switch may not start the hybrid control system on the first try. If so, press the power switch again.
      • After the hybrid control system is started, erase DTC B2799-790 (code for hybrid vehicle control ECU's immobilizer communication error) using either of the following methods:

        - Use the Techstream.

        - Disconnect the battery for 30 seconds.

      • SST: 09843-18040
      1. Using SST, connect terminal 13 (TC) and 4 (CG) of the DLC3.
      2. Turn the power switch ON (IG) (do not start the hybrid control system) and leave it as is for 30 minutes.
      3. Turn the power switch OFF and disconnect terminals 13 (TC) and 4 (CG).
      4. Check that the hybrid control system starts for more than 3 seconds.
    8. PROCEDURE "H"

      ECU communication ID reregistration

      NOTE:

      The ECU communication ID should be registered when the hybrid vehicle control ECU is replaced in order to match the ECU communication ID.

      Procedure Time Security Indicator Light Condition
      1. Start - OFF
      2. While holding already registered key, turn the power switch ON (IG) with brake pedal depressed
      3. Check that hybrid control system starts and stays on for more than 3 seconds
      4. End
