Throttle Body: Installation: Installation

INSTALL THROTTLE BODY
1. Install a new throttle body gasket to the intake air surge tank.

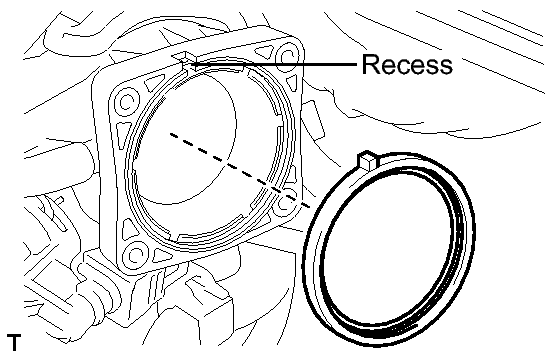

  Fig 1: Identifying Throttle Body Gasket & Recess
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle body with the 4 bolts.

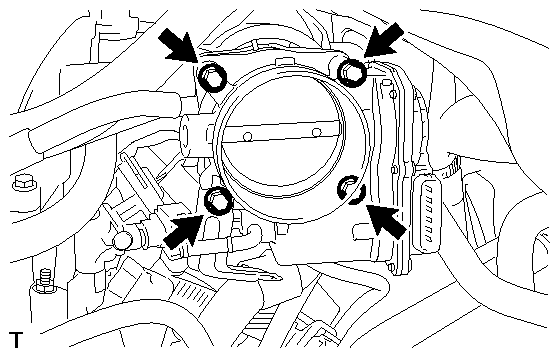

  Fig 2: Locating Throttle Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the 2 water by-pass hoses.

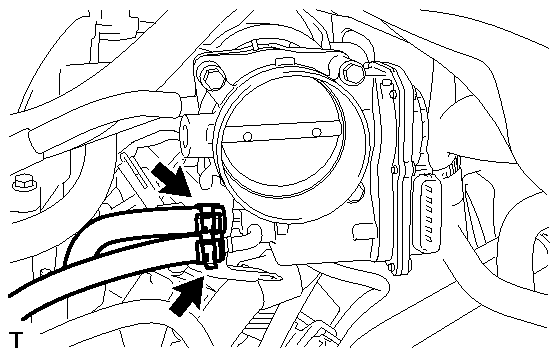

  Fig 3: Locating Throttle Body Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the throttle body connector and clamp.

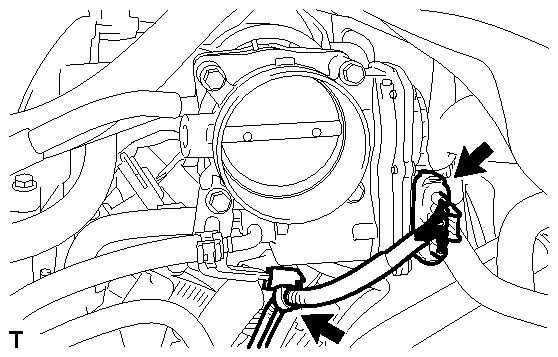

  Fig 4: Locating Throttle Body Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE SUB-ASSEMBLY . Refer to INSTALLATION - Step 85
INSTALL AIR CLEANER CAP SUB-ASSEMBLY
1. Install the air cleaner cap sub-assembly with the 2 bolts.

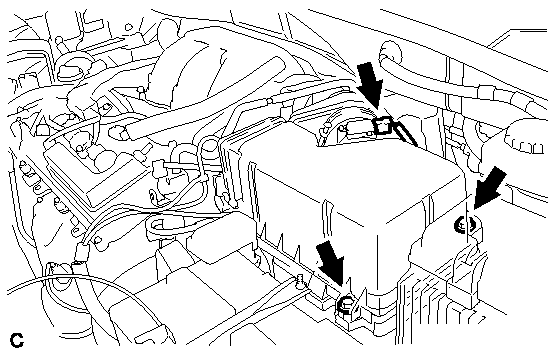

  Fig 5: Locating Air Cleaner Cap Sub-Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the vacuum hose (EVAP) to the air cleaner hose.

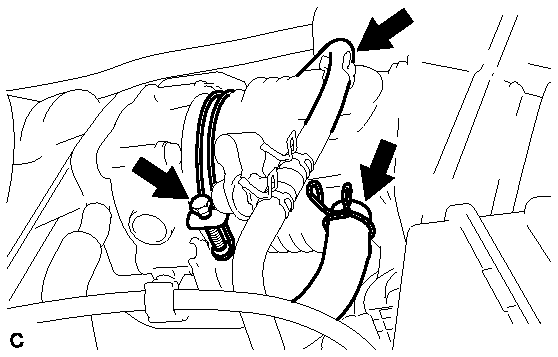

  Fig 6: Locating Ventilation Hose And Air Cleaner Hose Band
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the ventilation hose No. 2 and air cleaner hose band.
4. Connect the 3 vacuum hoses.

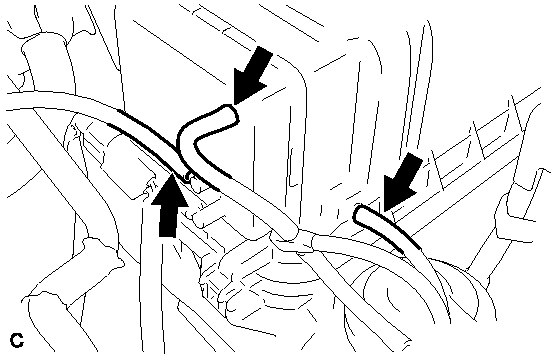

  Fig 7: Locating Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 84
INSTALL NO. 2 AIR CLEANER INLET . Refer to INSTALLATION - Step 87
ADD ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 4
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL COWL TOP OUTER PANEL SUB-ASSEMBLY See step 14
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 115
INSTALL COWL TOP OUTER PANEL SUB-ASSEMBLY See step 14
INSTALL WINDSHIELD WIPER LINK ASSEMBLY
HINT:

Refer to INSTALLATION
