OEM System Circuits: Back-Up-Light: Notes

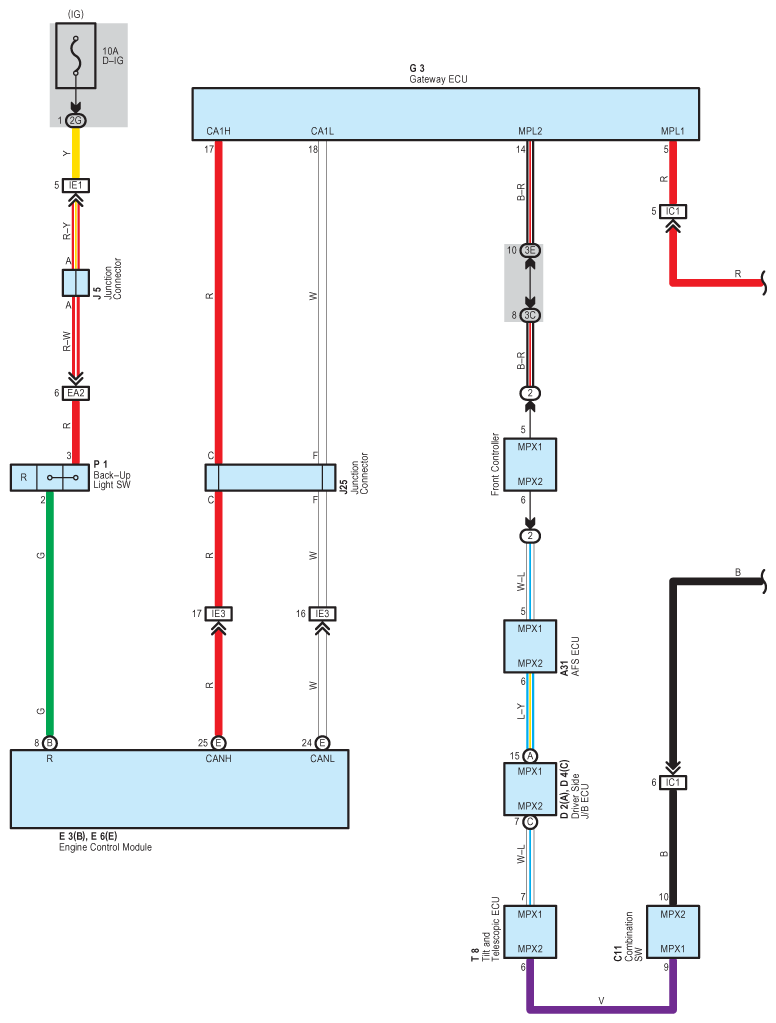

Fig 1: Back-Up-Light - Circuit Diagram (1 Of 2)
G07607715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

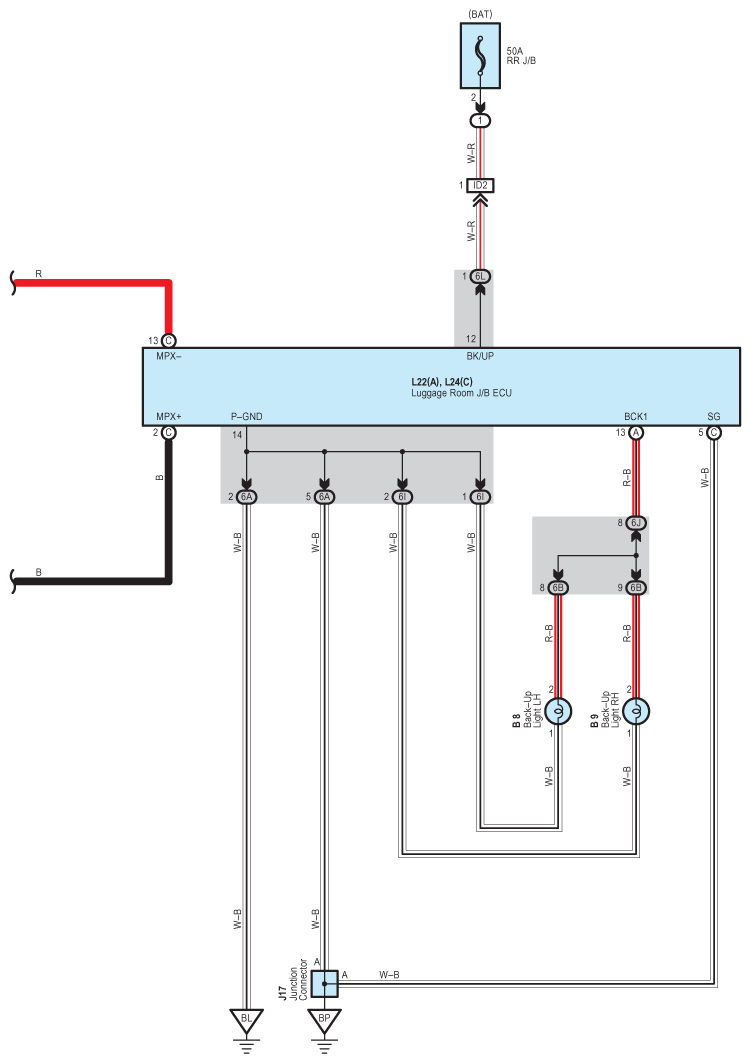

Fig 2: Back-Up-Light - Circuit Diagram (2 Of 2)
G07607716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
