Cruise Control: Notes

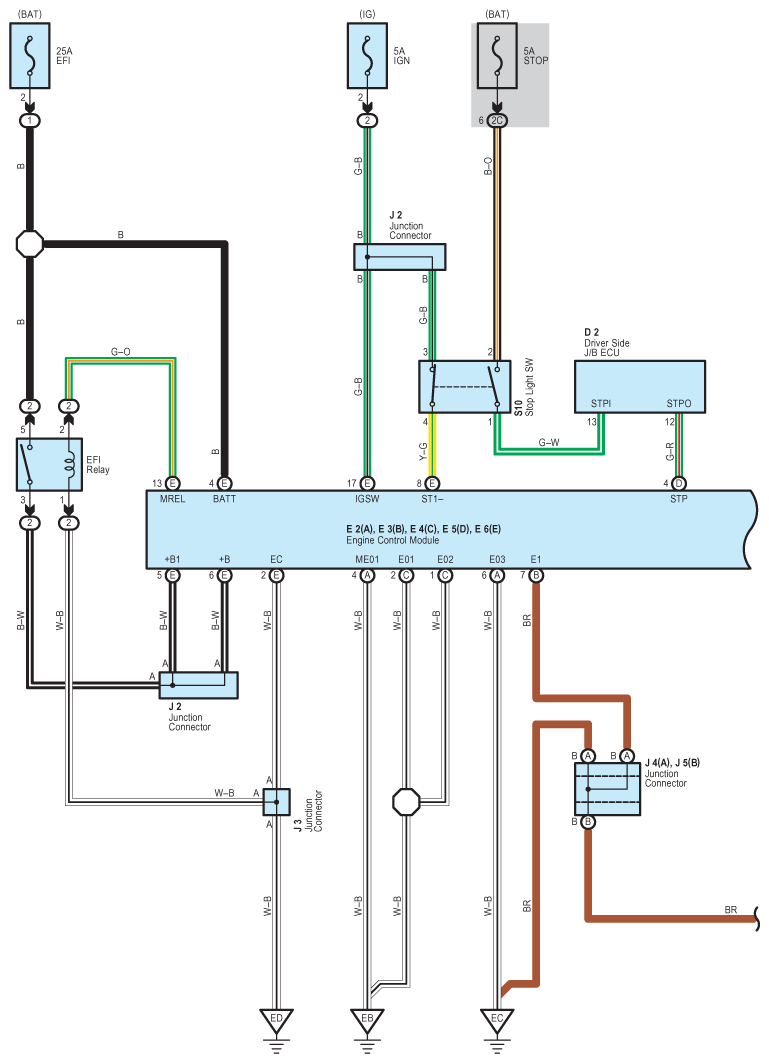

Fig 1: Cruise Control - Circuit Diagram (1 Of 5)
G07607776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

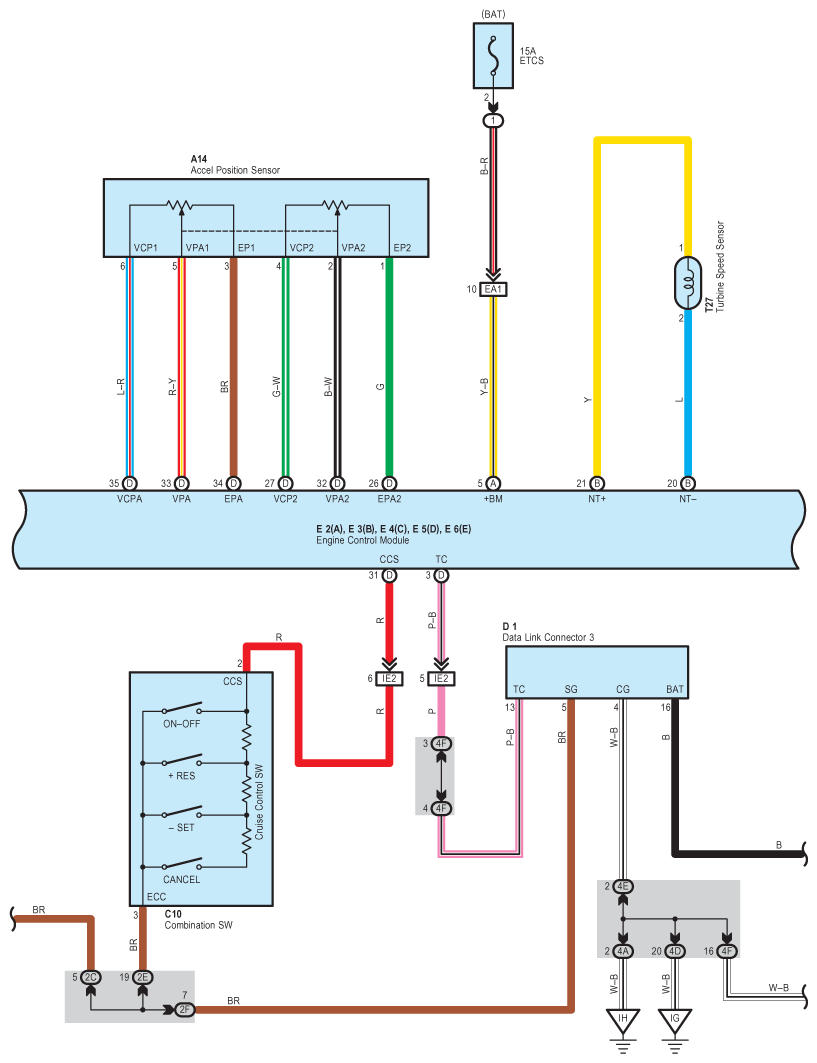

Fig 2: Cruise Control - Circuit Diagram (2 Of 5)
G07607777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

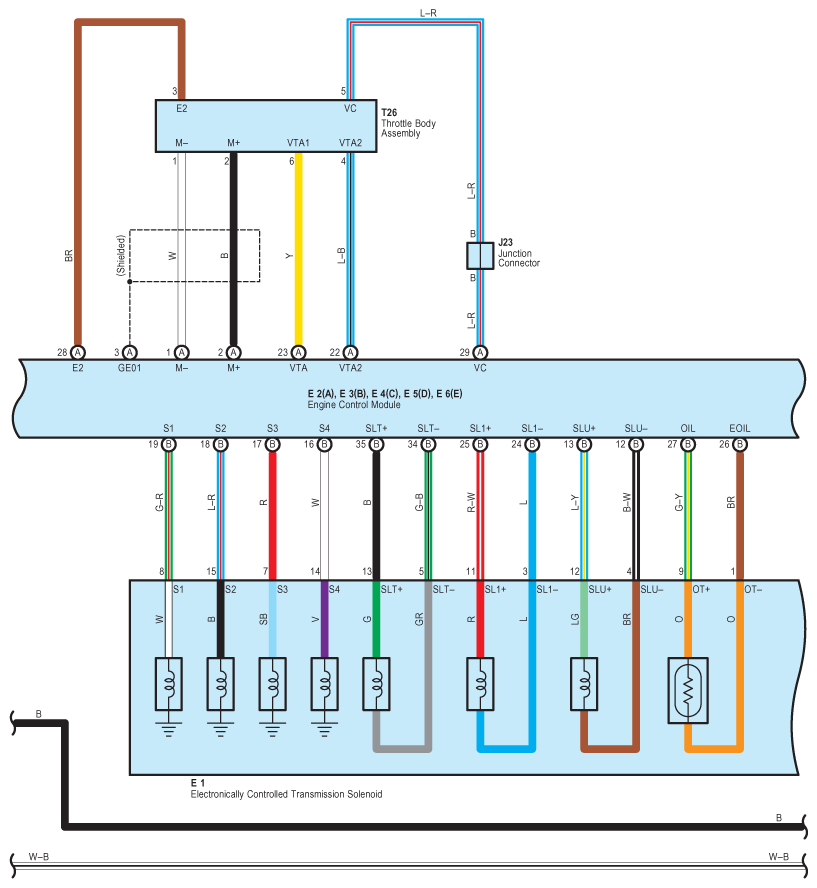

Fig 3: Cruise Control - Circuit Diagram (3 Of 5)
G07607778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

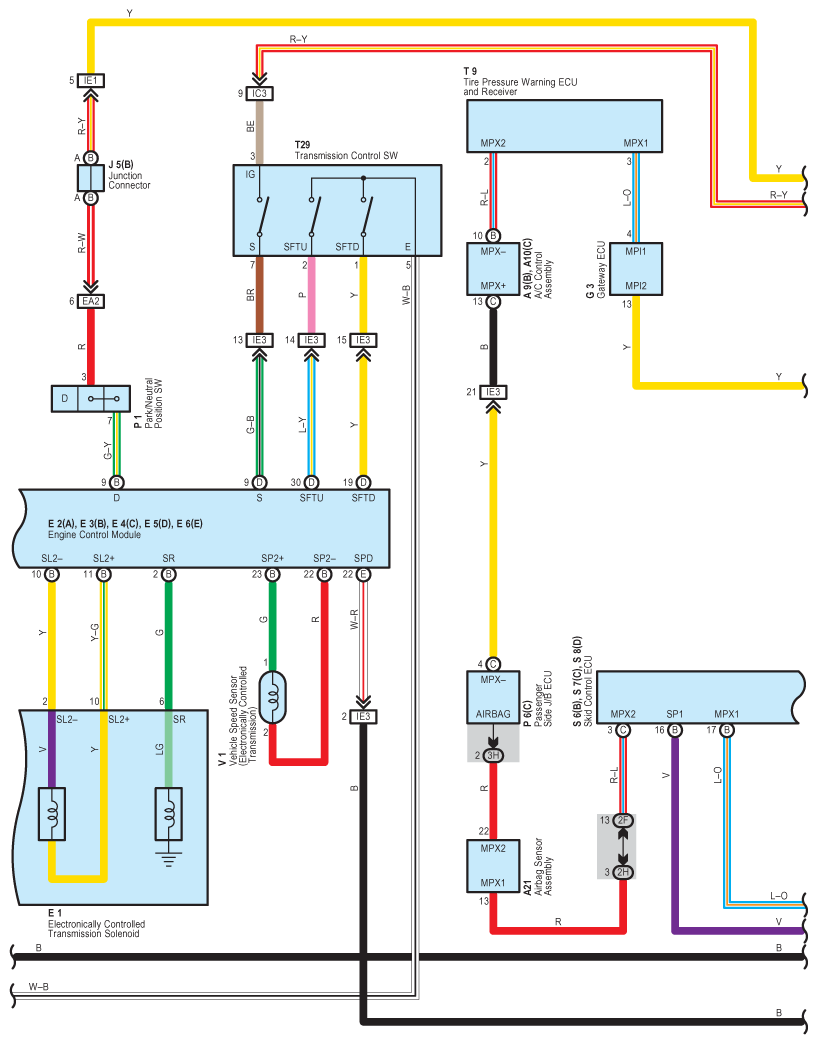

Fig 4: Cruise Control - Circuit Diagram (4 Of 5)
G07607779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

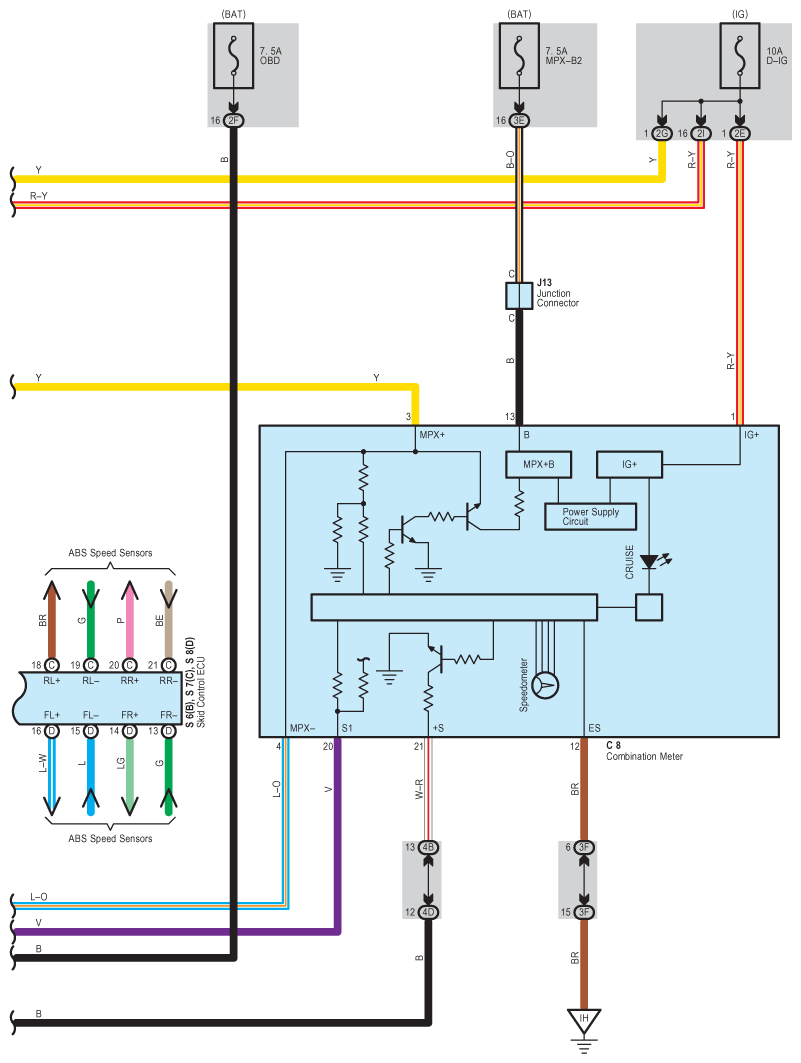

Fig 5: Cruise Control - Circuit Diagram (5 Of 5)
G07607780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
