Interior Light: Notes

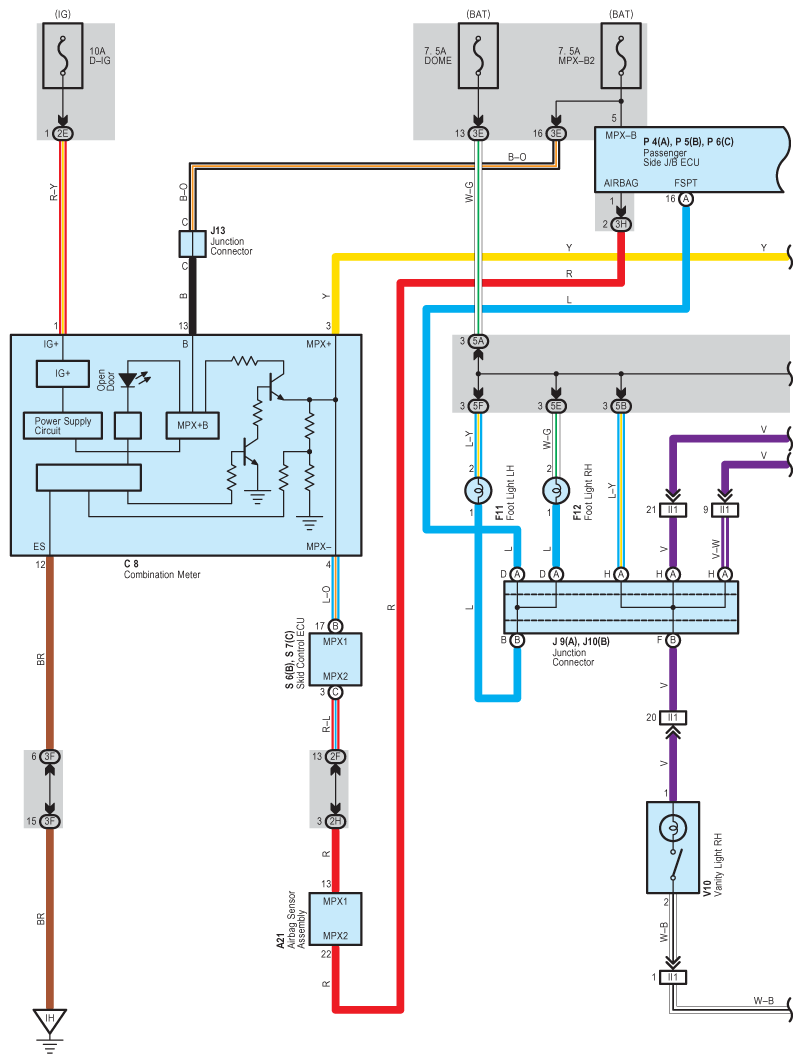

Fig 1: Interior Light - Circuit Diagram (1 Of 5)
G07607724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

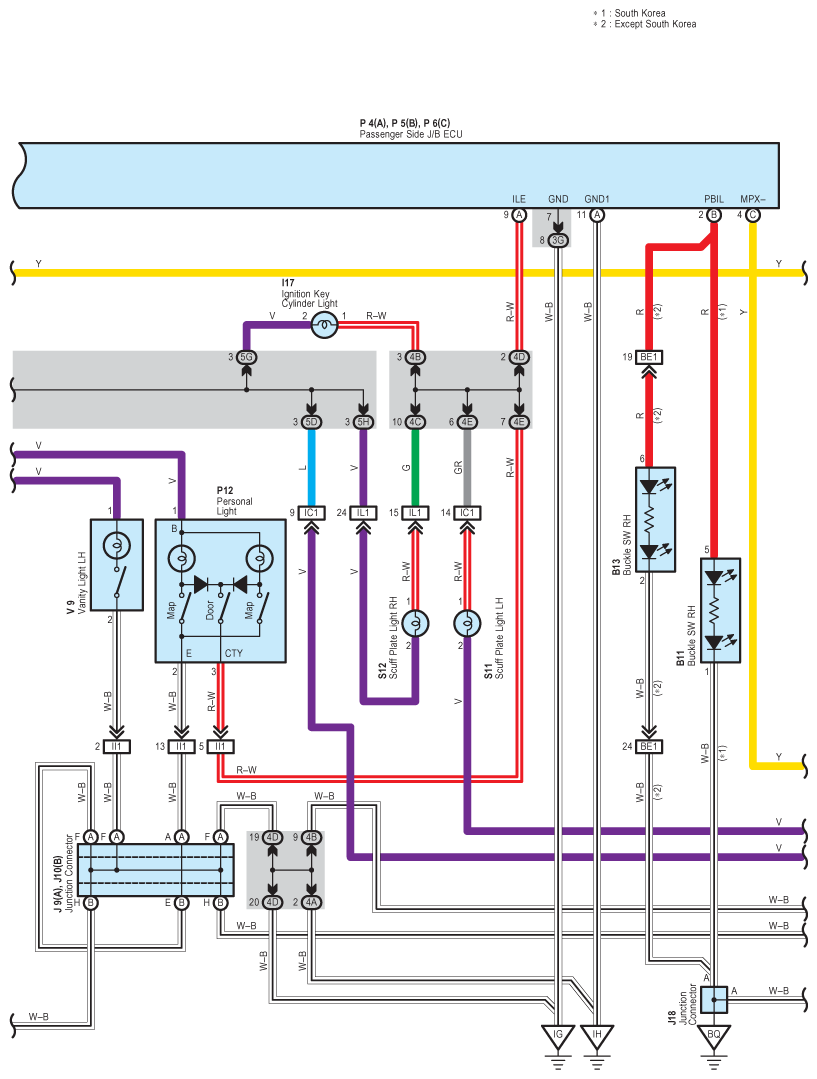

Fig 2: Interior Light - Circuit Diagram (2 Of 5)
G07607725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

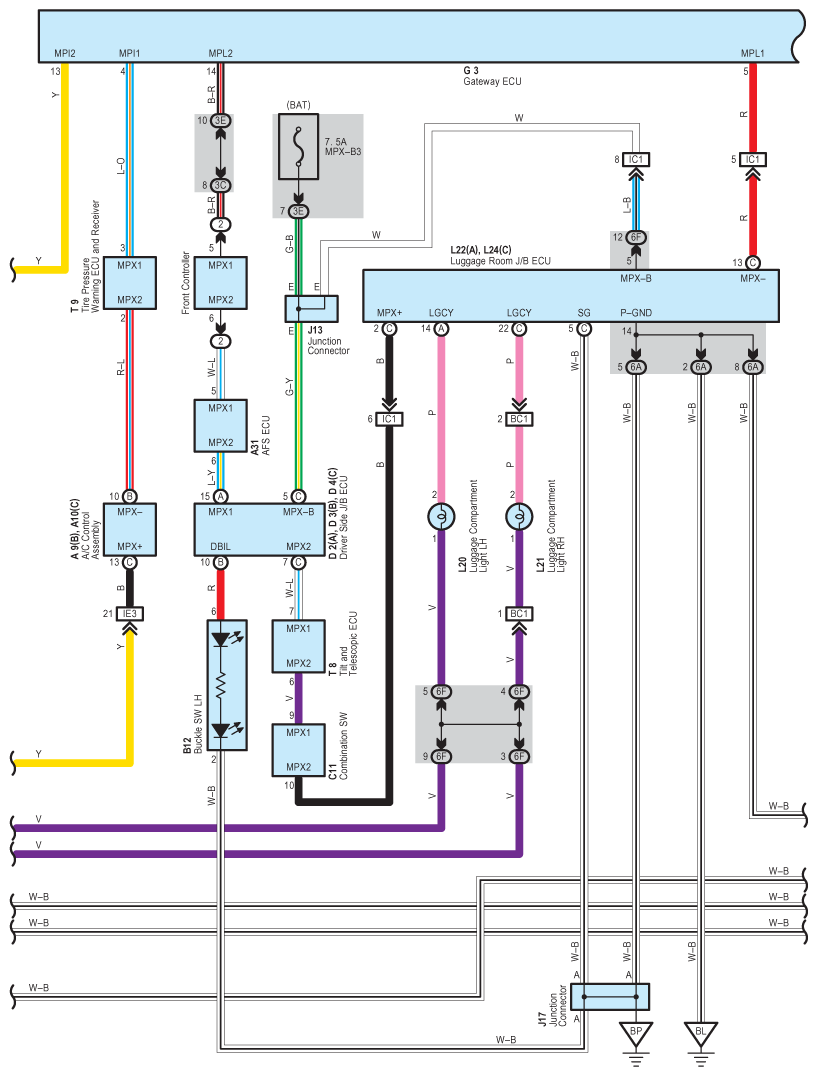

Fig 3: Interior Light - Circuit Diagram (3 Of 5)
G07607726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

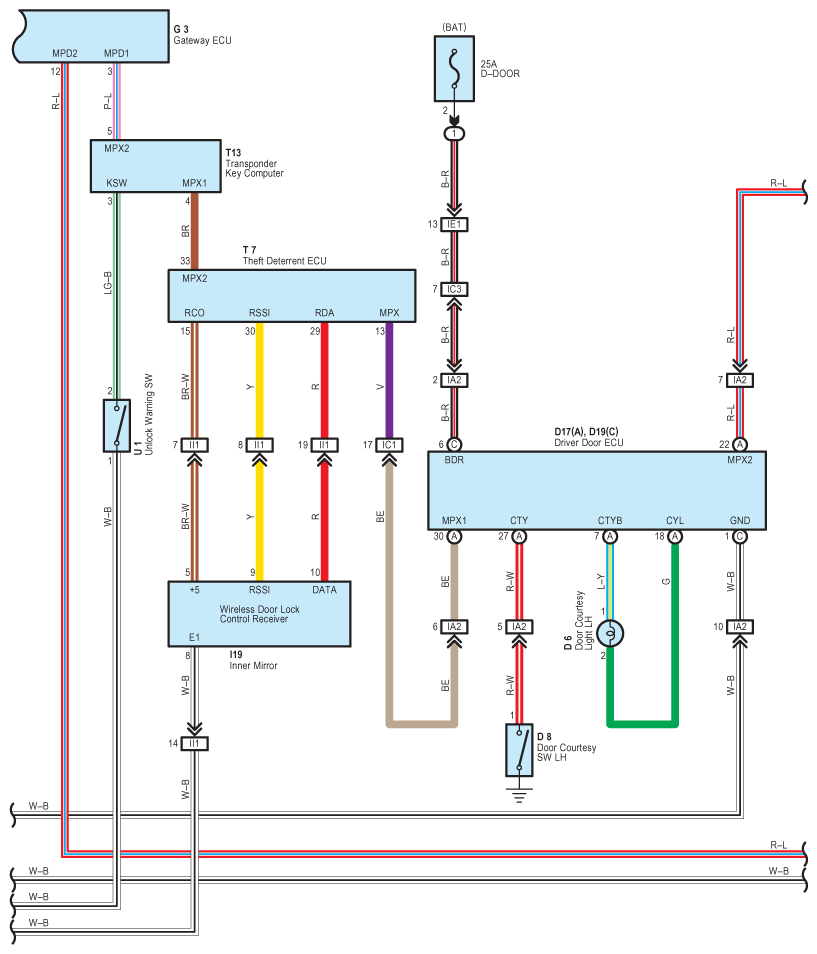

Fig 4: Interior Light - Circuit Diagram (4 Of 5)
G07607727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

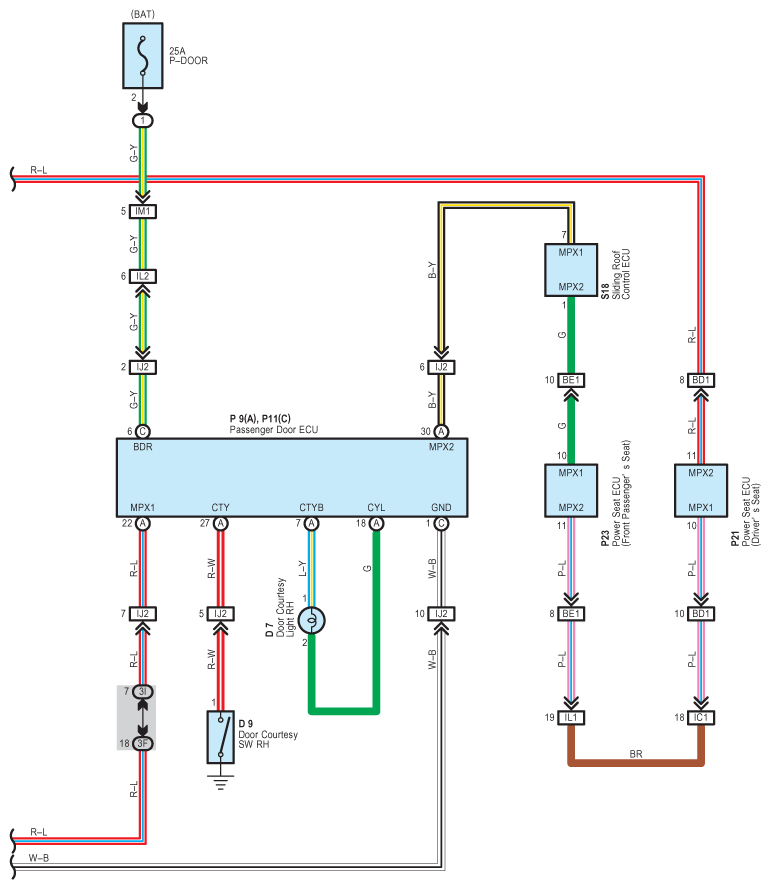

Fig 5: Interior Light - Circuit Diagram (5 Of 5)
G07607728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
