Power Seat: Notes

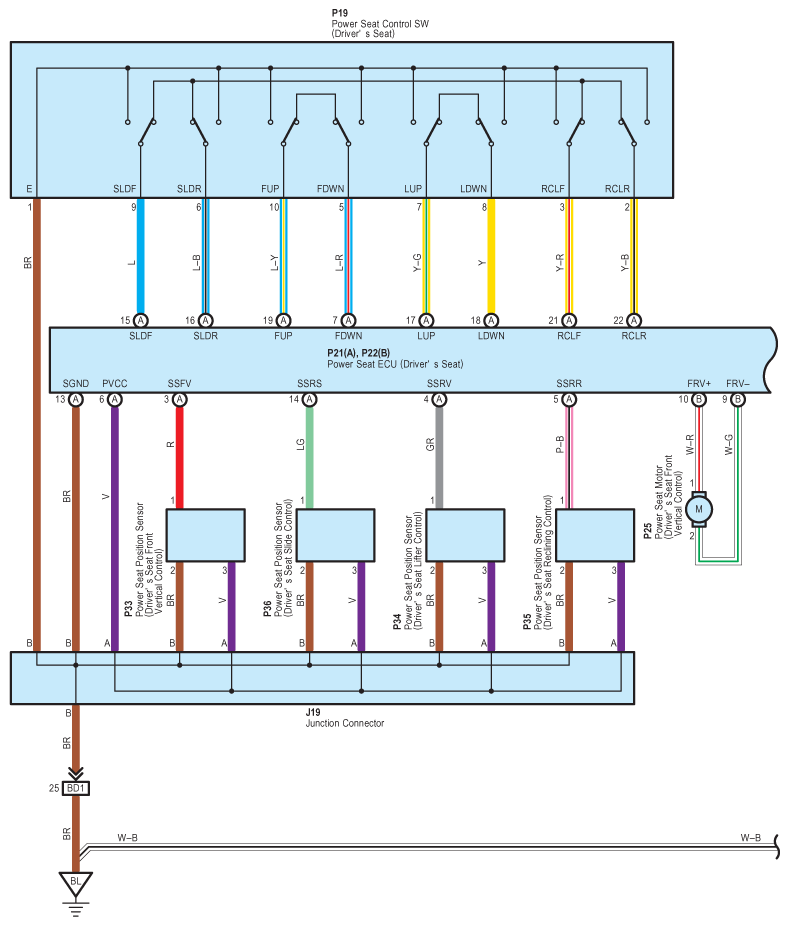

Fig 1: Power Seat - Circuit Diagram (1 Of 4)
G07607802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

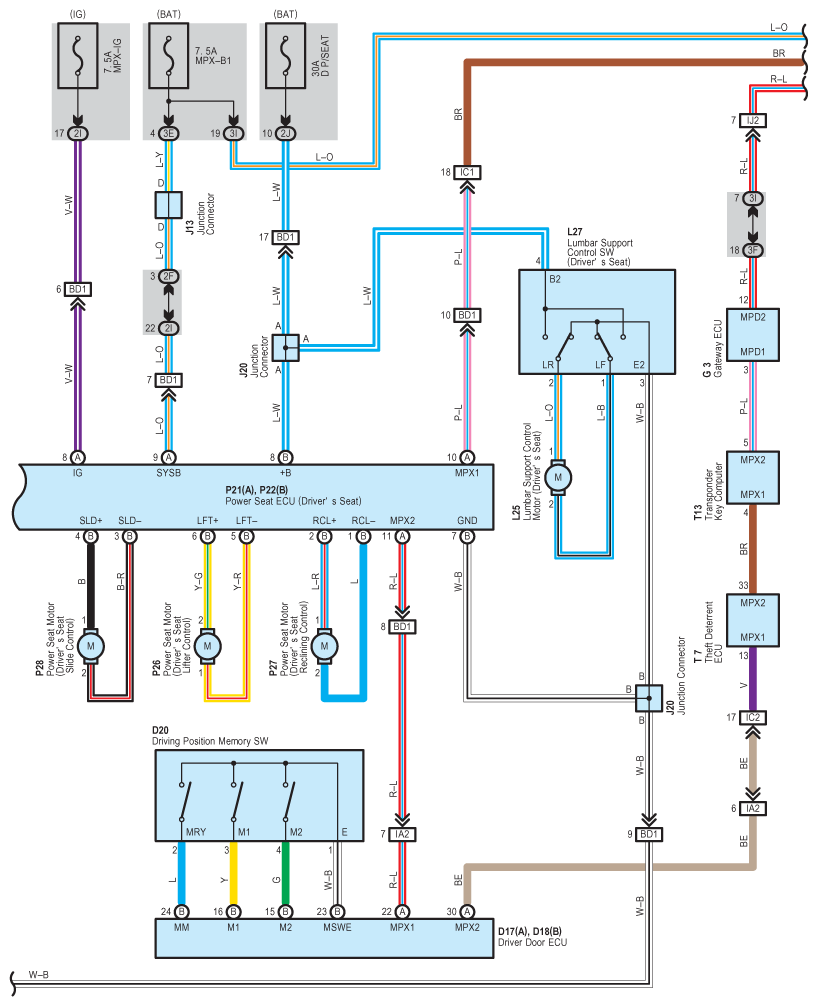

Fig 2: Power Seat - Circuit Diagram (2 Of 4)
G07607803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

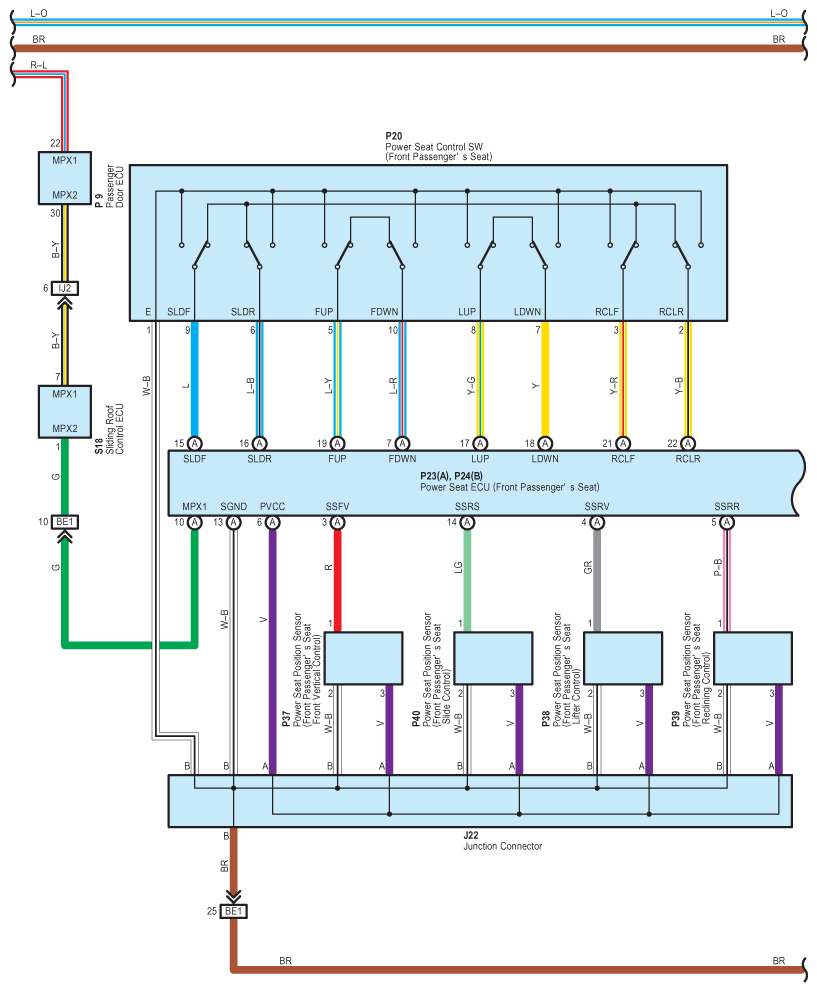

Fig 3: Power Seat - Circuit Diagram (3 Of 4)
G07607804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

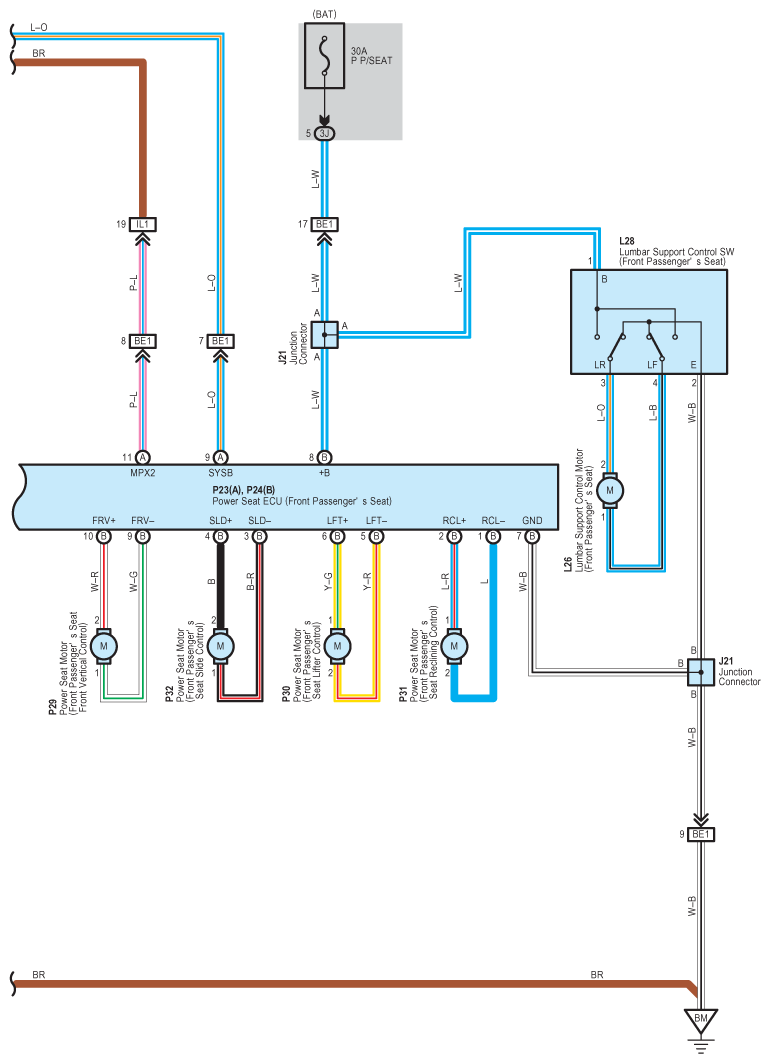

Fig 4: Power Seat - Circuit Diagram (4 Of 4)
G07607805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
