Installation (To 10/2008)

  1. INSTALL INTAKE AIR FLOW METER

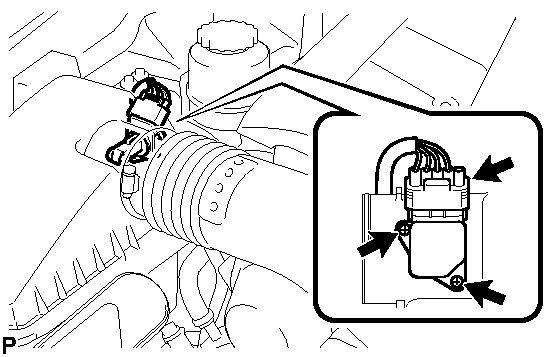

      Fig 1: Locating Mass Air Flow Meter With Screws
      GTY127847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring to the mass air flow meter.
    2. Install the mass air flow meter with the 2 screws.
    3. Connect the mass air flow meter connector.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  3. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
