Power Tilt and Power Telescopic: Notes

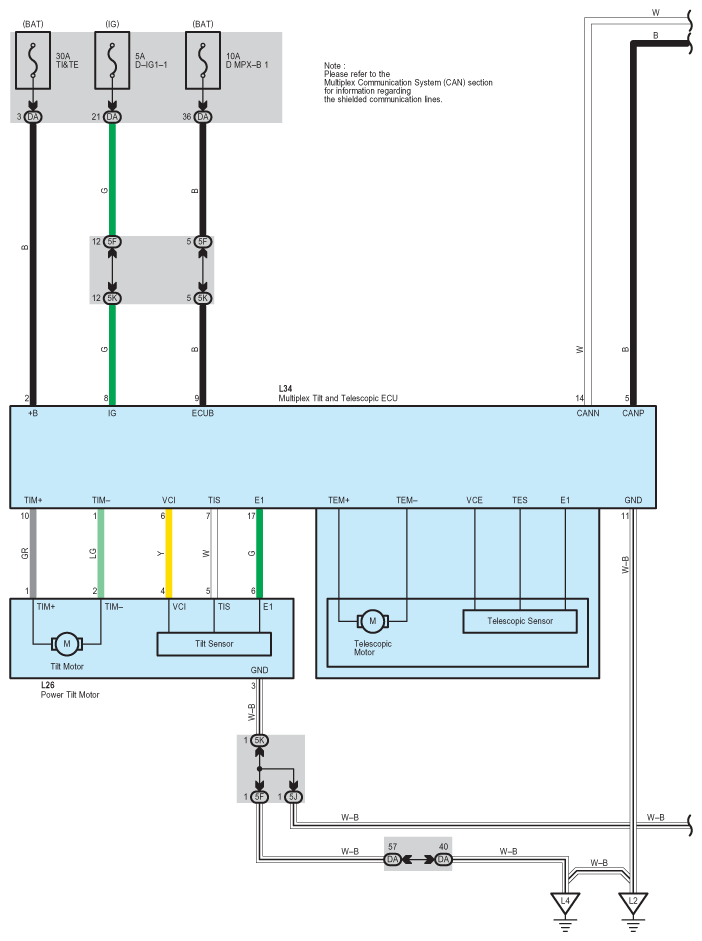

Fig 1: Power Tilt And Power Telescopic - Circuit Diagram (1 Of 7)
G07568889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

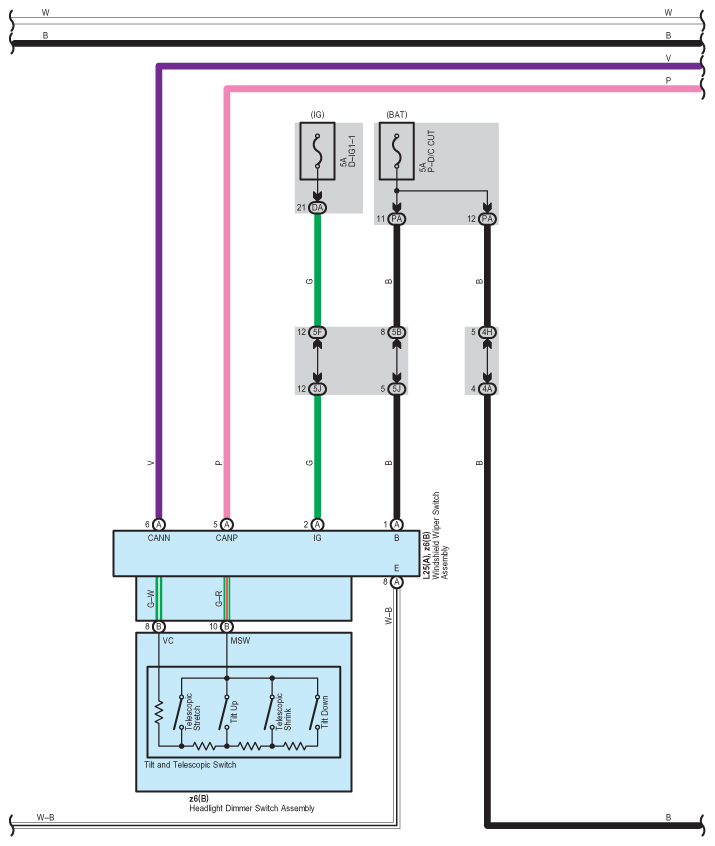

Fig 2: Power Tilt And Power Telescopic - Circuit Diagram (2 Of 7)
G07568890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

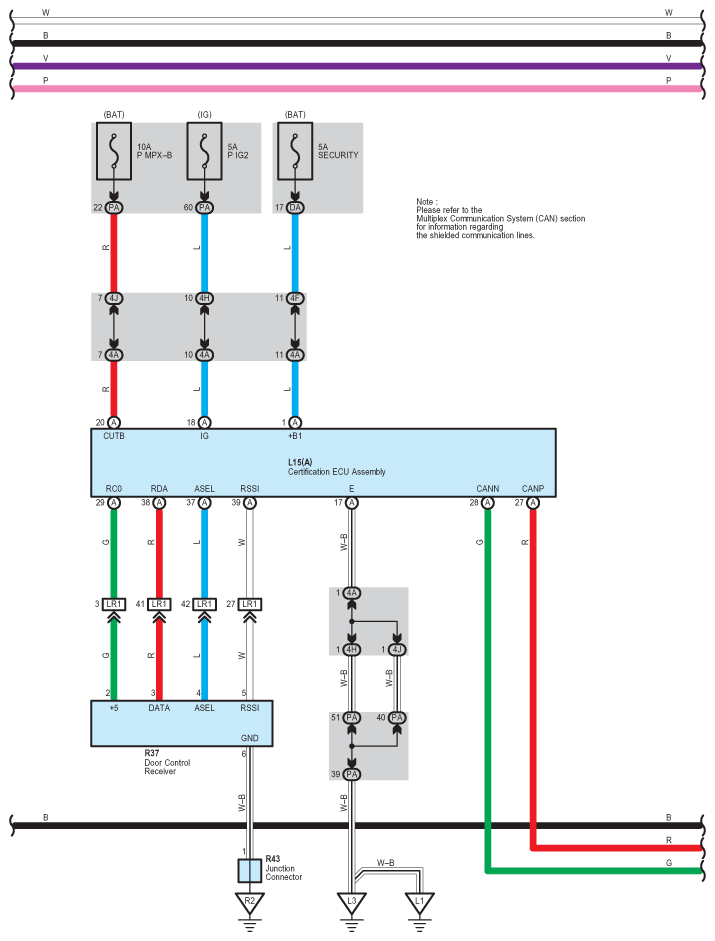

Fig 3: Power Tilt And Power Telescopic - Circuit Diagram (3 Of 7)
G07568891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

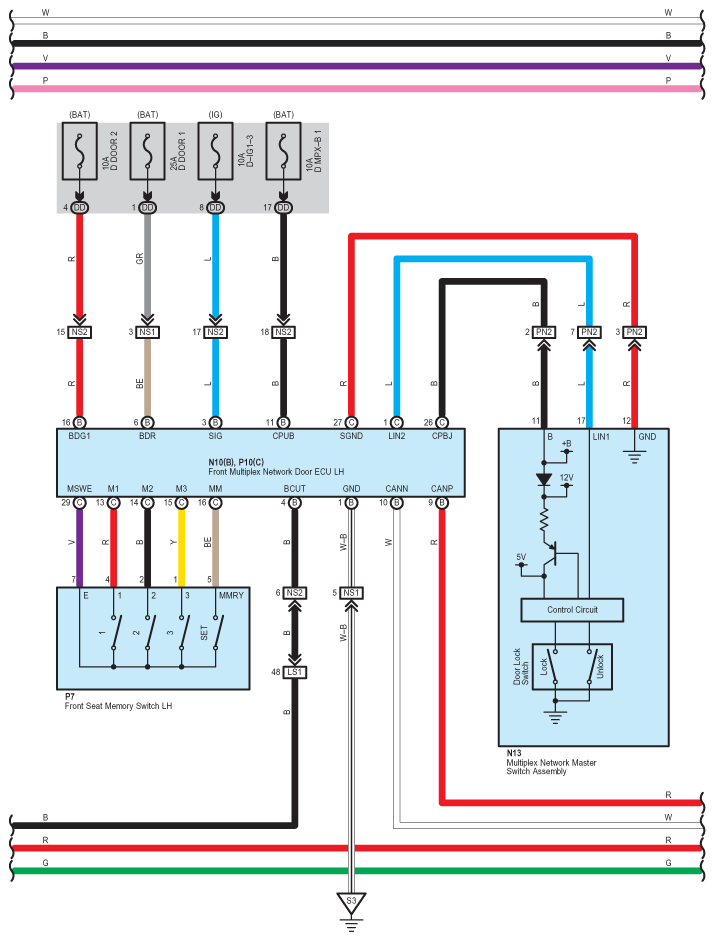

Fig 4: Power Tilt And Power Telescopic - Circuit Diagram (4 Of 7)
G07568892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

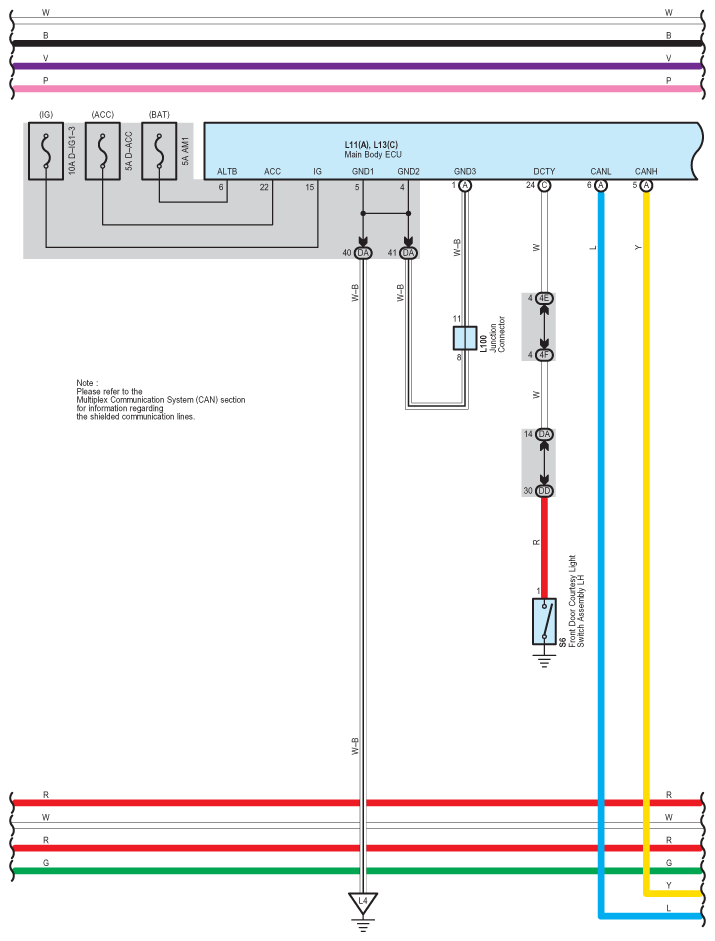

Fig 5: Power Tilt And Power Telescopic - Circuit Diagram (5 Of 7)
G07568893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

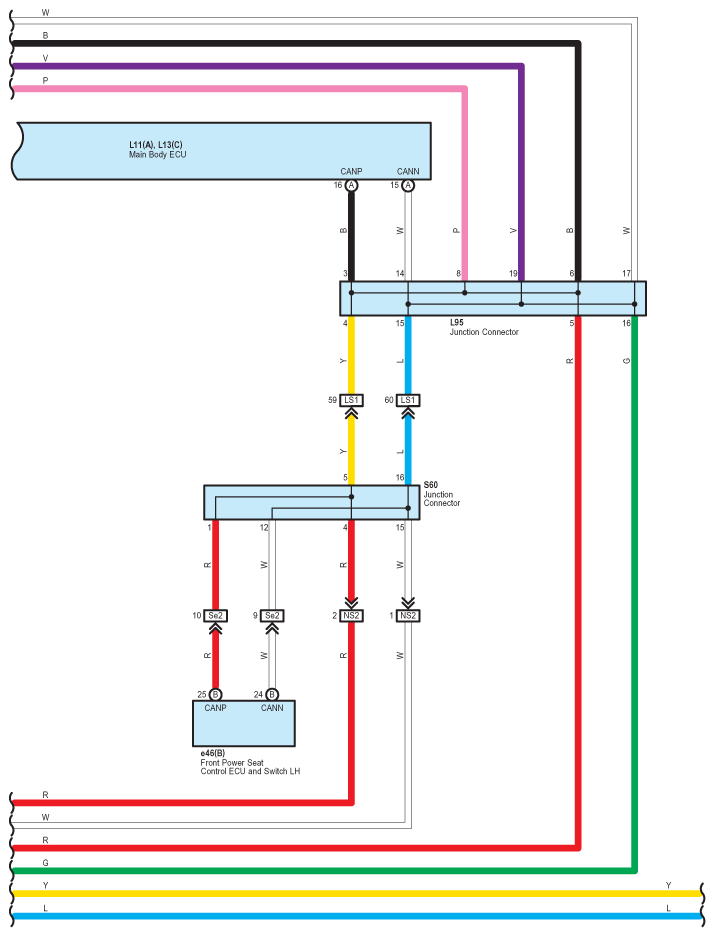

Fig 6: Power Tilt And Power Telescopic - Circuit Diagram (6 Of 7)
G07568894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

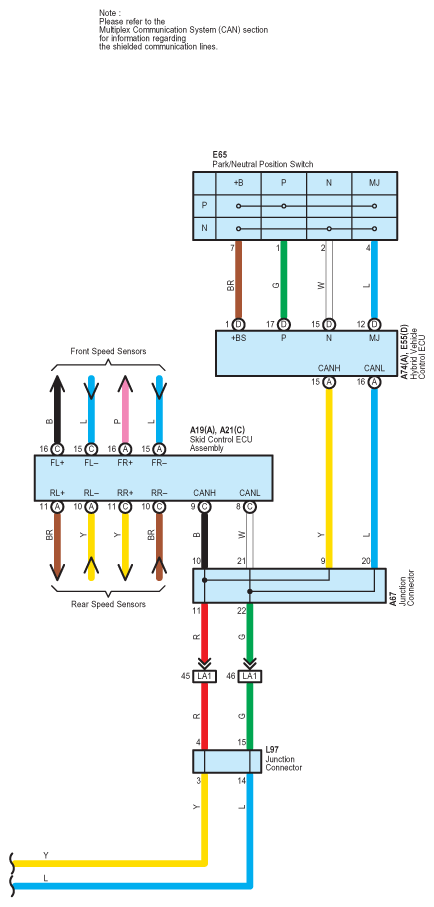

Fig 7: Power Tilt And Power Telescopic - Circuit Diagram (7 Of 7)
G07568895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
