Customize Parameters

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

CUSTOMIZING FUNCTION WITH TECHSTREAM

POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

TILT & TELESCO

Display	Default	Contents	Setting
Autoaway/Return function	ON	Turn the auto away/return function ON/OFF	ON/OFF

INTUITIVE PARKING ASSIST SYSTEM

WARNING

Display	Default	Contents	Setting
Rr Sensor Onset Range	Wide	Sets the buzzer activation range for the rear sensors.	Narrow or Wide
Keep Sense Buzzer	Avail	Makes the buzzer sound when the distance between the vehicle and obstacle does not change for more than 3 seconds.	Not Avail or Avail
Fr & Rr Buzzer Volume	H	Changes the buzzer volume setting.	L, M1, M2, M3 or H

SENSOR

Display	Default	Contents	Setting
Sensor Condition N	Avail	Makes the sensors available when the shift lever is in N.	Not Avail or Avail
Reverse Range Front Sensor	F	Changes the operation setting for the vehicle front sensors when the shift lever is in R.	F or F Stop
Non P/R Range Rear Sensor	R Stop	Changes the operation setting for the vehicle rear sensors when the shift lever is not in P or R.	R, Rcrn or R Stop

DISPLAY

Display	Default	Contents	Setting
Approach Display OFF	Avail	The display when moving away from a previously detected obstacle.	Not Avail or Avail
Display Mode	All	The display mode setting (when the intuitive parking assist system is normal).	All or Undisp

POWER DOOR LOCK CONTROL SYSTEM

DOOR LOCK

Display	Default	Contents	Setting
Unlock Key Twice	ON	Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For the OFF setting, turning it once unlocks all doors.	ON/OFF
Auto Lock	OFF	Function that locks all doors when the vehicle speed reaches a certain level.	ON/OFF
Auto Lock/Shift	ON	Function that locks all doors when the shift lever is moved from P to any position other than P while the engine running and all doors are closed.	ON/OFF
Auto Unlock/Shift	ON	Function that unlocks all doors when the shift lever is moved to P from any position other than P while the engine switch is on (IG).	ON/OFF
All Unlock/Open-Close	OFF	Function that unlocks the other doors when the driver side door is opened within 10 seconds after the engine switch is turned off.	ON/OFF

WIRELESS DOOR LOCK CONTROL SYSTEM

WIRELESS DOOR LOCK

Display	Default	Contents	Setting
Hazard Answer Back	ON	When the lock switch on the transmitter is pressed, this function illuminates the hazard warning lights once. When the unlock switch is pressed, the hazard warning lights illuminate twice.	ON/OFF
Wireless Control	ON	Function that turns the wireless door lock function on or off.	ON/OFF
Open Door Warning	ON	If a door is not completely closed and the transmitter lock switch is pressed, this function makes the buzzer sound for 10 seconds.	ON/OFF
Panic Alarm Function	ON	Function to operate the theft deterrent system by continuously pressing the panic switch on transmitter for 1 second or more.	ON/OFF
Unlock 2 Operation	ON	Function that unlocks the driver side door when the unlock switch on the transmitter is pressed once, and unlocks all doors when the switch is pressed twice. If the setting is OFF, pressing the unlock switch once makes all the doors unlock.	ON / OFF
Auto Lock Time	60 s	Function to change the time until relocking after unlocking with the wireless door lock function.	30 s/60 s/120 s
Wireless Auto Lock	ON	Function to control the automatic relocking of doors after unlocking with the wireless door lock function.	ON/OFF
Wireless Buzzer Volume	Level 7	This function changes the wireless buzzer volume.	Level 0/Level 1/Level 2/Level 3/Level 4/Level 5/Level 6/Level 7

PSD&PBD OPERATION (W/ POWER BACK DOOR SYSTEM)

Display	Default	Contents	Setting
PBD One Motion	ON	Function to turn on/off the power back door wireless one motion open operation.	ON/OFF
Wireless PBD SW Operation	0.8 s	Function to change the way the power back door is operated by the back door switch.	1 time / 2 times / 0.8 s / OFF

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

SMART KEY / ACCESS

Display	Default	Contents	Setting
Park Wait Time*1	2.5 s	Function that sets the waiting time to permit unlocking the door after the door is locked with the entry lock function.	0.5 s / 1.5 s / 2.5 s / 5 s
Ignition Area*2	ALL	Function to choose the available area for the key to start the engine and cancel the steering lock.	FRONT/ALL*3
Back Door Opening Operation*4	LONG	The back door opening operation.	LONG/TWICE/OFF

WARNING

Display	Default	Contents	Setting
Key Low Battery Warning*5	ON	Function that warns the driver that the key battery power is low.	ON/OFF

HINT:

*1: Waiting time to permit unlocking door after locking.

*2: Entry ignition available area.

*3: "FRONT" means front, and "ALL" means front floor, rear floor and luggage compartment.

*4: Back door open mode when vehicle is locked.

*5: Warn when key battery becomes weak.

ENTRY UNLOCK MODE SWITCHING FUNCTION
1. To use the entry unlock mode switching function, make sure the engine switch is off and simultaneously press and hold the lock switch on the key and another key switch for 5 seconds.
  - When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.
  NOTE:
  After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
  - Driver door unlock mode (default):
    When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - All door unlock mode:
    When a touch sensor is touched, all doors unlock.
2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart access system with push-button start to the entry unlock mode.
3. The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

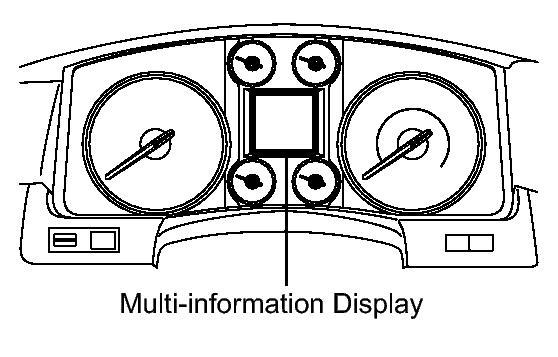

  Fig 1: Identifying Multi-Information Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.
  - Driver door unlock mode:

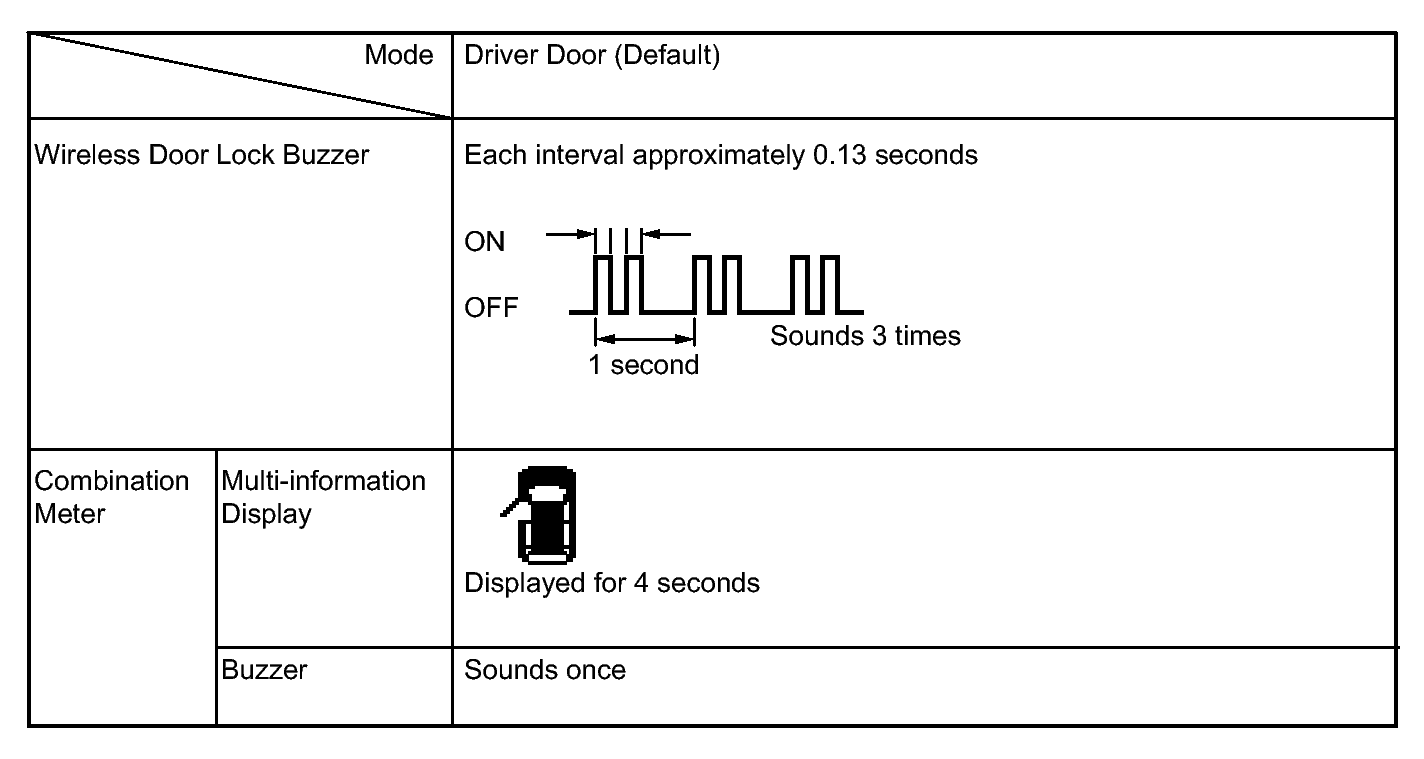

    Fig 2: Driver Door Unlock Mode Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - All door unlock mode:

    Fig 3: All Door Unlock Mode Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
KEY CANCEL
The key cancel operation disables the following functions:
- Entry Unlock/Lock
- Key Lock-in Prevention
- Memory Call
- Entry Back Door Open
- Warning
- Entry Ignition
1. The operation procedures are as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked.
  1. Unlock the driver side door once with the unlock switch of the key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
  4. Perform close → open twice for the driver door within 30 seconds.
    (Driver door: Open condition → Close → Open → Close → Open)
  5. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
  6. Perform close → open once for the driver door within 30 seconds.
    (Driver door: Open condition → Close → Open)
  7. Close the driver door within 5 seconds.
    When key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

SMART KEY / ACCESS

Display	Default	Content	Setting
Ignition Available Area	All	Function to choose the available area for the key to start the engine and cancel the steering lock.	Front/All

THEFT DETERRENT SYSTEM

SECURITY

Display	Default	Contents	Setting
Passive Mode (Security System)	OFF	Passive arming mode is a function that switches theft deterrent system from the arming preparation state to the armed state 30 seconds after the key is not inside vehicle and the driver side door is closed. In passive arming mode, the theft deterrent system will judge that a theft is taking place and switch to the alarm sounding state if one of the following operations is not performed within 14 seconds (see entry delay below) after the door is opened: Unlock any door by a key or wireless operation Turn the engine switch on (IG)	ON/OFF
Warning by Horn	ON	Function that allows vehicle horns and security horn to be used as warning device.	ON/OFF
Entry Delay Time	14 s	Function that changes entry delay time (time before warning starts) for passive arming mode.	0 s / 14 s / 30 s

METER AND GAUGE SYSTEM

WARNING

Display	Default	Contents	Setting
Driver Side Seatbelt Warning Buzzer	ON	To change the seat belt warning buzzer.	ON/OFF
Front Passenger Side Seatbelt Warning Buzzer	ON	To change the seat belt warning buzzer.	ON/OFF

UNIT CONVERSION

Display	Default	Contents	Setting
Units By Region	Different for each vehicle	To change the units of the display.	Km/l JP / Km/l / Ml/g US / Ml/g UK

DISPLAY

Display	Default	Contents	Setting
Language	None	To change the language of the display.	Eng US / Eng UK / French / German / Spanish / Italian / Japanes / CHN Sim / CHN Trd

SEAT BELT WARNING SYSTEM

SEAT BELT WARNING

Display	Default	Contents	Setting
Driver Side Seatbelt Warning Buzzer	ON	If the driver side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer.	ON/OFF
Front Passenger Side Seatbelt Warning Buzzer	ON	If the front passenger side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer.	ON/OFF

AIR CONDITIONING SYSTEM

AIR CONDITIONER

Display	Default	Contents	Setting
Set Temperature Shift	Normal	Function to set the temperature shift.	+2 C/+1 C/Normal/-1 C/-2 C
Evaporator Control	Automatic	Function to set the evaporator control to the automatic position (Automatic) to save power, or to the coldest position (Manual) to dehumidify the air and to prevent the windows from fogging up.	Manual/Automatic
Compressor/Air Inlet DEF operation	Link	Function to automatically turn the A/C on when the front defroster button is pressed.	Normal/Link
Compressor Mode	Automatic	Function to turn the A/C on automatically by pressing the AUTO button when the blower is on and the A/C is off.	Manual/Automatic
Air Inlet Mode	Automatic	Function to automatically change to recirculation mode when the A/C is turned on.	Manual/Automatic
Foot/DEF Auto Mode	ON	Function to turn on the airflow from the front and rear footwell register ducts and center and side defrosters automatically when auto mode is on.	ON/OFF
Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is on.	ON/OFF
Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature.	+3 C/+2 C/+1 C/Normal/-1 C/-2 C/-3 C
Button Press Buzzer	ON	Function to sound a buzzer when a button is pressed.	ON/OFF
Emission Gas Sensor Shift	Normal	Function to change the sensitivity of the exhaust gas sensor.	Much More/More/Little More/Normal/Little Less/Less/Much Less

POWER WINDOW CONTROL SYSTEM

POWER WINDOW

Display	Default	Contents	Setting
Door Key P/W Up	OFF	Function that raises all the power windows when, with the engine switch off, a key is used to hold the driver door key cylinder to the lock position for more than 2.3 sec.	ON/OFF
Door Key P/W Down	OFF	Function that lowers all the power windows when, with the engine switch off, a key is used to hold driver door key cylinder to the unlock position for more than 2.3 sec.	ON/OFF
P/W Down W/ Transmit	OFF	Function that lowers all the power windows when, with the engine switch off, the unlock switch on the transmitter is pressed and held for more than 3.0 sec.	ON/OFF
P/W Up W/ Smart	OFF	Function that raises all the power windows when, with the engine switch off, the entry lock switch on the driver side door outside handle is pressed and held for more than 3.0 sec.	ON/OFF

SLIDING ROOF SYSTEM

SLIDE ROOF

Display	Default	Contents	Setting
Door Key Related Open	ON	The function to manually open the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off.	ON/OFF
Door Key Related Close	ON	The function to manually close the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to lock position when the engine switch is off.	ON/OFF
Wireless Key Related Open	OFF	The function to manually open the sliding roof linked with the power window if pressing the transmitter unlock switch for 3 seconds or more when the engine switch is off.	ON/OFF
Door Handle Lock Button	ON	The function to manually close the sliding roof linked with the power window if pushing the door lock switch for 3 seconds or more when the engine switch is off and the key is outside vehicle.	ON/OFF
Door Key Related Operation	Slide	The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off.	Tilt/Slide
Wireless Key Related Operation	Slide	The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by pressing on the transmitter unlock switch for 3 seconds or more when the engine switch is off.	Tilt/Slide

POWER BACK DOOR SYSTEM

PSD & PBD OPERATION

Display	Default	Contents	Setting
PBD Power Operation	Valid	Makes power back door function ON or OFF	Valid/Invalid
PBD SW Operation	0.8 s	A function that turns the power back door closer switch on when the switch is pushed once or is held down for 0.8 sec.	0.8 s / ON
PBD Buzzer	ON	A function that makes the power back door buzzer sound when the power back door is operating.	ON/OFF
Wireless PBD Operation	0.8 s	A function that operates the power back door when the transmitter switch is pressed in a specified way (1 time, 2 times, 0.8 sec. press, or off).	1 time/2 times/0.8 s/OFF

LIGHTING SYSTEM

ILLUMINATED ENTRY

Display	Default	Contents	Setting
I/L when ACC OFF	ON	Function to illuminate the interior light when the engine switch is turned from on (IG) or on (ACC) to off.	ON/OFF
Lighting Time	15 s	Function to change the lighting time after closing the door. (It will quickly fade out in the case of turning the engine switch on (IG)).	7.5 s / 15 s / 30 s
Light Control	ON	Function to illuminate the door inside handle illumination light when the engine switch is on (IG) and the shift lever is not in P.	ON/OFF
I/L ON W/Door Key Unlock	ON	Function to illuminate the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON/OFF
Mirr-Foot-Lgt Approached	ON	Function to illuminate the door mirror foot light when the transmitter enters the key ID detection area.	ON/OFF
Mirr-Foot-Lgt Unlocked	ON	Function to illuminate the door mirror foot light when unlocking the doors with the transmitter.	ON/OFF
Mirr-Foot-Lgt w/Master SW	ON	Function to illuminate the door mirror foot light when unlocking the doors with the transmitter.	ON/OFF
Mirror Foot Light Time	15 s	Door mirror foot light illumination duration.	0 s / 7.5 s / 15 s / 30 s
Room Light when Aprchd	ON	Dome light illumination (when key enters key ID detection area).	ON/OFF
Inside Foot Light	ON	Interior foot light illumination.	ON/OFF
Center Console Spot Light	ON	Center console spot light.	ON/OFF

LIGHT CONTROL

Display	Default	Contents	Setting
Light Auto OFF Delay	30 s	Function to illuminate the headlight for a certain period of time after closing all the doors with the engine switch turned from on (IG) to off under the condition that the headlights illuminate with the light control switch at head or AUTO.	OFF / 30 s / 60 s / 90 s
Sensitivity	NORMAL	Function to adjust the sensitivity of the lighting illumination*1.	Light2/Light1/Normal/Dark1/Dark2
Disp Ex ON Sen	NORMAL	Changes the brightness when the lights such as the combination meter indicator light, A/C indicator light, and clock light dim. Refer to the illumination*2.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
Disp Ex OFF Sen	NORMAL	Ajusts the brightness when lights such as the combination meter indicator light, A/C indicator light, and clock light brighten. Refer to the illumination*3.	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
DRL Function	ON	DRL control.	ON/OFF

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle of the customer.

ILLUMINATION*1

Lighting Brightness	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	Dark2	Dark1	Normal	Light1	Light2

ILLUMINATION*2

Brightness when lights dim	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

ILLUMINATION*3

Brightness when lights brighten	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

DOOR LINKED MAP LIGHT AND PERSONAL LIGHT ILLUMINATION CONTROL
Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates

Mode 2: When door is opened, all map lights and personal lights illuminate

Mode 3: Map lights and personal lights are not linked to doors
1. To change modes, press the map light assembly DOOR and on switch simultaneously, and then turn the engine switch from off to on (IG). Each engine switch off to on (IG) operation will change the mode (Mode 1 → Mode 2 → Mode 3 → Mode 1).
  HINT:

  After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
