Multiplex Communication System (Junction Block ECU): Notes

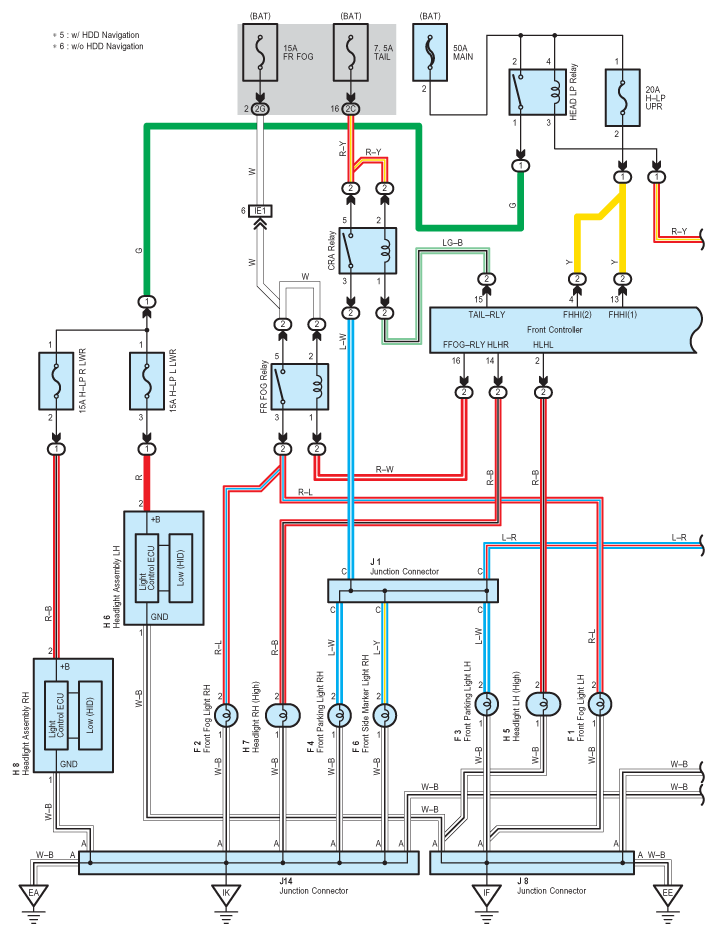

Fig 1: Multiplex Communication System (J/B ECU) - Circuit Diagram (1 Of 20)

G07605882

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

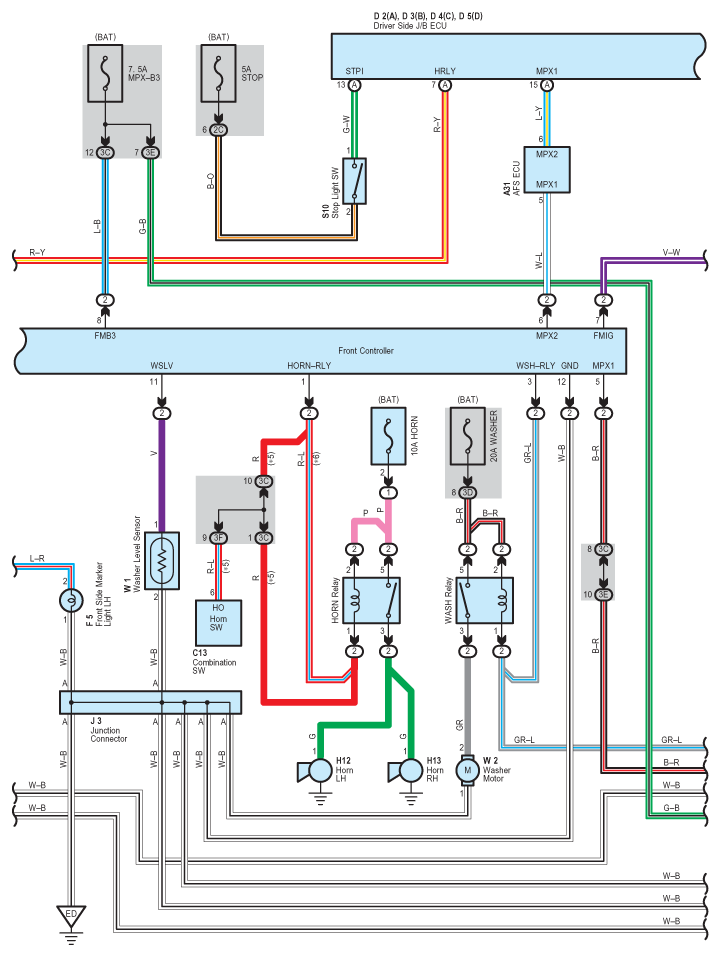

Fig 2: Multiplex Communication System (J/B ECU) - Circuit Diagram (2 Of 20)

G07605883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

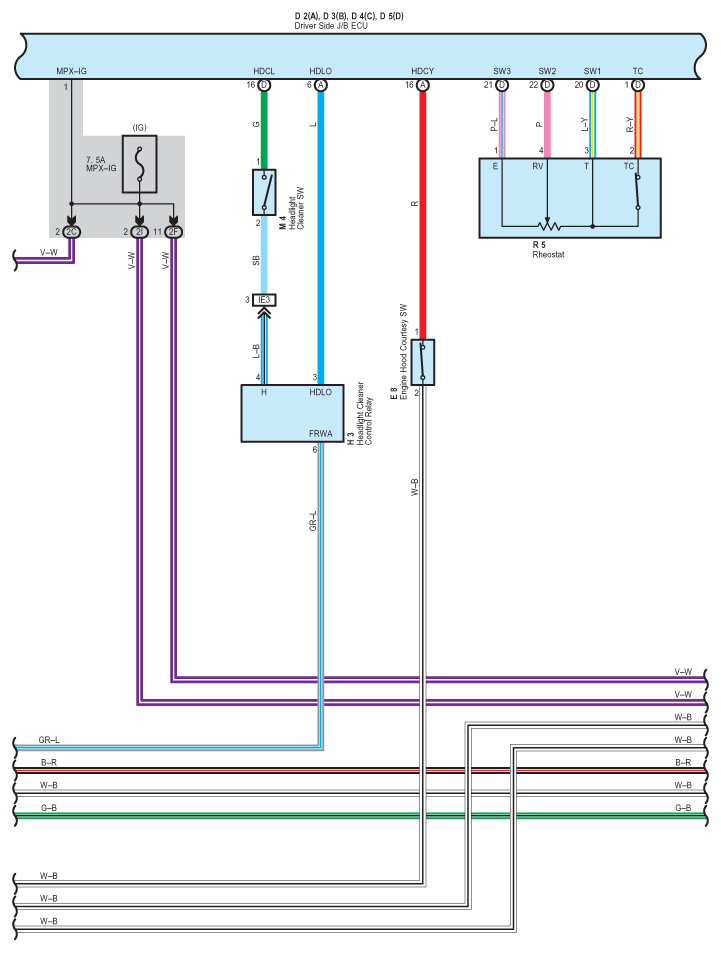

Fig 3: Multiplex Communication System (J/B ECU) - Circuit Diagram (3 Of 20)

G07605884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

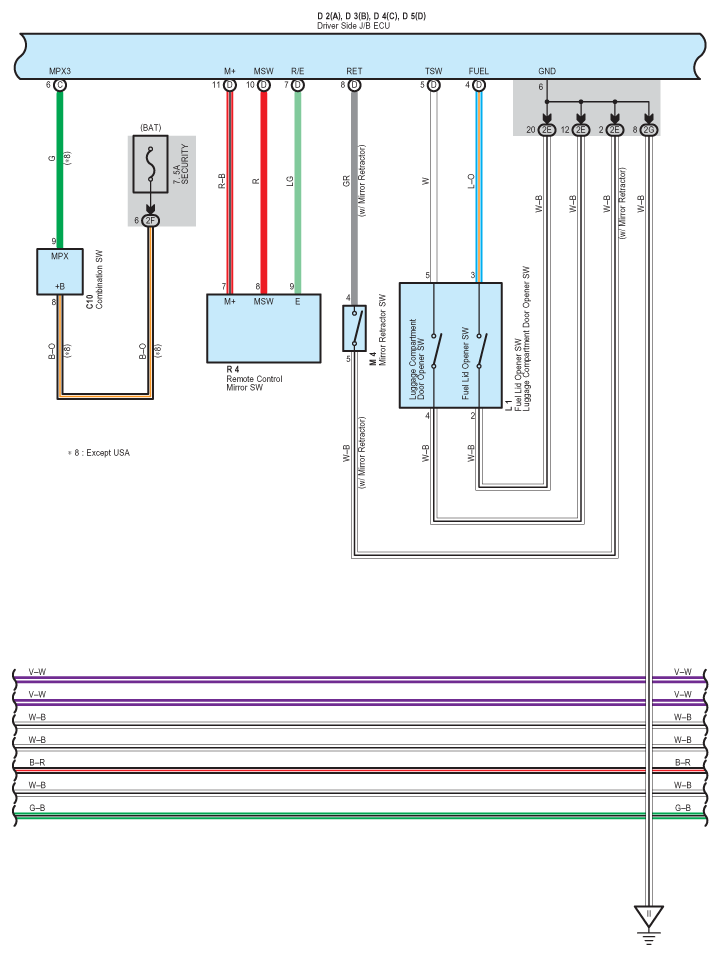

Fig 4: Multiplex Communication System (J/B ECU) - Circuit Diagram (4 Of 20)

G07605885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

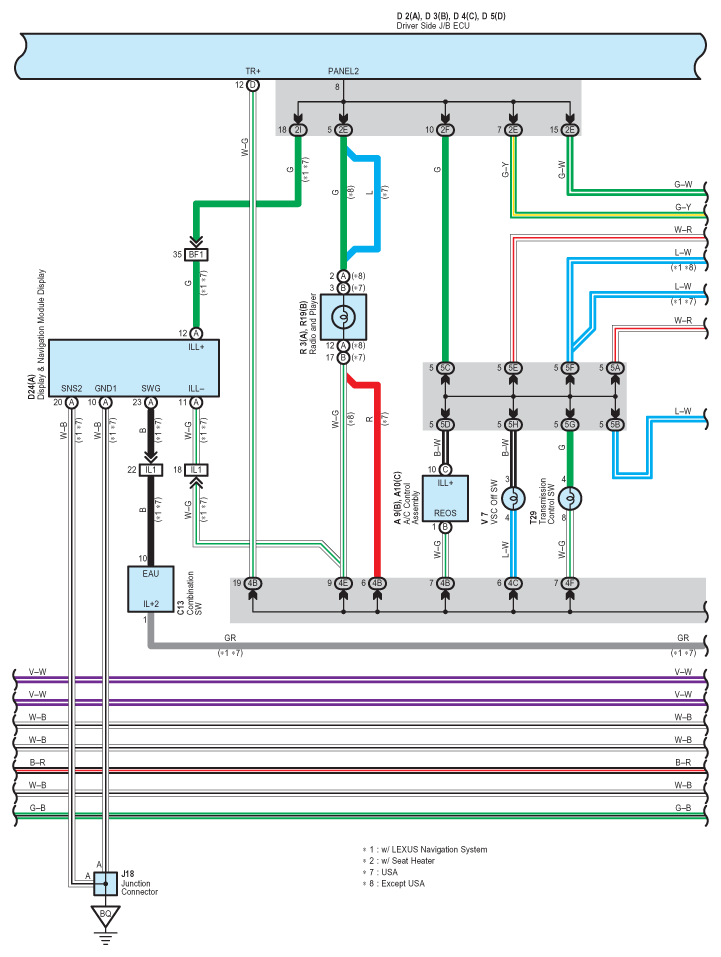

Fig 5: Multiplex Communication System (J/B ECU) - Circuit Diagram (5 Of 20)

G07605886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

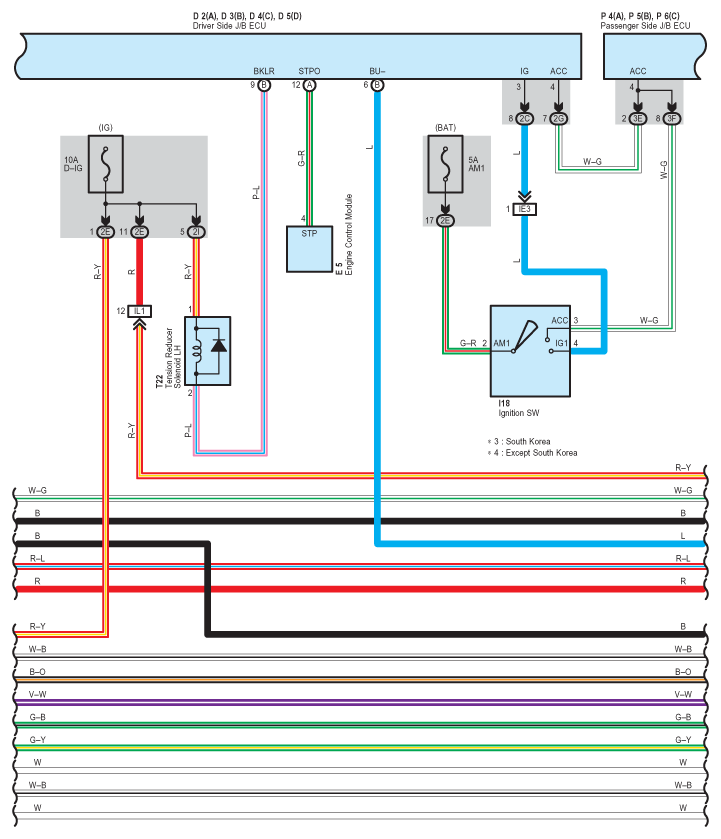

Fig 6: Multiplex Communication System (J/B ECU) - Circuit Diagram (6 Of 20)

G07605887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

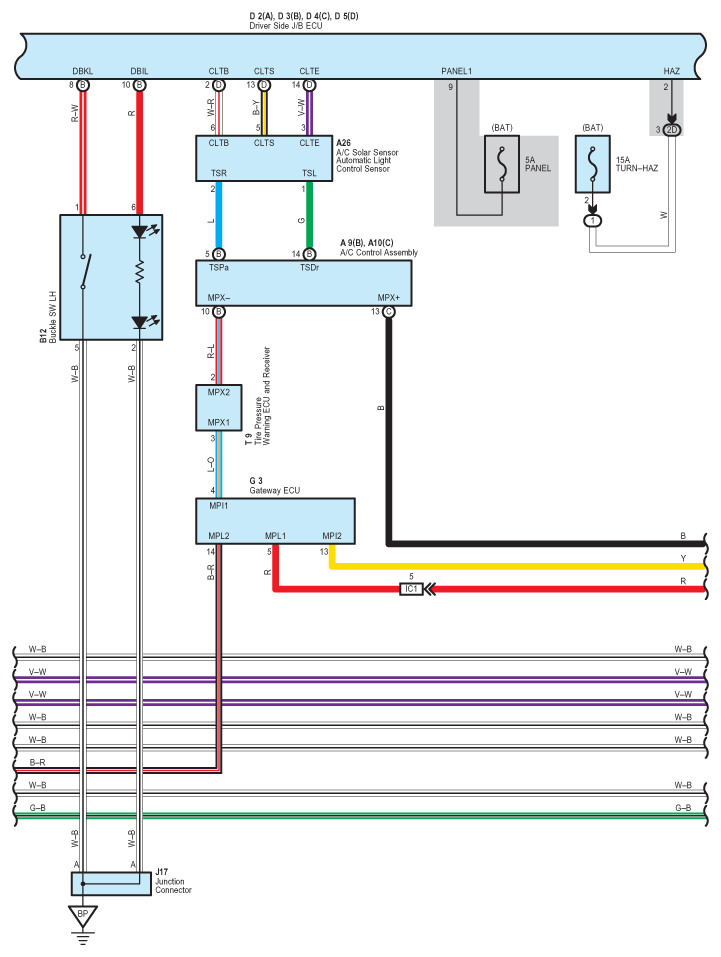

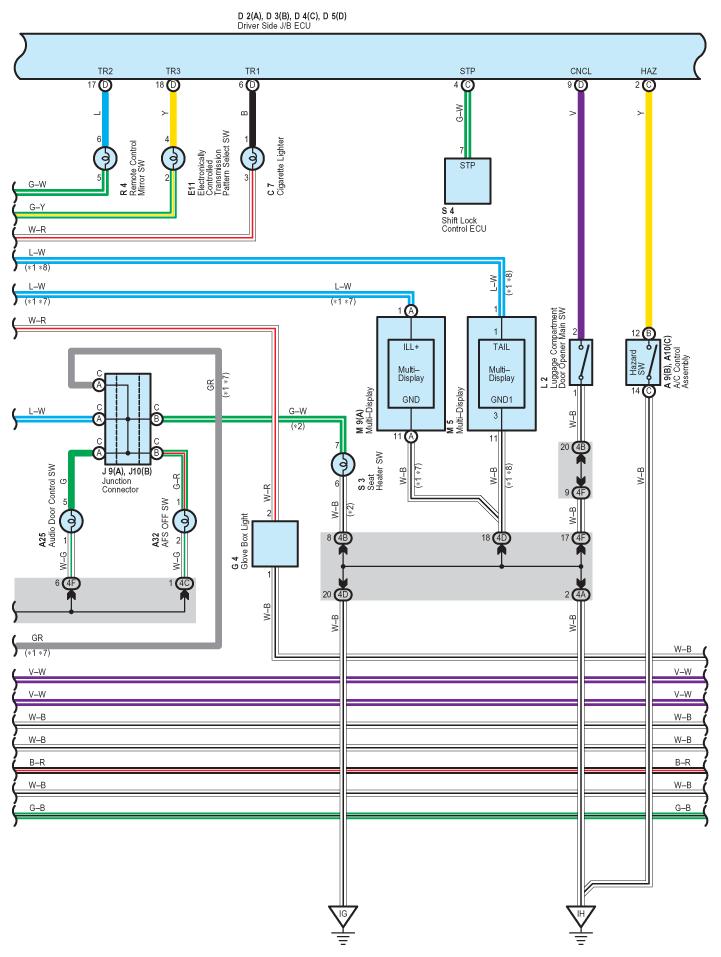

Fig 7: Multiplex Communication System (J/B ECU) - Circuit Diagram (7 Of 20)

G07605888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

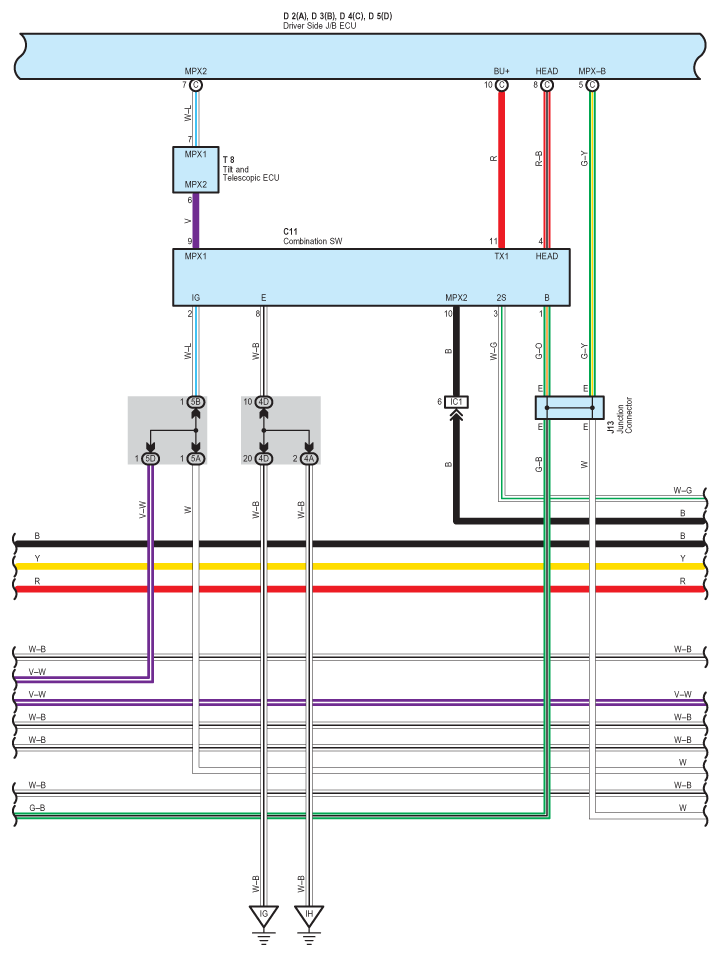

Fig 8: Multiplex Communication System (J/B ECU) - Circuit Diagram (8 Of 20)

G07605889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

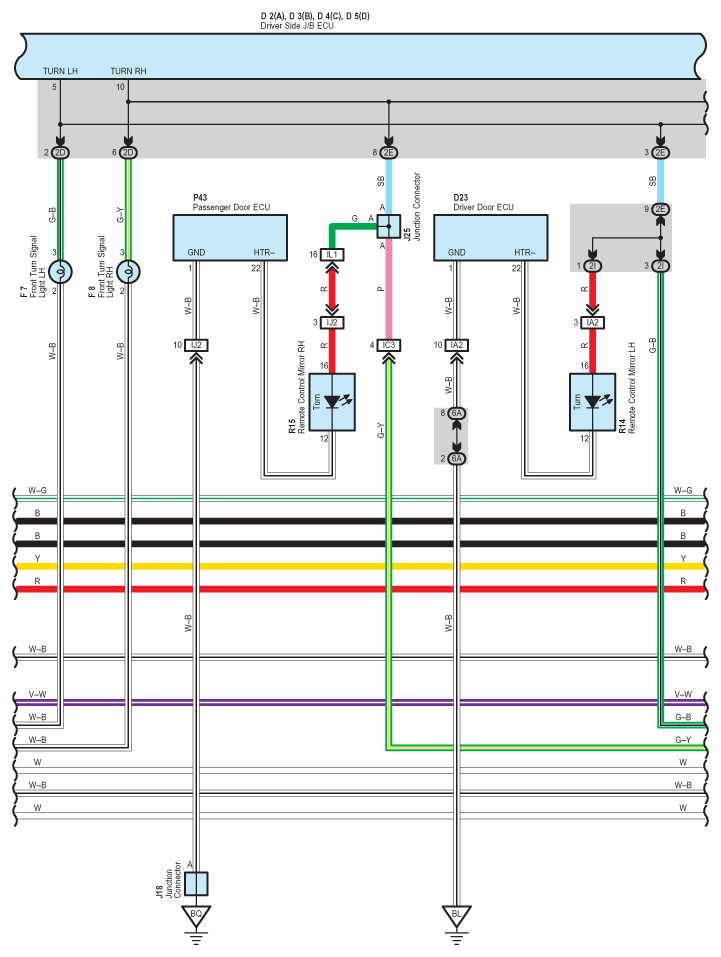

Fig 9: Multiplex Communication System (J/B ECU) - Circuit Diagram (9 Of 20)

G07605890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

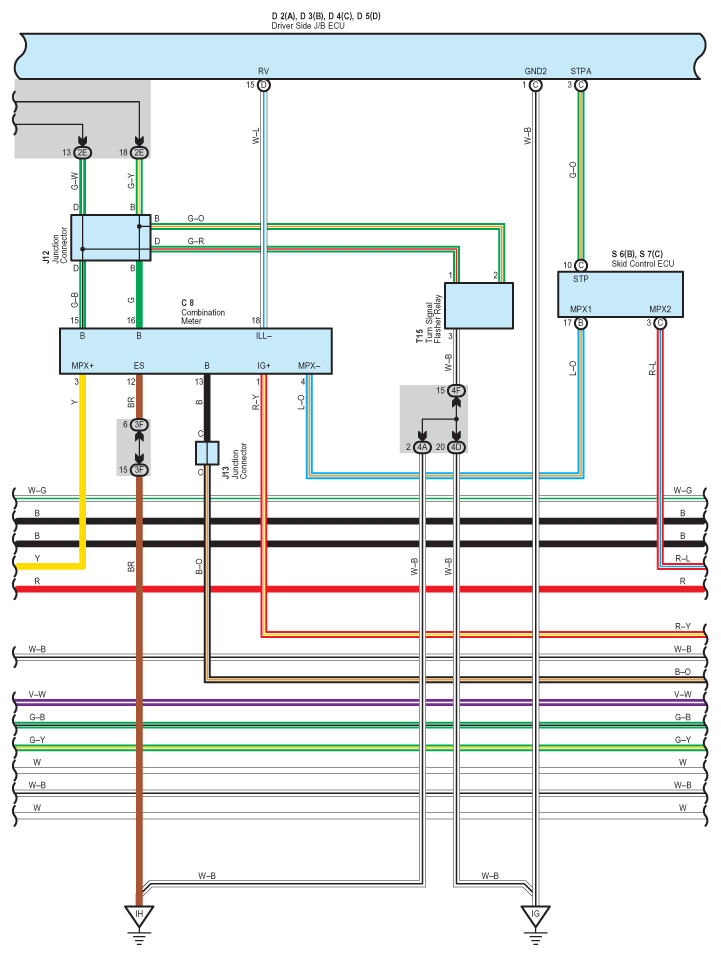

Fig 10: Multiplex Communication System (J/B ECU) - Circuit Diagram (10 Of 20)

G07605891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Multiplex Communication System (J/B ECU) - Circuit Diagram (11 Of 20)

G07605892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Multiplex Communication System (J/B ECU) - Circuit Diagram (12 Of 20)

G07605893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

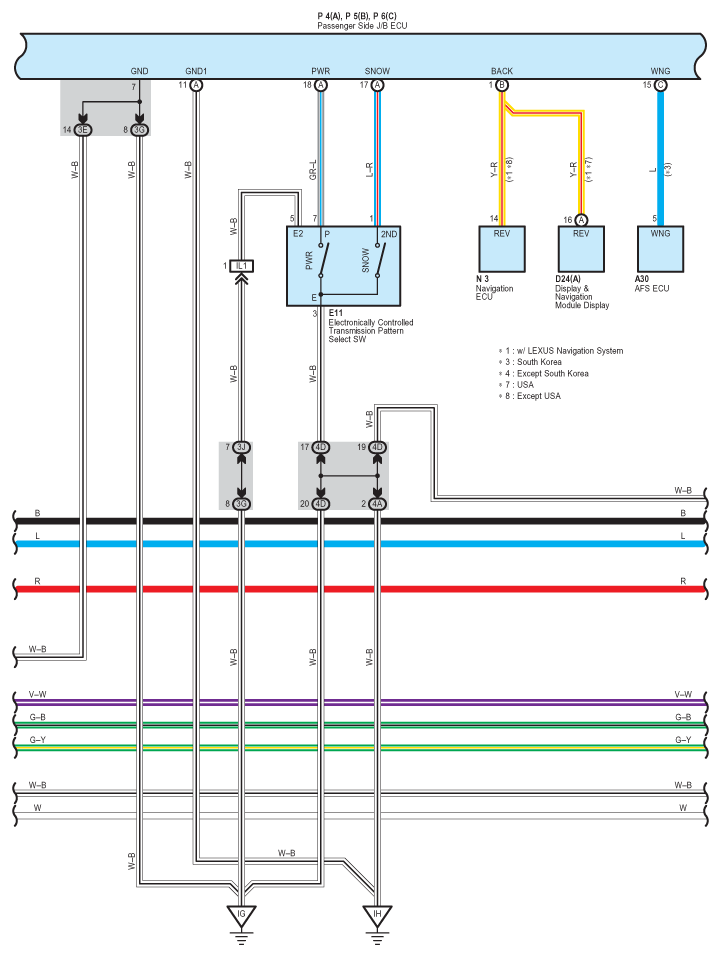

Fig 13: Multiplex Communication System (J/B ECU) - Circuit Diagram (13 Of 20)

G07605894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

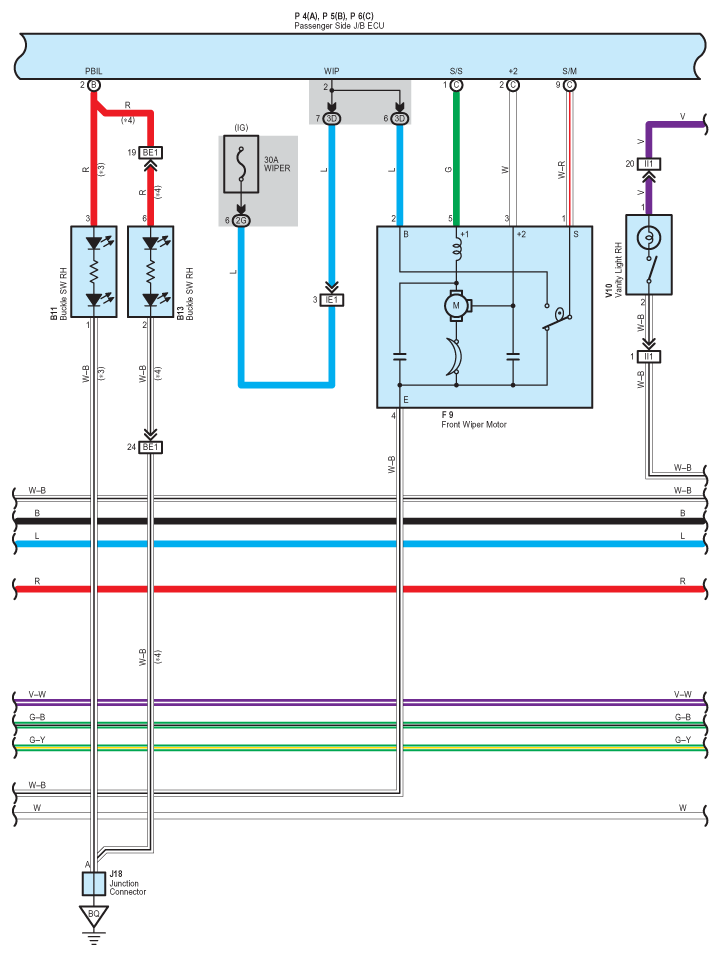

Fig 14: Multiplex Communication System (J/B ECU) - Circuit Diagram (14 Of 20)

G07605895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

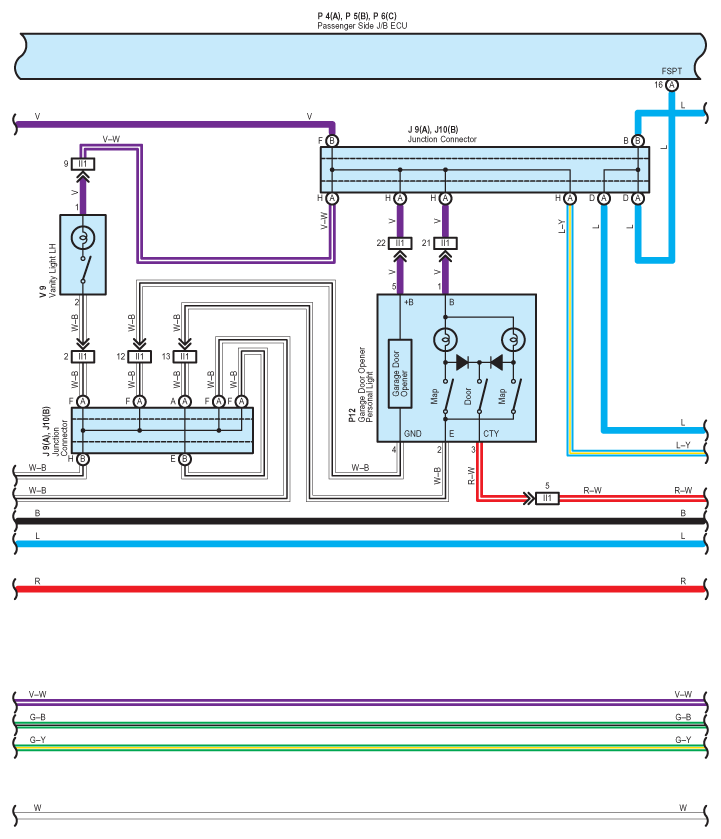

Fig 15: Multiplex Communication System (J/B ECU) - Circuit Diagram (15 Of 20)

G07605896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

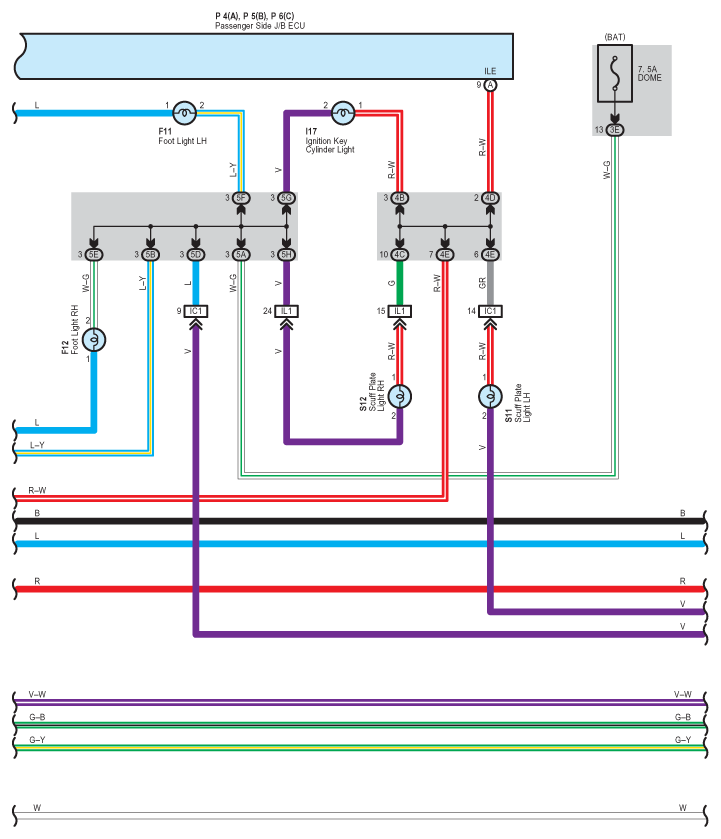

Fig 16: Multiplex Communication System (J/B ECU) - Circuit Diagram (16 Of 20)

G07605897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

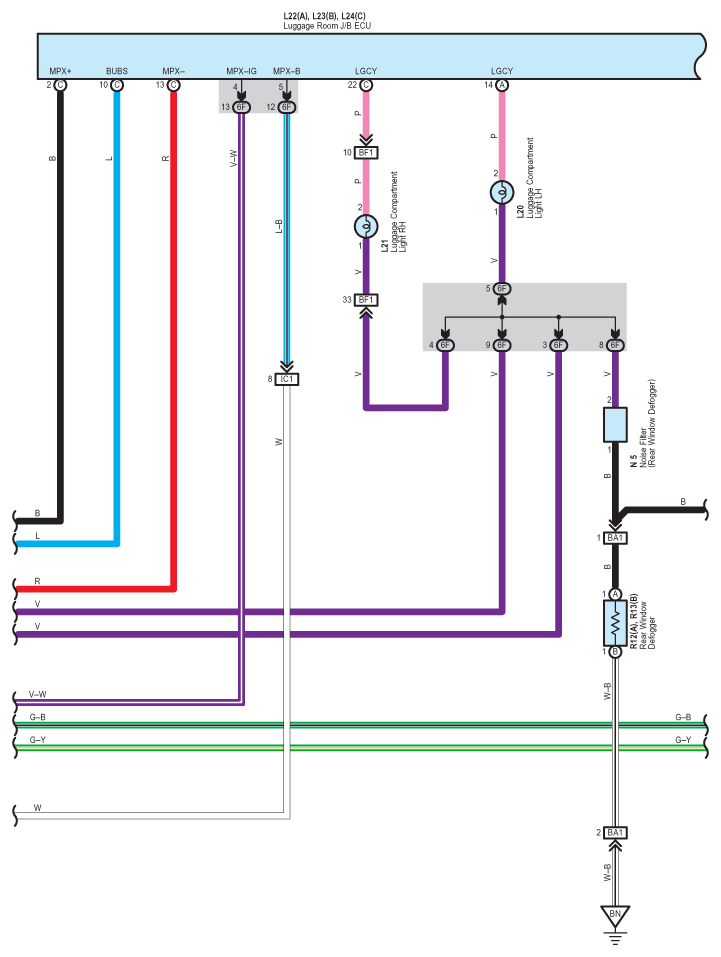

Fig 17: Multiplex Communication System (J/B ECU) - Circuit Diagram (17 Of 20)

G07605898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

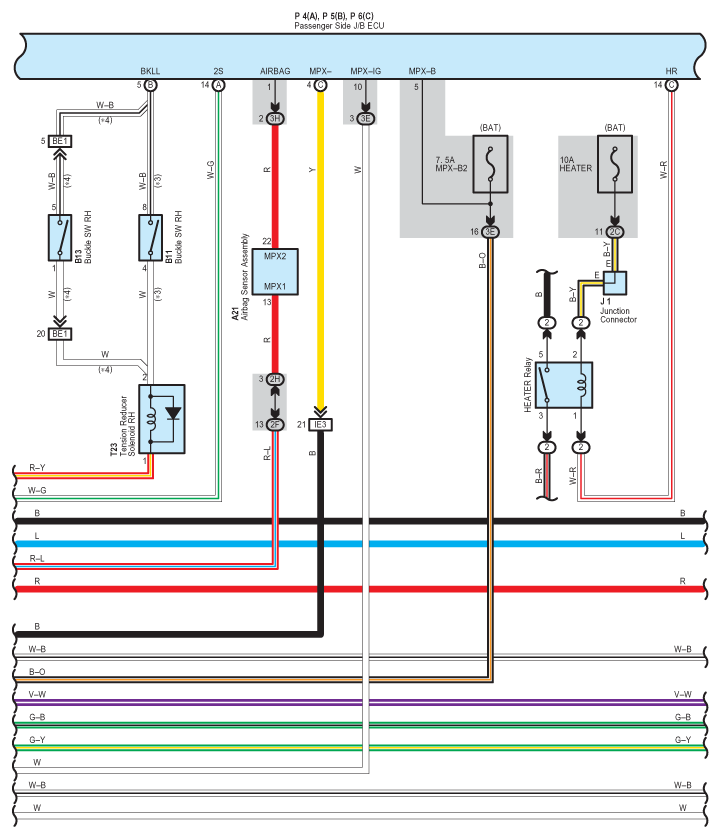

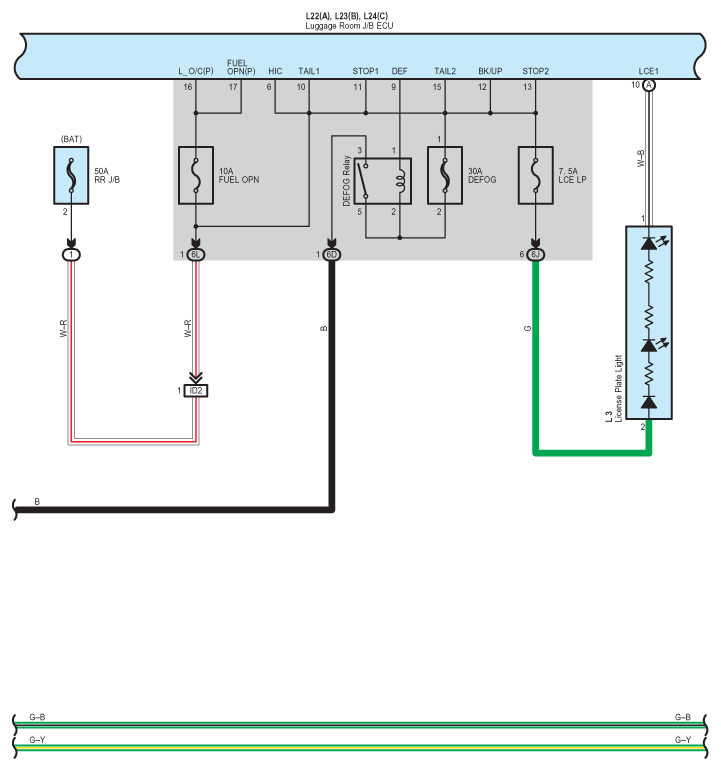

Fig 18: Multiplex Communication System (J/B ECU) - Circuit Diagram (18 Of 20)

G07605899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

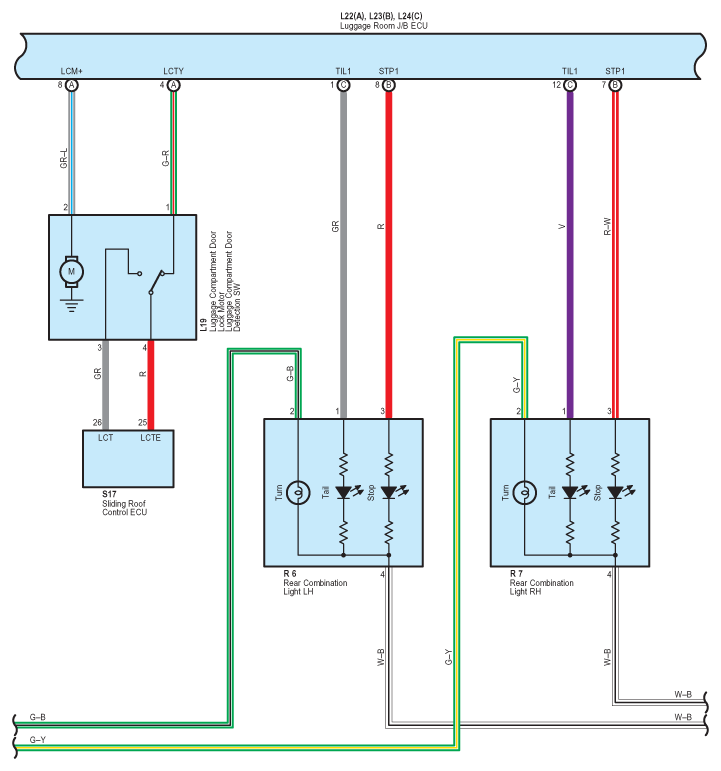

Fig 19: Multiplex Communication System (J/B ECU) - Circuit Diagram (19 Of 20)

G07605900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

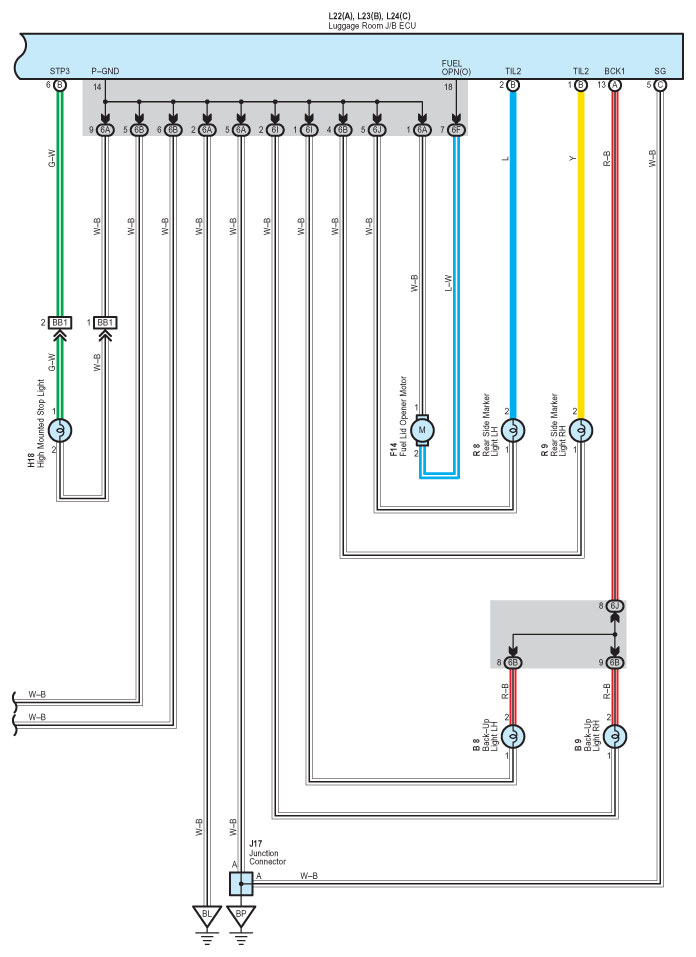

Fig 20: Multiplex Communication System (J/B ECU) - Circuit Diagram (20 Of 20)

G07605901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
