Camshaft Oil Control Valve: Removal: Removal

REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 20
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Disconnect the camshaft timing oil control valve assembly connector.

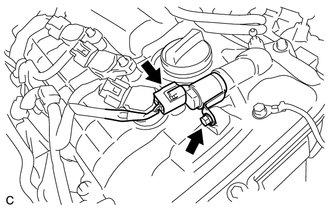

  Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and camshaft timing oil control valve assembly.
3. Remove the O-ring from the camshaft timing oil control valve assembly.

  Fig 2: Identifying Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
