Crankshaft Position Sensor: Removal: Removal

  1. REMOVE REAR ENGINE UNDER COVER RH
  2. REMOVE NO. 1 ENGINE UNDER COVER
  3. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.

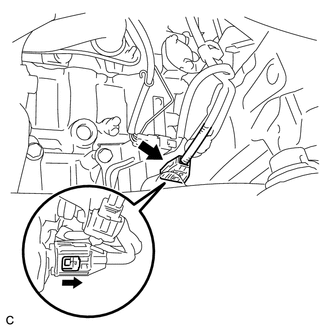

      Fig 1: Identifying Crank Position Sensor & Connector
      GTY328864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crank position sensor.

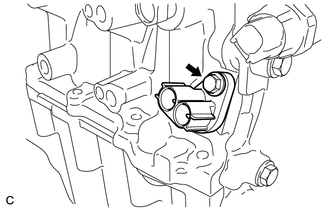

      Fig 2: Identifying Crank Position Sensor & Fastener
      GTY331261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
