Integration Relay: Removal: Removal

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE NO. 2 INTEGRATION RELAY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the No. 2 integration relay.

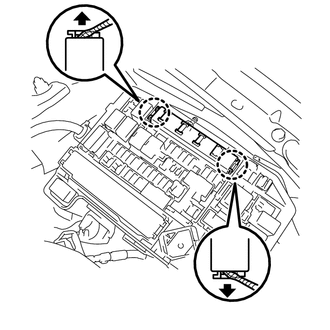

      Fig 1: Identifying No. 2 Integration Relay, Taped Screwdriver & Claws
      GTY229791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors and remove the No. 2 integration relay.

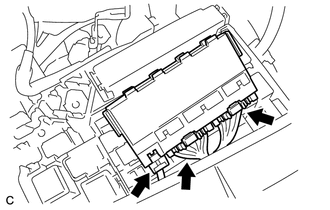

      Fig 2: Identifying Connectors
      GTY329061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
