Multiplex Communication System (CAN): Notes

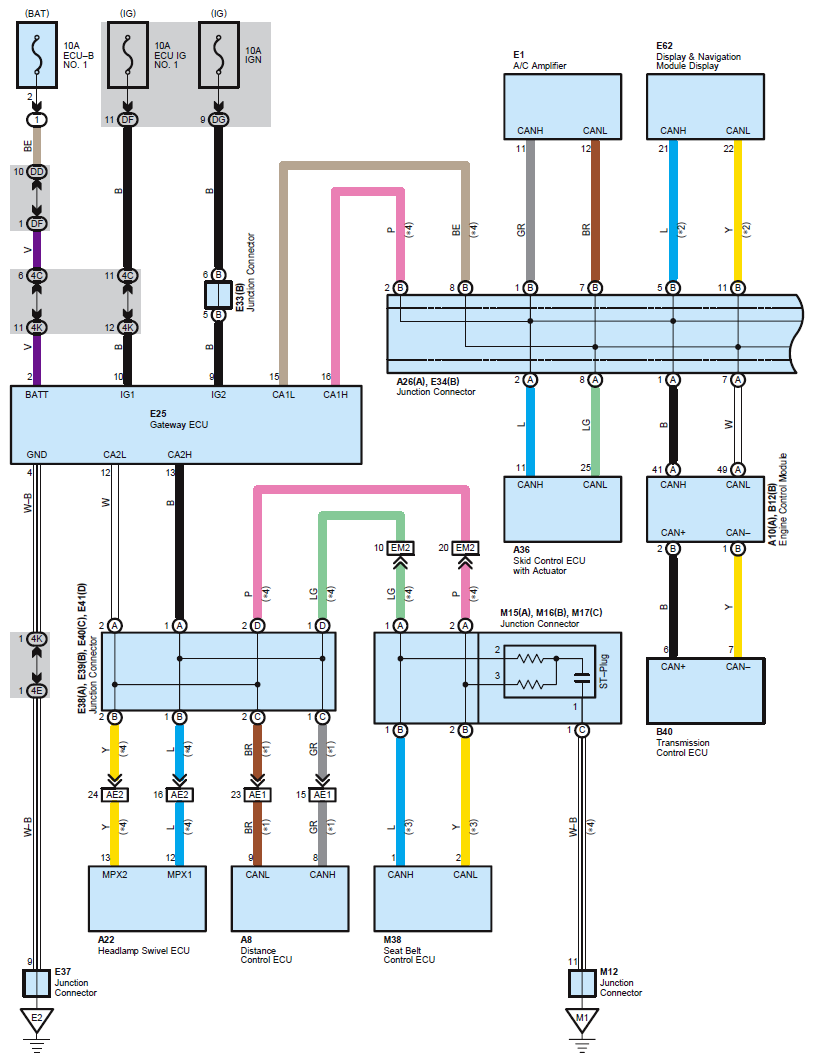

Fig 1: Multiplex Communication System - Circuit Diagram (1 Of 3)
G07569572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

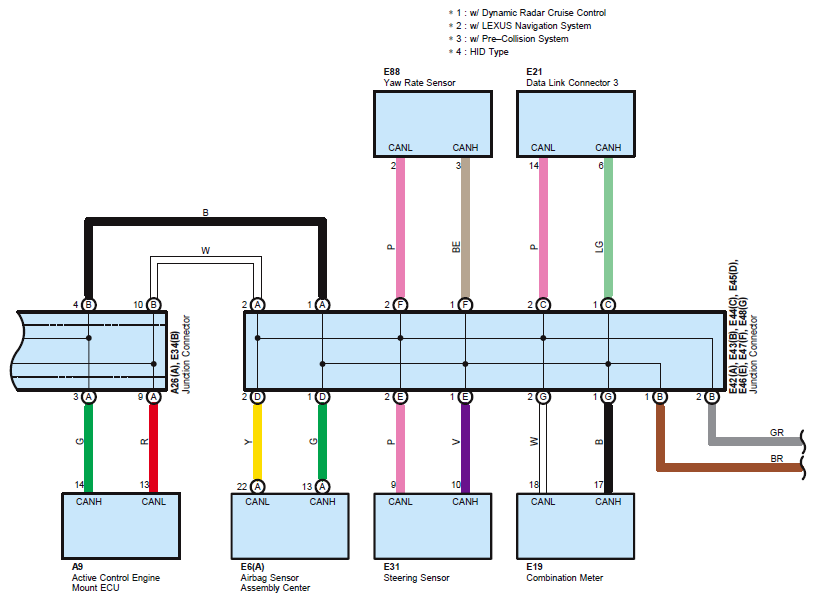

Fig 2: Multiplex Communication System - Circuit Diagram (2 Of 3)
G07569573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

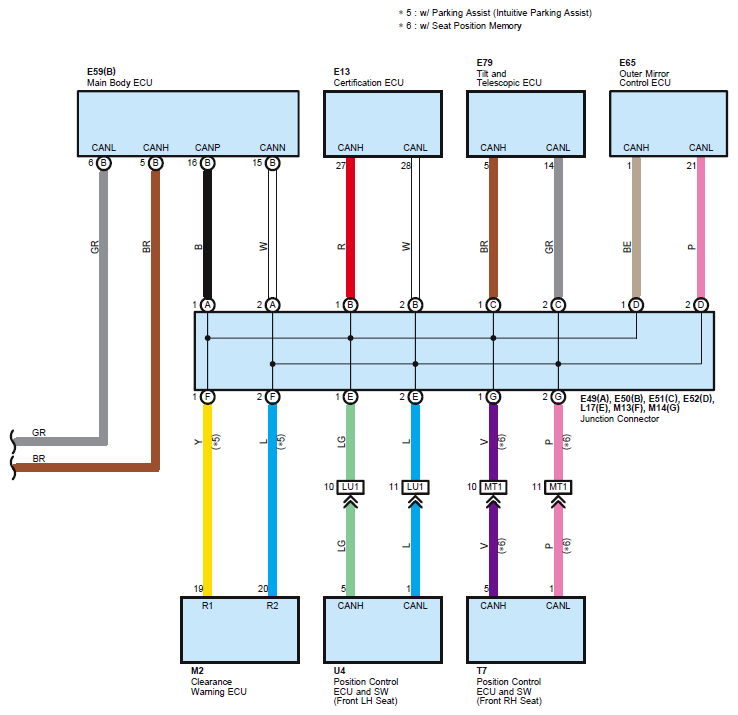

Fig 3: Multiplex Communication System - Circuit Diagram (3 Of 3)
G07569574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
