Power Seat (Driver's Seat): Notes

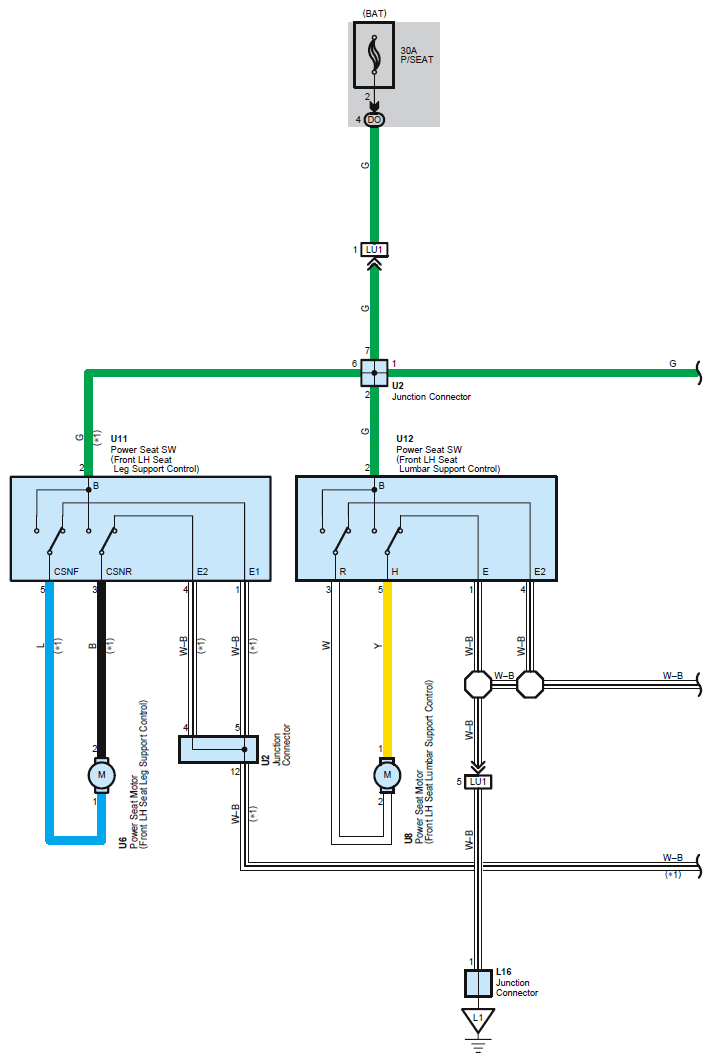

Fig 1: Power Seat (Drivers Seat) - Circuit Diagram (1 Of 4)
G07569705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

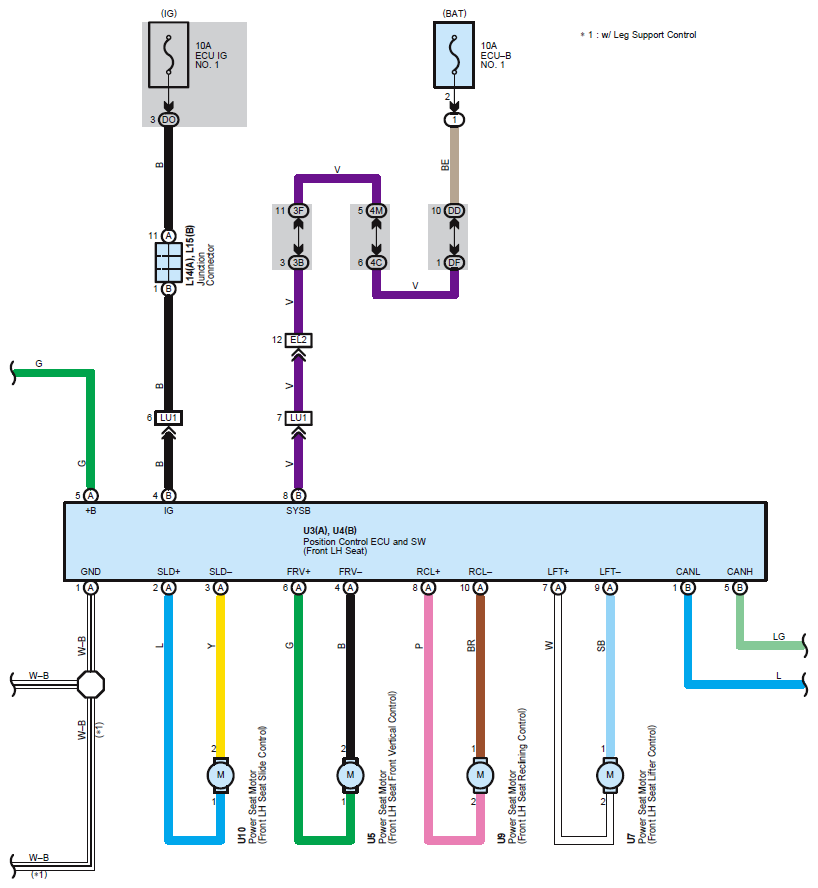

Fig 2: Power Seat (Drivers Seat) - Circuit Diagram (2 Of 4)
G07569706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

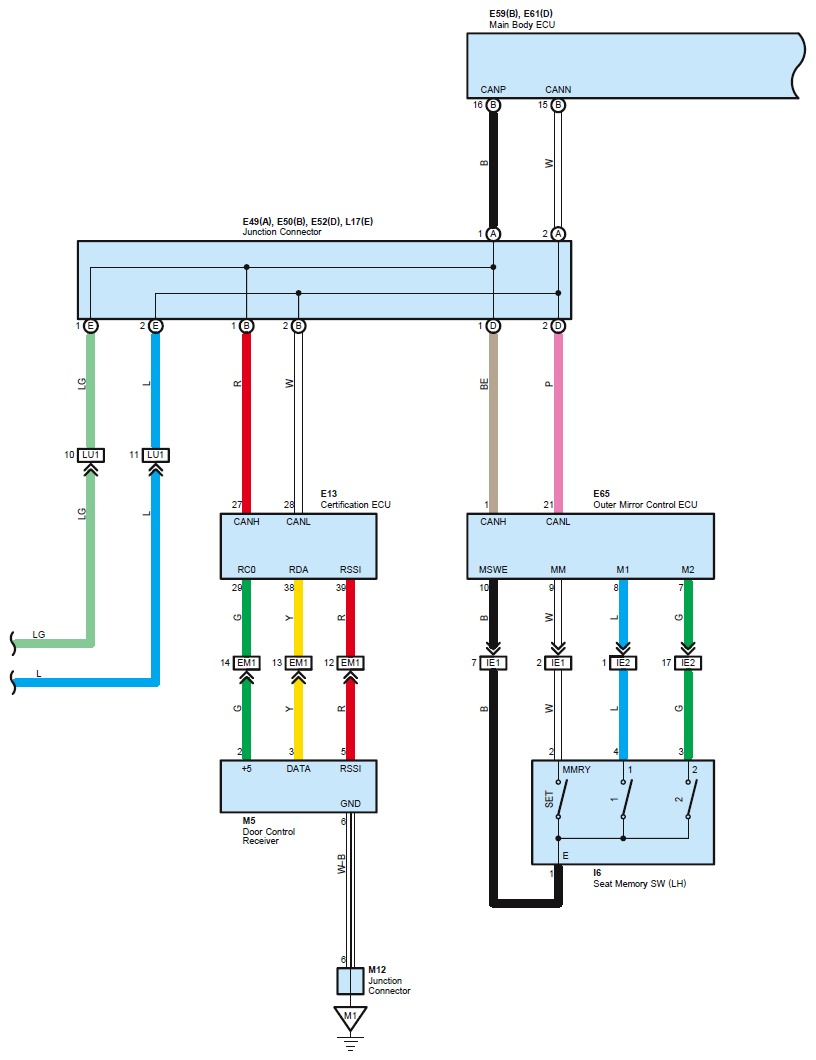

Fig 3: Power Seat (Drivers Seat) - Circuit Diagram (3 Of 4)
G07569707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

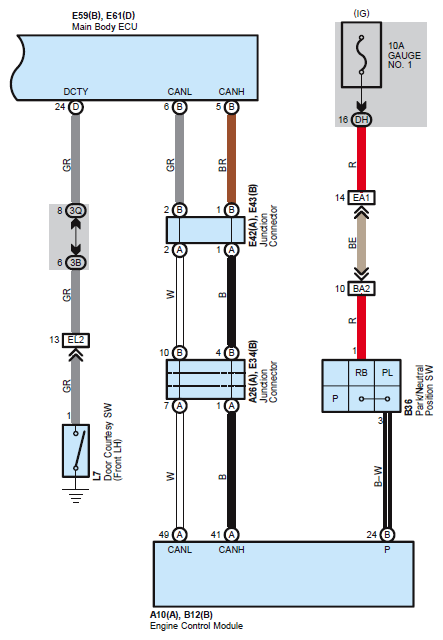

Fig 4: Power Seat (Drivers Seat) - Circuit Diagram (4 Of 4)
G07569708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
