Acceleration Sensor: Components: Illustration

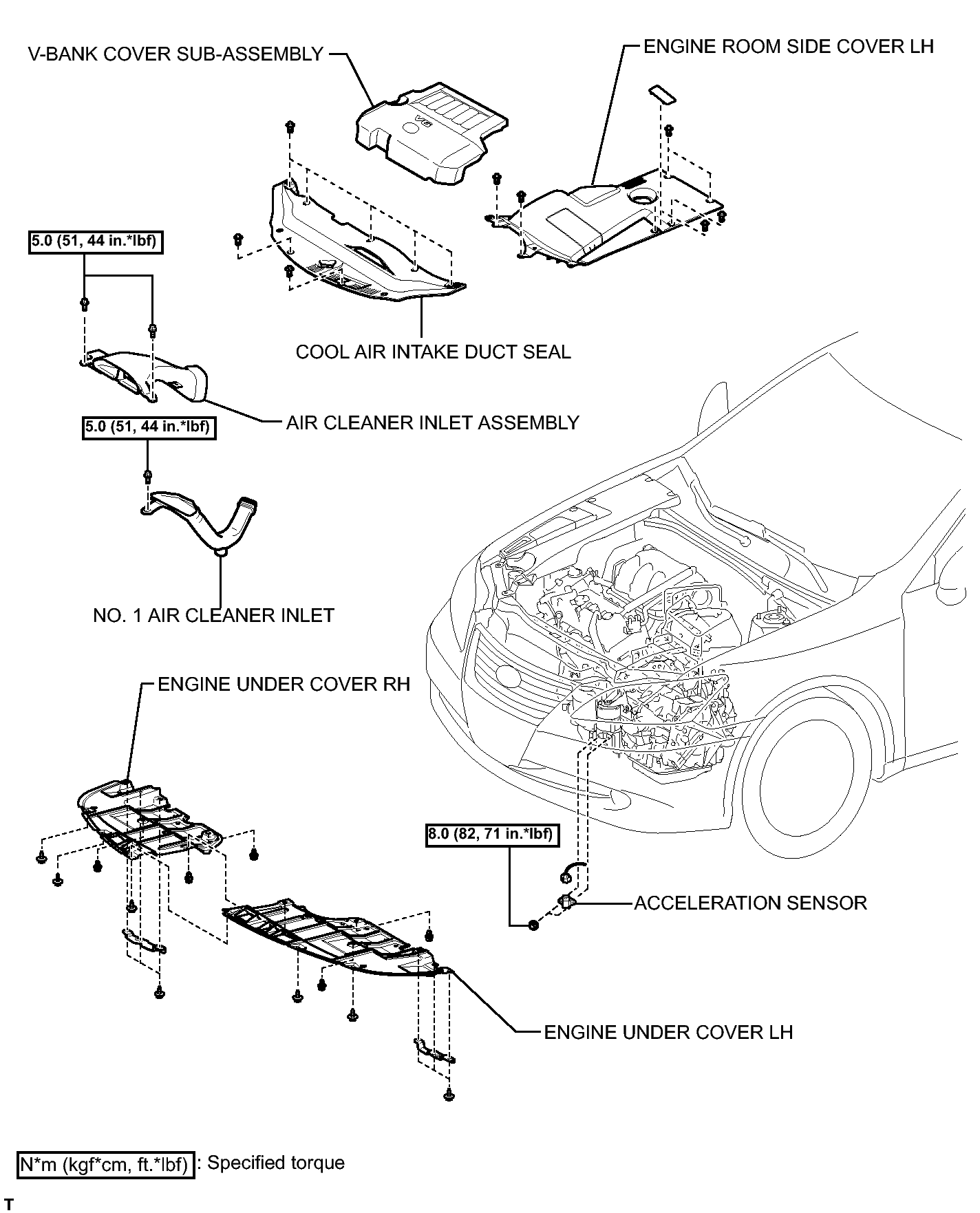

Fig 1: Identifying Acceleration Sensor Replacement Components With Torque Specifications
GTY146459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
