Active Control Engine Mount: Inspection: Inspection

INSPECT ACTIVE CONTROL ENGINE MOUNTING
1. Using an ohmmeter, measure the resistance between the terminals.

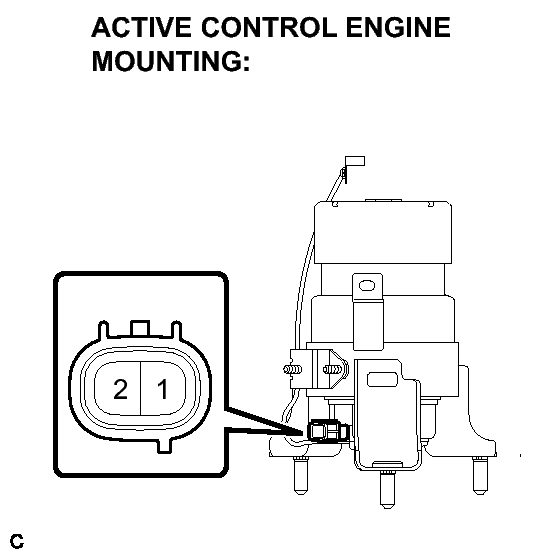

  Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard resistance

  0.55 to 0.95 Ω

  If the resistance is not as specified, replace the active control engine mounting.
