Customize Parameters

  1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    TILT & TELESCOPIC

    Display Default Contents Setting
    Autoaway/Return function ON ON/OFF of the auto away/return function ON/OFF
  2. AIR CONDITIONING SYSTEM
    AIR CONDITIONER

    Display (item) Default Contents Setting
    Set Temperature Shift NORMAL To shift the temperature against the displayed temperature +2°C/+1°C/NORMAL/-1°C/-2°C
    Air Inlet Mode AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode AUTO/MANUAL
    Compressor Mode AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF AUTO/MANUAL
    Compressor/Air Inlet DEF operation LINK Function to turn the A/C ON automatically linked with the FRONT DEF button when the A/C is OFF LINK/NORMAL
    Evaporator Control AUTO Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up AUTO/MANUAL
    Button Press Buzzer ON Function to sound a buzzer when a button is pressed ON/OFF
    Foot/DEF Auto Mode ON Function to turn the airflow from FOOT/DEF ON automatically when AUTO MODE is ON ON/OFF
    Foot/DEF Automatic Blow Up Function ON Function to change the blower level automatically when the defroster is ON ON/OFF
    Ambient Temperature Shift Normal Function to shift the ambient temperature against the displayed ambient temperature +3°C/+2°C/+1°C/Normal/-1°C/-2°C/-3°C
  3. THEFT DETERRENT SYSTEM
    SECURITY

    Display (item) Default Contents Setting
    Passive Mode* OFF
    • PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not in the actuation area and all doors, engine hood and luggage compartment door are closed, even if doors are not locked by wireless or door key lock operation.
    • In PASSIVE MODE, if you do not perform following operations within 14 seconds after door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state
      • Unlock any door by key or wireless operation
      • Turn the engine switch on (IG)
      • Open luggage compartment door by wireless operation
    		 ON/OFF
    Warning by Horn ON Function that makes vehicle horn and theft deterrent horn able to be used as a warning device ON/OFF
    Entry Delay Time * 14 s Function that changes entry delay time (time before warning starts) for PASSIVE MODE 0 s/14 s/30 s
    • *: for North America
  4. LIGHTING SYSTEM
    ILLUMINATED ENTRY

    Display Default Contents Setting
    Lighting Time 15 s Changes the lighting time of the front seat illumination, rear seat illumination, interior light, rear door courtesy lights, and engine switch illumination after closing the door. It will quickly fade out when the engine switch is turned on (IG).
    (Front personal switches are OFF, DOOR switch is ON, and seat illumination switch is OFF)    		 7.5 s/15 s/30 s
    I/L when ACC OFF ON Lights up the front seat illumination, rear seat illumination, interior light, rear door courtesy lights, and engine switch illumination when the engine switch is turned off. ON/OFF
    I/L ON W/Door Key Unlock ON Lights up the front seat illumination, rear seat illumination, interior light, rear door courtesy lights, footwell illumination, and engine switch illumination when the doors are unlocked. ON/OFF
    Illumination System ON Lights up the footwell illumination when one of the following occurs: the engine switch is turned on (IG), or any door is unlocked or opened. ON/OFF
    Light Control ON Dims (ON setting) or turns off (OFF setting) the footwell illumination under the following conditions: Engine switch on (IG), shift lever not in P, and all doors closed. ON/OFF
    LIGHT CONTROL

    Display Default Contents Setting
    Sensitivity NORMAL Adjusts the sensitivity of the automatic light control system. LIGHT 2/LIGHT 1/NORMAL/DARK 1/DARK 2
    DRL Function ON ON/OFF of the DRL function ON/OFF
    Disp Ex ON Sen NORMAL Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. LIGHT 2/LIGHT 1/NORMAL/DARK 1/DARK 2
    Disp Ex OFF Sen NORMAL Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. LIGHT 2/LIGHT 1/NORMAL/DARK 1/DARK 2
    Light Auto OFF Delay 30 s Keeps the exterior lights on for a certain period of time after turning the engine switch off and closing all the doors with the low beam headlights on. OFF/30 s/60 s/90 s
  5. POWER DOOR LOCK CONTROL SYSTEM
    DOOR LOCK

    Display Default Contents Setting
    Auto Unlk/Shift
    (Unlock w/ engine switch on (IG), shift P, speed 0 km/h (0 mph))    		 ON
    OFF*1    		 Function that unlocks doors when the shift lever is moved to the P position from any other position while the engine switch is on (IG) ON/OFF
    All Unlk/Opn-Cl
    (All unlock w/ D door open-close)    		 OFF Function that unlocks all other doors when opening driver side door within 10 seconds after turning the engine switch off from on (IG) ON/OFF
    Unlk/Key Twice
    (Unlock w/ 2 times D key operation)    		 ON
    • Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice
    • In the OFF setting, turning it once unlocks all doors
    		 ON/OFF
    Auto Lock/Shift
    (Auto lock/shift not P)    		 ON
    OFF*2    		 Function that locks doors when the shift lever is moved from the P position to any other position ON/OFF
    Auto Lock OFF
    ON*2    		 Function that locks doors when vehicle reaches a vehicle speed 20 km/h (13 mph) ON/OFF
    • *1: for Brazil
    • *2: for Korean and Brazil
    WIRELESS D LOCK

    Display Default Contents Setting
    Auto Lock Dealy 60 s Function that selects AUTO LOCK time (30 sec. or 60 sec.) 30 s/60 s
  6. WIRELESS DOOR LOCK CONTROL SYSTEM
    MAIN BODY ECU

    Display (item) Default Contents Setting
    Wireless Control
    (Wireless door lock control function)    		 ON Function that turns wireless door lock function ON/OFF ON/OFF
    Hazard Answer Back
    (Hazard answer-back for wireless door lock control)    		 ON
    • When the doors are locked by wireless operation, the hazard warning lights flash once.
    • When the doors are unlocked by wireless operation, the hazard warning lights flash twice.
    		 ON/OFF
    Wireless Auto Lock ON Function to control automatic relocking of doors after unlocking with wireless door lock function. ON/OFF
    Open Door Warning
    (Door ajar warning)    		 ON The buzzer sounds when LOCK is pressed when any of the doors are ajar. ON/OFF
    Auto Lock Time
    (Auto lock time)    		 60 s This function regulates the interval between unlocking and automatic relocking of doors. 30 s/60 s/120 s
    Unlock 2 Operation
    (Wireless unlock operated twice)    		 ON This function unlocks the driver's door when the UNLOCK switch is pressed once, and unlocks all doors when pressed twice within 3 seconds.
    If set to OFF, pressing UNLOCK once unlocks all doors.    		 ON/OFF
    Panic Alarm Function
    (Panic function)    		 ON This function operates the theft deterrent system when PANIC is pressed and held for 0.8 seconds. ON/OFF
    Trunk Lid Operation
    (Wireless trunk opener function setting)    		 0.8 s This function changes operation method of transmitter to open luggage compartment door.
    1tim ON: Push 1 time
    2tim ON: Push 2 times
    0.8 s : Push and hold for 0.8 seconds
    OFF: Does not operate    		 1 tim ON/2 tim ON/0.8 s/OFF
    Wireless Buzzer Volume LEVEL7 This function adjusts the volume of the wireless buzzer. LEVEL0 to LEVEL7
  7. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (DOOR LOCK)
    SMART

    Display Default Contents Setting
    Park Wait Time
    (Wait time to permit opening door after locking)    		 2.5 s Function that sets waiting time to permit opening door after door is locked with entry lock function. 0.5 s/1.5 s/2.5 s/5.0 s
    Ignition Available Area
    (Smart ignition available area)    		 ALL Function to choose the available area for electrical key to start E/G and cancel the steering lock. FRONT/ALL
    Trunk Open Mode
    (Luggage compartment opening operation)    		 ON Function to open a luggage compartment when the driver has the electrical key and presses the luggage open button. ON/OFF
    WIRELESS DOOR LOCK

    Display Default Contents Setting
    Alarm Function
    (Panic function)    		 ON Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button. ON/OFF
    Wirels Buzz Vol Level 7 Function to adjust the volume of the wireless door lock buzzer. Level 0/1/2/3/4/5/6/7
    WARNING

    Display Default Contents Setting
    Key Low Battery Warning ON Function to set a warning function for the time when a key battery becomes weak. ON/OFF
  8. ENTRY UNLOCK MODE SWITCHING FUNCTION
    1. Check that the power source mode is OFF and the LED on the electrical key is not blinking. Press the LOCK switch and one of the other switches on the electrical key at the same time for approximately 5 seconds while the electrical key is in the action area.
      • When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.
      NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
      • Driver door unlock mode:

        When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

      • All door unlock mode:

        When the touch sensor is touched, all doors unlock.

    2. The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.
    3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

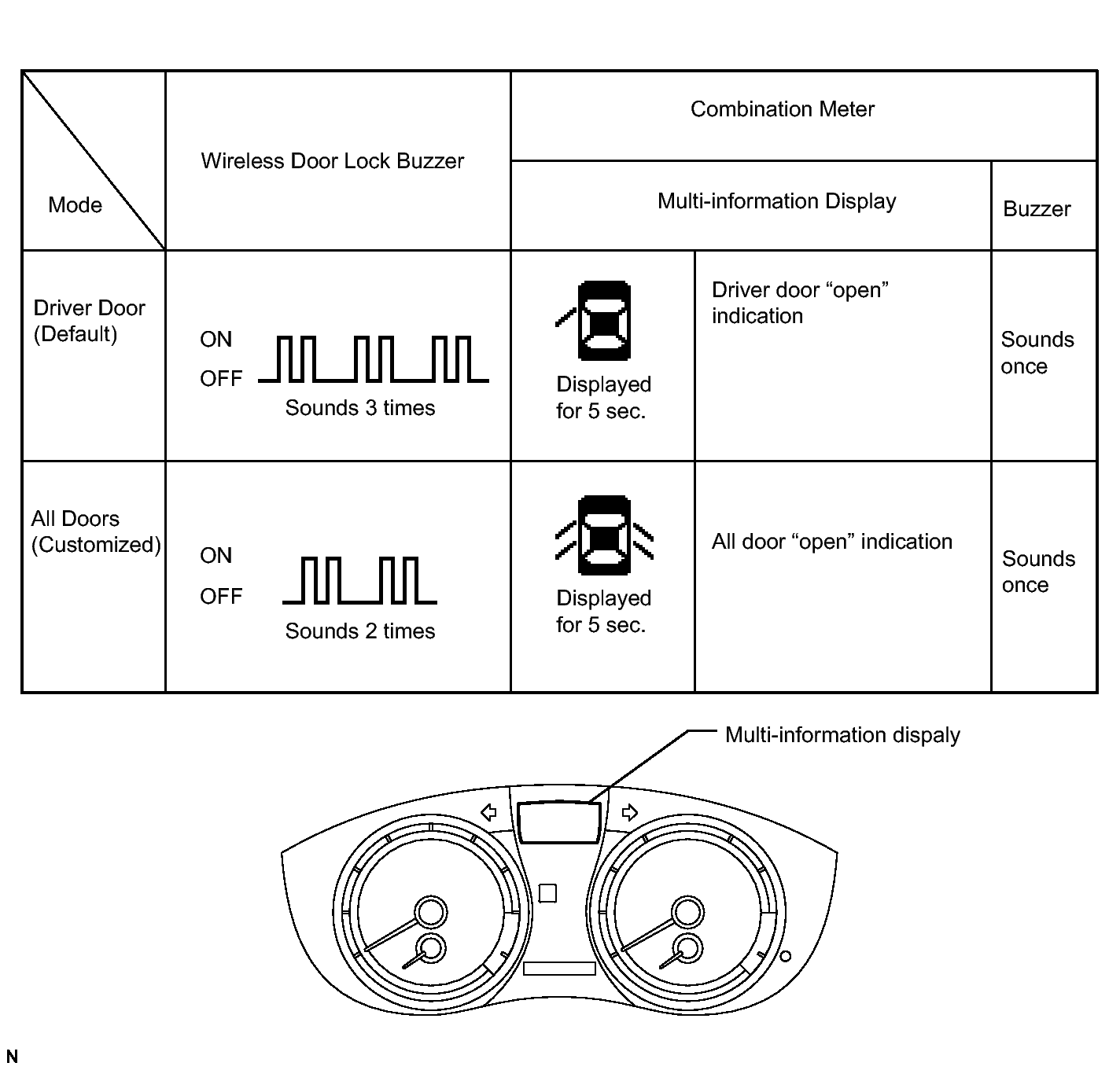

      Fig 1: Identifying Multi-Information Display
      GTY138101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.

  9. ELECTRICAL KEY CANCEL

    The electrical key cancel operation disables the following functions:

    • Entry Unlock/Lock
    • Entry Luggage Compartment Open
    • Electrical Key Lock-in Prevention
    • Warning
    • Memory Call
    1. The operation procedures are as follows:

      Precondition:

      Engine switch off, driver side door closed and unlocked.

      1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
      2. Open the driver door within 5 seconds.
      3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
      4. Close and open the driver door twice within 30 seconds.

        (Driver door: Close → Open → Close → Open)

      5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
      6. Close and open the driver door within 30 seconds.

        (Driver door: Close → Open)

      7. Close the driver door within 5 seconds.

        When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

        To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

  10. METER/GAUGE SYSTEM
    WARNING

    Tester Display Default Contents Setting
    Seat-belt Warning Buzzer (*) On Function to change the seat belt warning buzzer. ON, OFF
    DISPLAY

    Tester Display Default Contents Setting
    ECO Drive Indicator Light ON Function to turn on/off the ECO driving indicator light. OFF or ON
    ECO Drive Indicator ON Function to turn on/off the ECO driving indicator zone display. OFF or ON
    Language English Function to change the language of the multi-information display. English or French

    HINT:

    *: This setting is only valid for the buzzer which sounds at the 20 km/h (12 mph) or more.

  11. INTUITIVE PARK ASSIST SYSTEM
    WARNING

    Display Default Contents Setting
    Rr Sensor Onset Range Wide Function to set buzzer activation range (for rear center sensors) Narrow/Wide
    Keep Sense Buzzer Avail Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds Not Avail/Avail
    Fr & Rr Buzzer Volume M3 Function to change volume of buzzer L/M1/M2/M3/H
    SENSOR

    Display Default Contents Setting
    Sensor Condition N Avail Function to make sensors available when shift position is N Not Avail/Avail
    DISPLAY

    Display Default Contents Setting
    Display Mode All Function to change display mode All/Undisp
  12. POWER MIRROR CONTROL SYSTEM (WITH MEMORY)
    MIRROR

    Display (item) Default Contents Setting
    Foot Light T ON (15 seconds)/OFF Function to set how long the outer foot light stays on. 001 (7.5 seconds)
    010 (15 seconds)
    011 (30 seconds)
    100 (Off)
  13. REAR SUNSHADE SYSTEM
    OTHERS

    Display Default Contents Setting
    R Output Time 0.7 sec. Function to change the time before reverse-linked sunshade lowering function is activated 0/0.7/0.9/1.2
    R-Shade Reverse AVAIL NOT AVL/AVAIL of the rear sunshade reverse function NOT AVL/AVAIL
  14. SLIDING ROOF SYSTEM
    SLIDING ROOF ECU

    Tester Display Default Contents Setting
    Wireless Key Related Operation (*1) SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activated by pressing on transmitter UNLOCK switch for 2.4 seconds or more when engine switch is off    		 TILT/SLIDE
    Door Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activated by holding driver's side door key for 1.5 seconds or more to unlock position when engine switch is off    		 TILT/SLIDE
    Door Handle Lock Button ON Function to close the sliding roof manually linking the power window if holding the door handle button for 1.5 seconds or more to the lock side when the engine switch is off. ON/OFF
    Wireless Key Related Open (*1), (*2) ON Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 2.4 seconds or more when engine switch is off ON/OFF
    Door Key Related Close (*3) ON Function to manually close sliding roof linked with power window if holding driver's side and passenger's side door key for 1.5 seconds or more to lock position when engine switch is off ON/OFF
    Door Key Related Open (*3) ON Function to manually open sliding roof linked with power window if holding driver's side and passenger's side door key for 1.5 seconds or more to unlock position when engine switch is off ON/OFF
    • *1: Except models with DVD Navigation System
    • *2: This function is linked with the power window wireless transmitter-linked function. If the power window wireless transmitter-linked function is set to OFF, the sliding roof wireless transmitter-linked function will not operate even when it is set to ON.
    • *3: This function is linked with the power window key-linked function. If the power window key-linked function is set to OFF, the sliding roof key-linked function will not operate even when it is set to ON.
