Power Steering Oil Pressure Switch: Components: Illustration

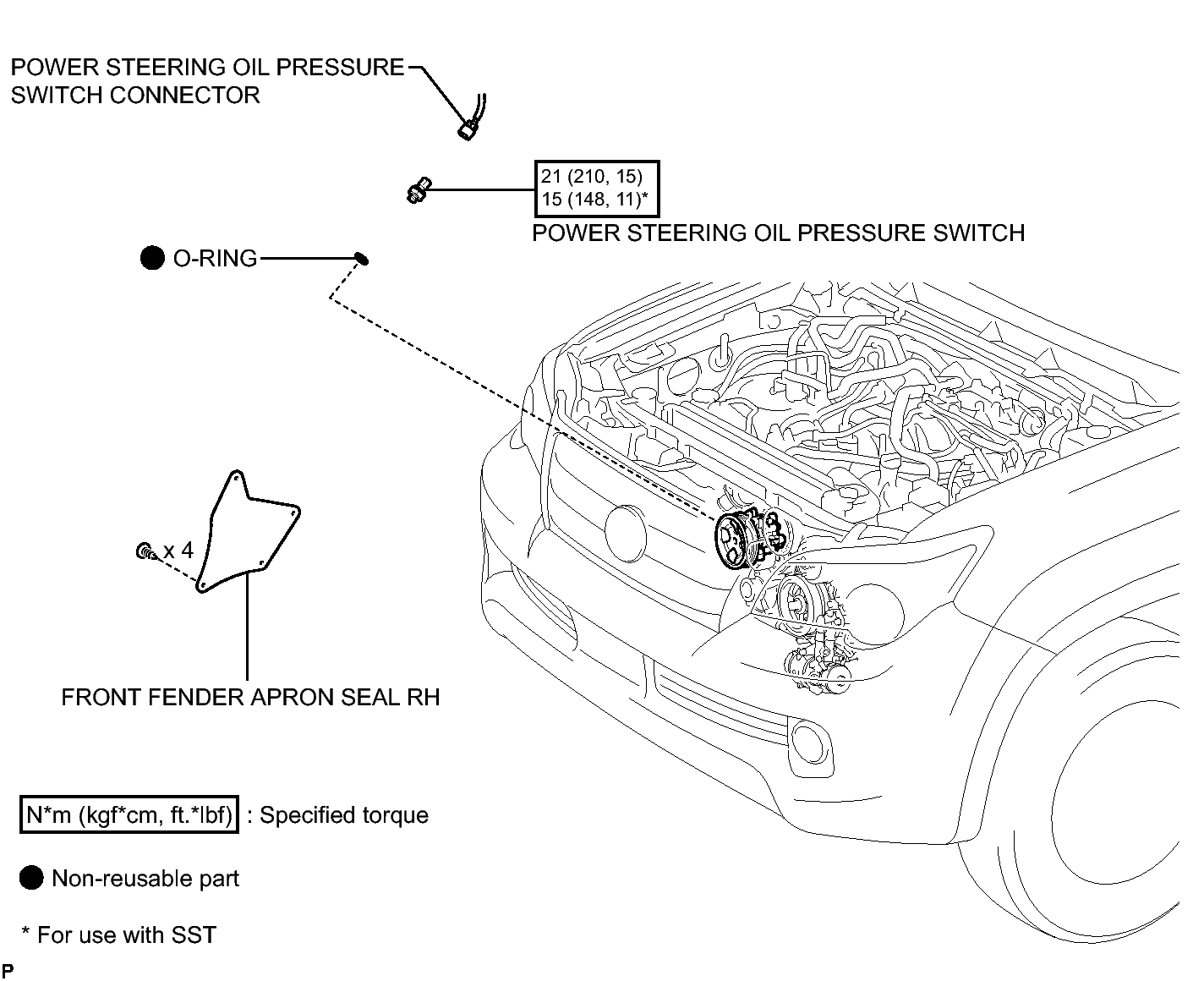

Fig 1: Identifying Power Steering Oil Pressure Switch Replacement Components With Torque Specifications
GTY283271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
