System Diagram

Fig 1: Identifying Engine Control System Diagram (1 Of 6)
GTY283138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

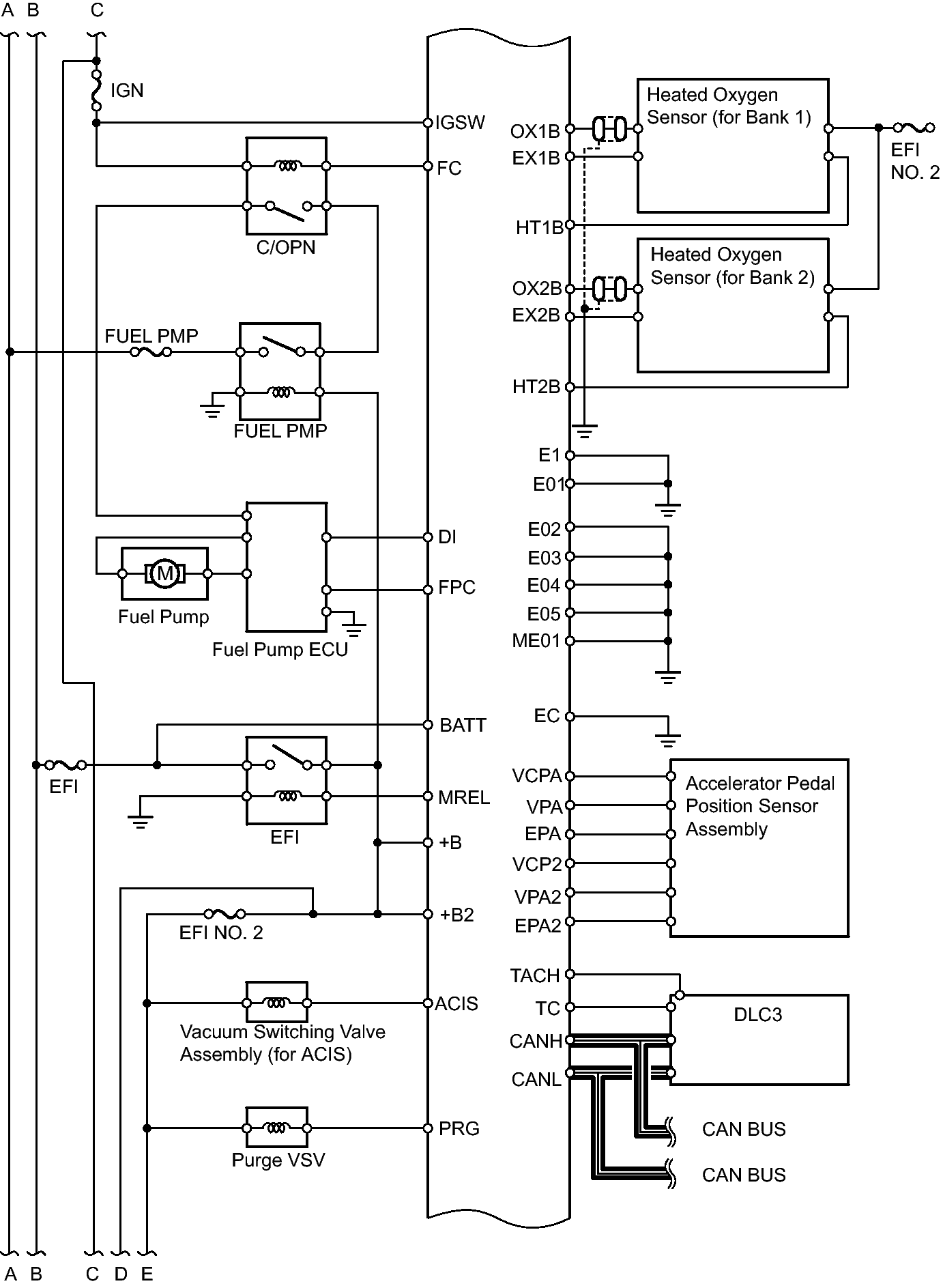

Fig 2: Identifying Engine Control System Diagram (2 Of 6)
GTY353954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

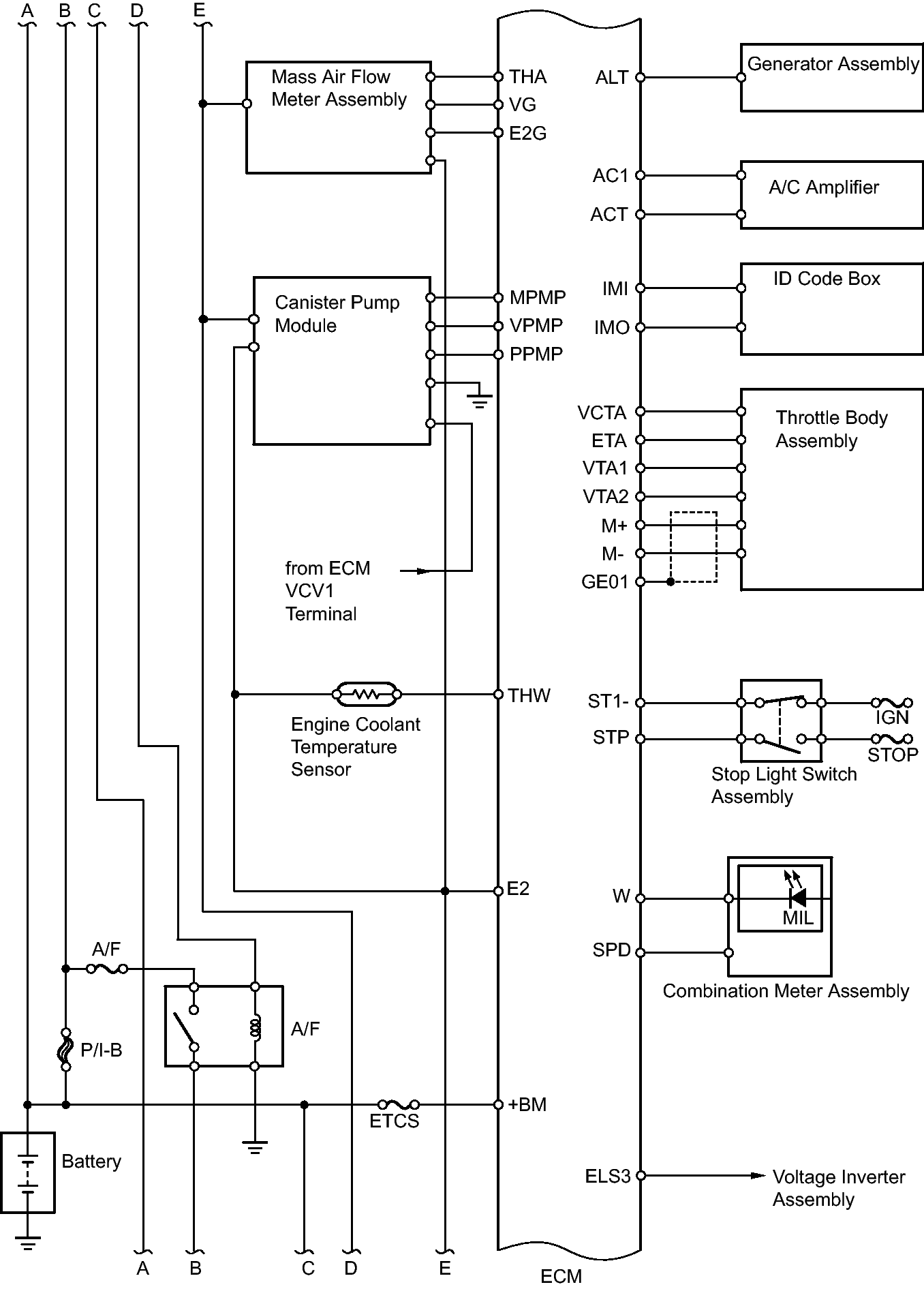

Fig 3: Identifying Engine Control System Diagram (3 Of 6)
GTY274557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

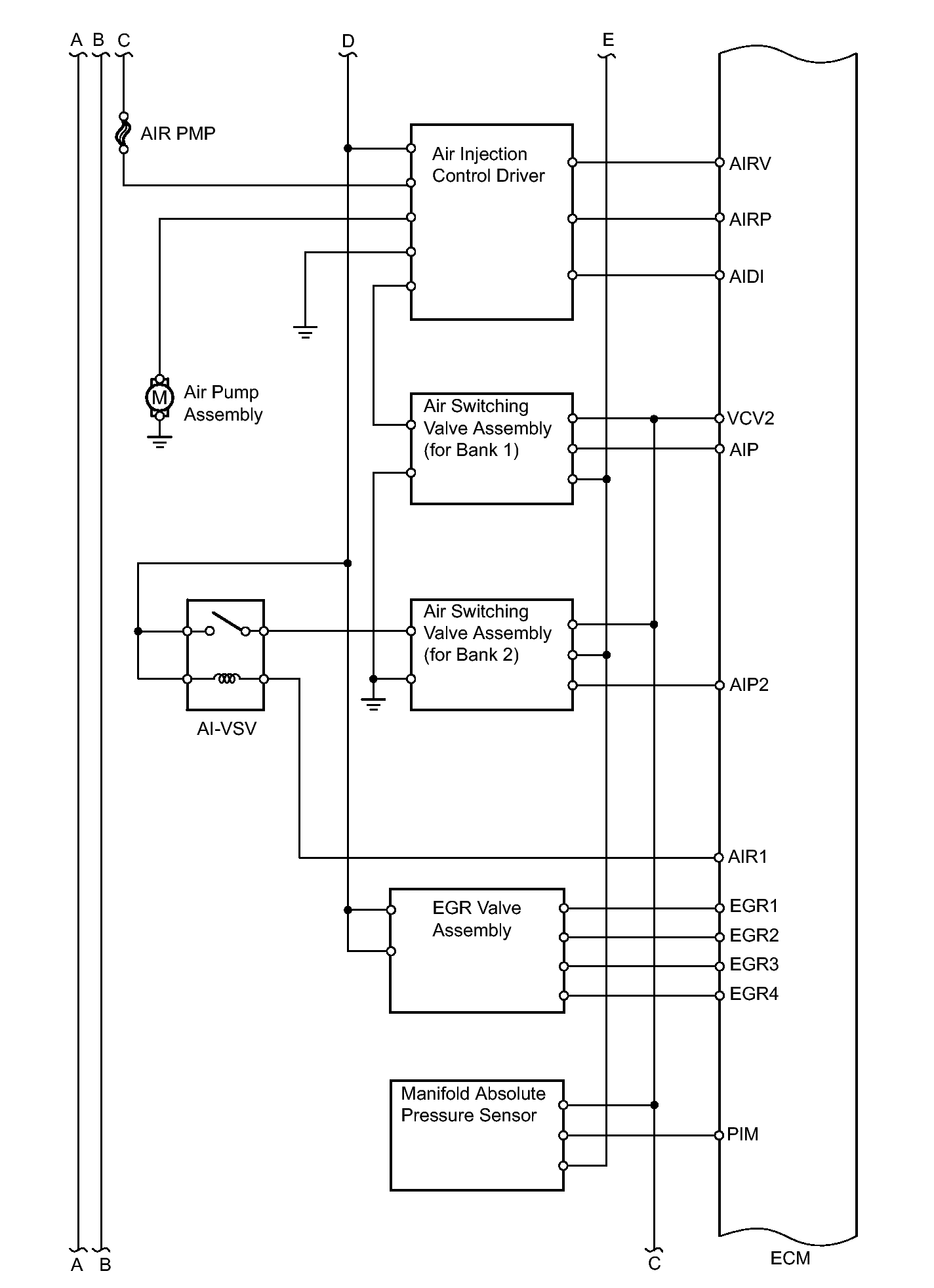

Fig 4: Identifying Engine Control System Diagram (4 Of 6)
GTY281108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

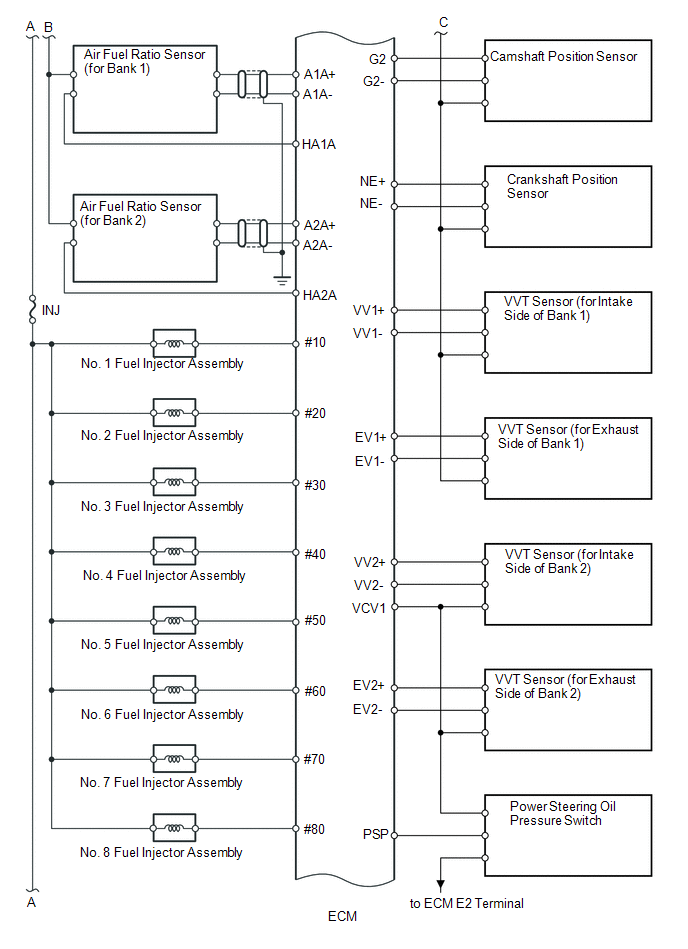

Fig 5: Identifying Engine Control System Diagram (5 Of 6)
GTY272854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

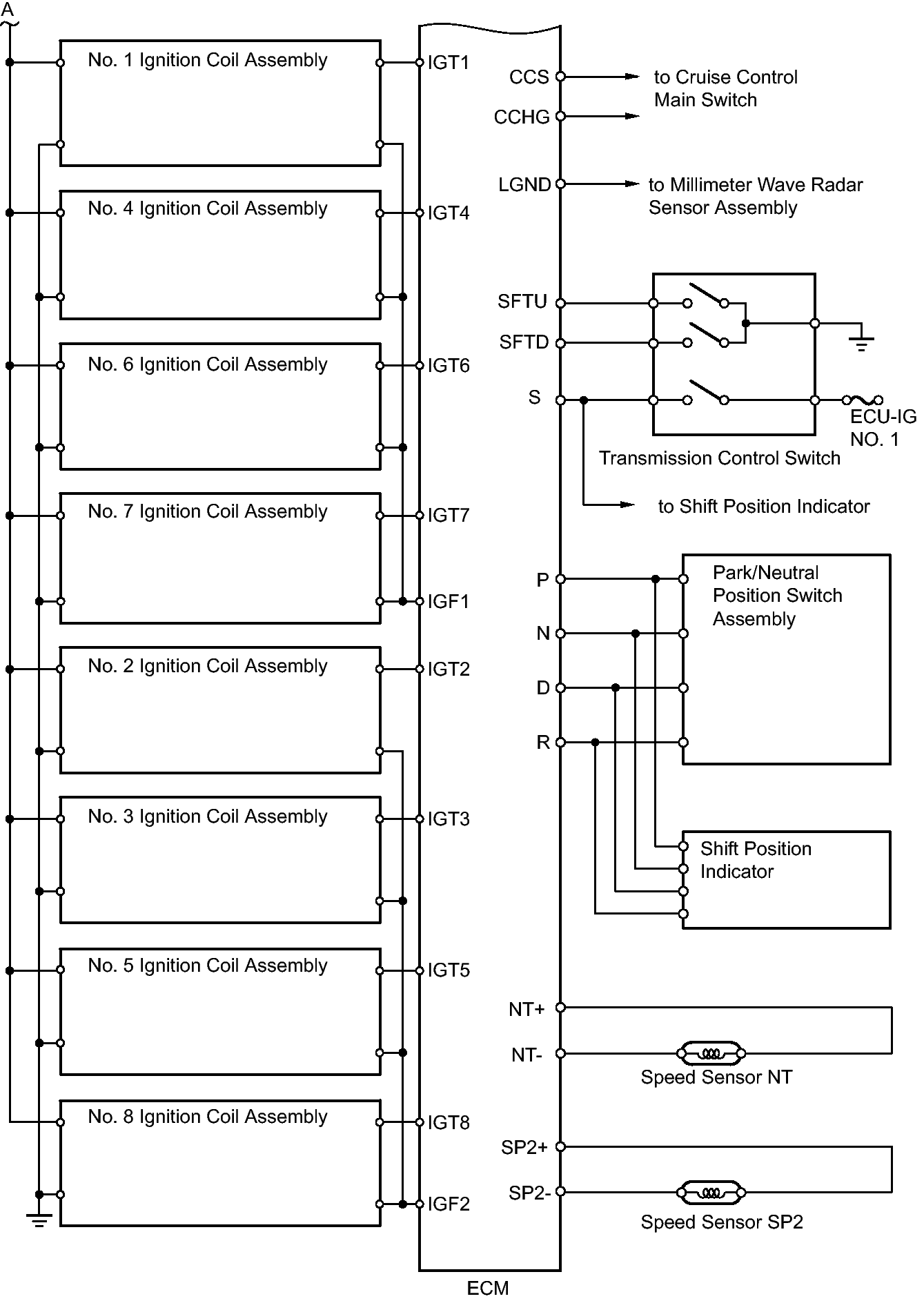

Fig 6: Identifying Engine Control System Diagram (6 Of 6)
GTY357016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
