BASIC REPAIR HINT

HINTS ON OPERATIONS

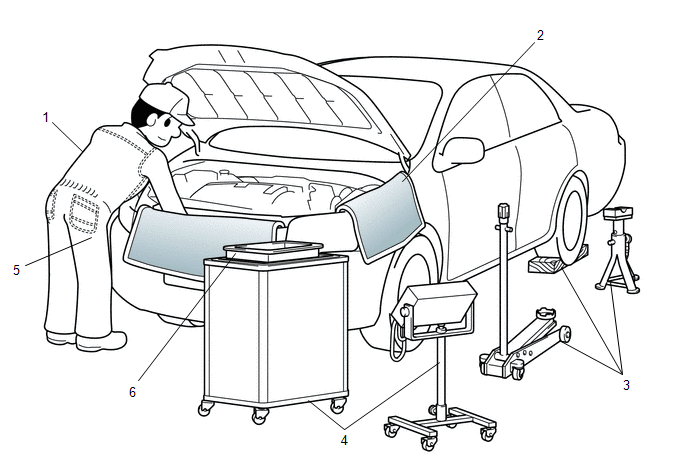

Fig 1: Identifying Safety Items

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1	Attire	Always wear a clean uniform. Hat and safety shoes must be worn.
2	Vehicle protection	Prepare a grille cover, fender cover, seat cover and floor mat before starting the operation.
3	Safe operation	Use wheel chocks to secure the vehicle. When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop. When removing or installing heavy parts, such as the engine, transmission, differential, etc., before starting work make sure there are no problems with the equipment that will be used. When working with 2 or more persons, be sure to check safety for one another. If working on high temperature, high pressure, rotating, moving, or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others.
4	Preparation of tools and measuring gauge	Before starting operation, prepare a tool stand, SST, a gauge, oil and the parts for replacement.
5	Removal and installation, disassembly and assembly operations	Diagnose with a thorough understanding of proper procedures and of the reported problem. Before removing the parts, check the general condition of the assembly and for deformation and damage. When the assembly is complicated, take notes. For example, note the total number of electrical connections, bolts, or hoses removed. Add matchmarks to ensure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed. Clean and wash the removed parts if necessary and assemble them after a thorough check.
6	Removed parts	Place the removed parts in a separate box to avoid mixing them up with the new parts or contaminating the new parts. For non-reusable parts such as gaskets, O-rings, and self-locking nuts, replace them with new ones as instructed in this information. Retain the removed parts for customer inspection, if requested.
7*	Checks to perform after work is finished	Make sure that removed and installed parts (oil filler cap, level dipstick, floor mat, etc.) are properly installed/tightened. Make sure that none of the cloths or tools that were used have been left in the engine compartment or within the vehicle. Check that there are no oil leaks.

WARNING:

*:Be sure to perform these checks properly, not performing these checks properly after finishing work can lead to serious accident or injury.

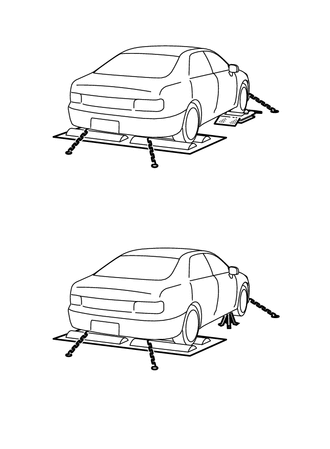

JACKING UP AND SUPPORTING VEHICLE

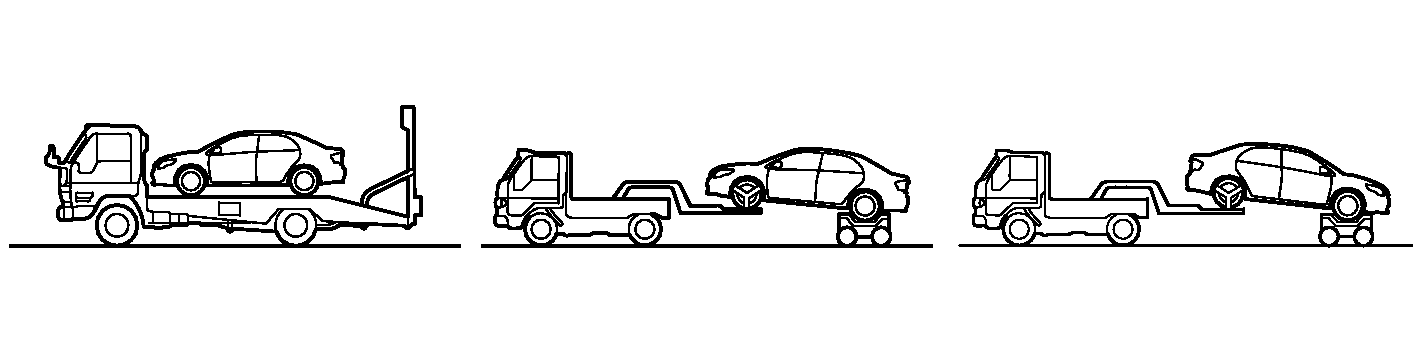

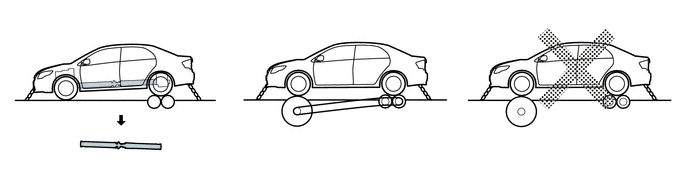

1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
PRECOATED PARTS

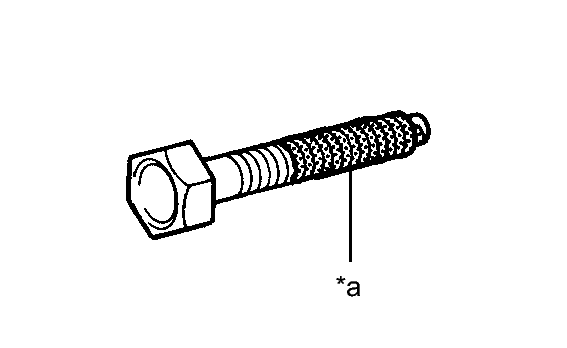

Fig 2: Identifying Precoated Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*a Seal Lock Adhesive
1. Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
2. If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
GASKETS
1. When necessary, use a sealer on gaskets to prevent leaks.
BOLTS, NUTS AND SCREWS
1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.

FUSES

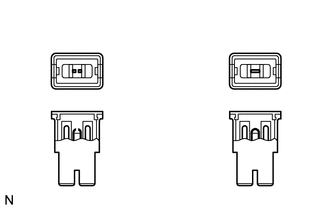

Fig 3: Identifying Fuses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When inspecting a fuse, check that the wire of the fuse is not broken.
If the wire of a fuse is broken, confirm that there are no shorts in its circuit.

When a fuse is replaced, a fuse with the same amperage rating must be used.

Illustration	Symbol	Part Name	Abbreviation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSE	FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	MEDIUM CURRENT FUSE	M-FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HIGH CURRENT FUSE	H-FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSIBLE LINK	FL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	CIRCUIT BREAKER	CB

CLIPS

The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

HINT:

If clips are damaged during a procedure, always replace the clips with new clips.

Shape (Example)	Illustration	Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a clip remover or pliers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a clip remover or screwdriver.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips with a wide scraper to prevent panel damage.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by pushing the center pin through and prying out the shell.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by unscrewing the center pin and prying out the shell.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove clips by prying out the pin and then prying out the shell.

CLAWS

The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

HINT:

If claws of caps or covers are damaged during a procedure, always replace the caps or covers with new ones.

Shape (Example)	Illustration	Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the caps or covers.

HINGE, GUIDE, CLAMP, PIN ETC.

The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.

HINT:

If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

Shape (Example)	Illustration	Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Remove the clamps with pliers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Disengage the pins by pulling.

REMOVAL AND INSTALLATION OF VACUUM HOSES

To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.

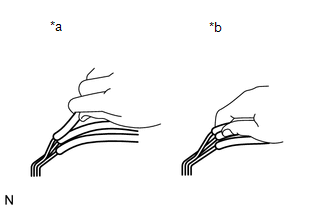

Fig 4: View Of Removal & Installation Of Vacuum Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	INCORRECT
*b	CORRECT

When disconnecting vacuum hoses, use tags to identify where they should be reconnected.

Fig 5: Applying Tag On Vacuum Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.

TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL

Fig 6: Identifying Torque Wrench Dimension (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench.

Fig 7: Identifying Torque Wrench Dimension (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Formula

T' = L2 / (L1 + L2) * T

T'	Reading of torque wrench {Nm (kgfcm, ft.*lbf)}
T	Torque {Nm (kgfcm, ft.*lbf)}
L1	Length of SST or extension tool {cm (in.)}
L2	Length of torque wrench {cm (in.)}

NOTE:

If an extension tool or SST is combined with a torque wrench and the wrench is used to tighten to a torque specification in this information, the actual torque will be excessive and parts will be damaged.

FOR VEHICLES WITH SUPPLEMENTAL RESTRAINT SYSTEM
The LEXUS GX460 is equipped with a Supplemental Restraint System (SRS). The SRS of this vehicle consists of the following:
1. Steering pad
2. Knee airbag assembly (for Driver Side)
3. Knee airbag assembly (for Front Passenger Side)
4. Front passenger airbag assembly
5. Curtain shield airbag assembly
6. Front seat side airbag assembly
7. Rear seat side airbag assembly
8. Center airbag sensor assembly
9. Front airbag sensor
10. Side airbag sensor
11. Rear airbag sensor
12. Rear floor airbag sensor
WARNING:
- Failure to carry out service procedures in the correct sequence could cause SRS parts to unexpectedly deploy and possibly lead to serious injuries. Furthermore, if a mistake is made when servicing SRS parts, they may fail to operate when required. Before performing servicing (including installation/removal, inspection and replacement of parts), be sure to read the following precautions.
- Before starting work, wait at least 90 seconds after the engine switch is turned Off and after the cable is disconnected from the negative (-) battery terminal. (SRS parts are equipped with a backup power source. If work is started within 90 seconds of turning the engine switch Off and disconnecting the cable from the negative (-) battery terminal, SRS parts may deploy).
- Do not expose SRS parts directly to hot air or flames.
NOTE:
- Malfunction symptoms of SRS parts are difficult to confirm. DTCs are the most important source of information when troubleshooting. During troubleshooting, always confirm DTCs before disconnecting the cable from the negative (-) battery terminal.
- For minor collisions where SRS parts do not deploy, always inspect the SRS parts.
- Before performing repairs, remove airbag sensors as necessary if any kind of impact is likely to occur to an airbag sensor during repairs.
- Never use SRS parts from another vehicle. When replacing SRS parts, replace them with new ones.
- Never disassemble or attempt to repair SRS parts.
- If an SRS part has been dropped, or if there are any cracks, dents or other defects in the case, bracket or connector, replace the SRS part with a new one.
- Use an ohmmeter/voltmeter with high impedance (10 kΩ/V minimum) for troubleshooting the electrical circuits.
- Information labels are attached to the periphery of SRS parts. Follow the cautions and instructions on the labels.
- After work on SRS parts is completed, perform the SRS warning light check.
- When the cable is disconnected from the negative (-) battery terminal, the memory settings of each system will be cleared. Because of this, be sure to write down the settings of each system before starting work. When work is finished, reset the settings of each system as before. Never use a backup power supply from outside the vehicle to avoid erasing the memory in a system.
- An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with bare hands to discharge static electricity before performing this procedure.
1. SPIRAL CABLE
  1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel.
2. AIRBAG ASSEMBLY
  1. Airbag assembly with pad:
    Always place a removed or new airbag assembly with the pad surface facing upward. Placing the airbag assembly with the airbag inflation direction facing downward could cause a serious accident if the airbag inflates. Also, do not place anything on top of the airbag assembly.
  2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause a serious injury.
  3. Grease or detergents of any kind should not be applied to the airbag assembly.
  4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the center airbag sensor connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
  6. When disposing of the vehicle or the airbag assembly by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
3. SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER
  1. Never measure the resistance of the seat outer belt. This may cause the pretensioner of the seat outer belt to activate, which could cause a serious injury.
  2. Never install the seat outer belt on another vehicle.
  3. Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the humidity is not high and there is no electrical noise.
  4. When using electric welding anywhere on the vehicle, disconnect the center airbag sensor connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the pretensioner deploying due to currents entering the squib wiring.
  5. When disposing of a vehicle or the seat outer belt by itself, the pretensioner should be activated before disposal. Activate the pretensioner in a safe place away from electrical noise.
  6. As the seat outer belt is hot after the pretensioner is activated, allow some time for it to cool down sufficiently before disposal. Never apply water to try to cool down the seat outer belt.
  7. Grease, detergents, oil or water should not be applied to the seat outer belt.
4. AIRBAG SENSOR ASSEMBLY
  1. Never reuse an airbag sensor assembly that has been involved in a collision where the SRS has deployed.
  2. The connectors to the airbag sensor assembly should be connected or disconnected with the sensor placed on the floor. If the connectors are connected or disconnected while the airbag sensor assembly is not placed on the floor, the SRS may activate.
  3. Work must be started at least 90 seconds after the engine switch is turned Off and the cable is disconnected from the negative (-) battery terminal, even if only loosening the set bolts of the airbag sensor assembly.
5. WIRE HARNESS AND CONNECTOR
  1. The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in the system are yellow. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.

ELECTRONIC CONTROL

REMOVAL AND INSTALLATION OF BATTERY CABLE

Fig 8: Identifying Battery Terminal And Cable

TEXT IN ILLUSTRATION

*1	Cable
*2	Negative (-) Battery Terminal

Before performing electronic work, disconnect the cable from the negative (-) battery terminal to prevent component and wire damage caused by accidental short circuits.
When disconnecting the cable, turn the engine switch Off and headlight dimmer switch off and loosen the cable nut completely. Perform these operations without twisting or prying the cable. Then disconnect the cable.
Clock settings*, radio settings, audio system memory, DTCs and other data are cleared when the cable is disconnected from the negative (-) battery terminal. Write down any necessary data before disconnecting the cable.
HINT:

*: w/o Navigation System
Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.

HANDLING OF ELECTRONIC PARTS

Do not open the cover or case of an ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.

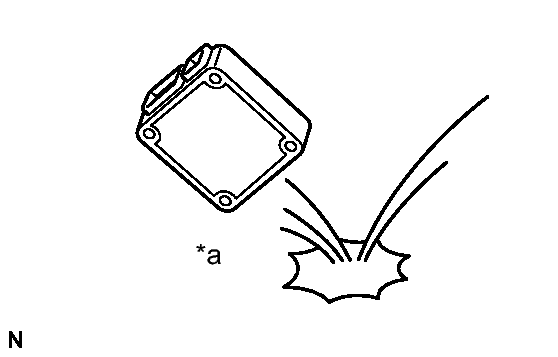

Fig 9: Identifying Handling Of Electronic Parts

TEXT IN ILLUSTRATION

INCORRECT

Do not pull the wires when disconnecting electronic connectors. Pull the connector.
Be careful not to drop electronic components, such as sensors or relays. If they are dropped on a hard surface, they should be replaced.
When cleaning the engine with steam, protect the electronic components, air filter and emissions-related components from water.
Never use an impact wrench to remove or install temperature switches or temperature sensors.
When measuring the resistance of a wire connector, insert the tester probe carefully to prevent the terminals from bending.

REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS
1. PLACE FOR REMOVING AND INSTALLING FUEL SYSTEM PARTS
  1. Work in a location with good air ventilation that does not have welders, grinders, drills, electric motors, stoves, or any other ignition sources.
  2. Never work in a pit or near a pit as vaporized fuel will collect in those places.
2. REMOVING AND INSTALLING FUEL SYSTEM PARTS
  1. Prepare a fire extinguisher before starting the operation.
  2. To prevent static electricity, install a ground wire to the fuel changer, vehicle and fuel tank, and do not spray the surrounding area with water. Be careful when performing work in this area, as the work surface will become slippery.
  3. Avoid using electric motors, working lights and other electric equipment that can cause sparks or high temperatures.
  4. Avoid using iron hammers as they may create sparks.
  5. Dispose of fuel-contaminated cloths separately using a fire resistant container.
REMOVAL AND INSTALLATION OF ENGINE INTAKE PARTS
1. If any metal particles enter inlet system parts, they may damage the engine.

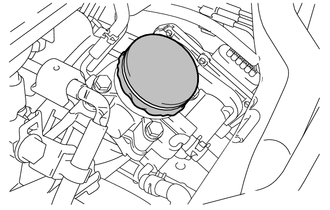

  Fig 10: View Of Removal & Installation Of Engine Intake Parts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When removing and installing inlet system parts, cover the openings of the removed parts and engine openings. Use gummed tape or other suitable materials.
3. When installing inlet system parts, check that no metal particles have entered the engine or the installed parts.
HANDLING OF HOSE CLAMPS

Fig 11: Identifying Clamp Track And Spring Type Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*1 Clamp Track

*2 Spring Type Clamp
1. Before removing the hose, check the clamp position so that it can be reinstalled in the same position.
2. Replace any deformed or dented clamps with new ones.
3. When reusing a hose, attach the clamp on the clamp track portion of the hose.
4. For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrows as shown in the illustration.
FOR VEHICLES EQUIPPED WITH MOBILE COMMUNICATION SYSTEMS
1. Install the antenna as far away from the ECU and sensors of the vehicle electronic systems as possible.

  Fig 12: Identifying Antenna For Vehicles Equipped With Mobile Communication Systems
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensor locations, refer to the information of the applicable components.
3. Keep the antenna and feeder separate from other wiring as much as possible. This will prevent signals from the communication equipment from affecting vehicle equipment and vice versa.
4. Check that the antenna and feeder are correctly adjusted.
5. Do not install a high-powered mobile communication system.

WHEN INSPECTING HEADLIGHT

When the headlights are illuminated, do not cover the headlights for 3 minutes or more.

TEXT IN ILLUSTRATION

*1	Illumination for 3 minutes or more prohibited if covered

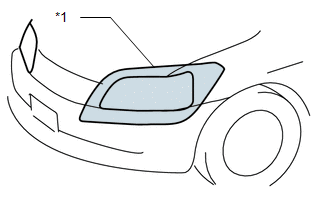

Fig 13: Identifying Covered Headlights For Illumination Time Limit

NOTE:

When the headlight dimmer switch assembly is set to HEAD, do not touch the high-voltage socket area of the discharge headlight.
As the outer lens of the headlight is made of resin, the resulting heat created when covering the headlight for an extended period of time may deform the headlight.

FOR VEHICLES EQUIPPED WITH AIR SUSPENSION SYSTEM
1. Be sure to turn the height control OFF switch on to switch the height control system off and cancel the auto leveling function when:
  - Jacking up the vehicle.
  - A trailer etc. is attached to the vehicle.
2. When replacing the suspension control ECU, be sure to replace it with a new one. If the suspension control ECU is replaced with a normally functioning one from another vehicle, the vehicle identification information will not match, which may cause the air suspension system to stop operating or have undesirable effects on other systems.
FOR VEHICLES EQUIPPED WITH TRACTION CONTROL (TRC) AND VEHICLE STABILITY CONTROL (VSC) SYSTEMS
When testing with a 2-wheel drum tester such as a speedometer tester, a combination speedometer and brake tester, or a chassis dynamometer, or when jacking up the front wheels and turning the wheels, perform the following procedure to enter inspection mode and disable the TRC and VSC systems. Refer to PRECAUTION .

HINT:
- The vehicle may slip unexpectedly out of the dynamometer because of TRC and VSC operation.
- Pressing the VSC OFF switch (for vehicles with a VSC OFF switch) does not disable TRC and VSC operation completely.
NOTE:
- Make sure that the VSC warning light is blinking.
- Secure the vehicle with chains for safety.
WHEN SERVICING FULL-TIME 4WD VEHICLES
1. WHEN USING A SPEEDOMETER TESTER

  Fig 14: View Of Using A Speedometer Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Inspection should be done using the front wheels.
  - Do not brake or accelerate suddenly.
  - Maximum vehicle speed must be less than 60 km/h (37 mph) (when using free rollers to support the rear wheels, vehicle speed must be less than 50 km/h (31 mph)).
  - Driving time should be less than 1 minute.
  - Follow all usage and safety procedures in the operator's manual for the speedometer tester.
  1. Place the front wheels onto the rollers.
  2. Enter inspection mode to disable TRC and VSC control.
  3. Place the rear wheels on free rollers or use safety stands to allow the rear wheels to rotate freely.
  4. Secure the vehicle with suitable chains or straps.
  5. Start the engine, and then measure the vehicle speed while increasing the speed gradually with the shift lever in D.
  6. After the test is finished, decrease the speed gradually, and then stop the vehicle.
2. WHEN USING A BRAKE TESTER
  NOTE:
  - A high-speed type brake tester cannot be used.
  - Vehicle speed should be less than 0.5 km/h (0.3 mph).
  - Follow all usage and safety procedures in the operator's manual for the brake tester.
  1. Place the wheels to be tested (front or rear) onto the rollers.
  2. Move the shift lever to N.
  3. Start the engine to allow normal brake booster operation.
  4. Operate the brakes to perform the test.
3. WHEN USING A CHASSIS DYNAMOMETER
  1. Enter inspection mode to disable TRC and VSC control.
  2. Follow the instructions shown in the illustration.
    NOTE:
    Do not brake or accelerate suddenly.

    Confirm that the vehicle is securely immobilized.

    Follow all usage and safety procedures in the operator's manual for the chassis dynamometer.

    Be sure to follow the instructions specified in the illustration. Failure to do so may cause deterioration of 4WD system function, malfunction of drivetrain components and risk of the vehicle jumping off the dynamometer.
    Fig 15: View Of Using A Chassis Dynamometer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. WHEN USING AN ON-VEHICLE BALANCER
  1. Raise the vehicle until all 4 wheels are off the ground.
  2. Support the vehicle with safety stands at an appropriate height. Make sure that vehicle does not lean in any direction, and that the tires are completely clear of the floor.
  3. Place the vibration pick-up unit into position for the wheel to be measured*1.
  4. Release the parking brake.
  5. Check that no dragging force exists when turning each wheel by hand.
  6. Put the wheel balancer in position.
  7. Wheel balance measurement should be done by using both the engine and the wheel balancer drive roller to spin the wheels.
    HINT:

    *1: Different on-vehicle wheel balancers have different requirements for mounting the vibration pick-up unit(s). Refer to the operator's manual for the wheel balancer to confirm requirements for use.
    NOTE:
    Start the engine and then increase the vehicle speed gradually with the shift lever in D.

    Do not accelerate or decelerate suddenly.

    Deceleration should be done by braking gradually.

    Make sure that no one is standing in-line with the spinning wheels.

    Measurement should be done quickly.

    Confirm that the vehicle is securely immobilized.

    Follow all usage and safety procedures in the operator's manual for the wheel balancer.
WHEN TOWING FULL-TIME 4WD VEHICLES
1. Use one of the following methods to tow the vehicle.
2. If the vehicle has trouble with the chassis or drive train, use method 1 (flat bed truck).

  Fig 16: View Of Towing 4WD Vehicles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not use any towing method other than those shown above.
3. The following towing methods shown below are dangerous and can damage the vehicle, so do not use them.

  Fig 17: Identifying Incorrect Ways Of Towing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Do not tow the vehicle with only two wheels on the ground.
  2. Do not use a sling-type towing method either from the front or rear.
    NOTE:
    If these towing methods are used either from the front or rear, the following may occur.

    The drive train may overheat and be damaged and the wheels may off the dolly.

    In addition, if the vehicle is equipped with the VSC system, the system will apply the brakes to the rotating wheels.
FOR VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
WARNING:
If a large amount of unburned gasoline or gasoline vapors flow into the converter, it may cause converter overheating and create a fire hazard. To prevent this, observe the following precautions:
1. Use only unleaded gasoline.
2. Avoid idling the engine for more than 20 minutes.
3. Avoid performing unnecessary spark tests.
  1. Perform a spark test only when absolutely necessary. Perform this test as rapidly as possible.
  2. While testing, never race the engine unless instructed.
4. Avoid a prolonged engine compression measurement. Engine compression measurements must be performed as rapidly as possible.
5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.

*1	Clamp Track
*2	Spring Type Clamp
