Ignition Coil And Spark Plug: Components: Illustration

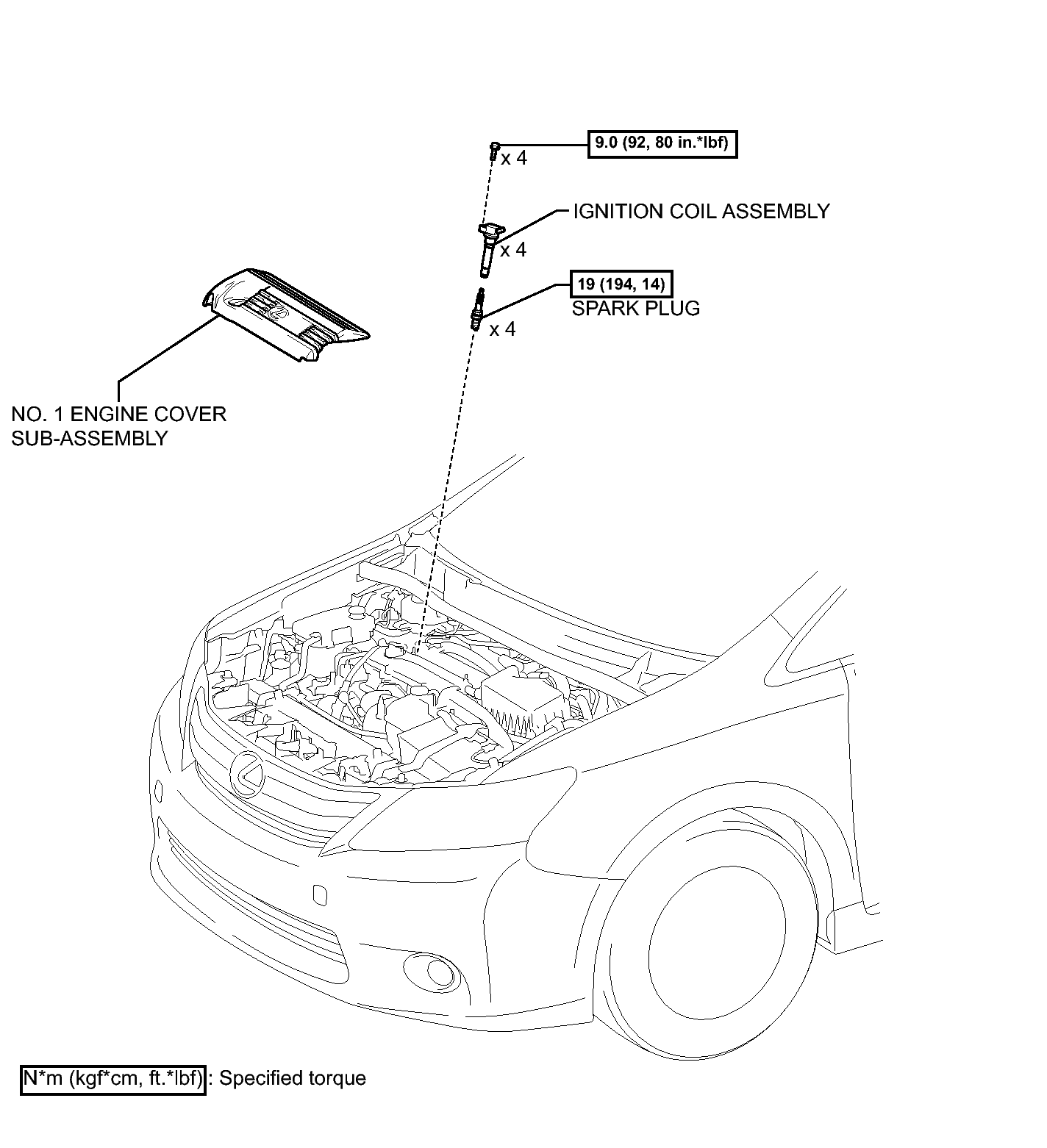

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY272985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
