Integration Relay: Removal: Removal

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE NO. 1 INTEGRATION RELAY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and disconnect the No. 1 integration relay.

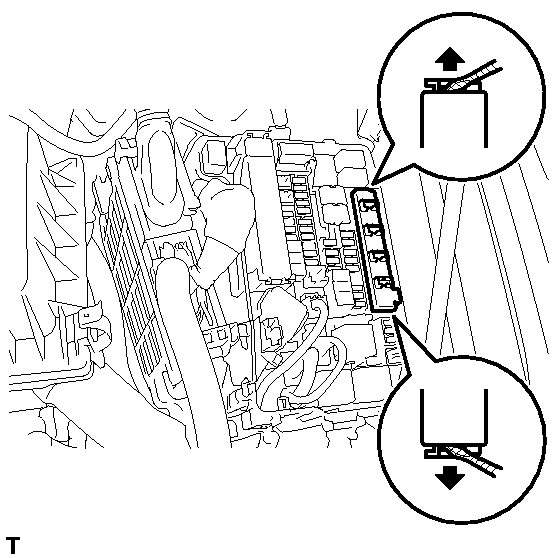

      Fig 1: Identifying No. 1 Integration Relay, Taped Screwdriver & Claws
      GTY284594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors.

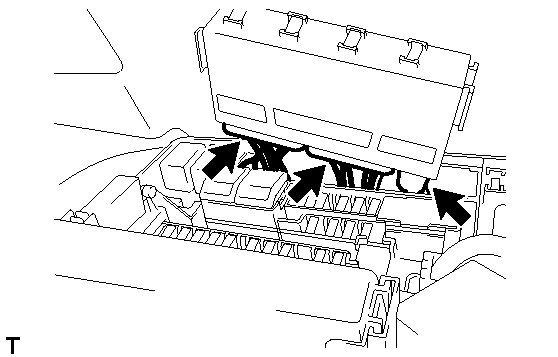

      Fig 2: Identifying Connectors
      GTY267374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
