Front Window Deicer: Notes

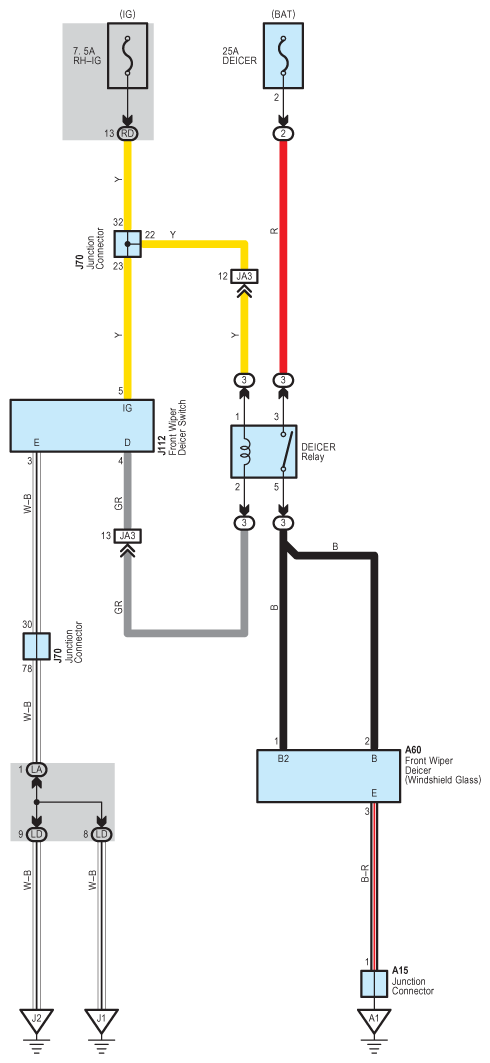

Fig 1: Front Window Deicer - Circuit Diagram
G07585644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
