OEM System Circuits: Headlight: Notes

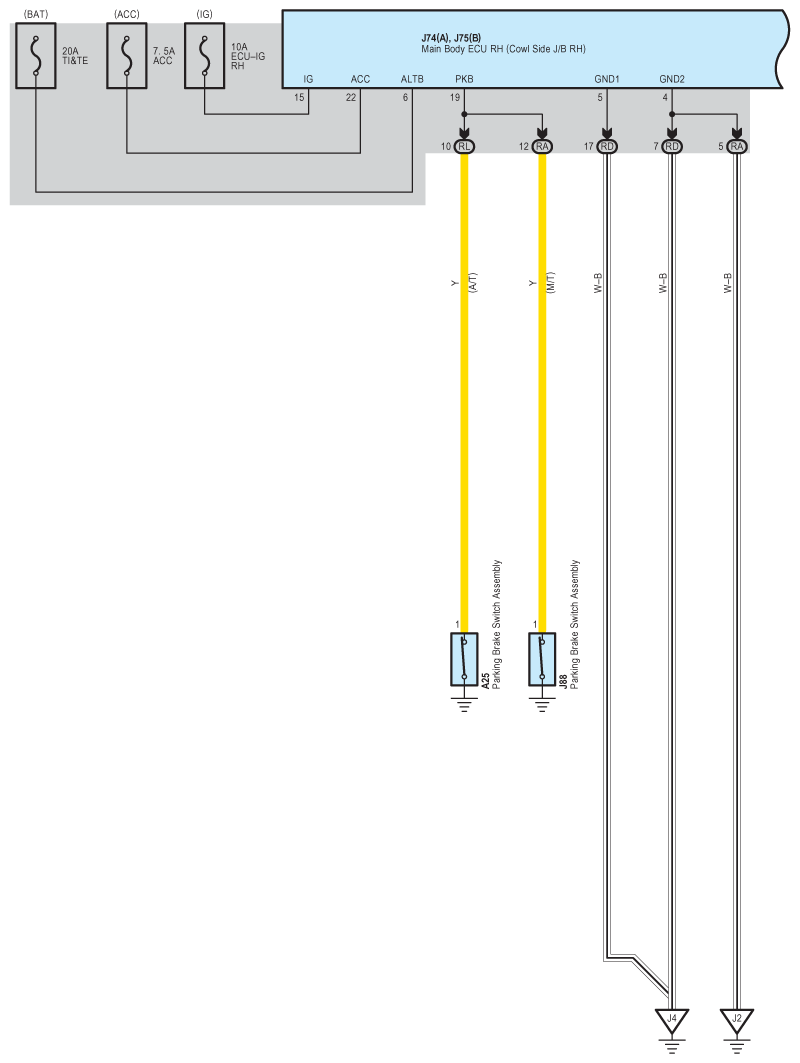

Fig 1: Headlight - Circuit Diagram (1 Of 7)

G07585386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

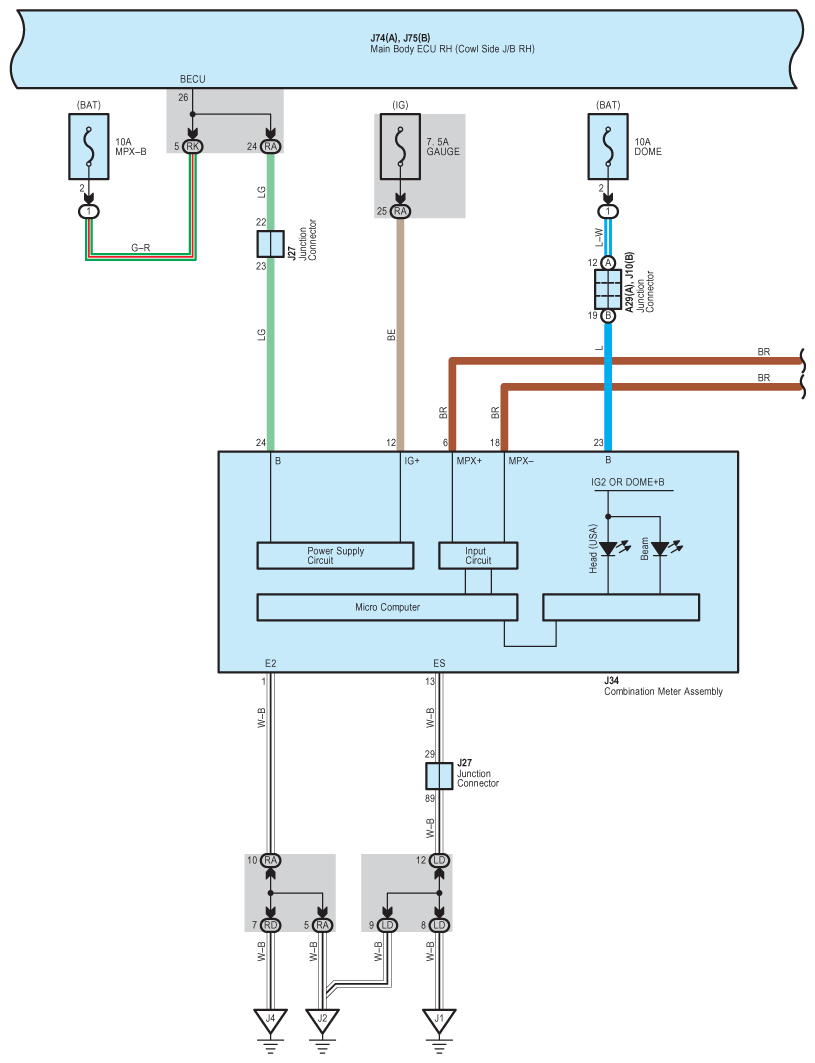

Fig 2: Headlight - Circuit Diagram (2 Of 7)

G07585387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

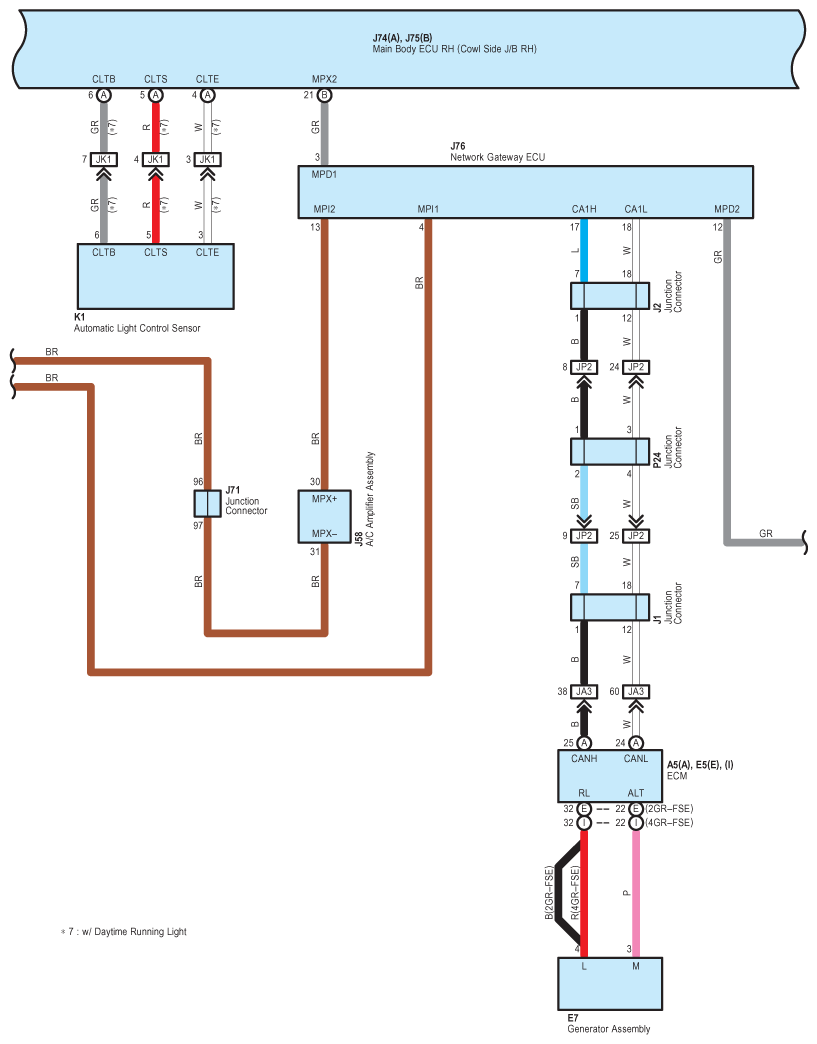

Fig 3: Headlight - Circuit Diagram (3 Of 7)

G07585388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

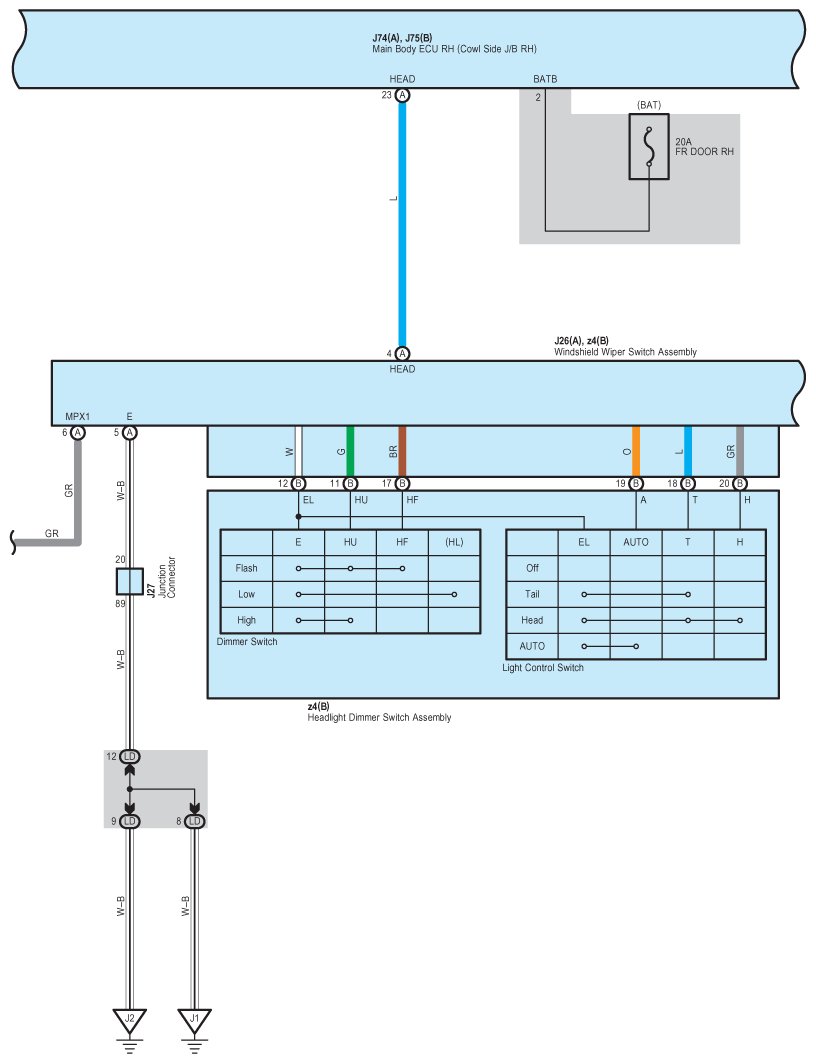

Fig 4: Headlight - Circuit Diagram (4 Of 7)

G07585389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

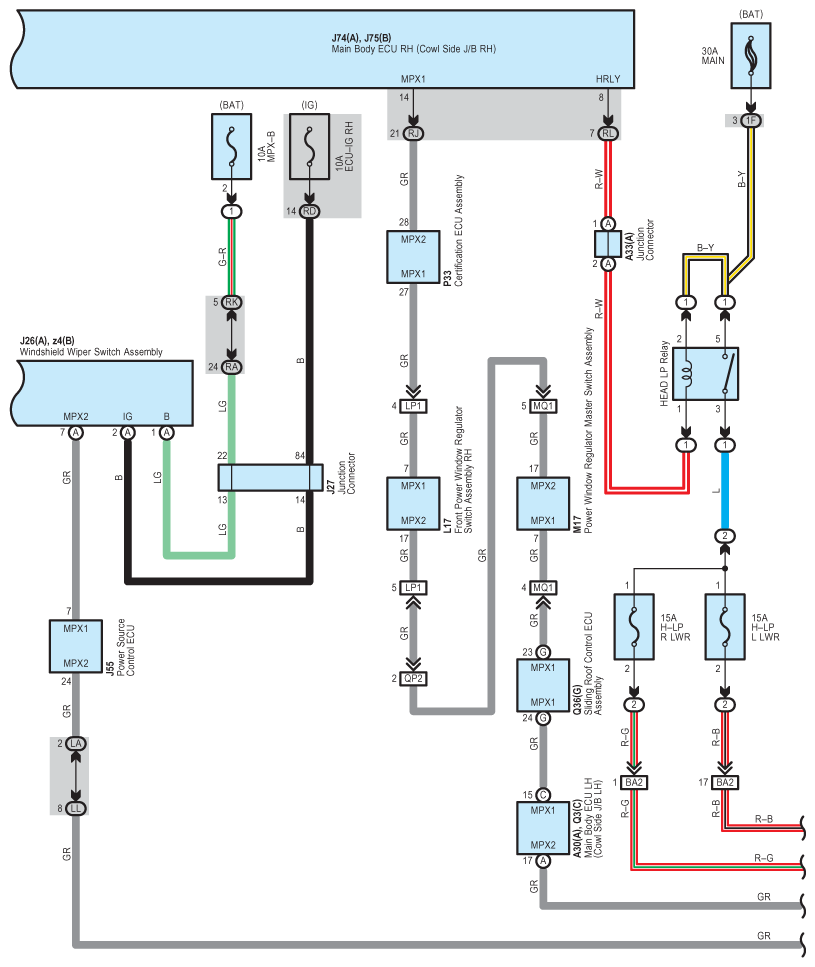

Fig 5: Headlight - Circuit Diagram (5 Of 7)

G07585390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

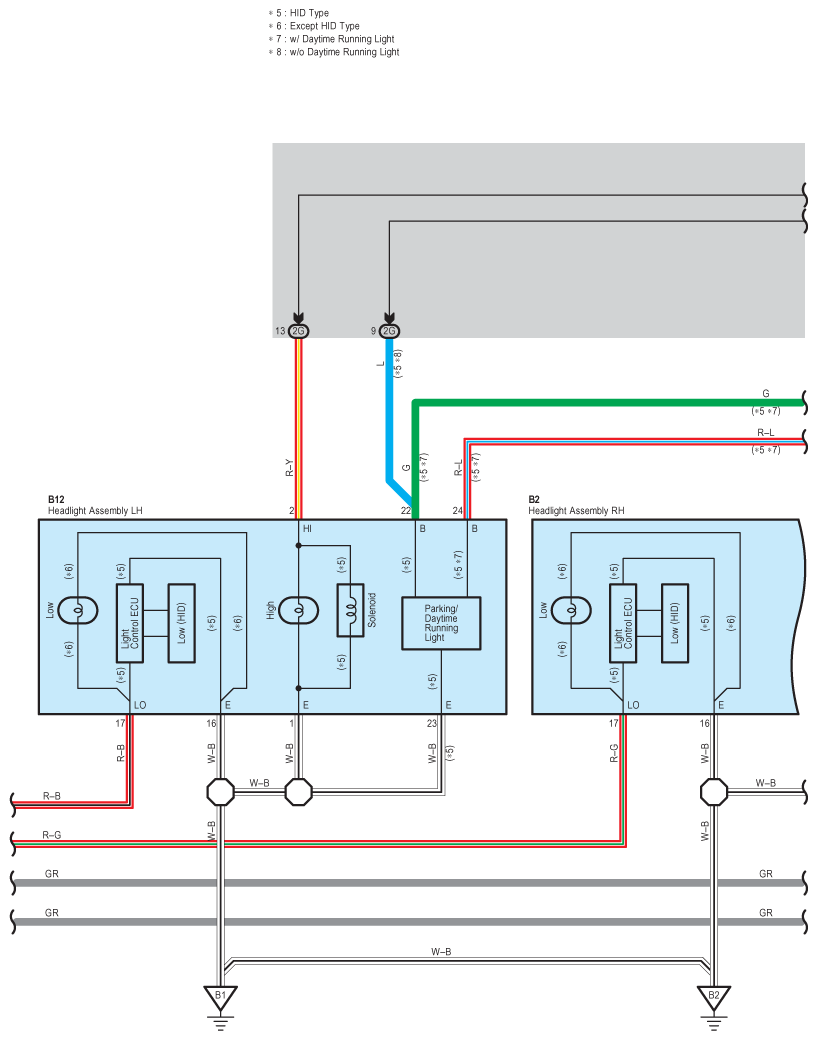

Fig 6: Headlight - Circuit Diagram (6 Of 7)

G07585391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

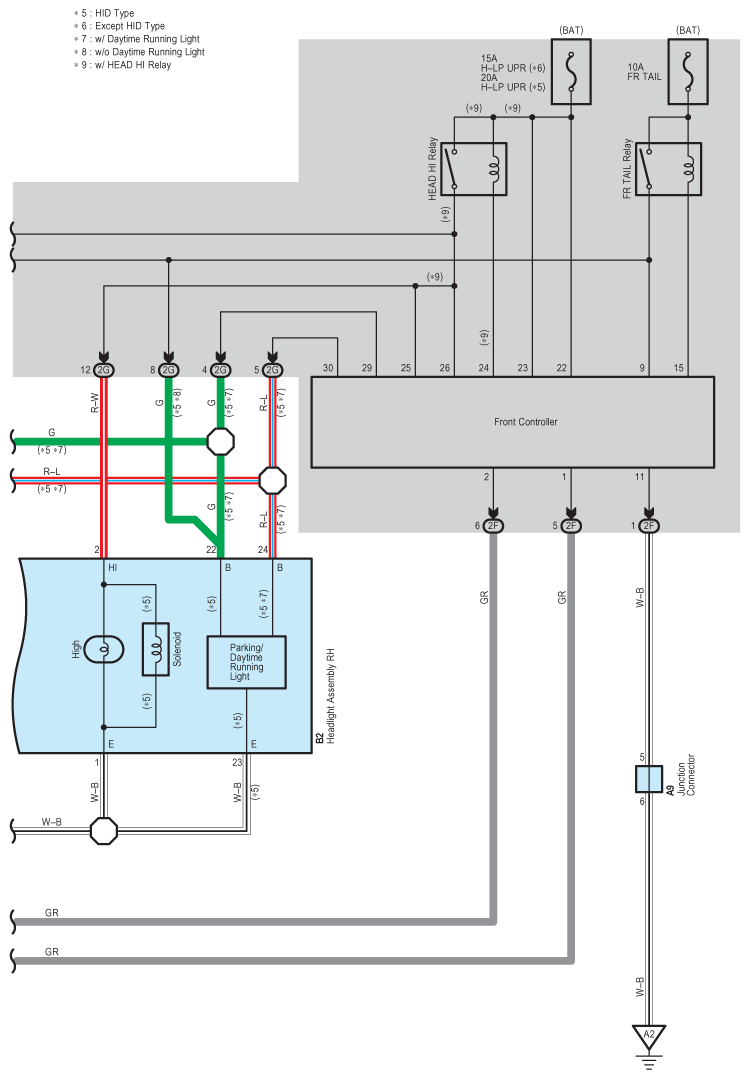

Fig 7: Headlight - Circuit Diagram (7 Of 7)

G07585392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
