Retractable Hardtop: Notes

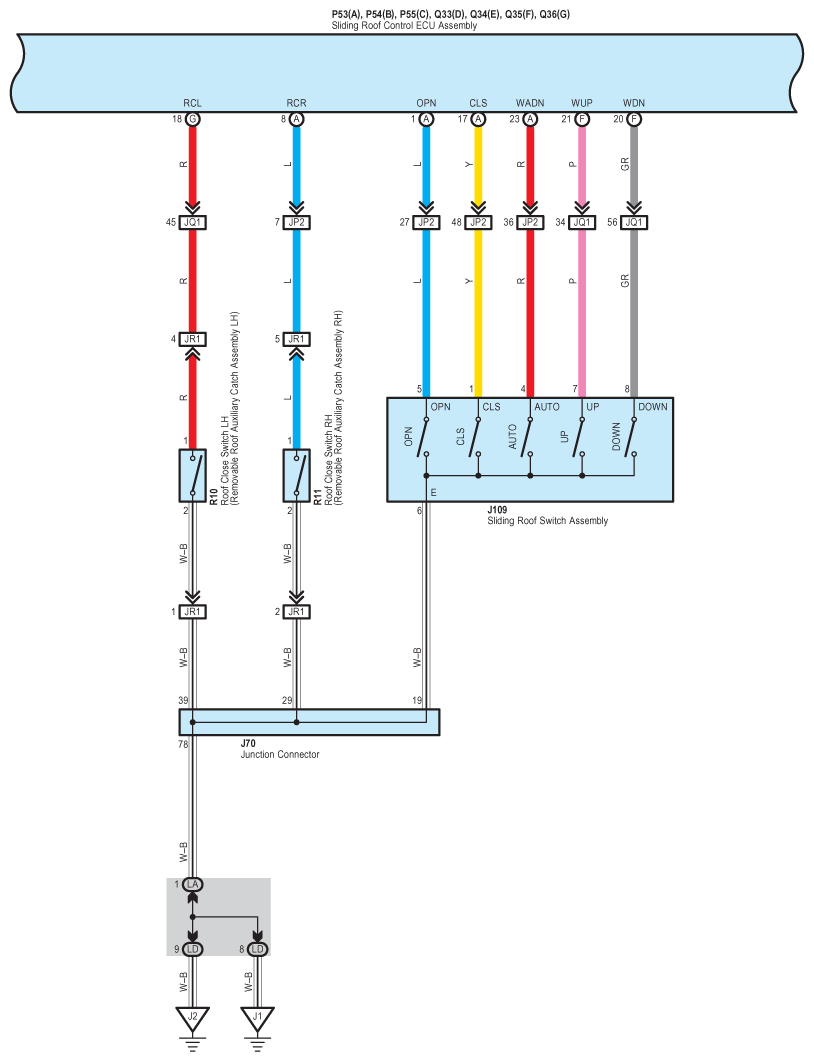

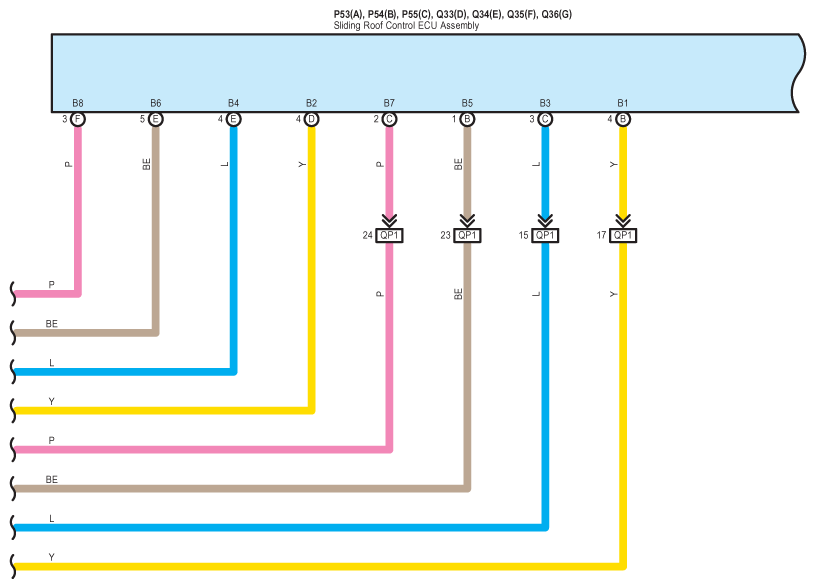

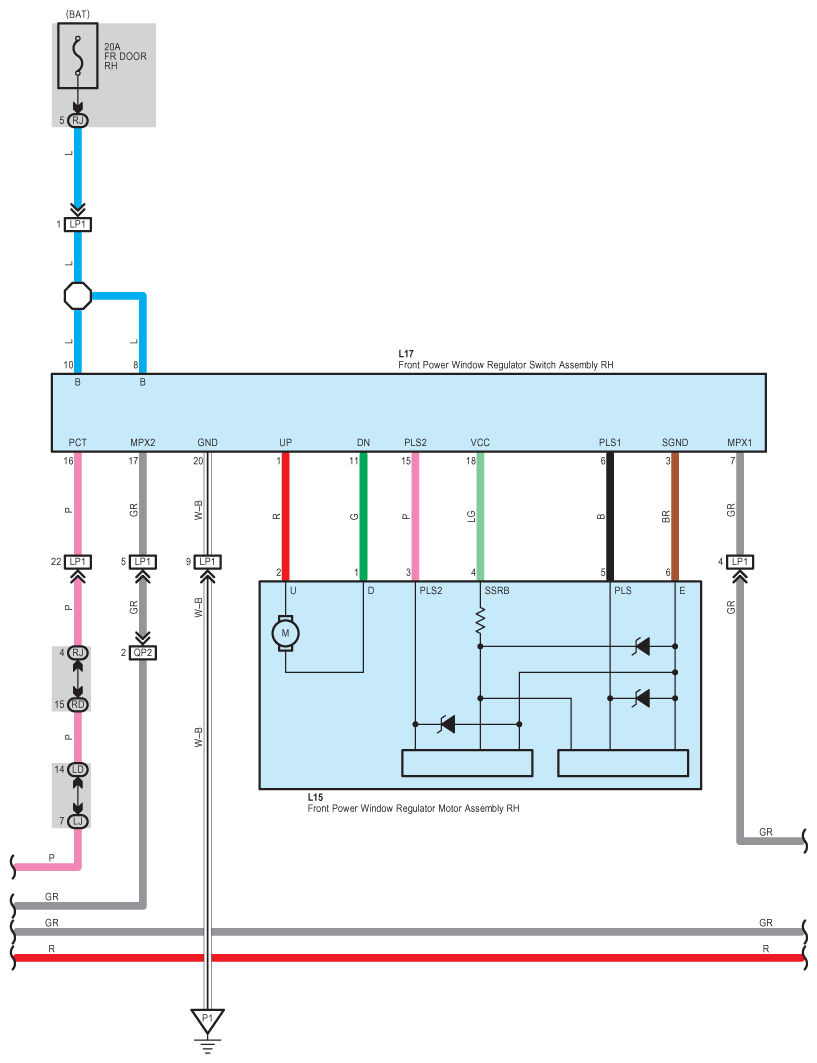

Fig 1: Retractable Hardtop - Circuit Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

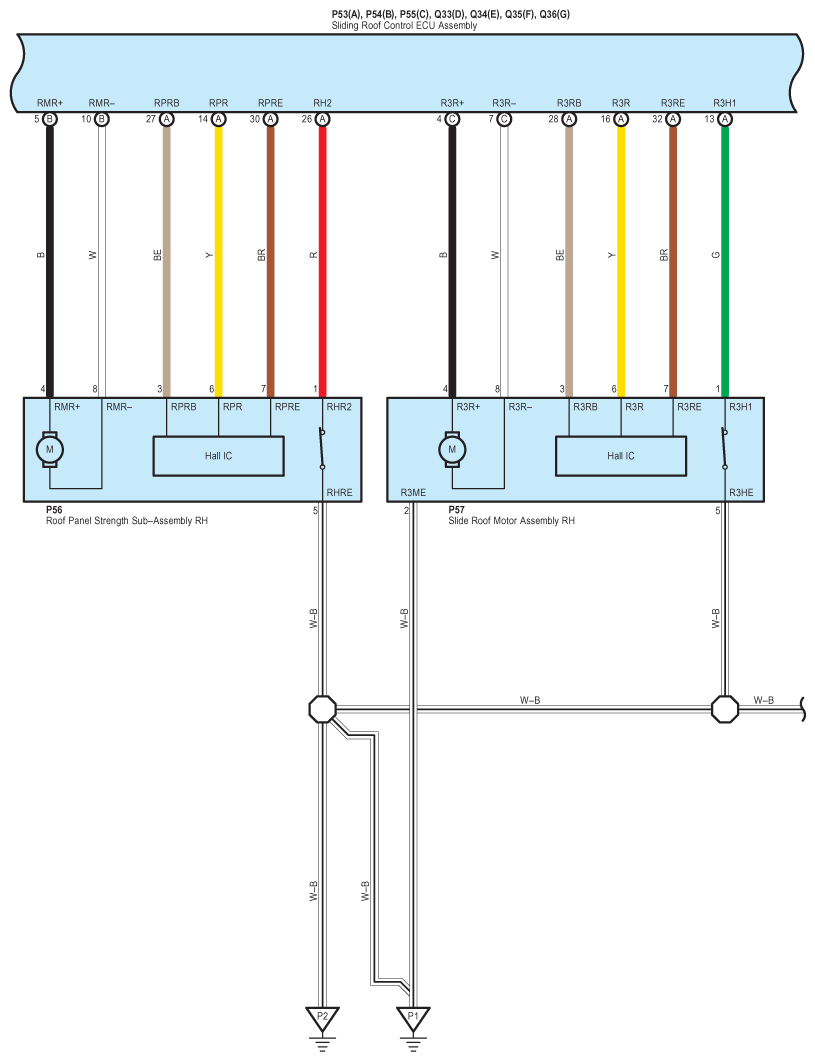

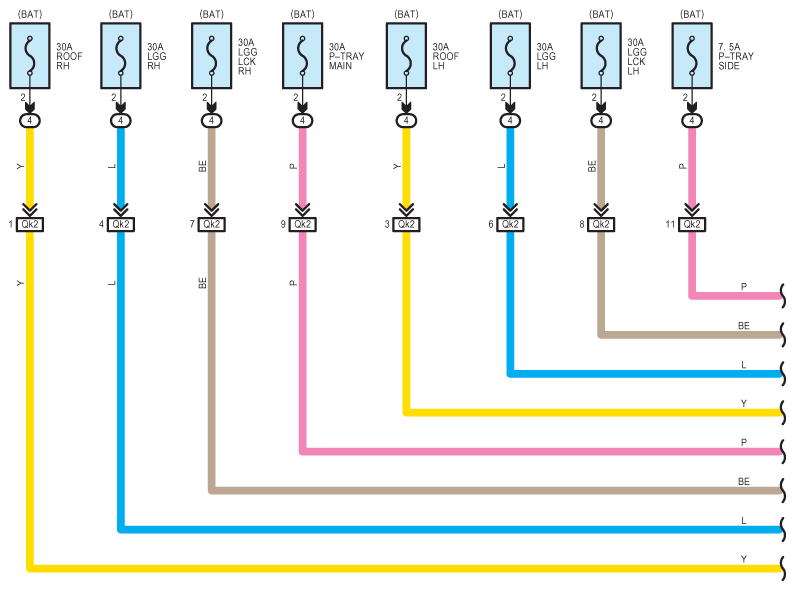

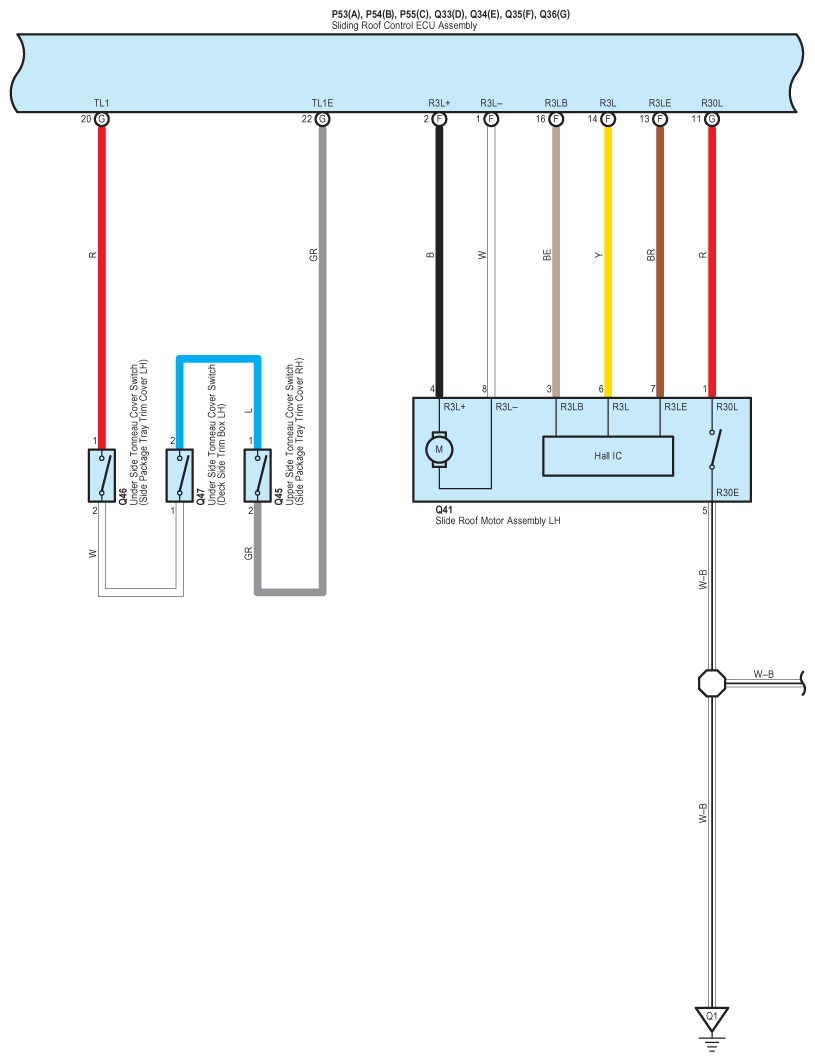

Fig 2: Retractable Hardtop - Circuit Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

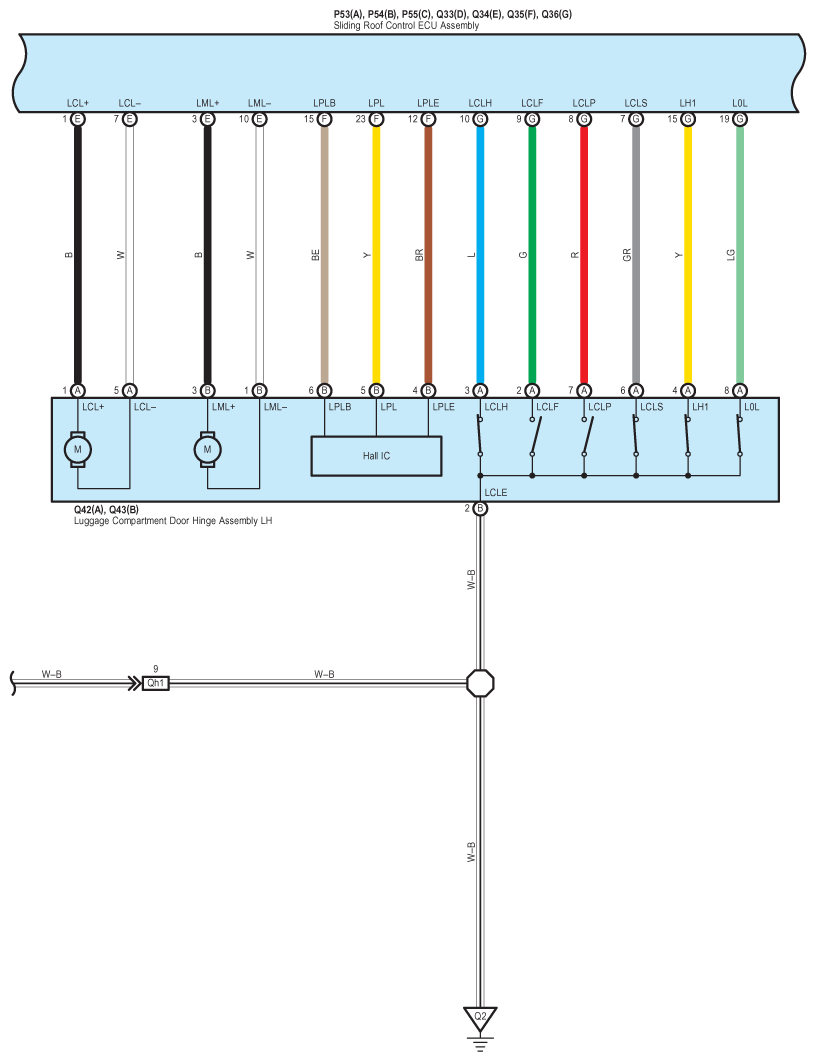

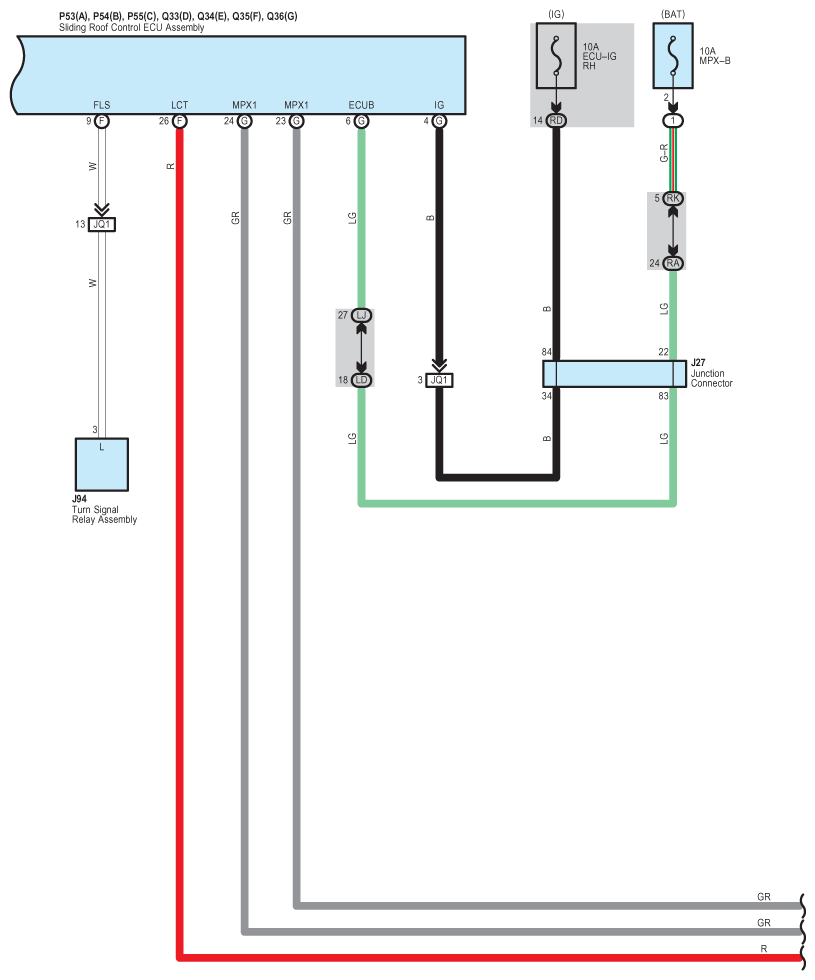

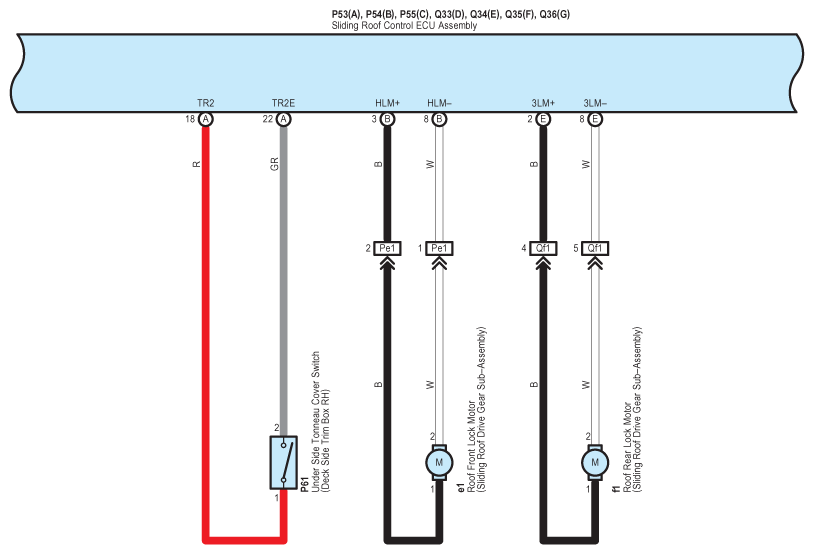

Fig 3: Retractable Hardtop - Circuit Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

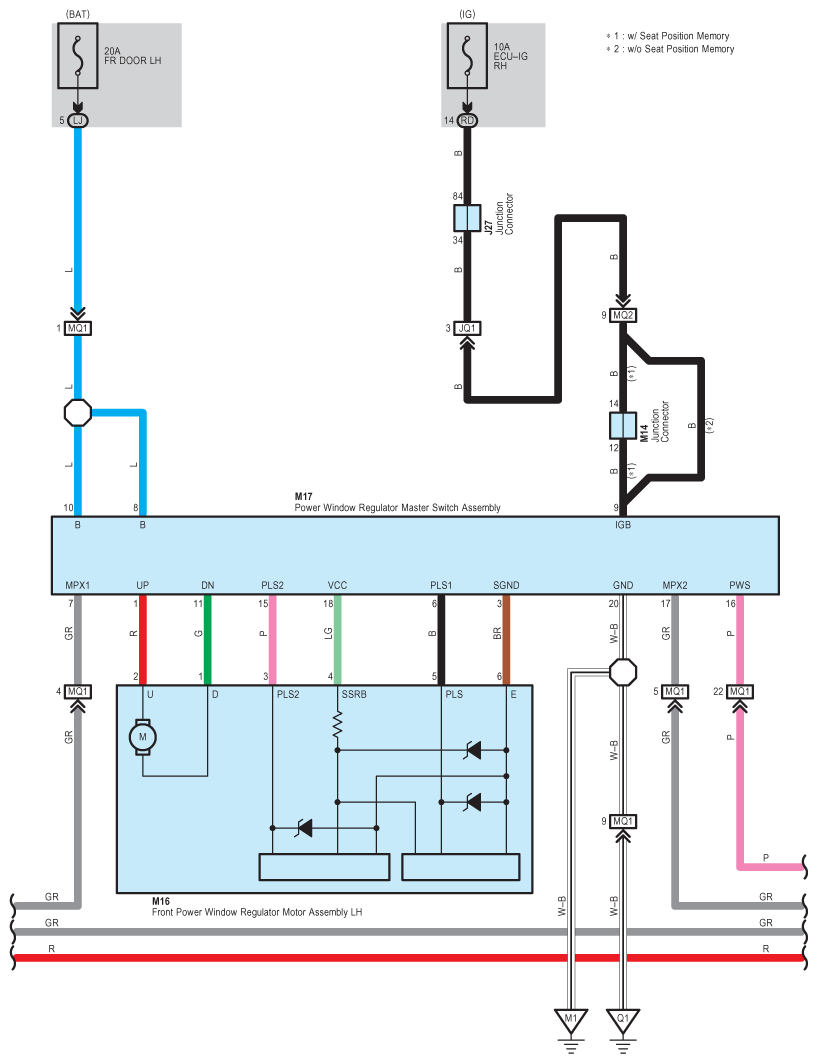

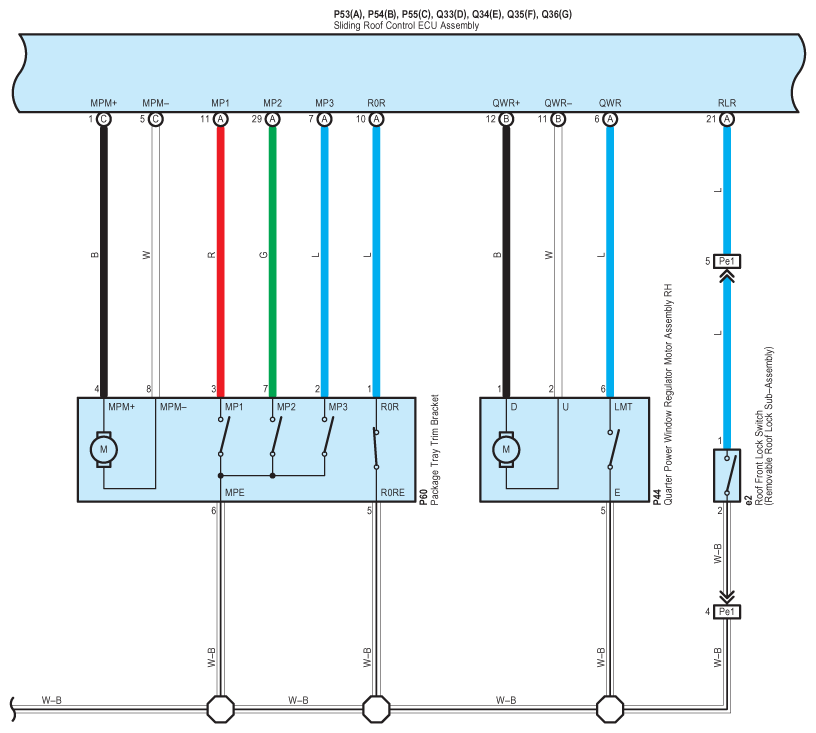

Fig 4: Retractable Hardtop - Circuit Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

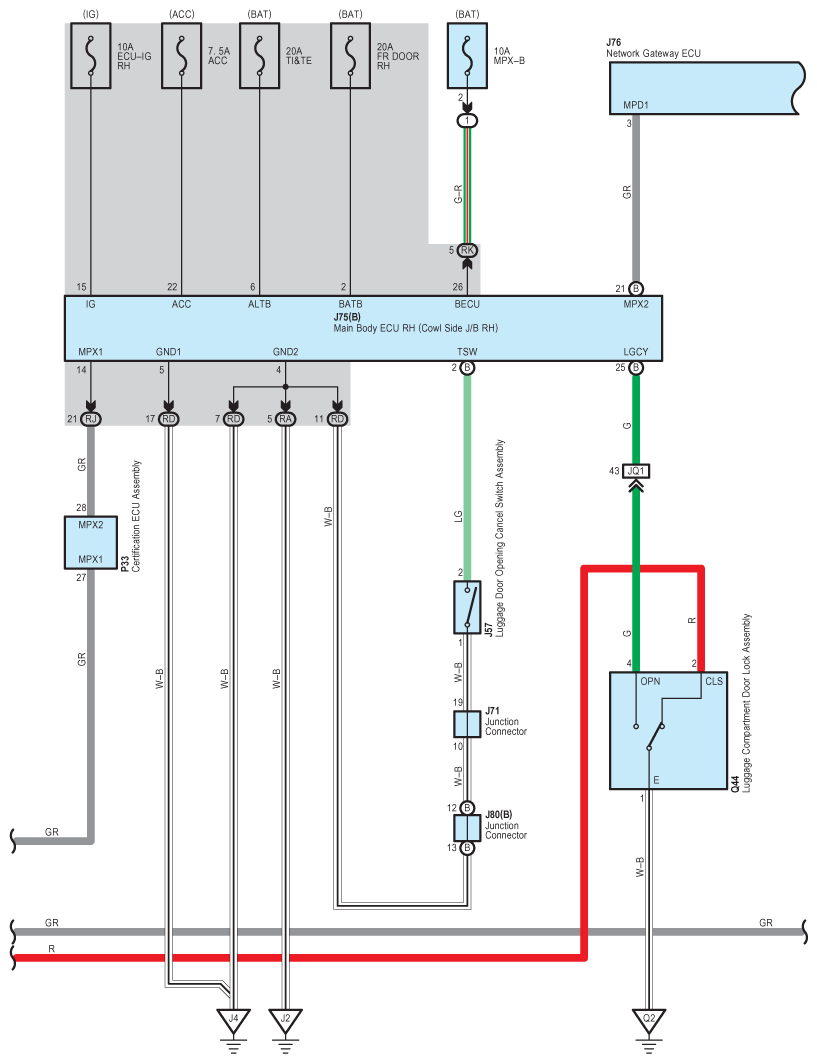

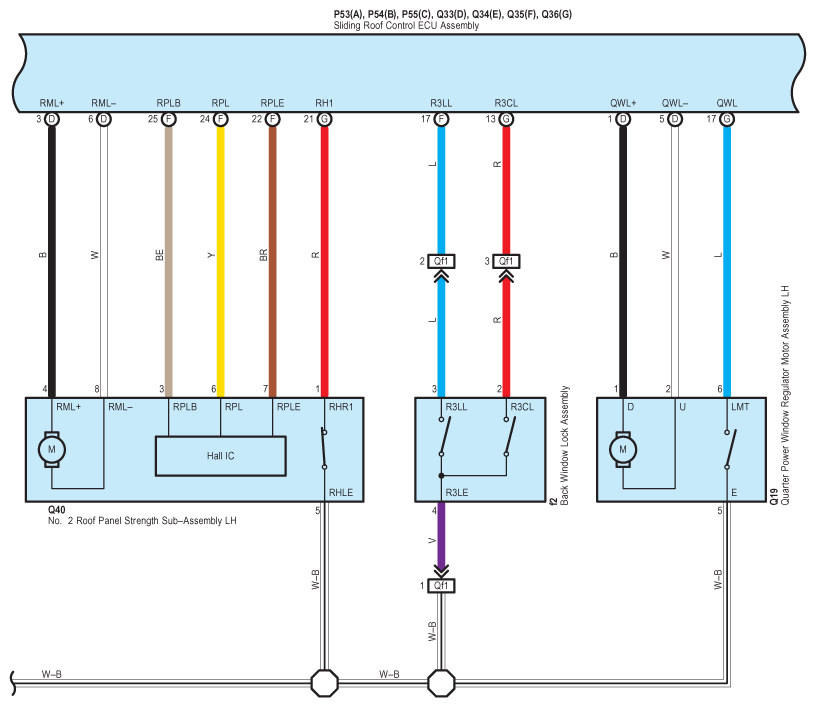

Fig 5: Retractable Hardtop - Circuit Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

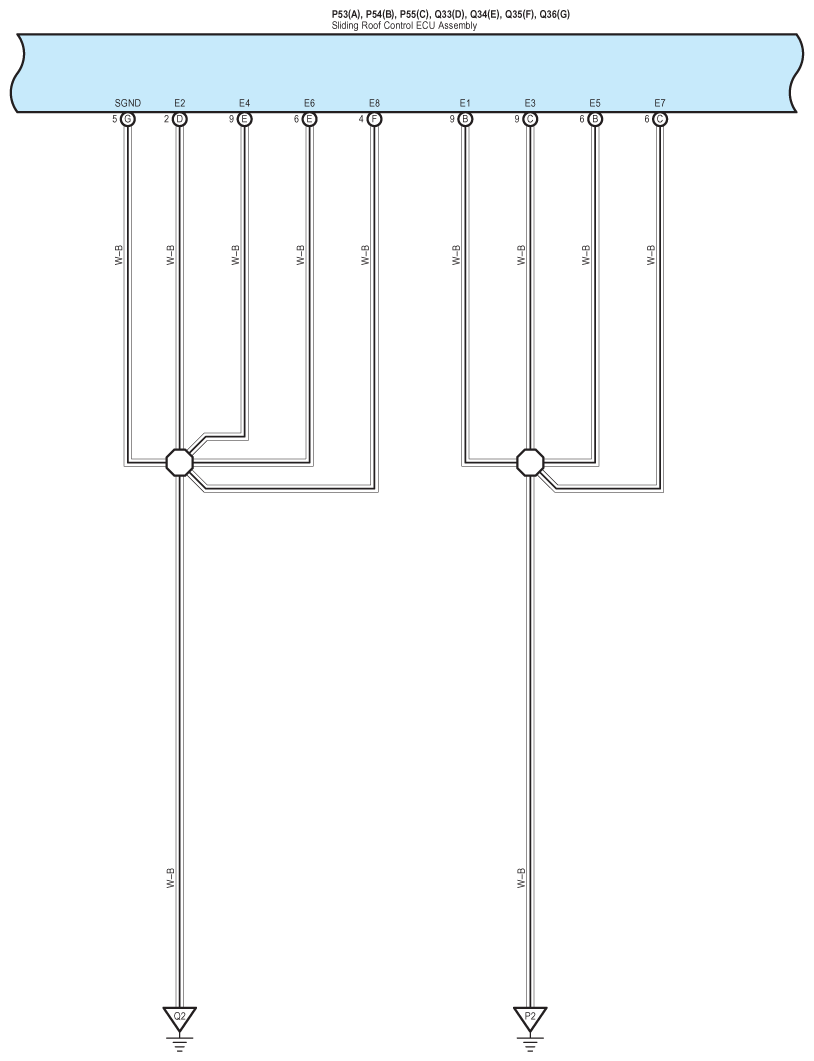

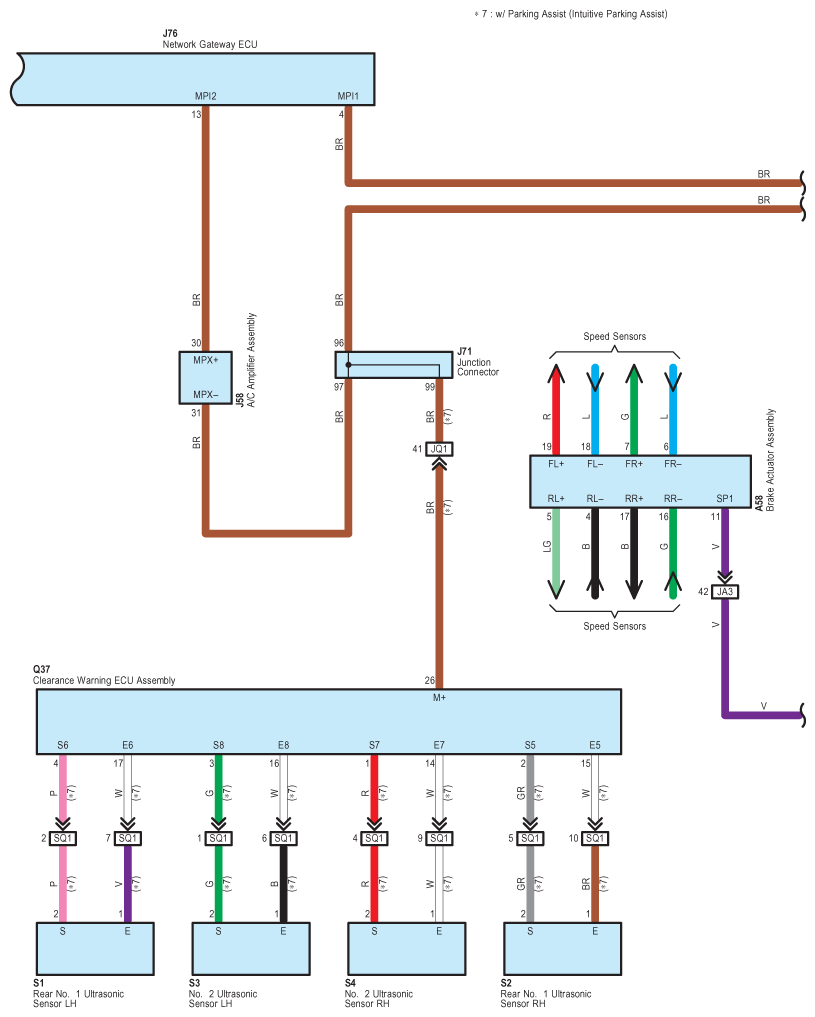

Fig 6: Retractable Hardtop - Circuit Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

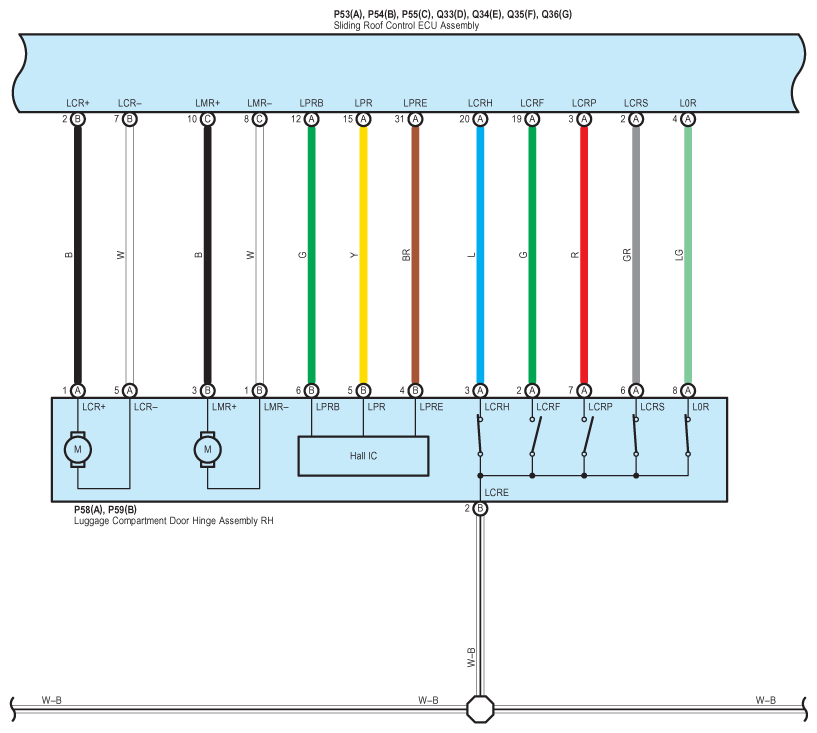

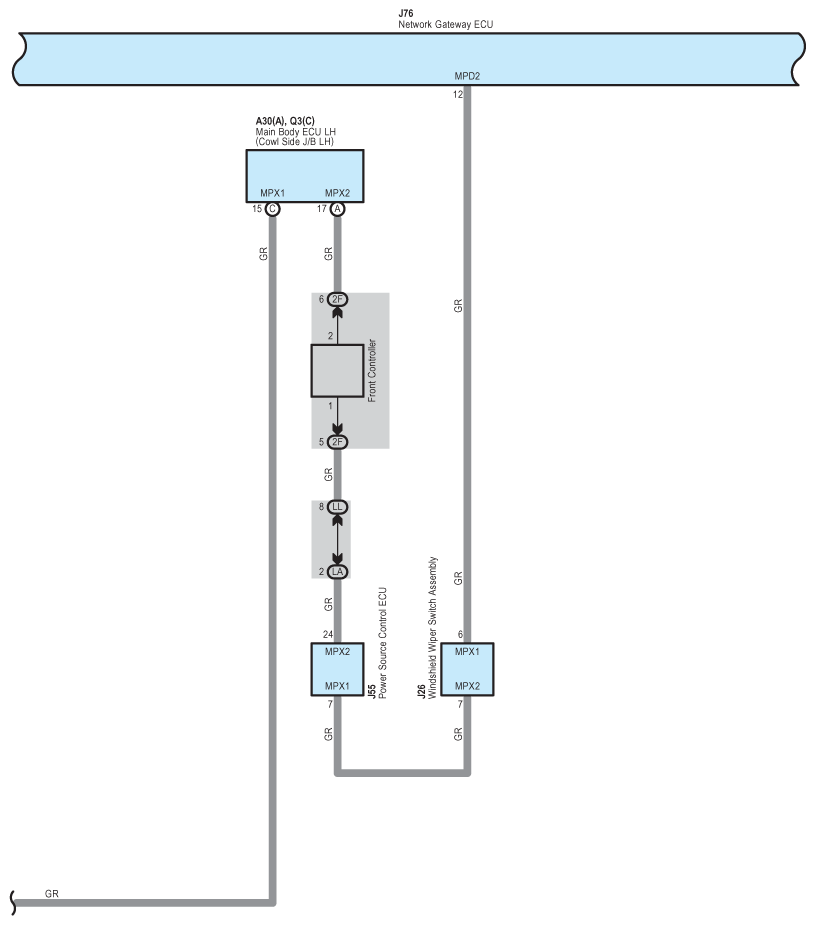

Fig 7: Retractable Hardtop - Circuit Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

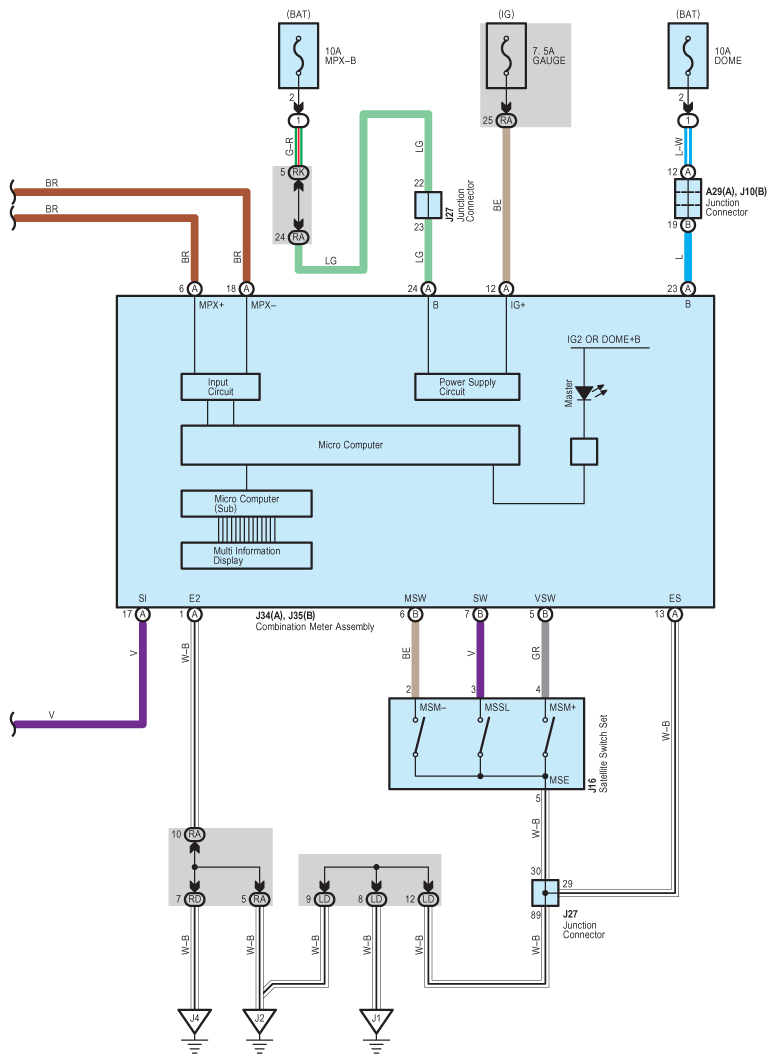

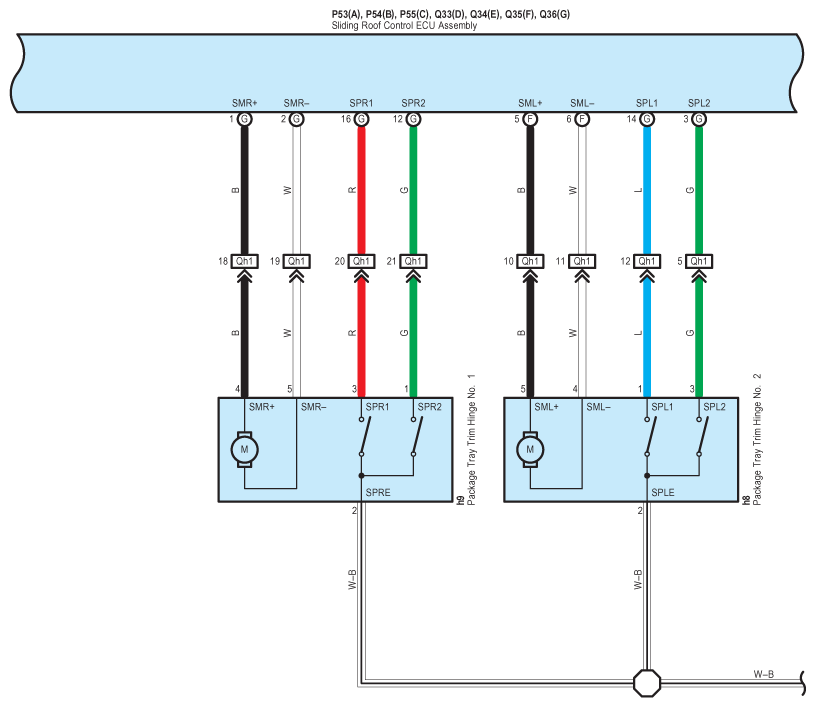

Fig 8: Retractable Hardtop - Circuit Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Retractable Hardtop - Circuit Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Retractable Hardtop - Circuit Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Retractable Hardtop - Circuit Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Retractable Hardtop - Circuit Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Retractable Hardtop - Circuit Diagram (13 Of 19)

Fig 14: Retractable Hardtop - Circuit Diagram (14 Of 19)

Fig 15: Retractable Hardtop - Circuit Diagram (15 Of 19)

Fig 16: Retractable Hardtop - Circuit Diagram (16 Of 19)

Fig 17: Retractable Hardtop - Circuit Diagram (17 Of 19)

Fig 18: Retractable Hardtop - Circuit Diagram (18 Of 19)

Fig 19: Retractable Hardtop - Circuit Diagram (19 Of 19)
