VSC Off Switch: Inspection: Inspection

INSPECT VSC OFF SWITCH

Measure the resistance according to the value(s) in the table below.

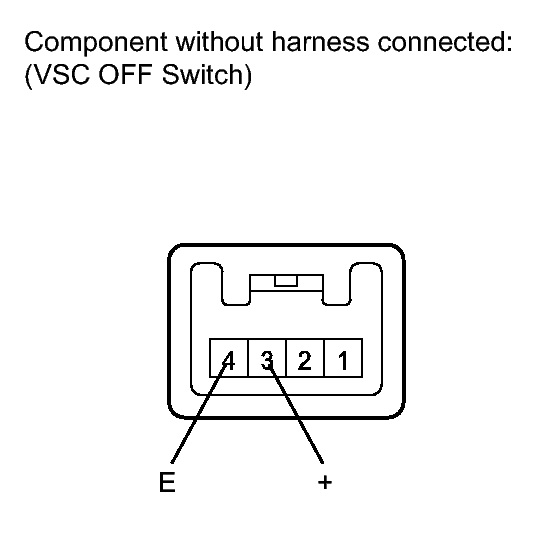

Fig 1: Identifying VSC OFF Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
3 - 4	Pressed	Below 1 Ω
3 - 4	Not pressed	10 kΩ or higher

If the value is not as specified, replace the VSC off switch.
