Audio System (w/o LEXUS Navigation System): Notes

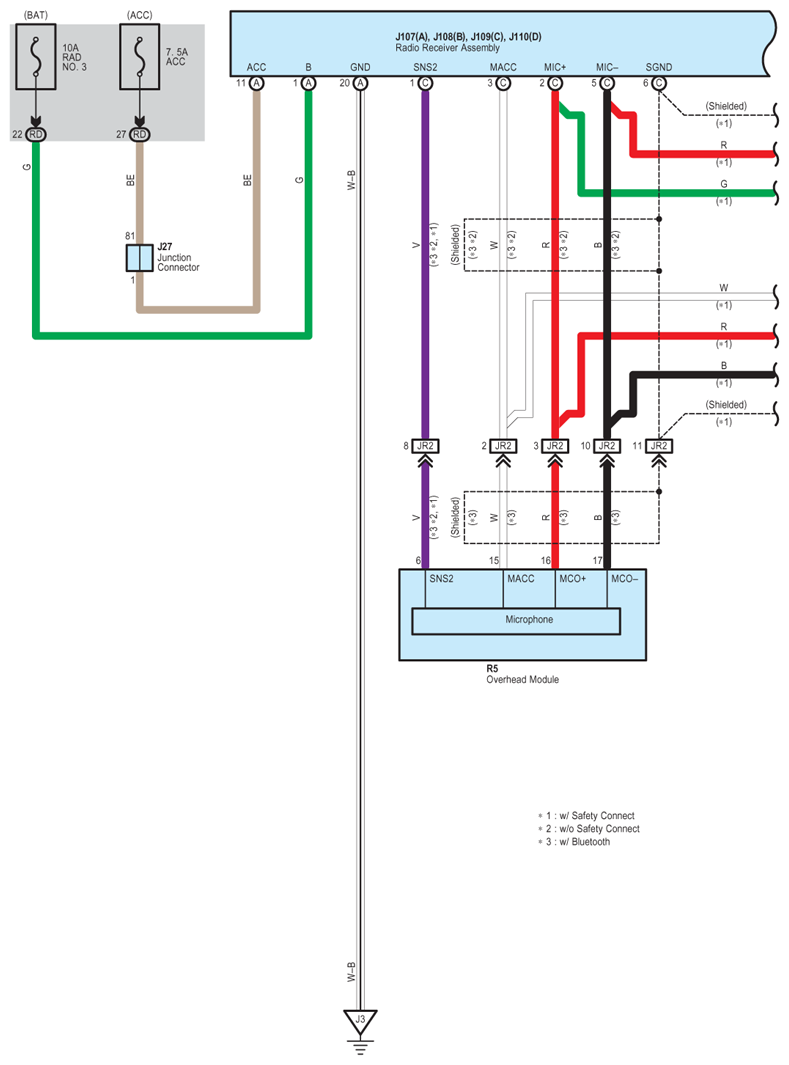

Fig 1: Audio System (W/O Lexus Navigation System) - Circuit Diagram (1 Of 9)
G07580214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

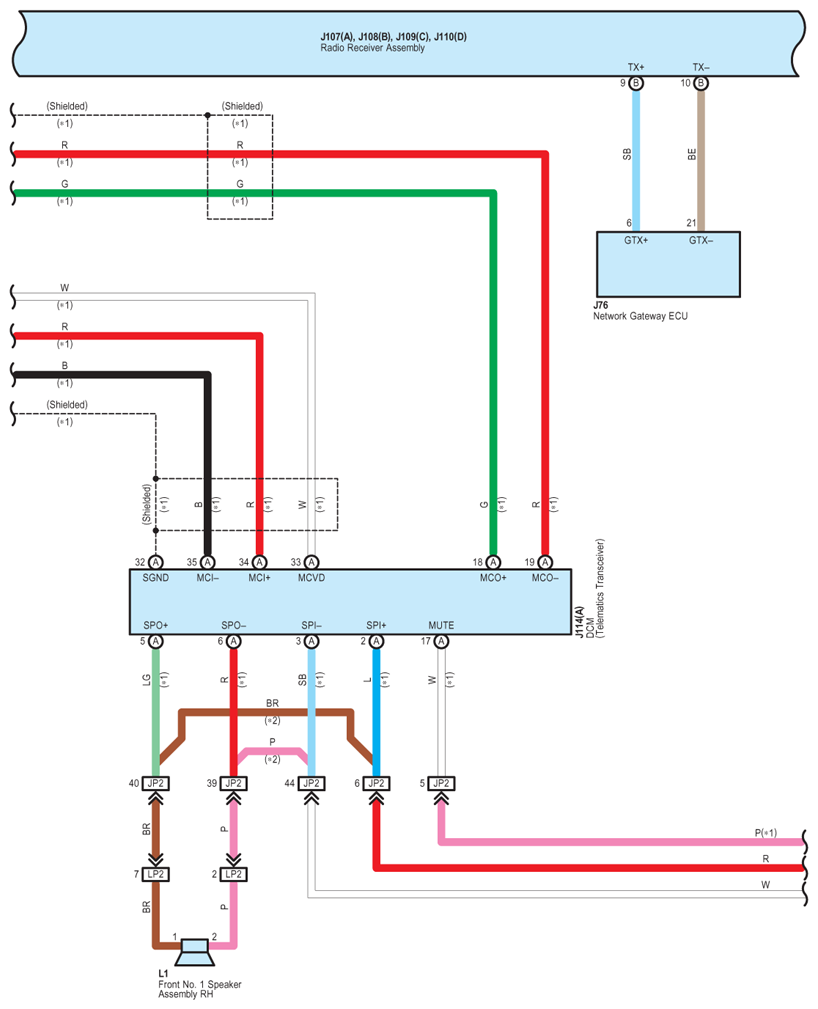

Fig 2: Audio System (W/O Lexus Navigation System) - Circuit Diagram (2 Of 9)
G07580215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

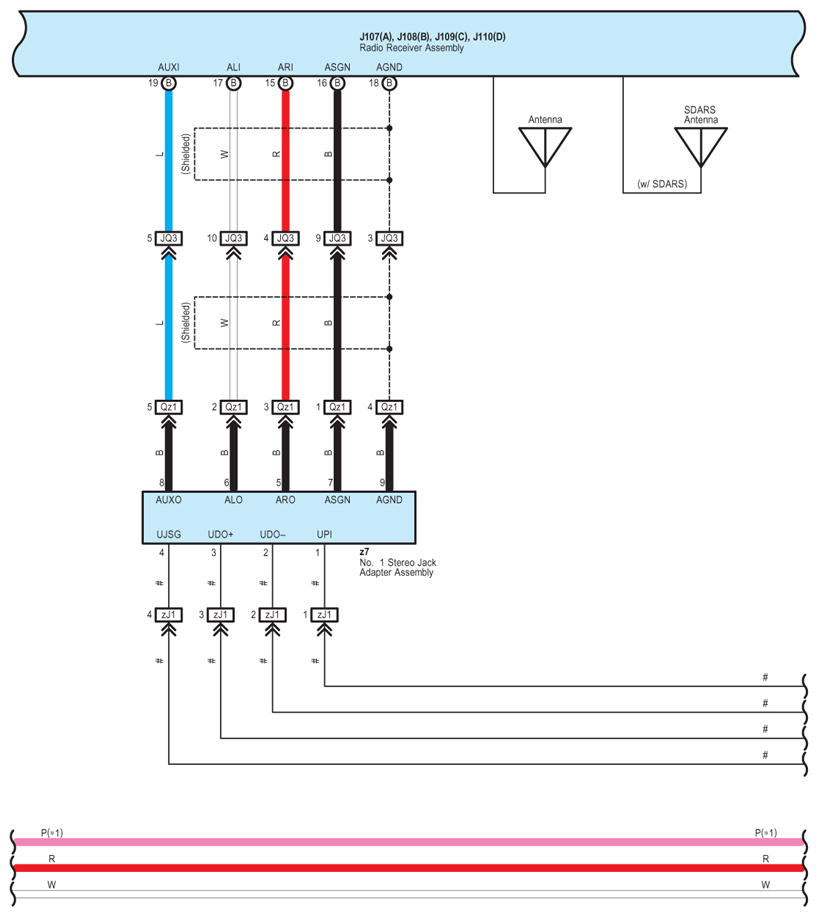

Fig 3: Audio System (W/O Lexus Navigation System) - Circuit Diagram (3 Of 9)
G07580216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

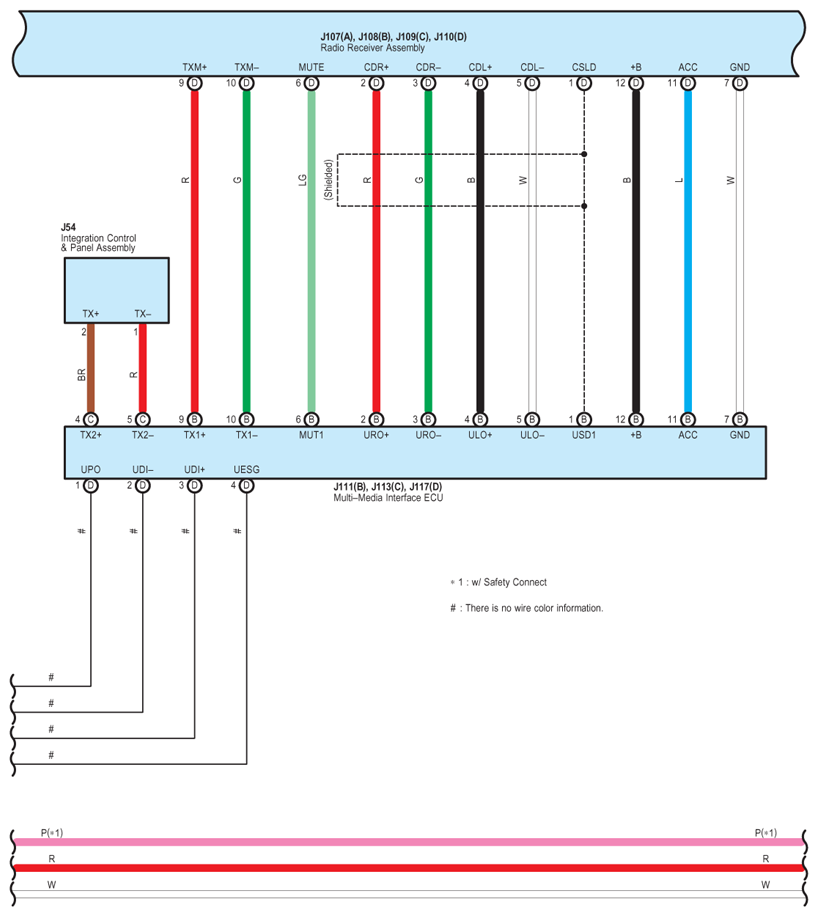

Fig 4: Audio System (W/O Lexus Navigation System) - Circuit Diagram (4 Of 9)
G07580217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

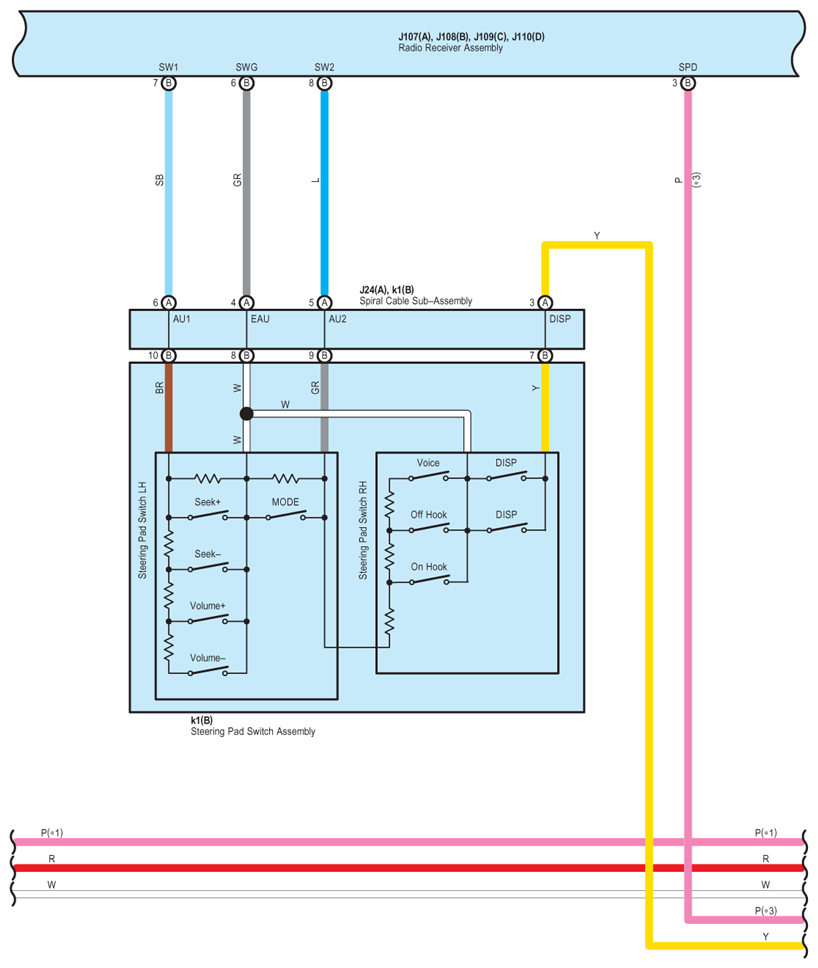

Fig 5: Audio System (W/O Lexus Navigation System) - Circuit Diagram (5 Of 9)
G07580218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

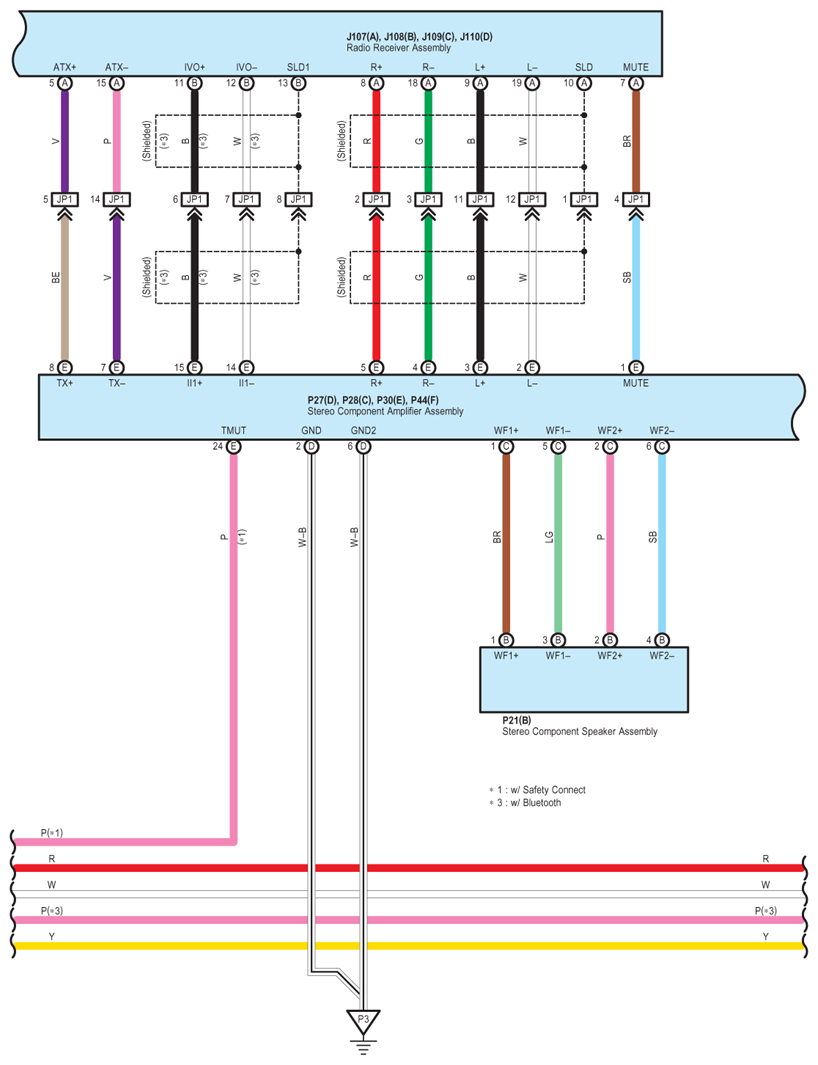

Fig 6: Audio System (W/O Lexus Navigation System) - Circuit Diagram (6 Of 9)
G07580219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

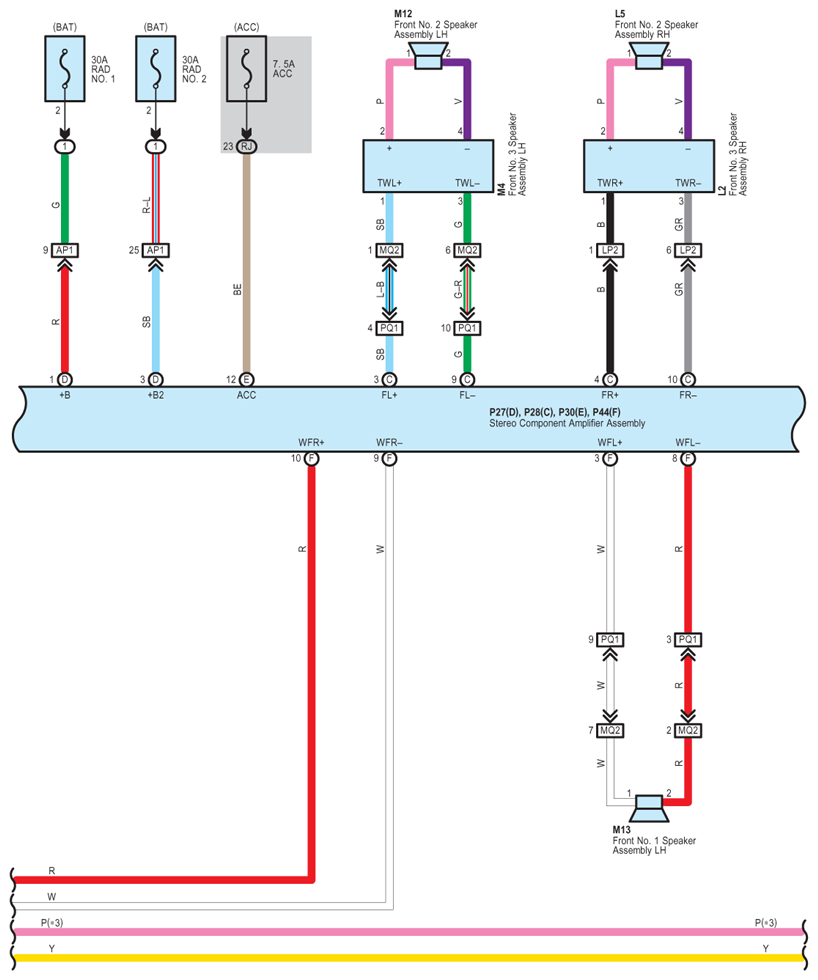

Fig 7: Audio System (W/O Lexus Navigation System) - Circuit Diagram (7 Of 9)
G07580220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

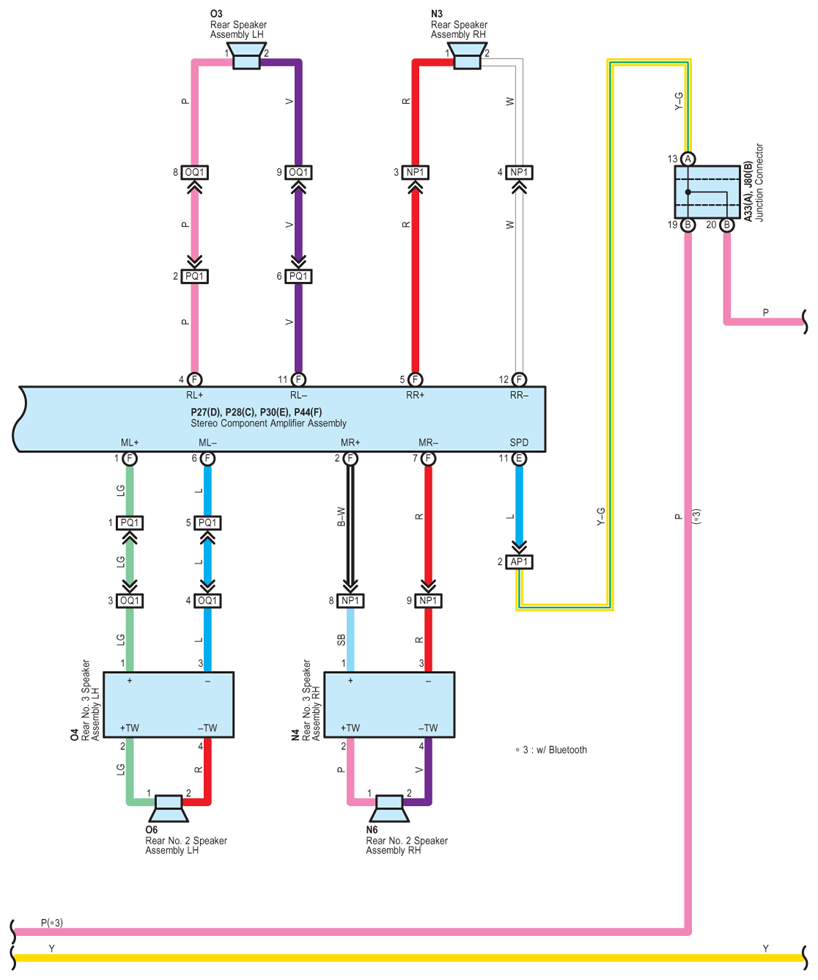

Fig 8: Audio System (W/O Lexus Navigation System) - Circuit Diagram (8 Of 9)
G07580221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

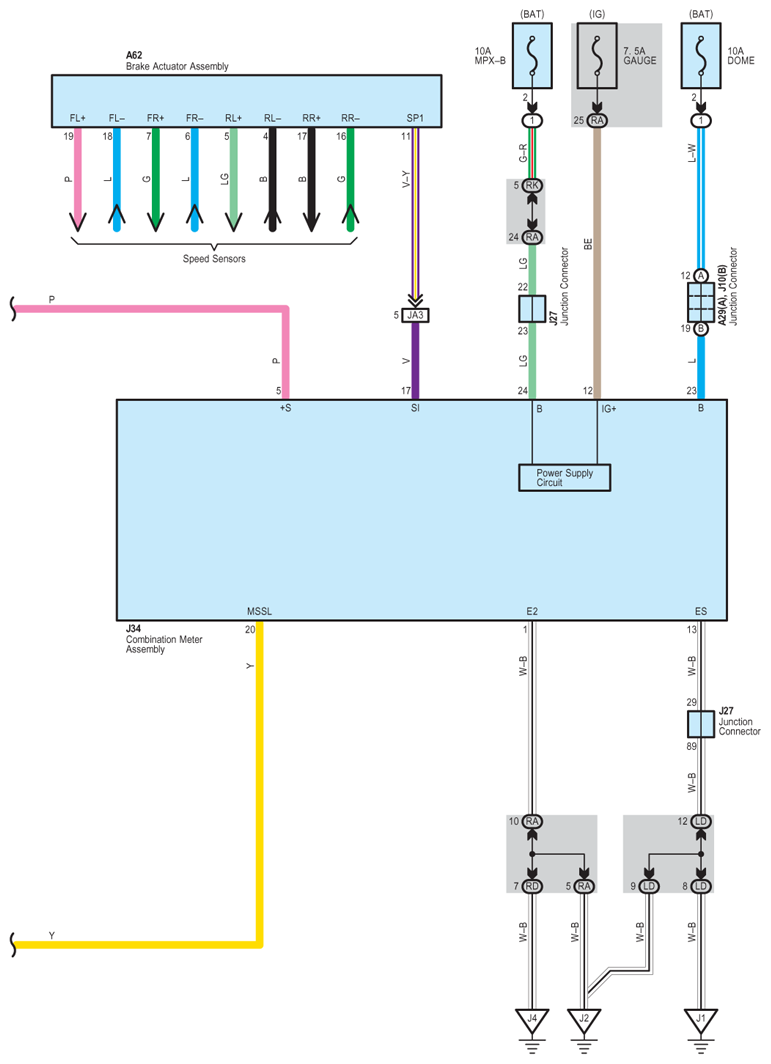

Fig 9: Audio System (W/O Lexus Navigation System) - Circuit Diagram (9 Of 9)
G07580222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
